GM AD244 Style High Output 220 Amp Alternator - Chrome
GM AD244 Style High Output 220 Amp Alternator - Chrome
SKU: SKU: ES1024C
In stock
Product Details
Features
- 220 amp charging output helps support upgraded electrical accessories and stable system voltage.
- Gm ad244 style case style supports compatible brackets, wiring, pulley alignment, and charging-system layouts.
- Application-focused fitment details help confirm mounting style, connector type, belt setup, and case clearance before installation.
- Built for reliable street performance, restoration, and custom vehicle applications.
Description
This AD-244 style alternator supports GM charging-system applications with 220 A charging output, a 12 VDC electrical system, and application-focused mounting details for reliable system operation.
Charging Output & System Support
The 220 A amperage rating helps support electric fans, lighting, ignition components, fuel pumps, audio equipment, and additional electrical accessories. The 12 VDC rating keeps it aligned with common automotive charging-system requirements. The AD-244 case family provides the charging-system layout used for compatible brackets, wiring, and mounting geometry. This makes it useful for street-driven builds, restorations, and upgraded accessory systems.
Pulley & Belt Alignment

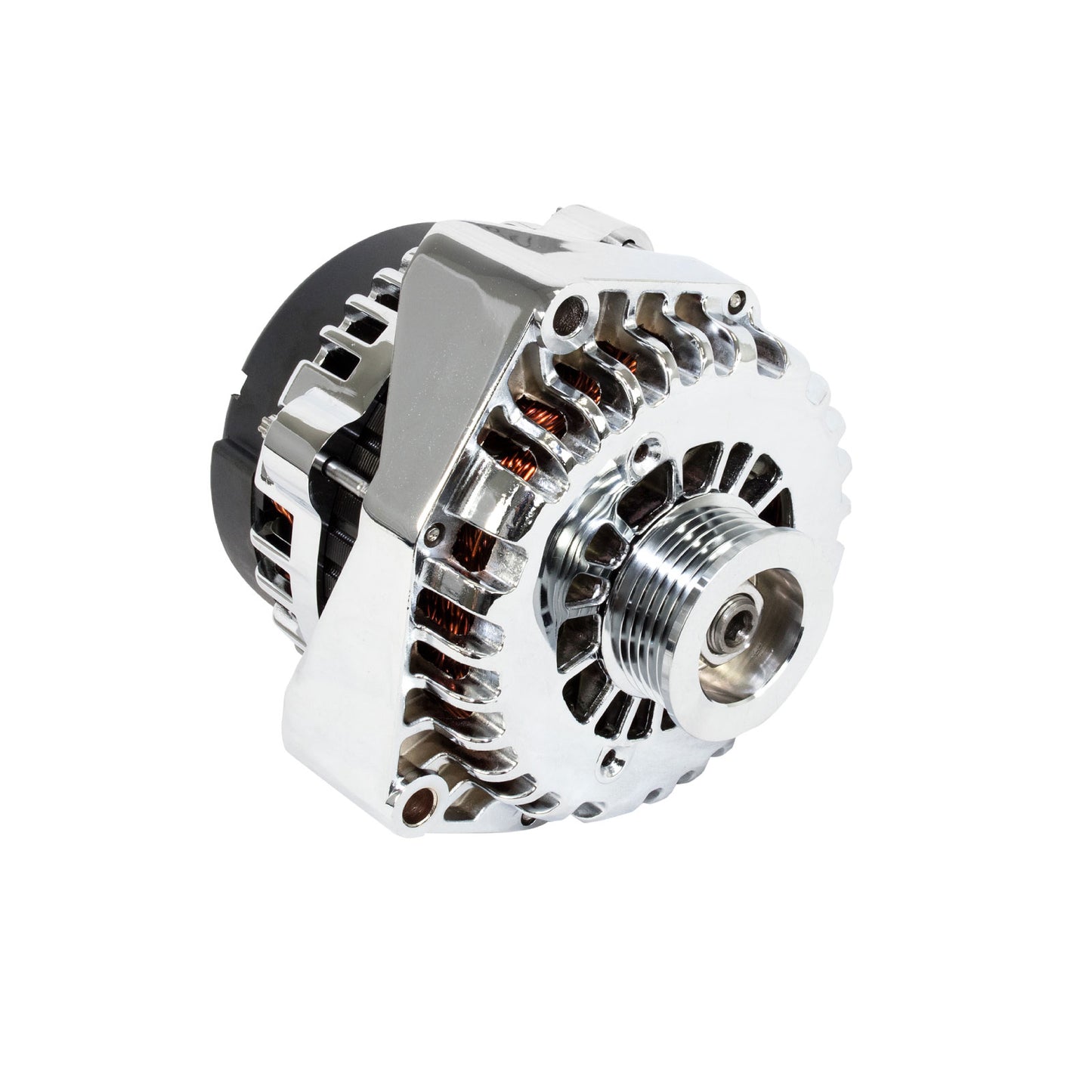

The Serpentine, 6-groove, 2.500 in. outside diameter pulley setup is intended to match the selected accessory drive arrangement. Verify belt type, pulley offset, and bracket position before installation.
Case Construction & Cooling

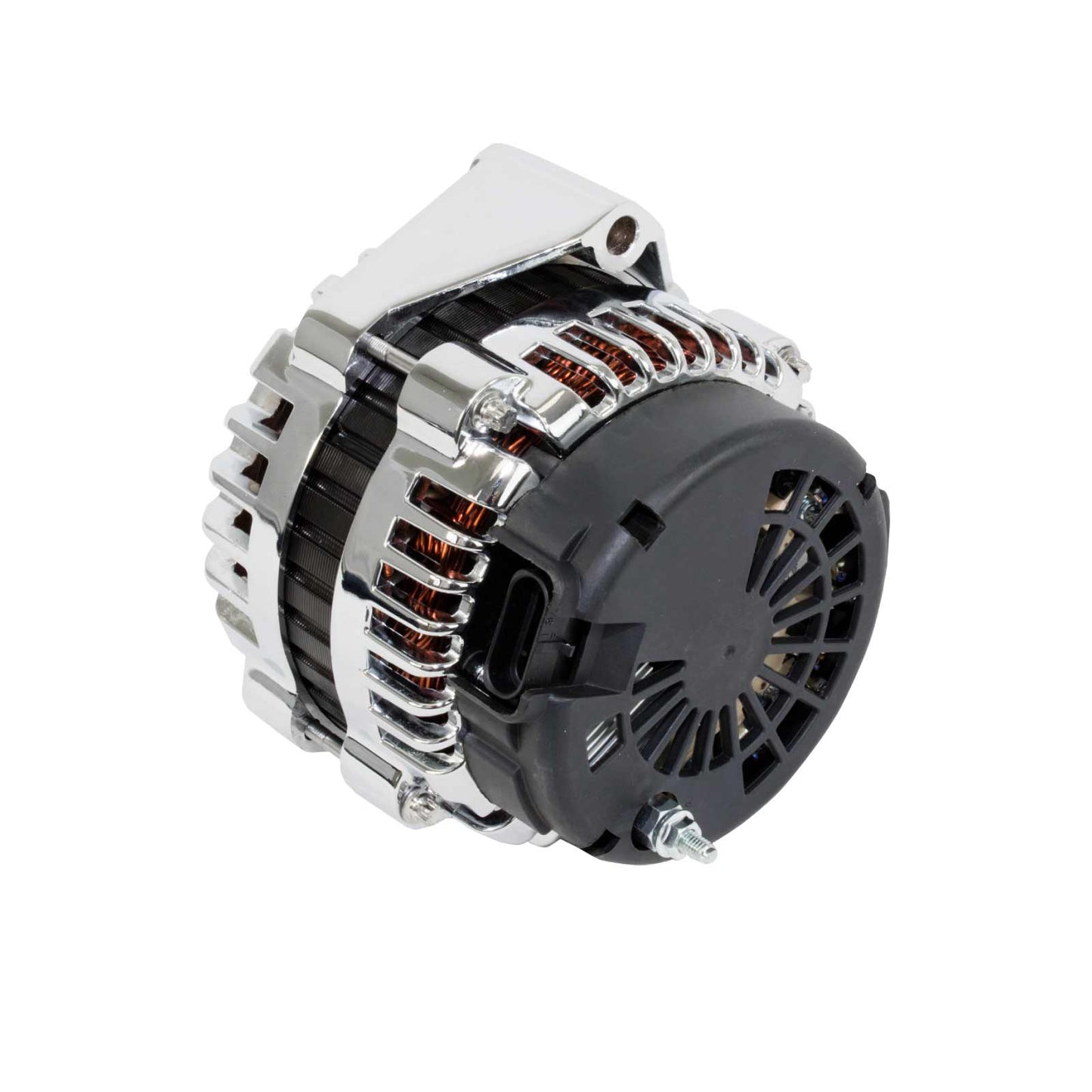

The aluminum case uses a chrome finish with a 17.900 in. case circumference to balance durability, serviceability, and underhood presentation. The external fan design helps support heat management during accessory load and engine-bay operation. External fan included: Yes.
Installation & System Matching

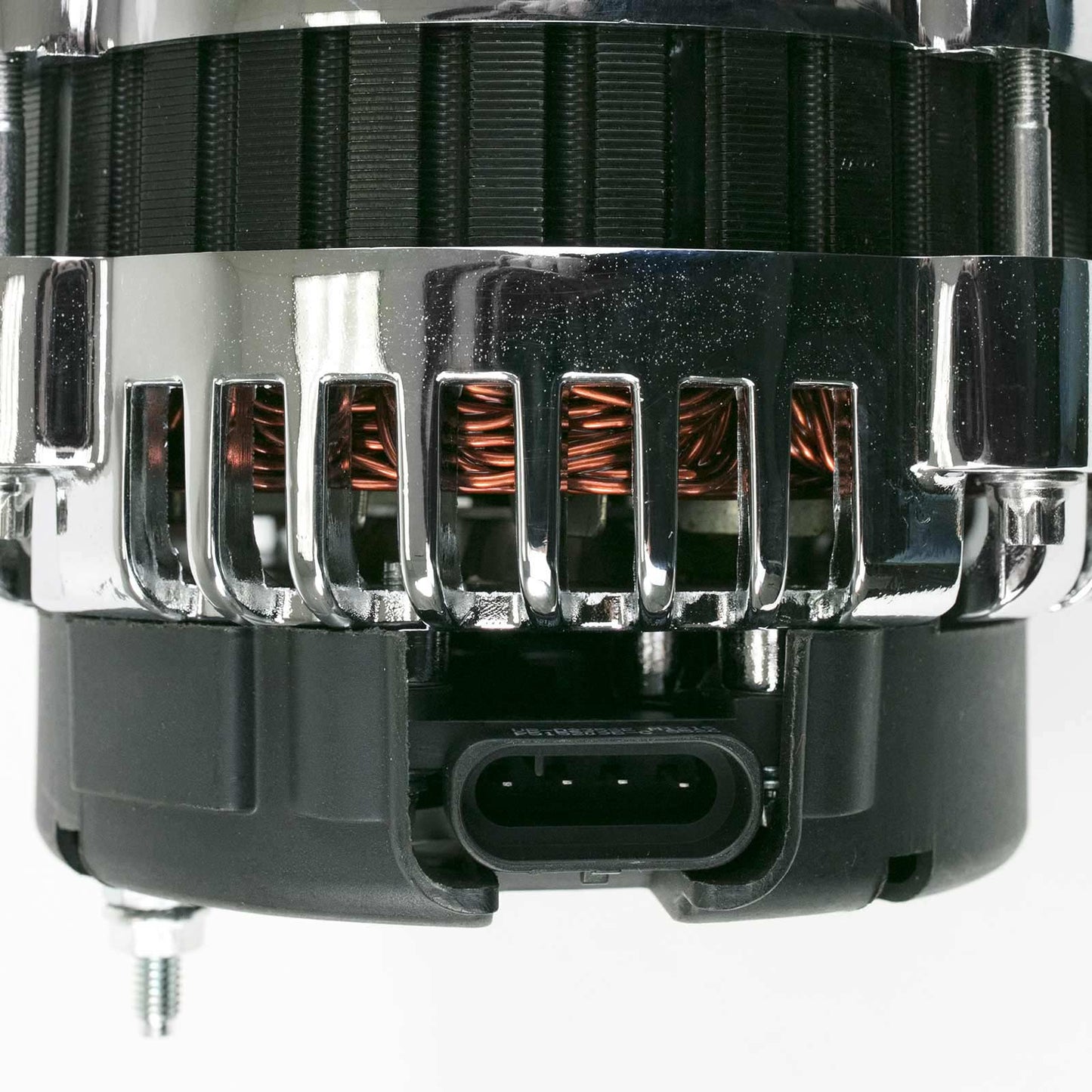

Mounting details include split mount configuration with 4.100 in. between mounting feet. Regulator type: Internal. External regulator included: No. One-wire capable: No. Plug type: 4-pin. Terminal quantity: 5. Ground type: Case ground. Rotation direction: Clockwise. Verify charge-wire size, connector style, pulley alignment, bracket spacing, and engine-bay clearance before installation.
Specs
| AC Service Tap | No |
| Amperage Rating | 220 A |
| Brushless | No |
| Case Circumference | 17.900 in. |
| Case Color | Silver |
| Case Material | Aluminum |
| Distance Between Mounting Feet | 4.100 in. |
| External Fan Included | Yes |
| External Regulator Included | No |
| Family | AD-244 |
| Fan Type | External |
| Finish | Chrome |
| Ground Type | Case ground |
| Mounting Type | Split Mount |
| One Wire Capable | No |
| Outside Pulley Diameter | 2.500 in. |
| Plug Clock Rear View Main Mounting Ear at 6 O Clock | 10 o'clock |
| Plug Type | 4-pin |
| Pulley Belt Type | Serpentine |
| Pulley Groove Quantity | 6 |
| Pulley Included | Yes |
| Regulator Type | Internal |
| Rotation Direction | Clockwise |
| Split Mounting Foot Overall Inner Spacing | 4.100 |
| Split Mounting Foot Overall Outside Spacing | 5.100 |
| Terminal Quantity | 5 |
| Voltage | 12 VDC |
Engine Fitment
COMPATIBLE WITH:
GM LS TRUCK ACCESSORY DRIVE SYSTEMS
GM AD244 style alternator commonly used on 1999–2006 GM LS truck applications.
Fits vehicles equipped with factory-style AD244 alternator brackets and 4-pin connectors.
Not all LS engines use this alternator — compatibility depends on accessory drive spacing (truck vs. car) and bracket configuration.
Designed for use with LS truck spacing or compatible aftermarket brackets.
Fitment must be verified based on bracket type, mounting points, electrical connector, and pulley alignment.
COMMON VEHICLE APPLICATIONS:
1999-2006 GM truck, van, and SUV applications; Chevrolet Silverado; Chevrolet Tahoe; Chevrolet Suburban; Chevrolet Avalanche; GMC Sierra; GMC Yukon; Cadillac Escalade; compatible GM LS Series truck accessory-drive systems.
NOTES:
Verify AD244 case style, 4-pin connector, mounting points, pulley alignment, and truck accessory-drive compatibility before ordering. LS/LT fitment is listed by engine family rather than engine code.
Q&A
What applications is this alternator compatible with?
This alternator is designed for compatible applications including CHEVROLET BIG BLOCK V8 GEN. VII, CHEVROLET SMALL BLOCK V8 GEN. I, CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS-Based), DMAX DURAMAX DIESEL V8, GM DIESEL V8, and GM 90° V6.
Will this alternator fit GM LS applications?
Yes, this alternator is designed for compatible GM LS-based applications listed in the fitment details.
Is this alternator a good upgrade over a stock charging system?
Yes, this alternator is a strong upgrade for compatible applications that need reliable charging performance and support for modern electrical demands.
What voltage system is this alternator designed for?
This alternator is built for a 12 vdc charging system.
What type of regulator does this alternator use?
This alternator uses a internal regulator setup, which helps control charging output for the intended application.
Is this alternator easy to wire into a compatible vehicle?
Wiring should always be matched to the intended application, but this alternator is designed for straightforward installation on compatible setups.
Does alternator rotation matter for installation?
Yes, rotation matters for belt-driven accessories, so the alternator should be matched to the correct belt routing and engine setup.
Do I need to verify pulley compatibility before installation?
Yes, pulley style and belt alignment should always be confirmed against your bracket and belt setup before installation.
Does alternator cooling matter on high-demand applications?
Yes, proper alternator cooling is important when electrical demand is higher, especially on performance builds with added accessories.
Should I check bracket and clearance before installation?
Yes, bracket style, case position, and wiring clearance should always be confirmed before installation.
Is mounting style important when choosing an alternator?
Yes, mounting style is critical because the alternator must match the bracket system used on the engine or vehicle.
What is this alternator made from?
It uses a aluminum case, helping support durability and dependable charging performance.
Will this alternator help support added electrical accessories?
Yes, a higher-output alternator can help support added electrical loads such as fans, fuel pumps, ignition upgrades, and lighting when matched to the correct application.
Is this a good upgrade from a stock alternator?
Yes, this alternator is a strong upgrade for compatible applications that need improved charging reliability, support for accessories, and performance-oriented fit and finish.
Does the chrome finish affect performance?
No, the chrome finish is cosmetic and does not change the alternator's performance—it gives it a brighter show-quality appearance.
How do I maintain the chrome finish?
Routine cleaning with non-abrasive products will help keep the chrome finish looking its best over time.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
My old oem alternator gave out on me. Saw this high output alternator tht gives more power and gives my engine bay a better look purchased it and got it within a week. As soon as i installed my truck turned on and keeps my voltage at almost 16v even with the sound system i have the voltage doesnt drop much
