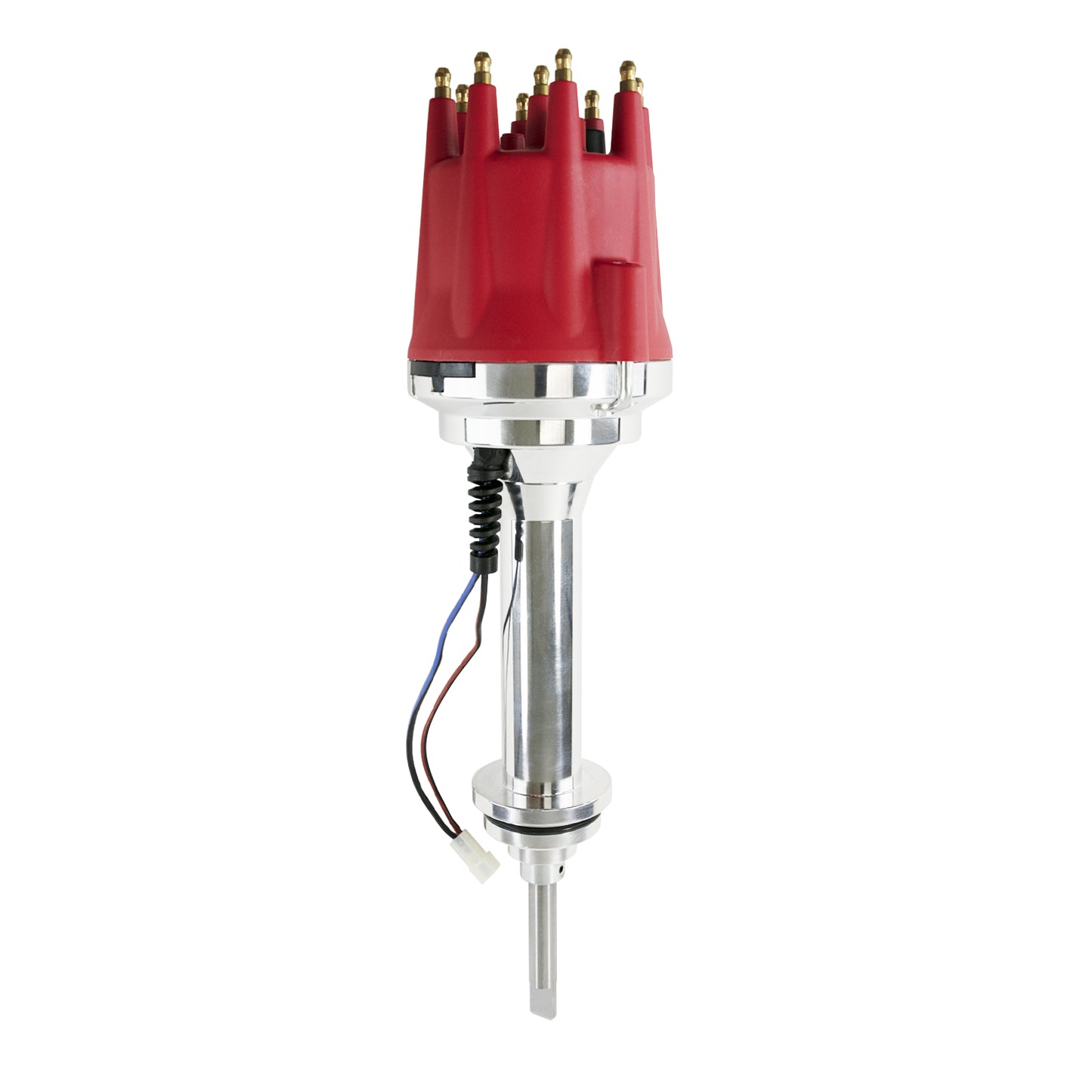

Chrysler BB 413-440 V8 Pro Series Pro Billet Distributor - Red
Chrysler BB 413-440 V8 Pro Series Pro Billet Distributor - Red
SKU: SKU: JM7614R
In stock
Product Downloads



Product Details
Features
- Fits Chrysler big block "RB" V8 (413-440) and Hemi 426
- Fully adjustable mechanical advance with additional springs and bushings included
Description
TSP’s Pro Series Pro Billet Distributor is for the racer who needs added spark and precision for their high performance power plant. It features a high quality, fully adjustable mechanical advance and an accurate magnetic pick-up trigger. The CNC-machined aluminum body and hardened steel shaft, guided by a sealed ball bearing on top and a sintered steel bushing on the bottom, ensure stability up to 10,000 RPM. The distributor can be locked out and features solid brass terminals and a color-matched wire retainer.
This distributor is designed for a 12 volt electrical system with an alternator. It is not compatible with a generator and cannot be used with a ballast resistor. Requires the use of an ignition control system and external ignition coil.
Specs
Trigger Type | Magnetic |
Advance Type | Mechanical |
Cap Color | Available in Black or Red |
Terminal Gender | Male |
Mechanical Tach Drive | No |
Slip Collar | No |
Coil Included | No |
Coil Type | External |
Coil Output | 35,000+ V |
Housing Material | Machined Aluminum |
Ignition Box Required | Yes |
Marine Use | No |
Cylinders | 8 |

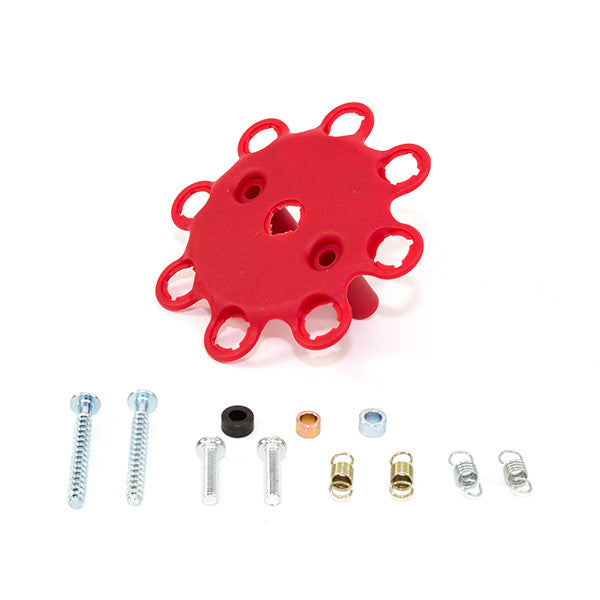

3 Bushings And 4 Springs For Mechanical Advance | Included |
Color-Matched Spark Plug Wire Retainer With Screws | Included |
Fitment
CHRYSLER BIG BLOCK "RB" V8
• 6.8 L / 413 in3
• 7.0 L / 426 in3 commonly referred to as "426 Wedge"
• 7.2 L / 440 in3
CHRYSLER HEMI V8 GEN. II
• 426 in3
NOTE: Due to cap and housing diameter, may not fit with some fabricated valve covers
Emissions Notice
This Top Street Performance (TSP) product is designed for racing and off-road competition use only. It is not legal for use on public roads or emissions-controlled vehicles and does not comply with federal, state, or local emissions regulations. The buyer assumes all responsibility for legal use and installation.
What is a Emissions-Controlled Vehicle?
"An emissions-controlled vehicle is any vehicle equipped with a factory-installed emissions control system designed to reduce air pollution. These systems include catalytic converters, oxygen sensors, EGR (Exhaust Gas Recirculation) valves, and diesel particulate filters (DPF). Most vehicles manufactured after 1975 are considered emissions-controlled and must comply with federal and state emissions laws when used on public roads."
