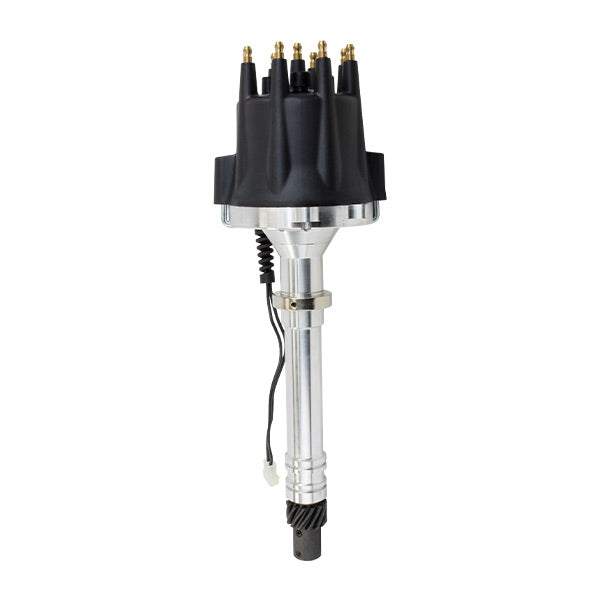

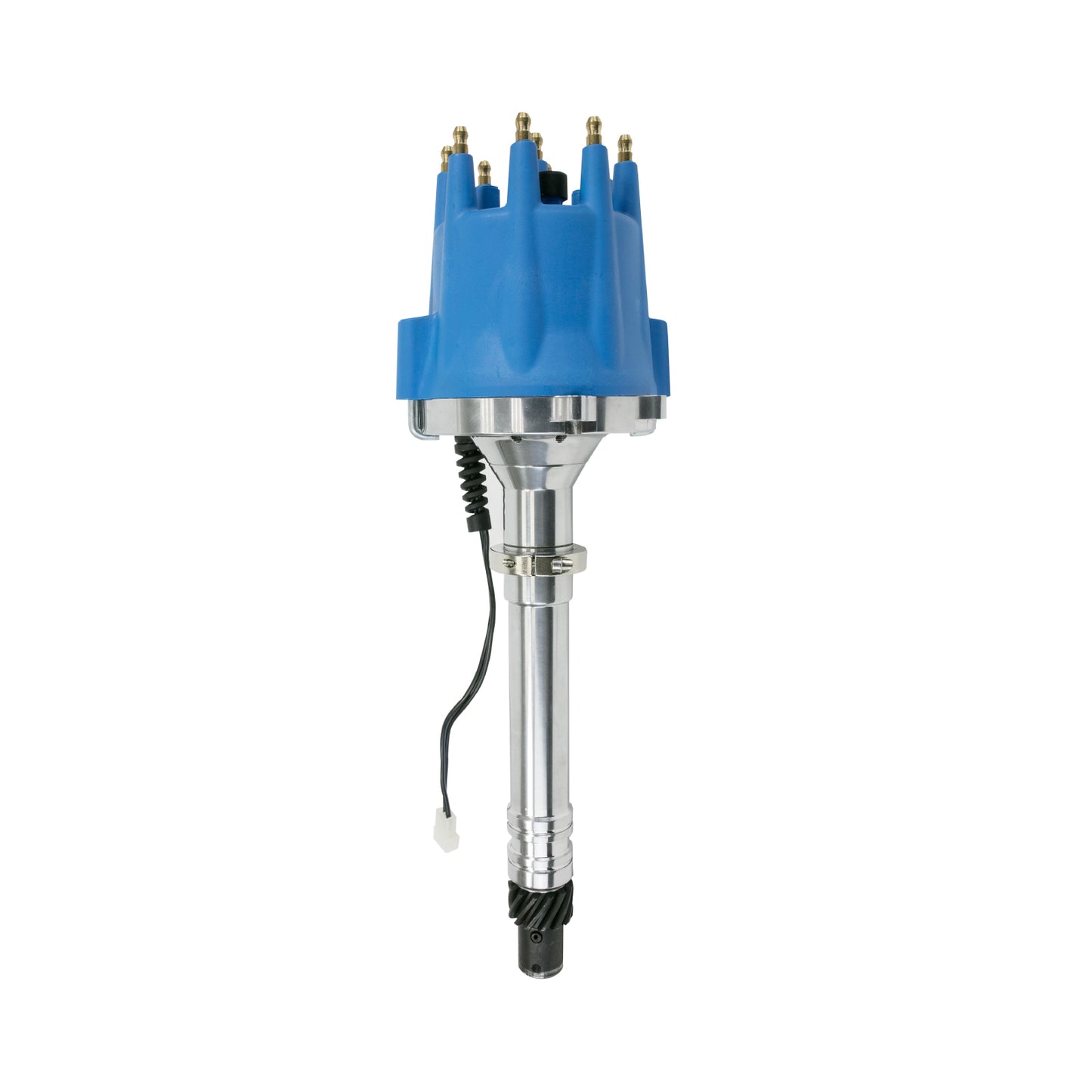

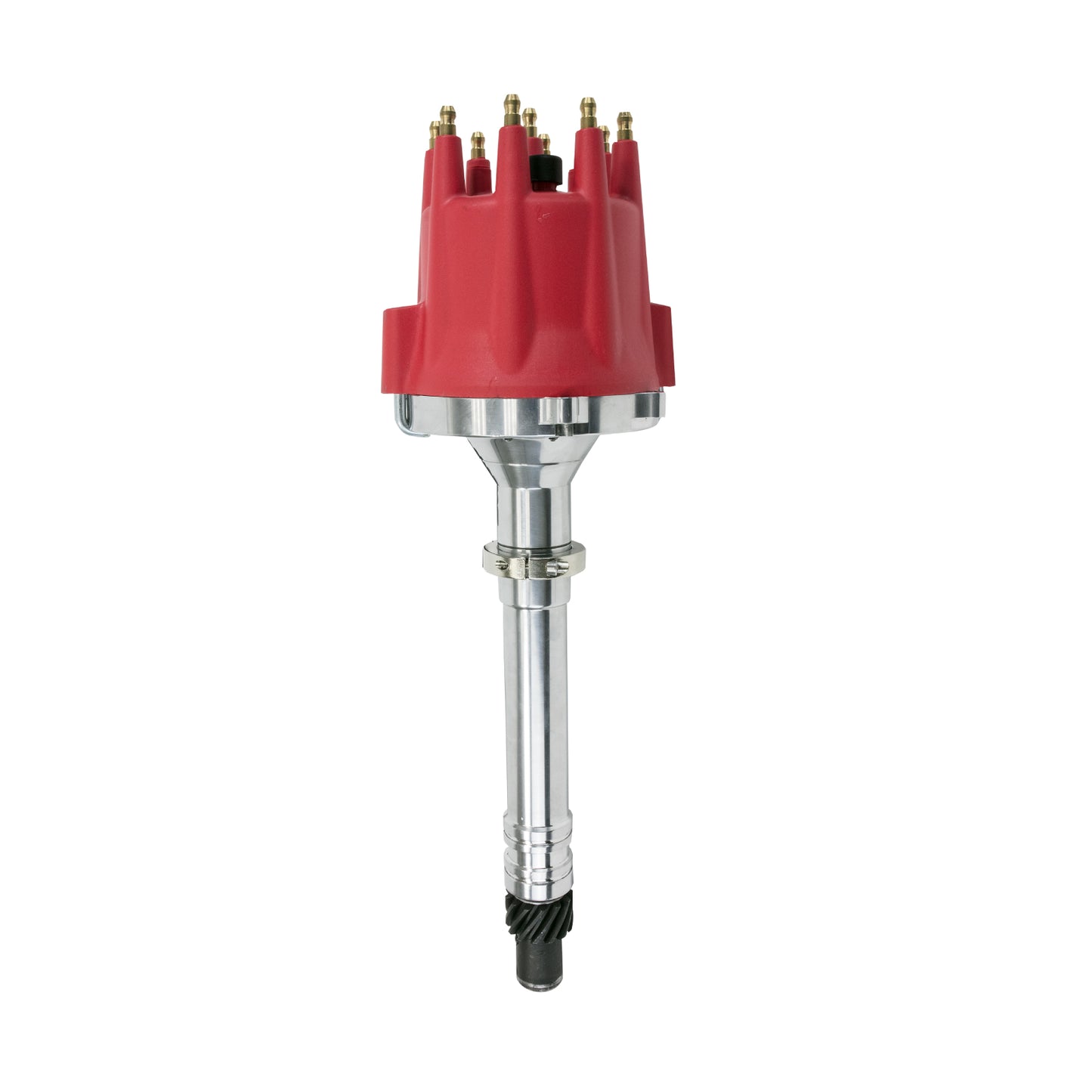

Chevy SB/BB V8 Pro Series Pro Billet Distributor
Chevy SB/BB V8 Pro Series Pro Billet Distributor
SKU: SKU: JM7601R
In stock
Product Downloads
Product Details
Features
- Compatible with small block 262-400 and big block Mark IV 396-454
- Fully adjustable mechanical advance with additional springs and bushings included
Description
TSP Pro Series Pro Billet Distributor is for the racer who needs added spark and precision for their high performance power plant. It features a high quality, fully adjustable mechanical advance and an accurate magnetic pickup trigger. The CNC-machined aluminum body and hardened steel shaft, guided by a sealed ball bearing on top and a sintered steel bushing on the bottom, ensure stability up to 10,000 RPM. The dielectric cap features bolt-down and twist-lock capabilities. It has solid brass terminals and comes with a color-matched wire retainer.
Specs
| Advance Adjustable | Yes |
| Advance Type | Centrifugal (Mechanical) |
| Cap Color | Available in Black, Blue, Red |
| Terminal Gender | Pro Series |
| Centrifugal Advance Adjustment Hardware Included | Yes |
| Coil Type | External |
| Coil Output | 35,000+ V |
| Coil Wire Included | No |
| Distributor Cap Included | Yes |
| Gear Material | Hardened Steel |
| Grade Type | Performance |
| Housing Material | Aluminum |
| Ignition Box Required | Yes |
| Ignition Coil Included | No |
| Ignition Rotor Included | Yes |
| Marine Approved | No |
| Mechanical Tachometer Drive | No |
| Rotor Rotation | Clockwise |
| Shaft Material | Steel |
| Slip Collar | Yes |
| Terminal Gender | Male |
| Terminal Material | Brass |
| Terminal Quantity | 8 |
| Trigger Type | Magnetic Pick-Up |
| 3 Bushings and 4 Springs for Mechanical Advance | Included |
| Color-Matched Spark Plug Wire Retainer with Screws | Included |
Engine Fitment
COMPATIBLE WITH
CHEVROLET BIG BLOCK V8 GEN. II
• 6.5 L / 396 in3
• 6.6 L / 402 in3
• 7.4 L / 454 in3
CHEVROLET SMALL BLOCK V8 GEN. I
• 4.3 L / 262 in3
• 4.3 L / 265 in3
• 4.4 L / 267 in3
• 4.6 L / 283 in3
• 4.9 L / 302 in3
• 5.0 L / 305 in3
• 5.0 L / 307 in3
• 5.4 L / 327 in3
• 5.7 L / 350 in3
• 6.6 L / 400 in3
Note: Will not fit tall deck blocks.
Will not fit if using a governor.
Q&A
What applications is this distributor compatible with?
This distributor is designed for COMPATIBLE WITH, CHEVROLET BIG BLOCK V8 GEN. II, 6.5 L / 396 in3, 6.6 L / 402 in3, 7.4 L / 454 in3, CHEVROLET SMALL BLOCK V8 GEN. I, 4.3 L / 262 in3, 4.3 L / 265 in3, 4.4 L / 267 in3, 4.6 L / 283 in3, 4.9 L / 302 in3, 5.0 L / 305 in3, 5.0 L / 307 in3, 5.4 L / 327 in3, 5.7 L / 350 in3, 6.6 L / 400 in3, Note: Will not fit tall deck blocks., Will not fit if using a governor..
Will this distributor fit my engine?
This distributor is intended for Chevy/GM applications and should match your engine type and ignition system.
What does a distributor do?
A distributor routes high-voltage electricity from the ignition system to each cylinder at the correct time.
What type of advance does this distributor use?
This distributor uses centrifugal (mechanical) advance, which affects ignition timing performance.
What type of distributor gear is included?
This distributor includes a hardened steel gear, which should be matched to your camshaft material.
Will this distributor improve ignition performance?
Yes, a performance distributor can improve spark delivery and engine efficiency.
Is this a good upgrade over a stock distributor?
Yes, aftermarket distributors can provide improved reliability and performance over stock units.
Do I need to set timing after installing this distributor?
Yes, ignition timing should be properly set after installation for optimal performance.
Can this distributor be used in performance builds?
Yes, distributors are commonly used in performance and custom engine builds.
Emissions Notice
This Top Street Performance (TSP) product is designed for racing and off-road competition use only. It is not legal for use on public roads or emissions-controlled vehicles and does not comply with federal, state, or local emissions regulations. The buyer assumes all responsibility for legal use and installation.
What is a Emissions-Controlled Vehicle?
"An emissions-controlled vehicle is any vehicle equipped with a factory-installed emissions control system designed to reduce air pollution. These systems include catalytic converters, oxygen sensors, EGR (Exhaust Gas Recirculation) valves, and diesel particulate filters (DPF). Most vehicles manufactured after 1975 are considered emissions-controlled and must comply with federal and state emissions laws when used on public roads."
Chevy SB/BB V8 Pro Series Pro Billet Distributor
TSP Pro Series Pro Billet Distributor is for the racer who needs added spark and precision for their high performance power plant. It features a high quality, fully adjustable mechanical advance and an accurate magnetic pickup trigger. The CNC-machined aluminum body and hardened steel shaft, guided by a sealed ball bearing on top and a sintered steel bushing on the bottom, ensure stability up to 10,000 RPM. The dielectric cap features bolt-down and twist-lock capabilities. It has solid brass terminals and comes with a color-matched wire retainer.
COMPATIBLE WITH
CHEVROLET BIG BLOCK V8 GEN. II
• 6.5 L / 396 in3
• 6.6 L / 402 in3
• 7.4 L / 454 in3
CHEVROLET SMALL BLOCK V8 GEN. I
• 4.3 L / 262 in3
• 4.3 L / 265 in3
• 4.4 L / 267 in3
• 4.6 L / 283 in3
• 4.9 L / 302 in3
• 5.0 L / 305 in3
• 5.0 L / 307 in3
• 5.4 L / 327 in3
• 5.7 L / 350 in3
• 6.6 L / 400 in3
Note: Will not fit tall deck blocks.
Will not fit if using a governor.
Advance Adjustable: Yes
Advance Type: Centrifugal (Mechanical)
Cap Color: Available in Black, Blue, Red
Terminal Gender: Pro Series
Centrifugal Advance Adjustment Hardware Included: Yes
Coil Type: External
Coil Output: 35,000+ V
Coil Wire Included: No
Distributor Cap Included: Yes
Gear Material: Hardened Steel
Grade Type: Performance
Housing Material: Aluminum
Ignition Box Required: Yes
Ignition Coil Included: No
Ignition Rotor Included: Yes
Marine Approved: No
Mechanical Tachometer Drive: No
Rotor Rotation: Clockwise
Shaft Material: Steel
Slip Collar: Yes
Terminal Gender: Male
Terminal Material: Brass
Terminal Quantity: 8
Trigger Type: Magnetic Pick-Up
3 Bushings and 4 Springs for Mechanical Advance: Included
Color-Matched Spark Plug Wire Retainer with Screws: Included
