Volkswagen Type I Air-Cooled L4 Pro Series Ready to Run Distributor - Black
Volkswagen Type I Air-Cooled L4 Pro Series Ready to Run Distributor - Black
SKU: SKU: JM7750BK
In stock
Product Downloads
Product Details
Features
- Fits VW air-cooled 1.2L - 1.6L engines
- Internal module means no external ignition box required
- Fully adjustable mechanical advance with additional springs and bushings included
Description

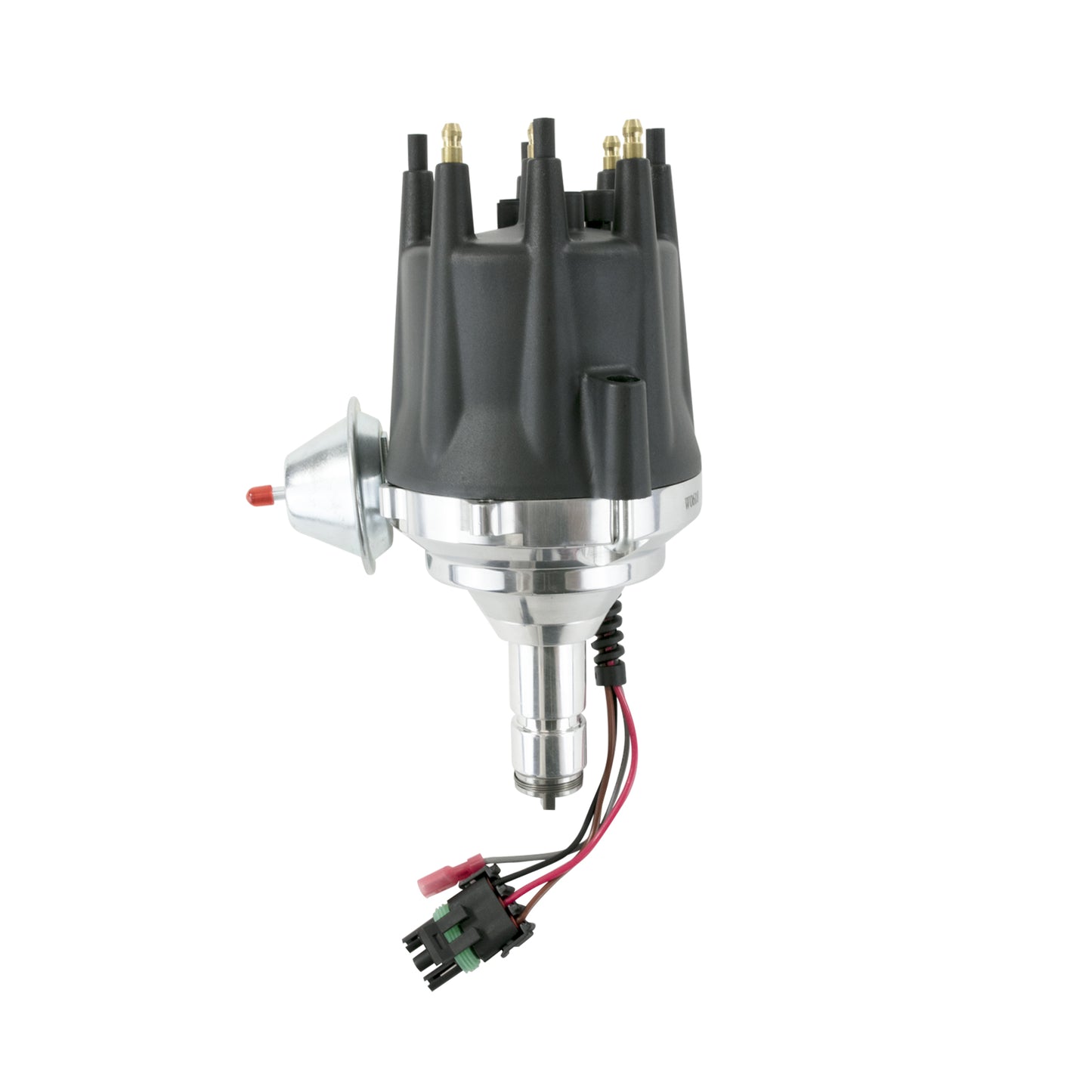

TSP's Pro Series Ready to Run Distributor is perfect for a street performance ignition upgrade and eliminates the need to a CDI box. It features a CNC-machined billet aluminum body and hardened steel shaft, with a sealed ball bearing on top and a sintered steel bushing on the bottom. It also comes with a fully adjustable mechanical advance, vacuum advance, magnetic pickup trigger, and a high-output circuit board module with digital tach output. The dielectric cap comes with solid brass terminals.
Specs
| Trigger Type | Circuit Board Module with Magnetic Pick-Up |
| Distributor Rotation | Clockwise |
| Advance Type | Mechanical and Vacuum |
| Cap Color | Available in Black or Red |
| Terminal Gender | Male |
| Mechanical Tach Drive | No |
| Slip Collar | No |
| Coil Included | No |
| Coil Type | External |
| Required Coil Output | 35,000+ V |
| Gear Material | Steel |
| Housing Material | Machined Aluminum |
| Ignition Box Required | No |
| Marine Use | No |
| Cylinders | 4 |

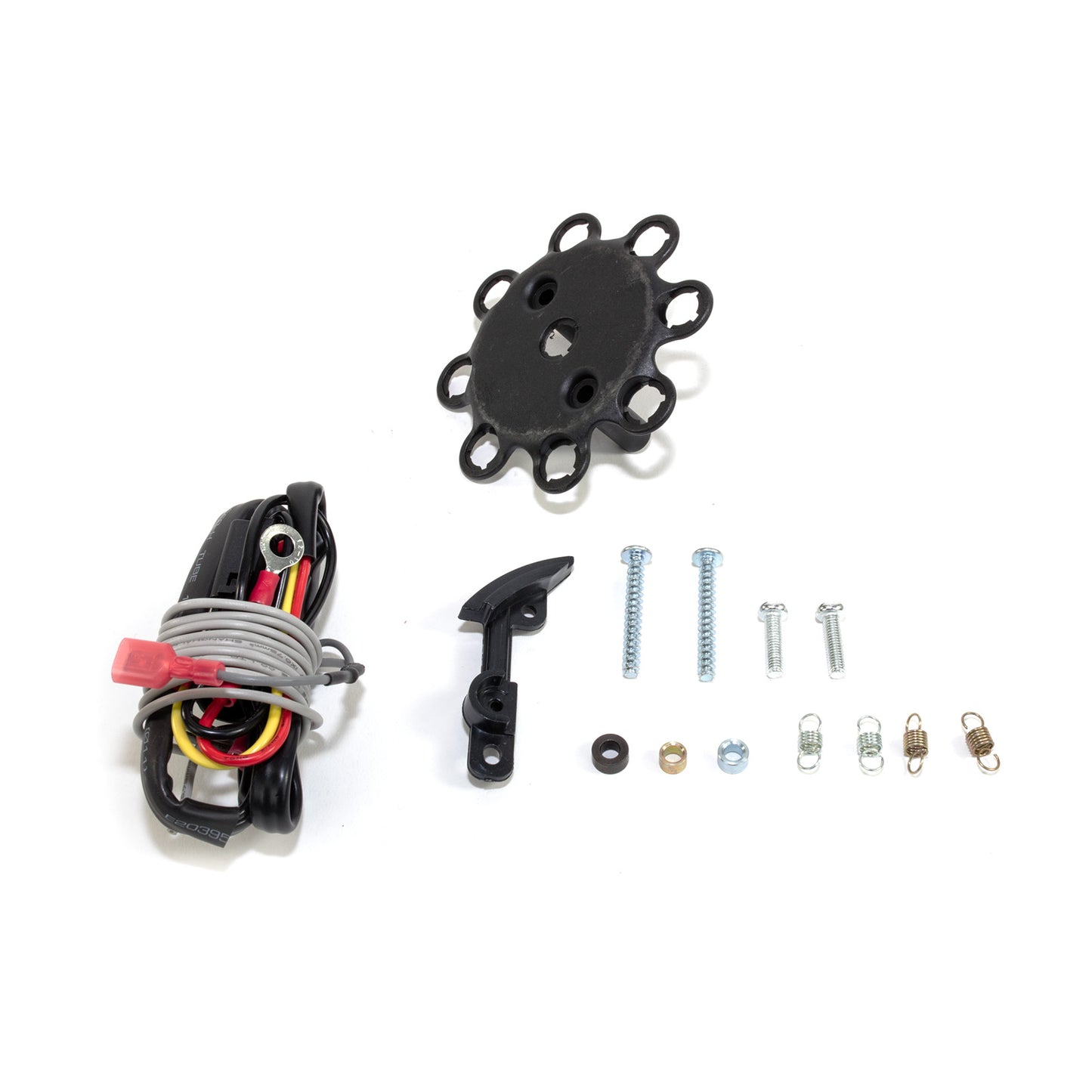

| 3 Bushings and 4 Springs for Mechanical Advance | Included |
| Color-Matched Spark Plug Wire Retainer with Screws | Included |
| Vacuum Advance Block-Off Plate (Black) | Included |
| Power Extension Cable | Included |
| Tachometer Output Extension Cable | Included |
Fitment
VOLKSWAGEN AIR-COOLED FLAT 4
• 1.2 L / 1,192cc
• 1.3 L / 1,285cc
• 1.5 L / 1,457cc
• 1.6 L / 1,584cc
Emissions Notice
This Top Street Performance (TSP) product is designed for racing and off-road competition use only. It is not legal for use on public roads or emissions-controlled vehicles and does not comply with federal, state, or local emissions regulations. The buyer assumes all responsibility for legal use and installation.
What is a Emissions-Controlled Vehicle?
"An emissions-controlled vehicle is any vehicle equipped with a factory-installed emissions control system designed to reduce air pollution. These systems include catalytic converters, oxygen sensors, EGR (Exhaust Gas Recirculation) valves, and diesel particulate filters (DPF). Most vehicles manufactured after 1975 are considered emissions-controlled and must comply with federal and state emissions laws when used on public roads."
Volkswagen Type I Air-Cooled L4 Pro Series Ready to Run Distributor - Black
Volkswagen Type I Air-Cooled L4 Pro Series Ready to Run Distributor - Black
TSP's Pro Series Ready to Run Distributor is perfect for a street performance ignition upgrade and eliminates the need to a CDI box. It features a CNC-machined billet aluminum body and hardened steel shaft, with a sealed ball bearing on top and a sintered steel bushing on the bottom. It also comes with a fully adjustable mechanical advance, vacuum advance, magnetic pickup trigger, and a high-output circuit board module with digital tach output. The dielectric cap comes with solid brass terminals.
FITMENT:
VOLKSWAGEN AIR-COOLED FLAT 4
• 1.2 L / 1,192cc
• 1.3 L / 1,285cc
• 1.5 L / 1,457cc
• 1.6 L / 1,584cc
| Trigger Type | Circuit Board Module with Magnetic Pick-Up |
| Distributor Rotation | Clockwise |
| Advance Type | Mechanical and Vacuum |
| Cap Color | Available in Black or Red |
| Terminal Gender | Male |
| Mechanical Tach Drive | No |
| Slip Collar | No |
| Coil Included | No |
| Coil Type | External |
| Required Coil Output | 35,000+ V |
| Gear Material | Steel |
| Housing Material | Machined Aluminum |
| Ignition Box Required | No |
| Marine Use | No |
| Cylinders | 4 |
| 3 Bushings and 4 Springs for Mechanical Advance | Included |
| Color-Matched Spark Plug Wire Retainer with Screws | Included |
| Vacuum Advance Block-Off Plate (Black) | Included |
| Power Extension Cable | Included |
| Tachometer Output Extension Cable | Included |
