V Series GM LS Serpentine Front Drive System Brackets, Pulleys, and Belt Tensioner - Polished
V Series GM LS Serpentine Front Drive System Brackets, Pulleys, and Belt Tensioner - Polished
SKU: SKU: 81205-2P
In stock
Product Details
Features
- Fits GM LS1, LS2, and LS6 engines

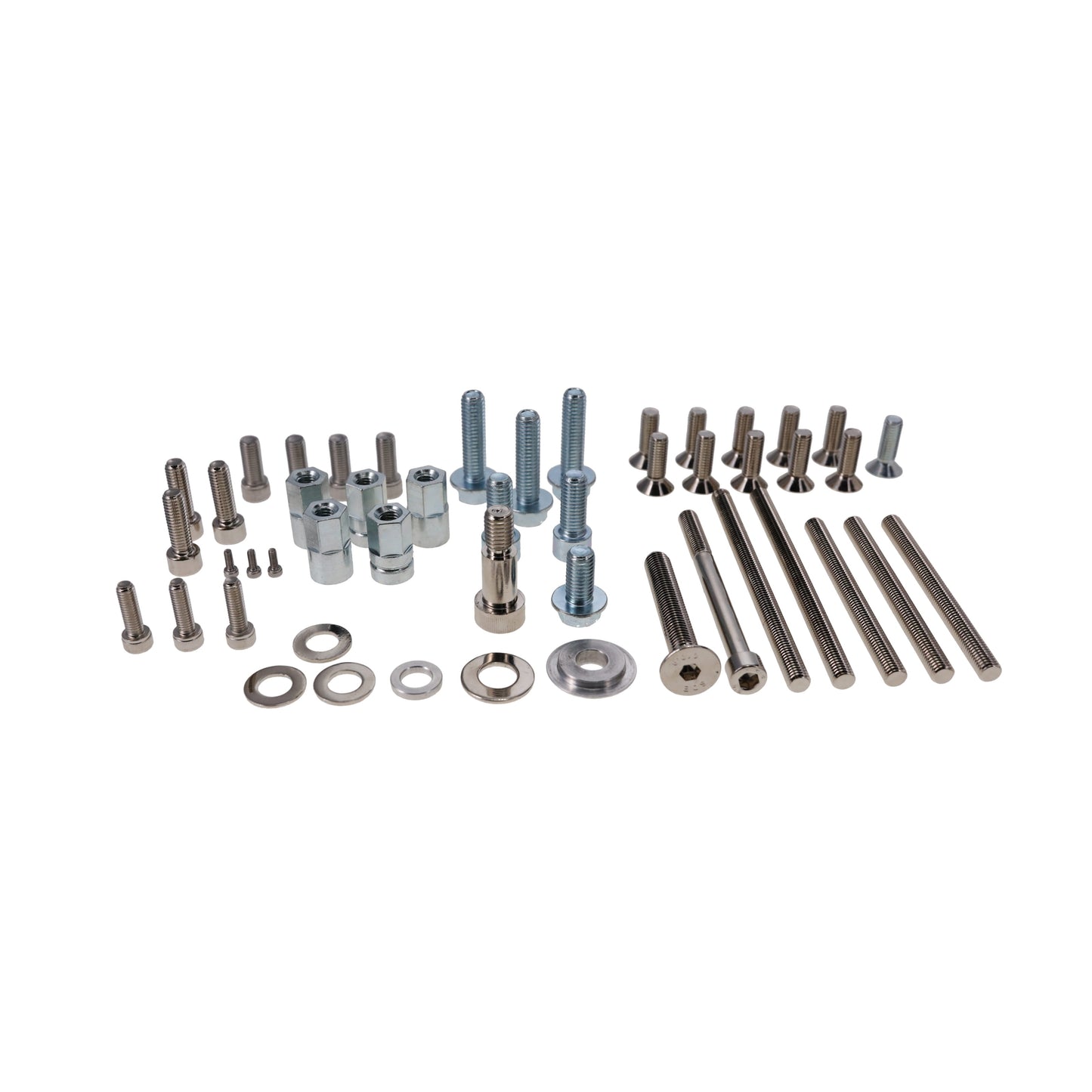

- Includes all brackets, pulleys, and hardware
Description

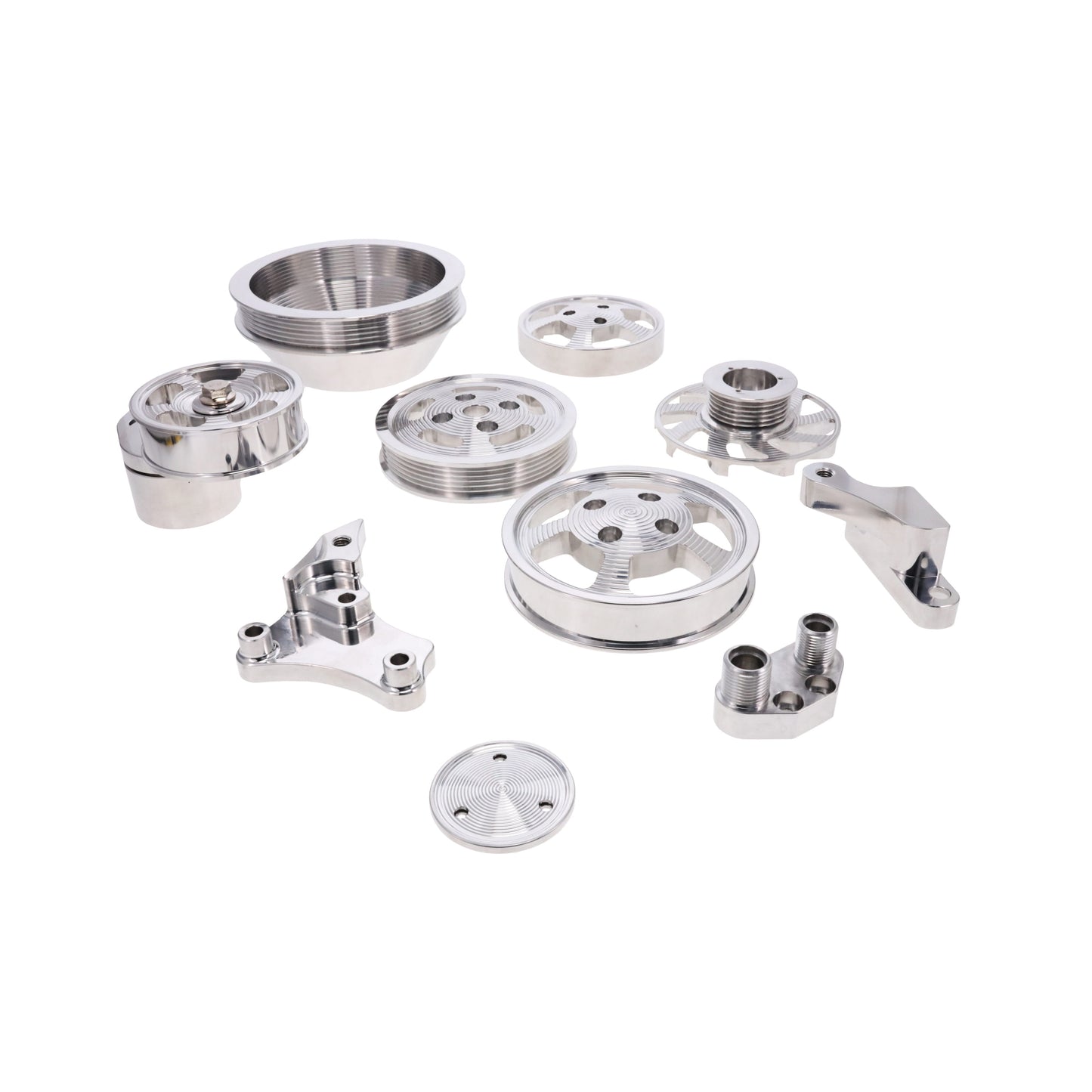

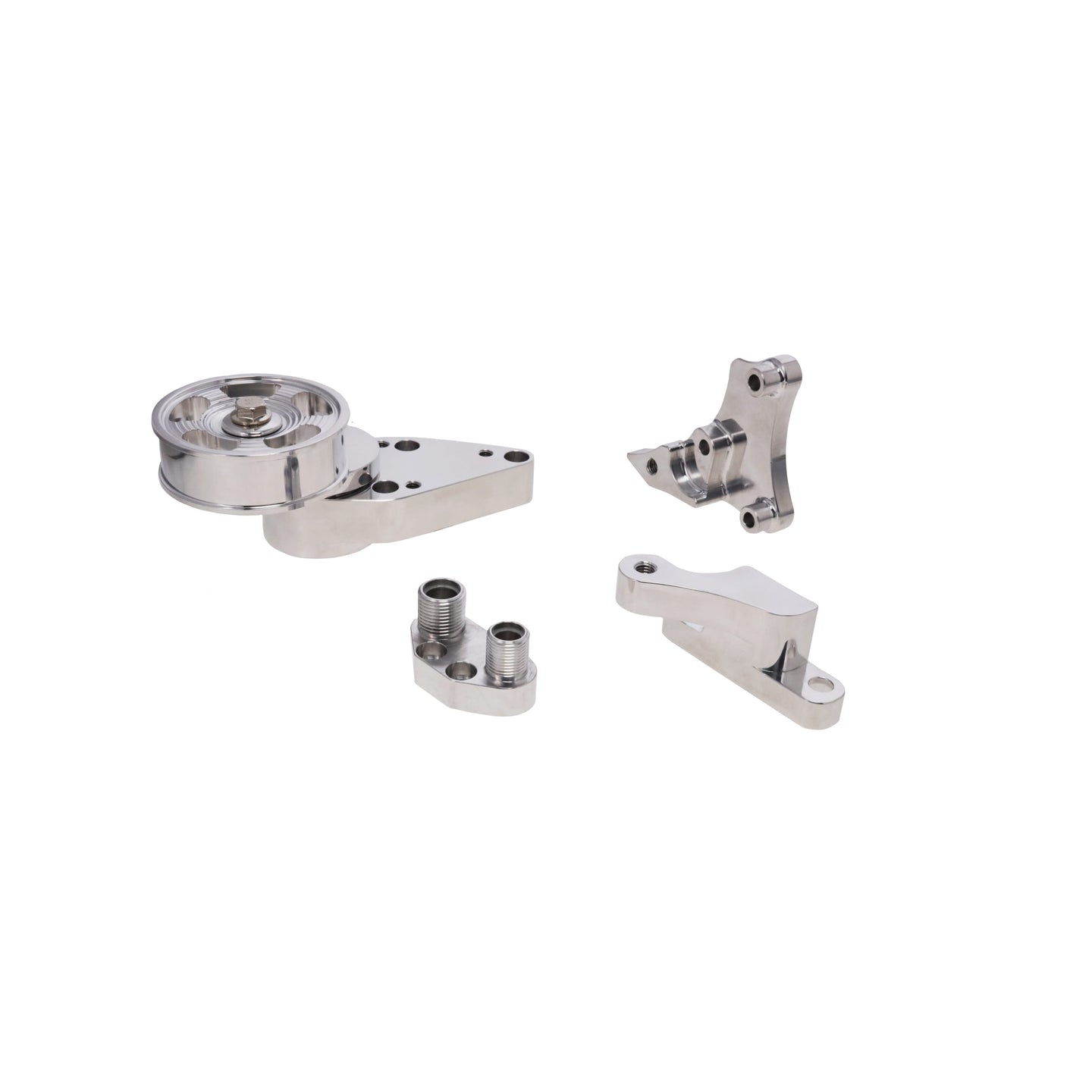

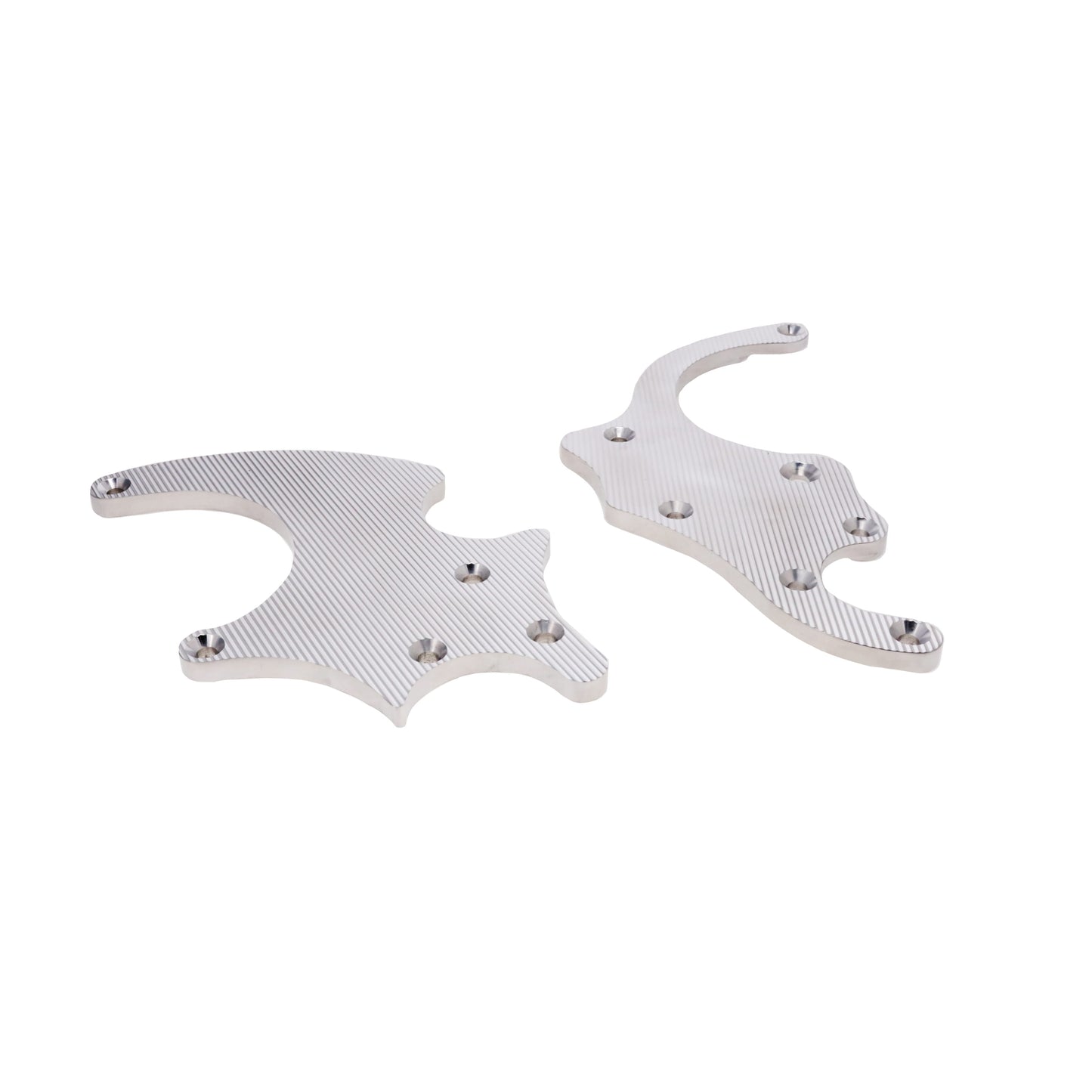

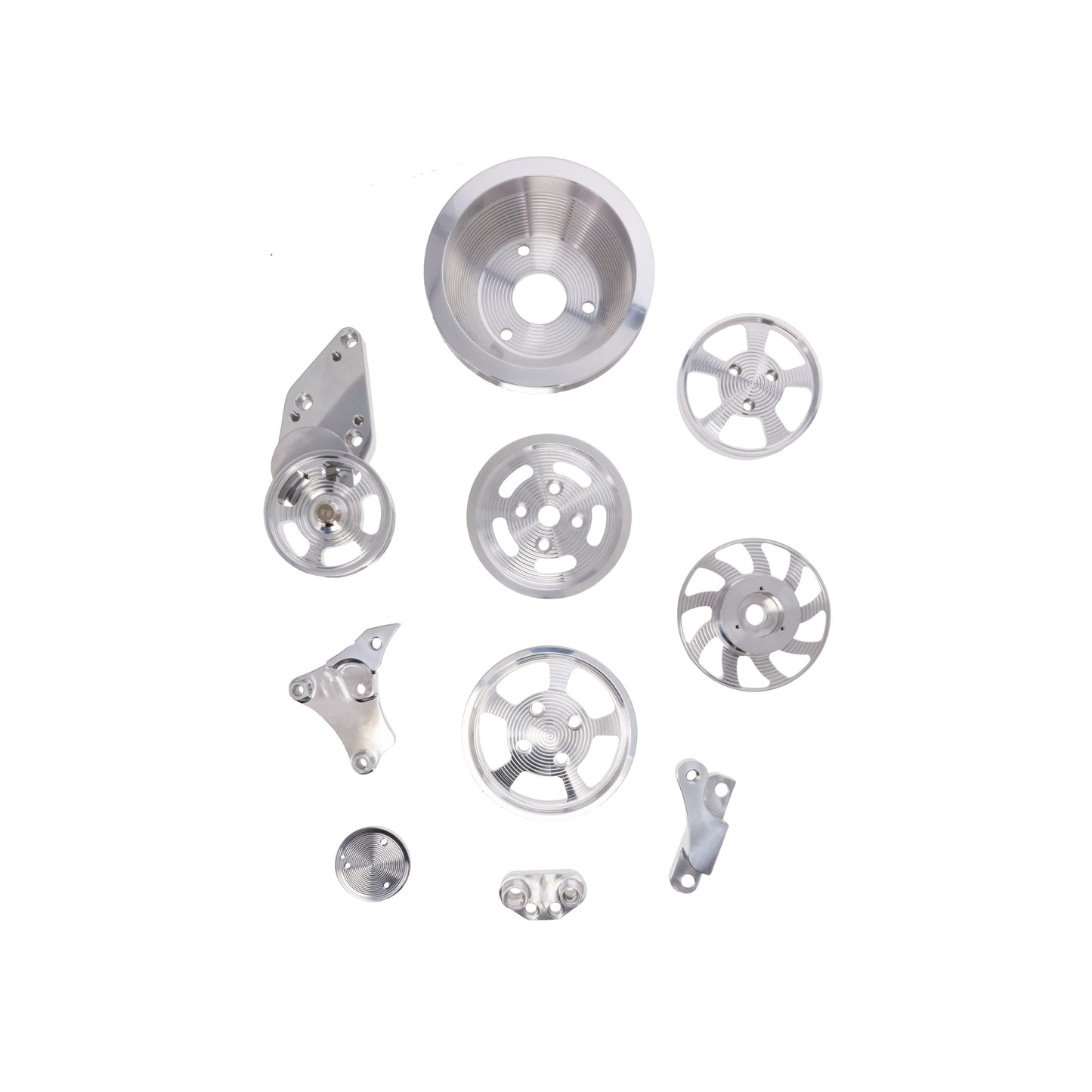

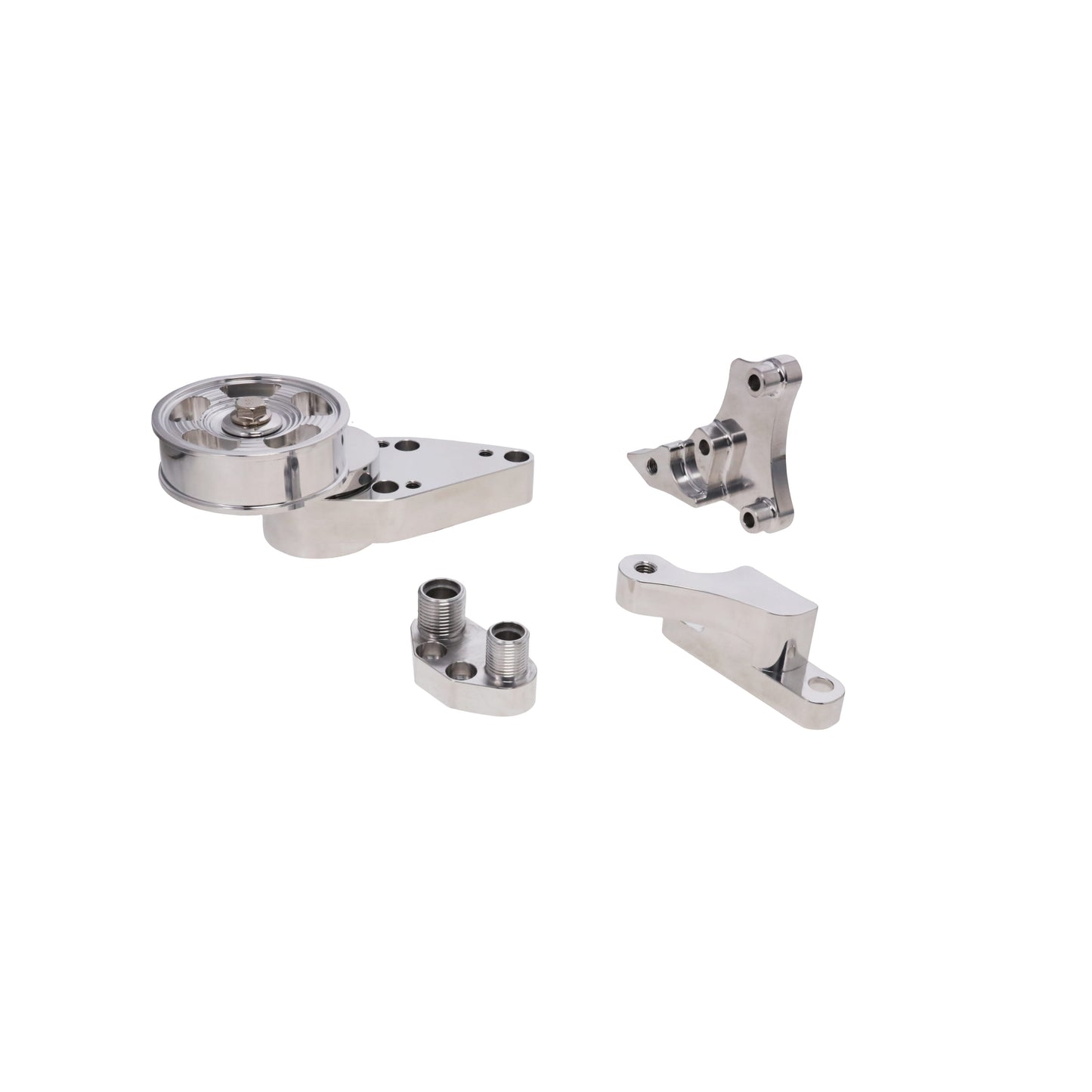

TSP's V Series billet aluminum LS front drive brackets and pulleys are an excellent way to upgrade your engine. It includes the belt tensioner, and comes configured for a CS130 style alternator, Sanden SD-7 style compressor, GM Type II power steering pump, and customer hub water pump. It is available in black and polished finishes.
Specs
Bracket & Pulley Material | 6061-T6 Billet Aluminum |
Bracket & Pulley Finish | Available in Black or Polished |
Alternator Type | CS130 Style |
A/C Compressor Type | Sanden SD-7 Style |
Water Pump Pulley Style | Custom Design |
Power Steering Pump Type | GM Type 2 (Saginaw TC Series) |
Belt Tensioner Style | Custom Design |
Spacers & Hardware | Included |
Included | Brackets & Pulleys Belt Tensioner Installation Hardware Instruction Manual |
Fitment
COMPATIBLE WITH
CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS-Based)
• 5.7 L / 346 in3 LS1
• 5.7 L / 346 in3 LS6
• 6.0 L / 364 in3 LS2
• 6.2 L / 376 in3 LS3*
NOTES
•Installation on LS3 engines requires replacing water pump backing plate bolts with M6 x 1.00 x 15mm flathead screws.
•Will not fit VVT engines, as they are fitted with a larger timing cover. Will not work with hydroboost systems.
•Due to the relocation of certain accessories, may not fit in stock applications.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
