V Series GM LS Serpentine Front Drive System Brackets, Pulleys, and Belt Tensioner - Black
V Series GM LS Serpentine Front Drive System Brackets, Pulleys, and Belt Tensioner - Black
SKU: SKU: 81205-2BK
In stock
Product Details
Features
- Fits GM LS1, LS2, and LS6 engines

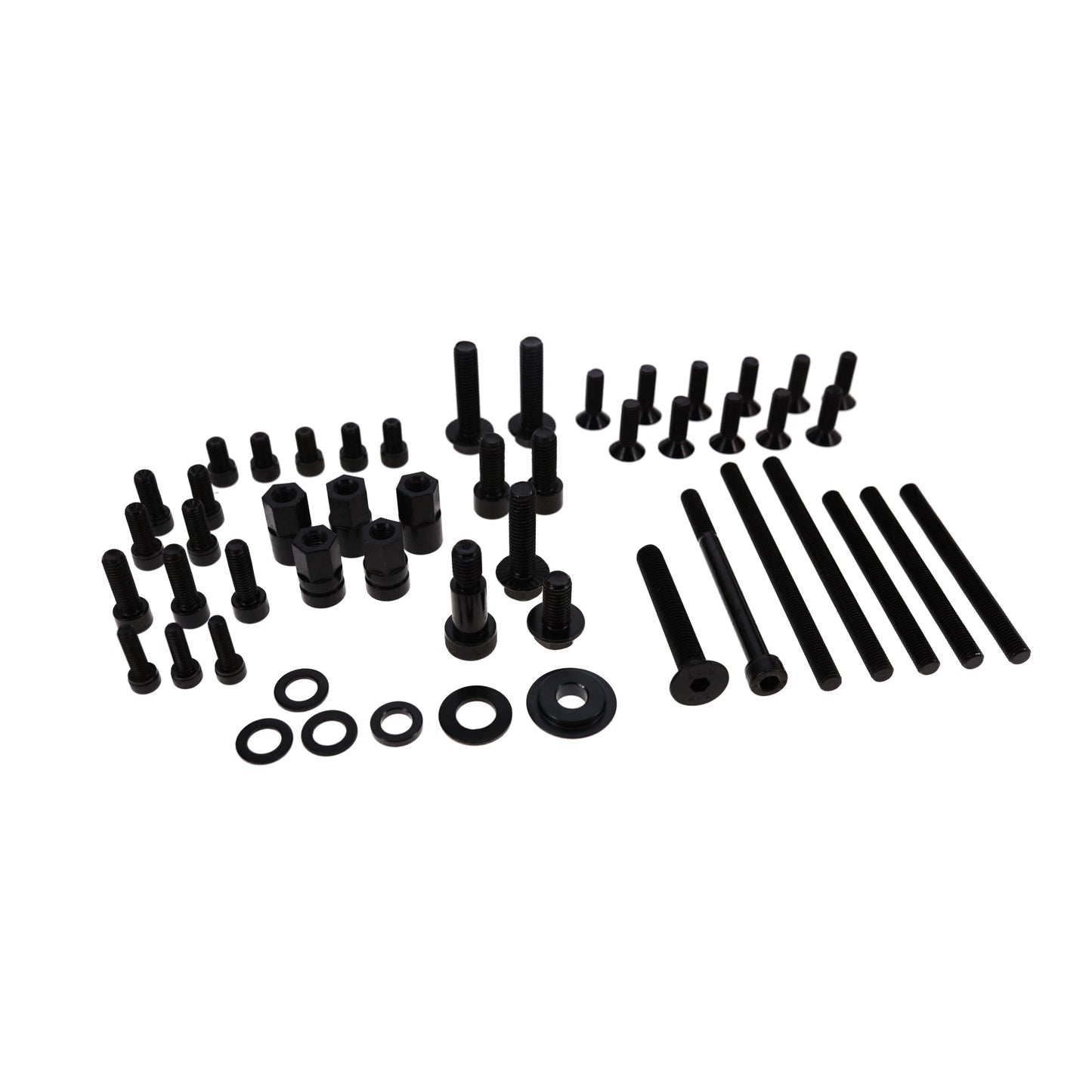

- Includes all brackets, pulleys, and hardware
Description

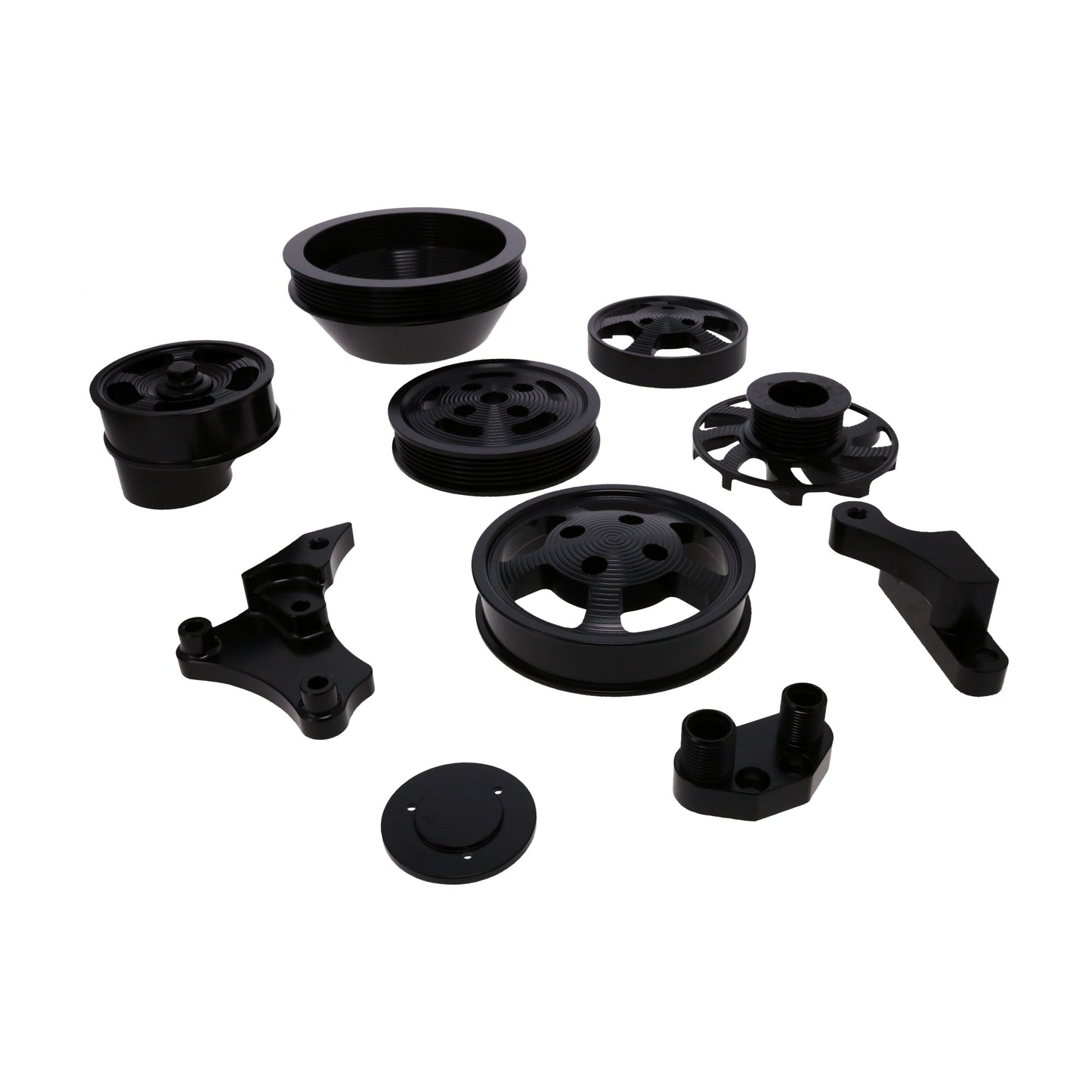

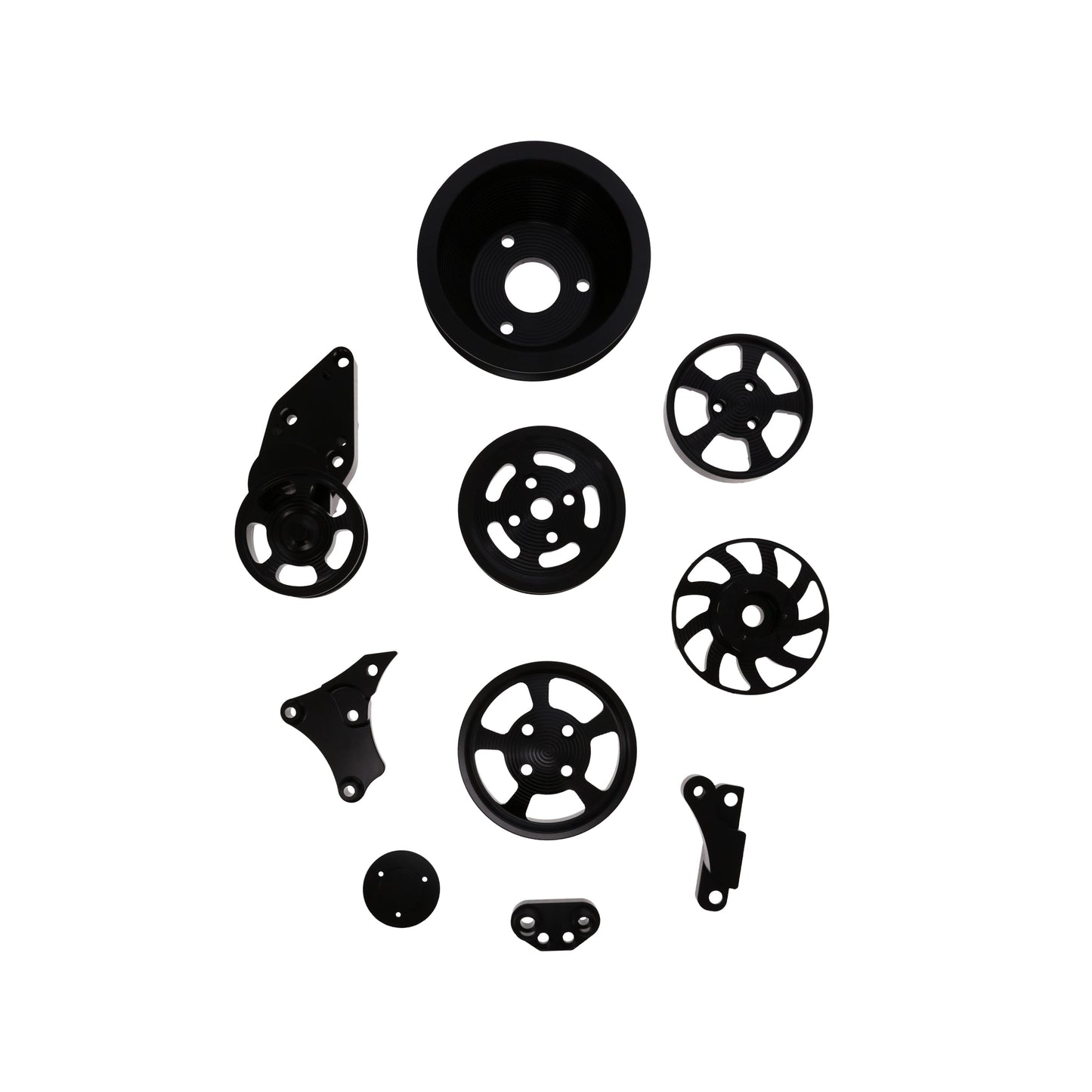

TSP's V Series billet aluminum LS front drive brackets and pulleys are an excellent way to upgrade your engine. It includes the belt tensioner, and comes configured for a CS130 style alternator, Sanden SD-7 style compressor, GM Type II power steering pump, and customer hub water pump. It is available in black and polished finishes.
Specs
| A/C Compressor Clutch Cover Included | Yes |
| A/C Compressor Type | SD-7 Style |
| Alternator Pulley Included | Yes |
| Alternator Type | CS130 Style |
| Belt Included | Yes |
| Belt Tensioner Included | Yes |
| Belt Tensioner Type | Custom Design |
| Bracket Color | Black |
| Bracket Material | Aluminum |
| Crankshaft Pulley Included | Yes |
| Hardware Included | Yes |
| Harmonic Balancer Included | Yes |
| Power Steering Pump Pulley Included | Yes |
| Power Steering Pump Type | Type 2 (TC Series) Style |
| Pulley Color | Black |
| Pulley Groove Quantity | 6 |
| Pulley Material | Aluminum |
| Spacers Included | Yes |
| Universal Or Specific Fit | Specific |
| Water Pump Pulley Included | Yes |
| Water Pump Type | Customized OE Style |
Fitment
COMPATIBLE WITH
CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS-Based)
• 5.7 L / 346 in3 LS1
• 5.7 L / 346 in3 LS6
• 6.0 L / 364 in3 LS2
• 6.2 L / 376 in3 LS3*
NOTES
•Installation on LS3 engines requires replacing water pump backing plate bolts with M6 x 1.00 x 15mm flathead screws.
•Will not fit VVT engines, as they are fitted with a larger timing cover. Will not work with hydroboost systems.
•Due to the relocation of certain accessories, may not fit in stock applications.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
V Series GM LS Serpentine Front Drive System Brackets, Pulleys, and Belt Tensioner - Black
TSP's V Series billet aluminum LS front drive brackets and pulleys are an excellent way to upgrade your engine. It includes the belt tensioner, and comes configured for a CS130 style alternator, Sanden SD-7 style compressor, GM Type II power steering pump, and customer hub water pump. It is available in black and polished finishes.
Compatible with
CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS-Based)
• 5.7 L / 346 in3 LS1
• 5.7 L / 346 in3 LS6
• 6.0 L / 364 in3 LS2
• 6.2 L / 376 in3 LS3*
NOTES
•Installation on LS3 engines requires replacing water pump backing plate bolts with M6 x 1.00 x 15mm flathead screws.
•Will not fit VVT engines, as they are fitted with a larger timing cover. Will not work with hydroboost systems.
•Due to the relocation of certain accessories, may not fit in stock applications.
