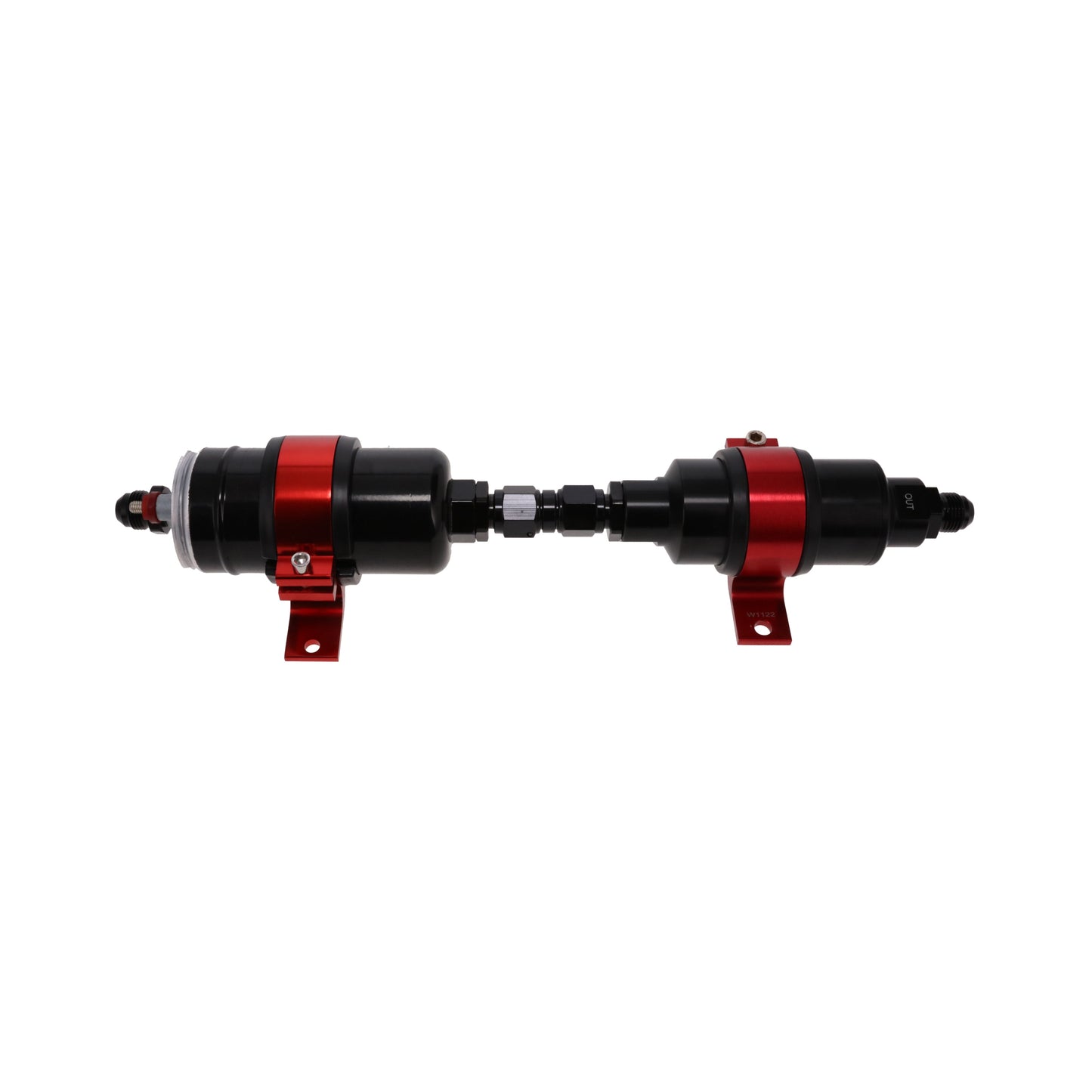

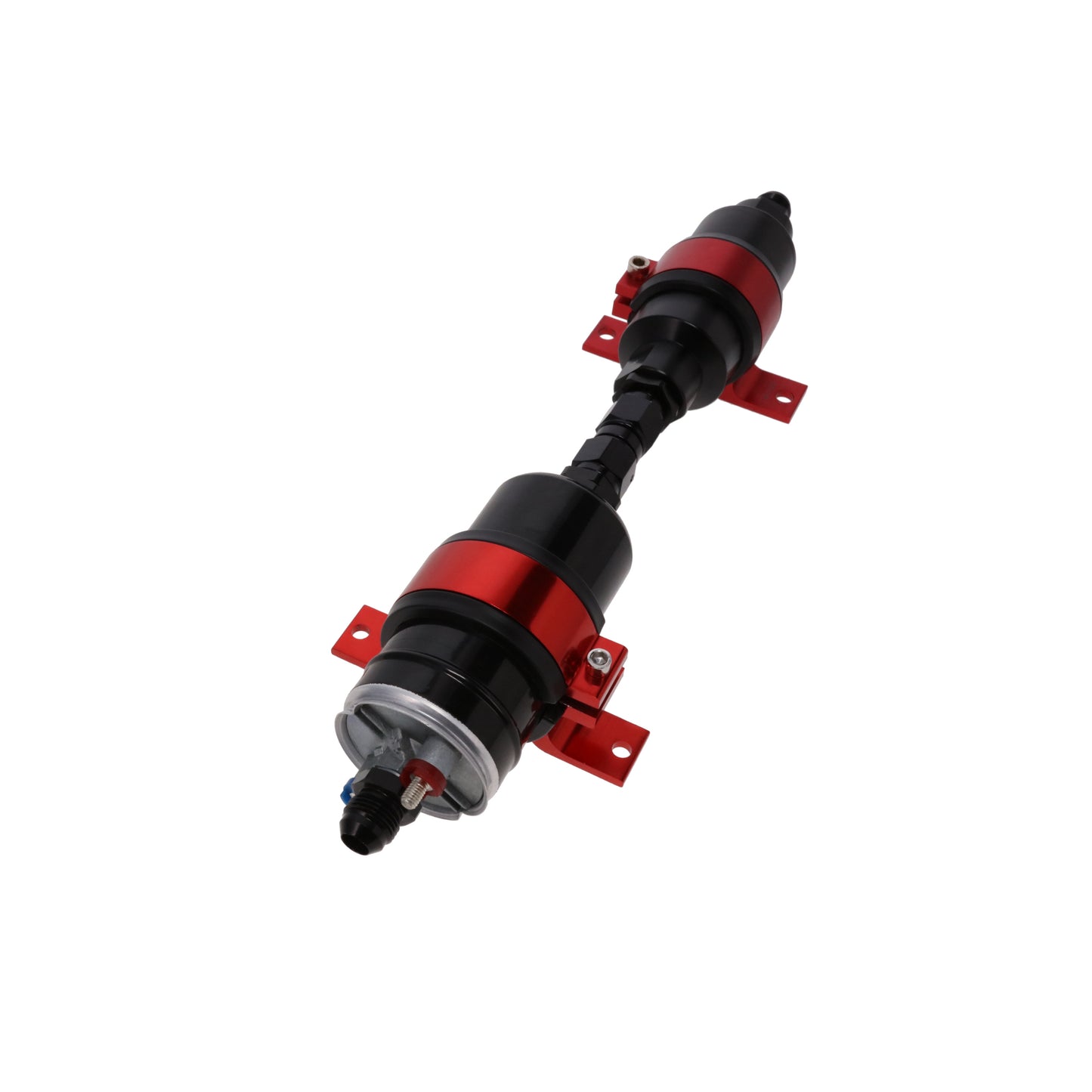

Universal Straight Electric Fuel Pump and Filter Kit - 40 Microns - Red
Universal Straight Electric Fuel Pump and Filter Kit - 40 Microns - Red
SKU: SKU: JM1041KT-40-R
Out of stock
Product Details
Features
- Universal application
- 90 PSI design with 320 lph (85 gph) free flow
- Available with 10, 40, or 100 micron fuel filter
- Lightweight, billet aluminum brackets
Description
Take care of your fuel delivery needs with this complete electric fuel pump and filter kit. This kit features a high-flow pump, efficient filter, and and a pair of easy-to-mount brackets. Also included is a straight crossover pipe for easy installation.
Specs
| Bracket Color | Black |
| Bracket Material | Aluminum |
| Bracket Mounting Hole Quantity | 2 |
| Bracket Style | Clamp |
| Compatible Fuel Type | Gasoline |
| Element Material | Stainless Steel |
| Filter Body Color | Black |
| Filter Body Diameter | 2.000 in. |
| Filter Body Material | Aluminum |
| Filter Inlet Thread Type | -10 AN O-Ring |
| Filter Inlet Type | Threaded |
| Filter Length | 5.500 in. |
| Filter Outlet Thread Type | -10 AN O-Ring |
| Filter Outlet Type | Threaded |
| Fittings Included | Yes |
| Fuel Delivery Type | Electric |
| Fuel Pump Body Color | Black |
| Fuel Pump Body Material | Aluminum |
| Fuel Pump Inlet Type | Threaded |
| Fuel Sending Unit Included | No |
| Fuel Type | Gasoline |
| Gasket Or Seal Included | No |
| Inlet Fitting Thread Size | -10 AN |
| Inlet Thread Diameter | -10 AN |
| Inlet Type | Threaded |
| Internal Or External | External |
| Maximum Flow Rating | 85 GPH |
| Maximum Pressure | 90 PSI |
| Micron Rating | 10 |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Mounting Hardware Included | No |
| Outlet Fitting Thread Size | -6 AN |
| Outlet Quantity | 1 |
| Outlet Thread Diameter | -6 AN |
| Outlet Type | Threaded |
| Pre or Post Pump Filter | Pre-pump |
| Primary Or Secondary Filter | Primary |
| Pump Design | 044 Style |
| Regulator Included | No |
| Ring Terminals Included | Yes |
| Terminal Post Boots Included | Yes |
| Universal Or Specific Fit | Universal |
| Voltage | 12 V |
| Wiring Harness Included | No |
Fitment
UNIVERSAL
Pump requires the use of 100 micron pre-filter.
Filter can be configured as pre-filter or post-filter.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
