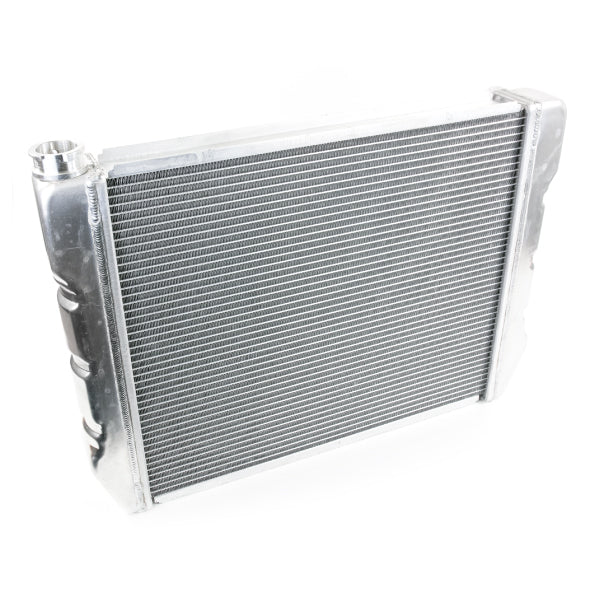

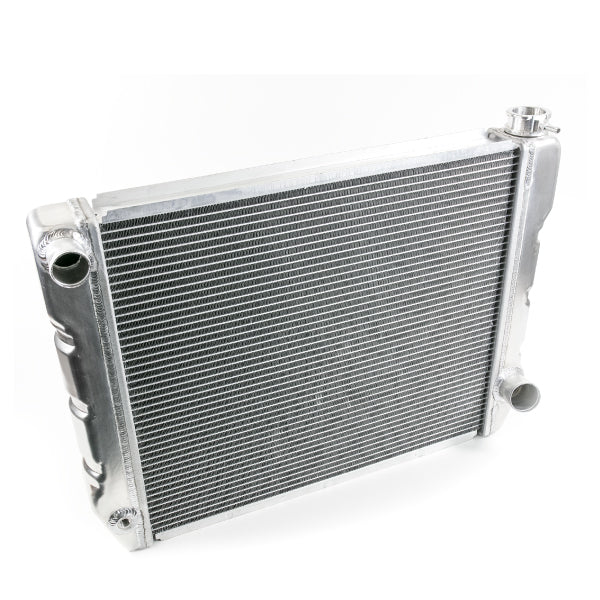

Chevy Style Universal 29" Aluminum Radiator
Chevy Style Universal 29" Aluminum Radiator
SKU: SKU: HC6012
In stock
Product Details
Features
- Universal radiator
- Overall dimensions: 19" H x 29" W x 2 1/4" D
- Core dimensions: 19" H x 24 1/4" W x 2 1/4" D
- Inlet and outlet locations intended for Chevy engine configuration
- 1-Year Warranty
Description
Using intelligent design choices, TSP's radiators have a great deal to offer. Their aluminum construction is completely TIG welded and use no epoxy, meaning you can be sure of their durability. They feature a crossflow design with two rows of 1" aluminum tubes, surrounded by 17 fins per inch for maximum cooling.
Specs
| Core Fin Quantity | 17 per sq. in. |
| Core Height | 19.000 in. |
| Core Material | Aluminum |
| Core Row Quantity | 2 |
| Core Thickness | 2.250 in. |
| Core Tube Inside Diameter | 1.000 in. |
| Core Width | 24.250 in. |
| Down Flow Or Cross Flow Type | Cross Flow |
| Engine Oil Cooler Included | No |
| Frame Included | No |
| Inlet Diameter | 1.500 in. |
| Inlet Location | Upper Driver Side |
| Mounting Hardware Included | No |
| Outlet Diameter | 1.750 in. |
| Outlet Location | Lower Passenger Side |
| Overall Height | 19.250 in. |
| Overall Width | 29.000 in. |

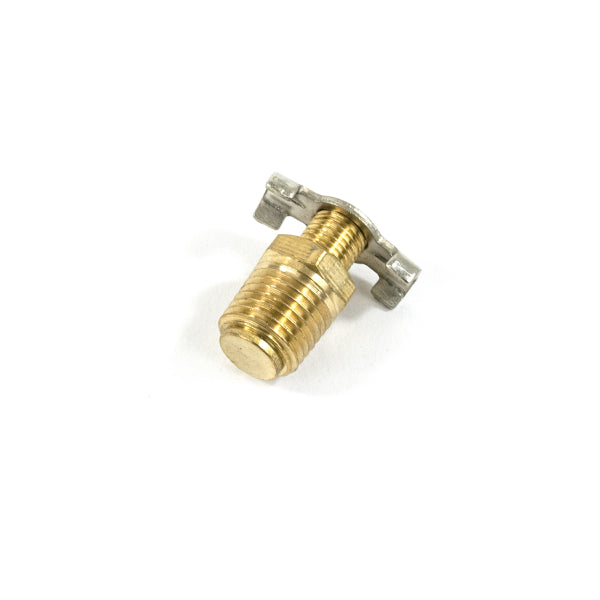

| Petcock Included | Yes |
| Radiator Cap Included | No |
| Tank Material | Aluminum |
| Thermostat Included | No |
| Transmission Oil Cooler Included | No |
Engine Fitment
UNIVERSAL
Inlet and outlet locations intended for Chevy engine configuration.
Q&A
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
Chevy Style Universal 29" Aluminum Radiator
Using intelligent design choices, TSP's radiators have a great deal to offer. Their aluminum construction is completely TIG welded and use no epoxy, meaning you can be sure of their durability. They feature a crossflow design with two rows of 1" aluminum tubes, surrounded by 17 fins per inch for maximum cooling.
Compatible with:
UNIVERSAL
Inlet and outlet locations intended for Chevy engine configuration.
| Core Fin Quantity | 17 per sq. in. |
| Core Height | 19.000 in. |
| Core Material | Aluminum |
| Core Row Quantity | 2 |
| Core Thickness | 2.250 in. |
| Core Tube Inside Diameter | 1.000 in. |
| Core Width | 24.250 in. |
| Down Flow Or Cross Flow Type | Cross Flow |
| Engine Oil Cooler Included | No |
| Frame Included | No |
| Inlet Diameter | 1.500 in. |
| Inlet Location | Upper Driver Side |
| Mounting Hardware Included | No |
| Outlet Diameter | 1.750 in. |
| Outlet Location | Lower Passenger Side |
| Overall Height | 19.250 in. |
| Overall Width | 29.000 in. |
| Petcock Included | Yes |
| Radiator Cap Included | No |
| Tank Material | Aluminum |
| Thermostat Included | No |
| Transmission Oil Cooler Included | No |
