TR9 Series Wheels
TR9 Series Wheels
SKU: SKU: 3190-8809M
In stock
Product Details
Features
Description

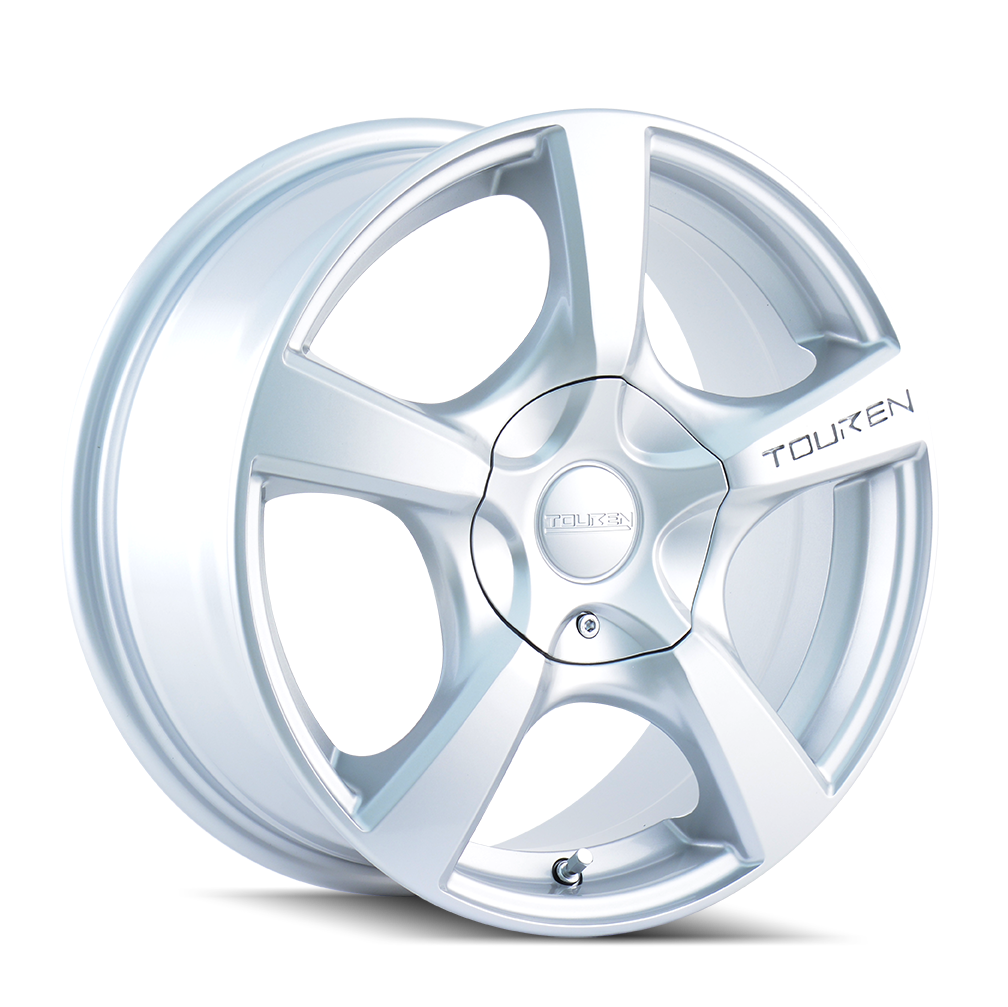

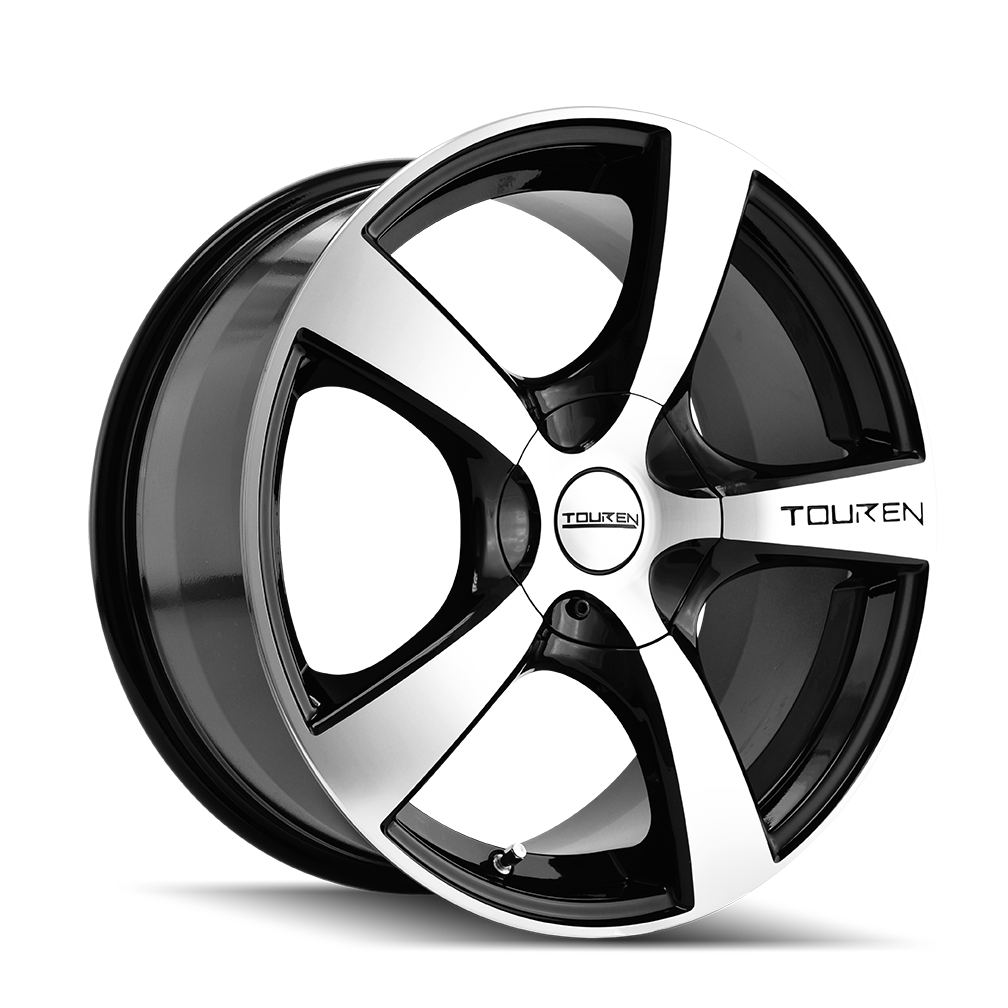

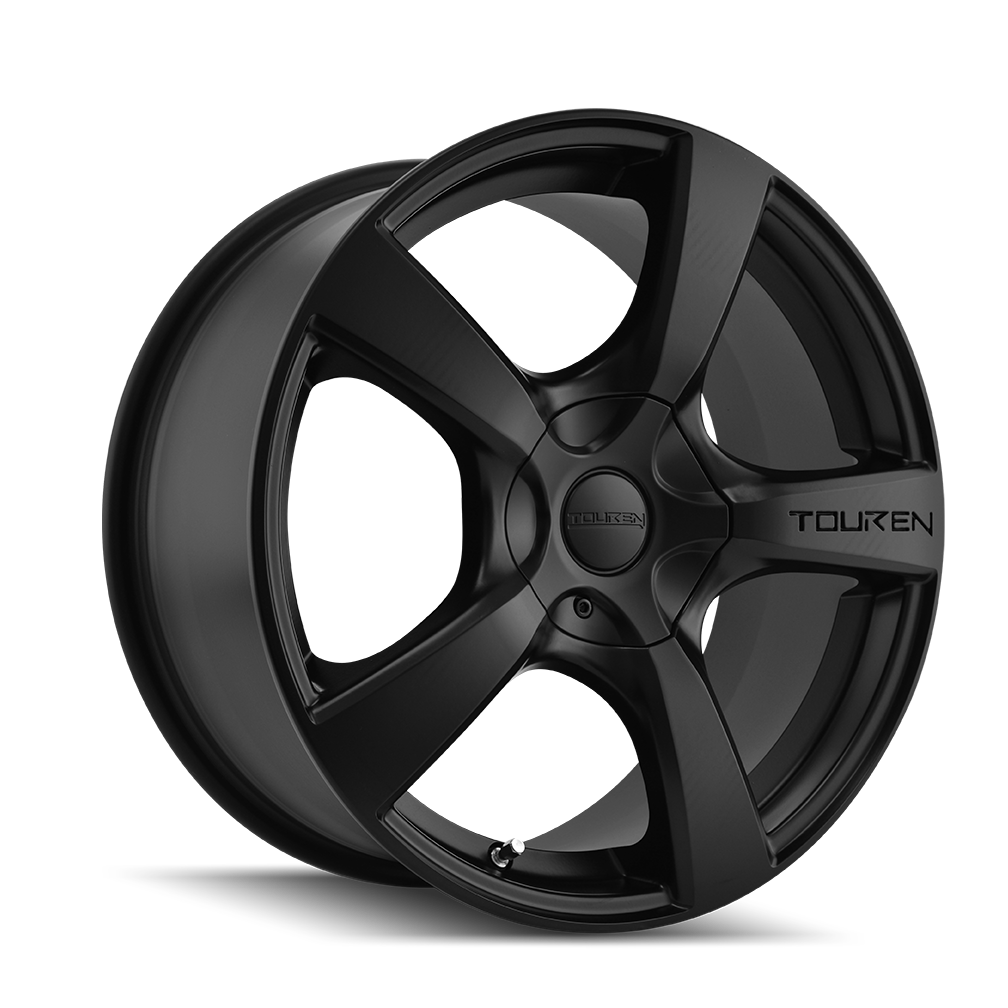

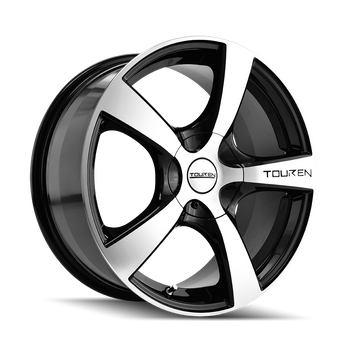

Touren Series TR9 wheels begin with branded center caps that not only cover and protect your lug nuts but also initiate the elegant star design. These wheels have five sweeping spokes with tapered design from the wheel lip to the central hub—and the Touren name engraved in one of the spokes. The dimensional sides and cut tops and outer edge give these 5-spoke wheels a strong look suited for your wicked ride. Rolling down the highway or parked in the driveway, all eyes will be on your Touren TR9 Series.
Specs
| Size | Bolt Patterns | Offset | Bore | Load Rating |
|---|---|---|---|---|
| 17" x 7" | 5 x 114.3 / 120 | 20 mm | 72.62 | 1600 |
| 18" x 8" | 5 x 114.3 / 120 | 20 mm | 74.1 | 1600 |
| 22" x 9.5" | 5 x 112 / 120 | 20 mm | 74.1 | 1600 |
| 18" x 8" | 5 x 108 / 120 | 40 mm | 72.62 | 1600 |
| 18" x 8" | 5 x 112 / 120 | 40 mm | 74.1 | 1600 |
| 18" x 8" | 5 x 100 / 114.3 | 40 mm | 72.62 | 1600 |
| 18" x 8" | 5 x 110 / 115 | 40 mm | 72.62 | 1600 |
| 18" x 8" | 5 x 108 / 114.3 | 40 mm | 72.62 | 1600 |
| 18" x 8" | 6 x 120 | 40 mm | 72.62 | 1600 |
| 18" x 8" | 5 x 127 | 40 mm | 71.5 | 1600 |
| 20" x 8.5" | 5 x 112 / 115 | 40 mm | 72.62 | 1600 |
| 22" x 9" | 5 x 114.3 / 120 | 40 mm | 74.1 | 1900 |
| 22" x 9.5" | 5 x 127 | 40 mm | 78 | 1600 |
| 22" x 9" | 5 x 130 / 114.3 | 40 mm | 72.62 | 2200 |
| 16" x 7" | 4 x 100 / 114.3 | 42 mm | 67.1 | 1600 |
| 16" x 7" | 5 x 112 / 120 | 42 mm | 72.62 | 1600 |
| 16" x 7" | 5 x 110 / 115 | 42 mm | 72.62 | 1600 |
| 16" x 7" | 5 x 127 | 42 mm | 71.5 | 1600 |
| 16" x 7" | 5 x 100 / 114.3 | 42 mm | 72.62 | 1600 |
| 17" x 7" | 4 x 100 / 114.3 | 42 mm | 67.1 | 1600 |
| 17" x 7" | 5 x 100 / 114.3 | 42 mm | 72.62 | 1600 |
| 17" x 7" | 5 x 112 / 120 | 42 mm | 72.62 | 1600 |
| 17" x 7" | 5 x 110 / 115 | 42 mm | 72.62 | 1600 |
| 17" x 7" | 5 x 105 | 42 mm | 72.62 | 1600 |
| 22" x 9" | 5 x 130 | 50 mm | 71.5 | 1900 |
| 16" x 7" | 5 x 105 / 108 | 42 mm | 72.62 | 1600 |
| 20" x 8.5" | 5 x 112 / 120 | 40 mm | 74.1 | 1900 |
| 19" x 8.5" | 5 x 112 / 120 | 40 mm | 74.1 | 1900 |
| 19" x 8.5" | 5 x 108 / 114.3 | 40 mm | 74.1 | 1900 |
| 19" x 8.5" | 5 x 127 | 40 mm | 71.5 | 1900 |
| 20" x 8.5" | 5 x 108 / 114.3 | 40 mm | 72.62 | 1900 |
| 17" x 7" | 5 x 108 / 114.3 | 42 mm | 72.62 | 1600 |
| 19" x 8.5" | 6 x 132 | 40 mm | 74.5 | 1900 |
| 20" x 8.5" | 5 x 127 | 40 mm | 71.5 | 1900 |
| 20" x 8.5" | 5 x 114.3 / 120 | 40 mm | 74.1 | 1900 |
| 22" x 9" | 5 x 115 / 120 | 20 mm | 74.1 | 2200 |
| 22" x 9" | 5 x 127 | 40 mm | 78.3 | 2200 |
Fitment
Vehicle fitment varies by year, make, model, and trim. Please verify your vehicle’s bolt pattern, offset, backspacing, and hub size before ordering.
Emissions Notice
This product does not require an Executive Order in California. By nature of its design this product does not require an emissions certification.
TR9 Series Wheels
Touren Series TR9 wheels begin with branded center caps that not only cover and protect your lug nuts but also initiate the elegant star design. These wheels have five sweeping spokes with tapered design from the wheel lip to the central hub—and the Touren name engraved in one of the spokes. The dimensional sides and cut tops and outer edge give these 5-spoke wheels a strong look suited for your wicked ride. Rolling down the highway or parked in the driveway, all eyes will be on your Touren TR9 Series.
