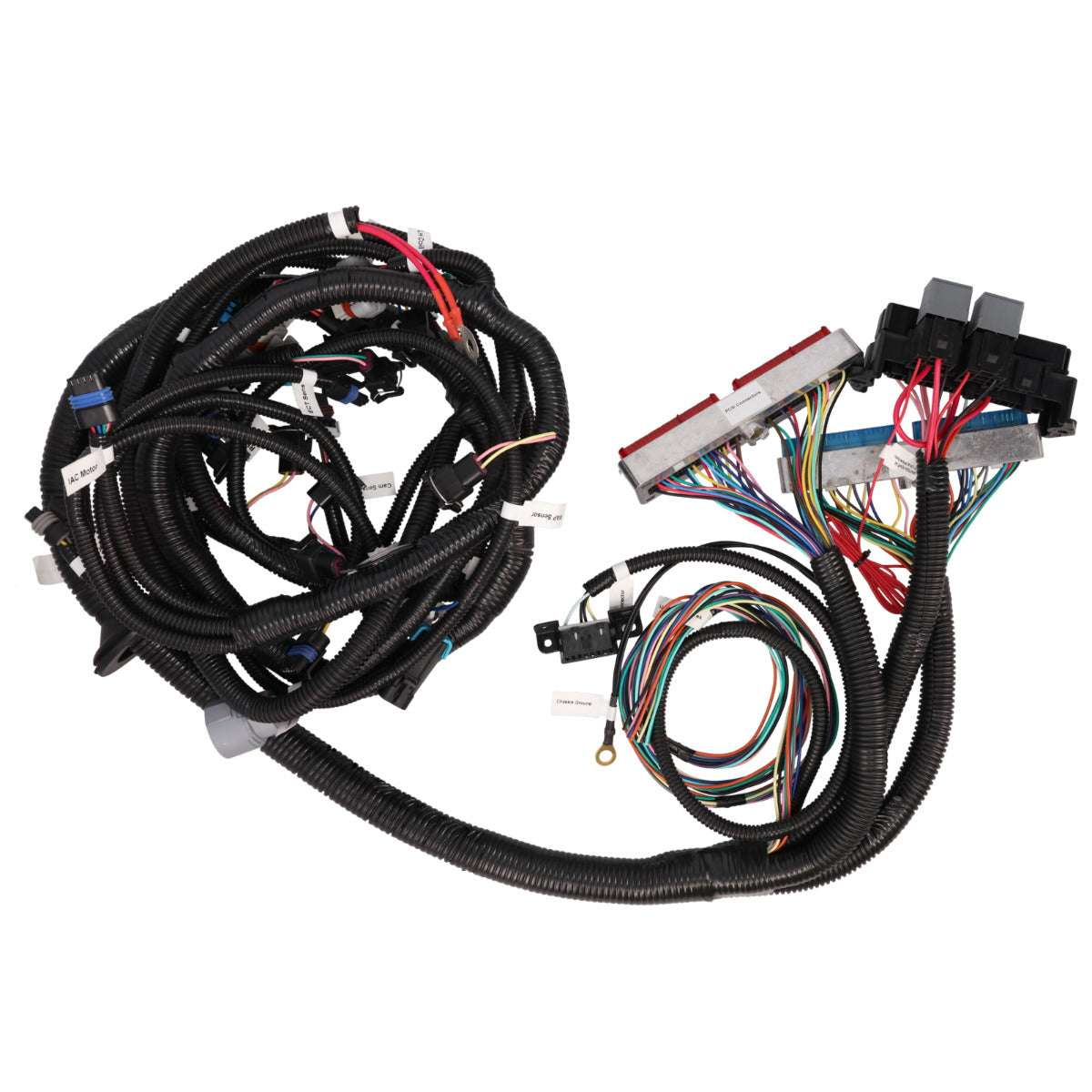

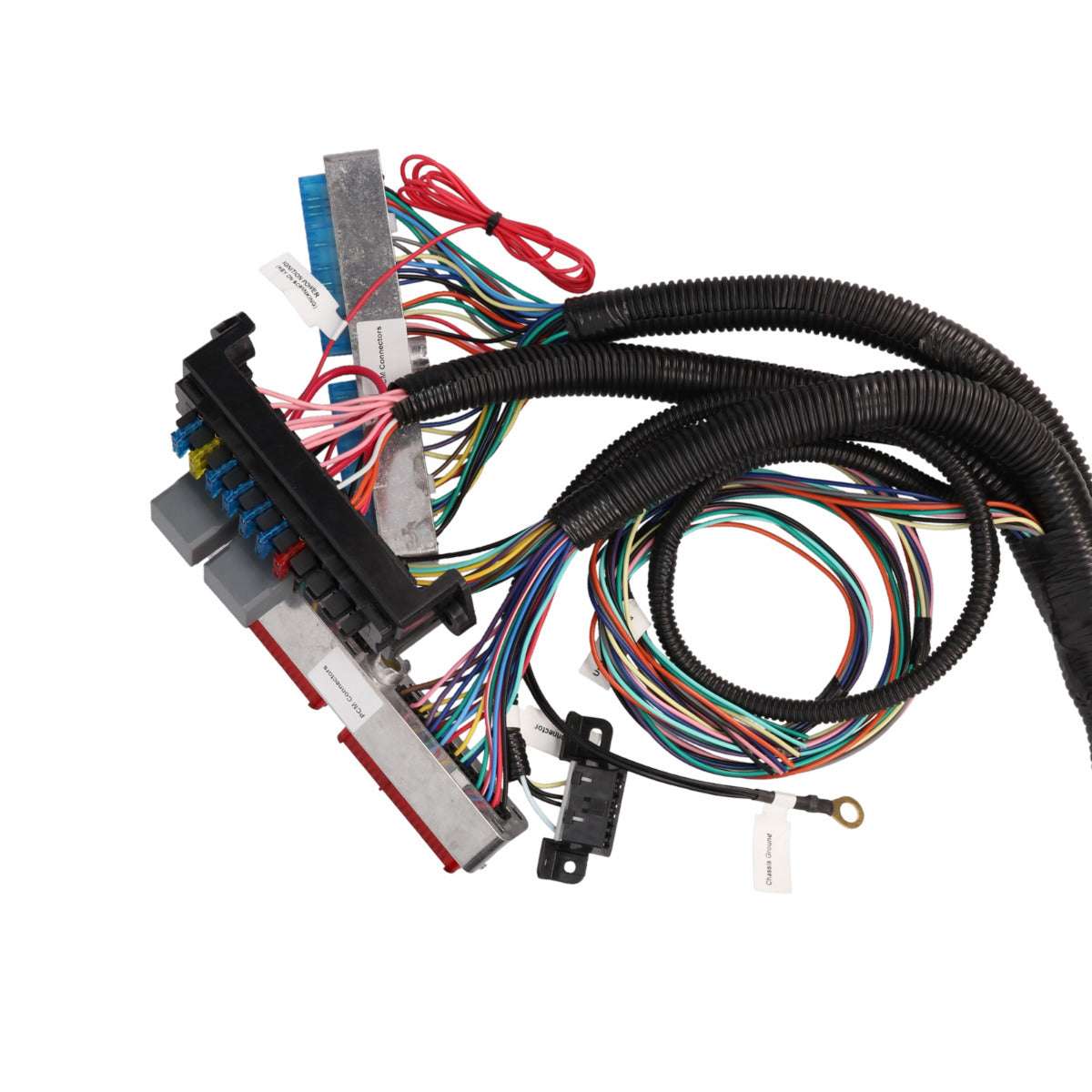

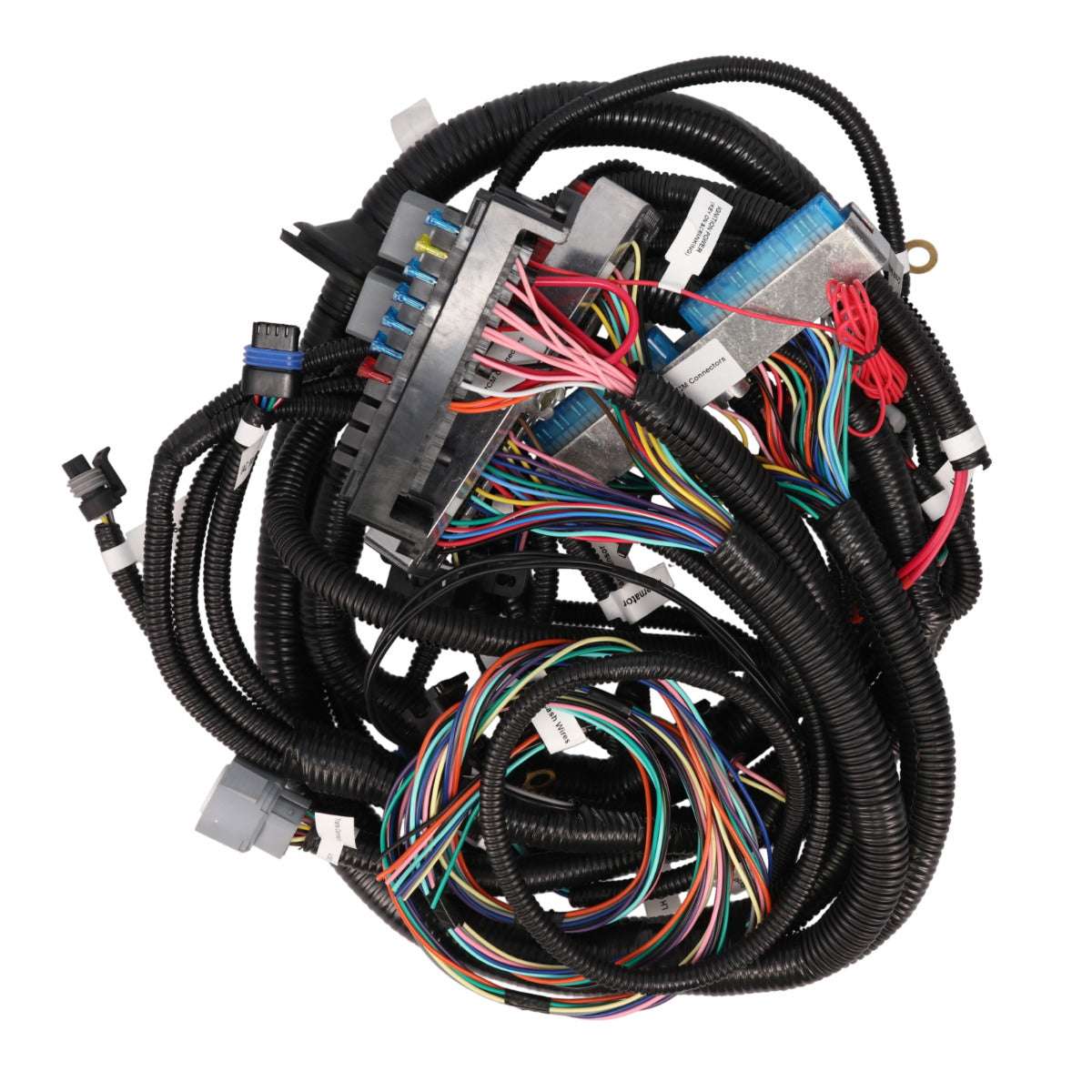

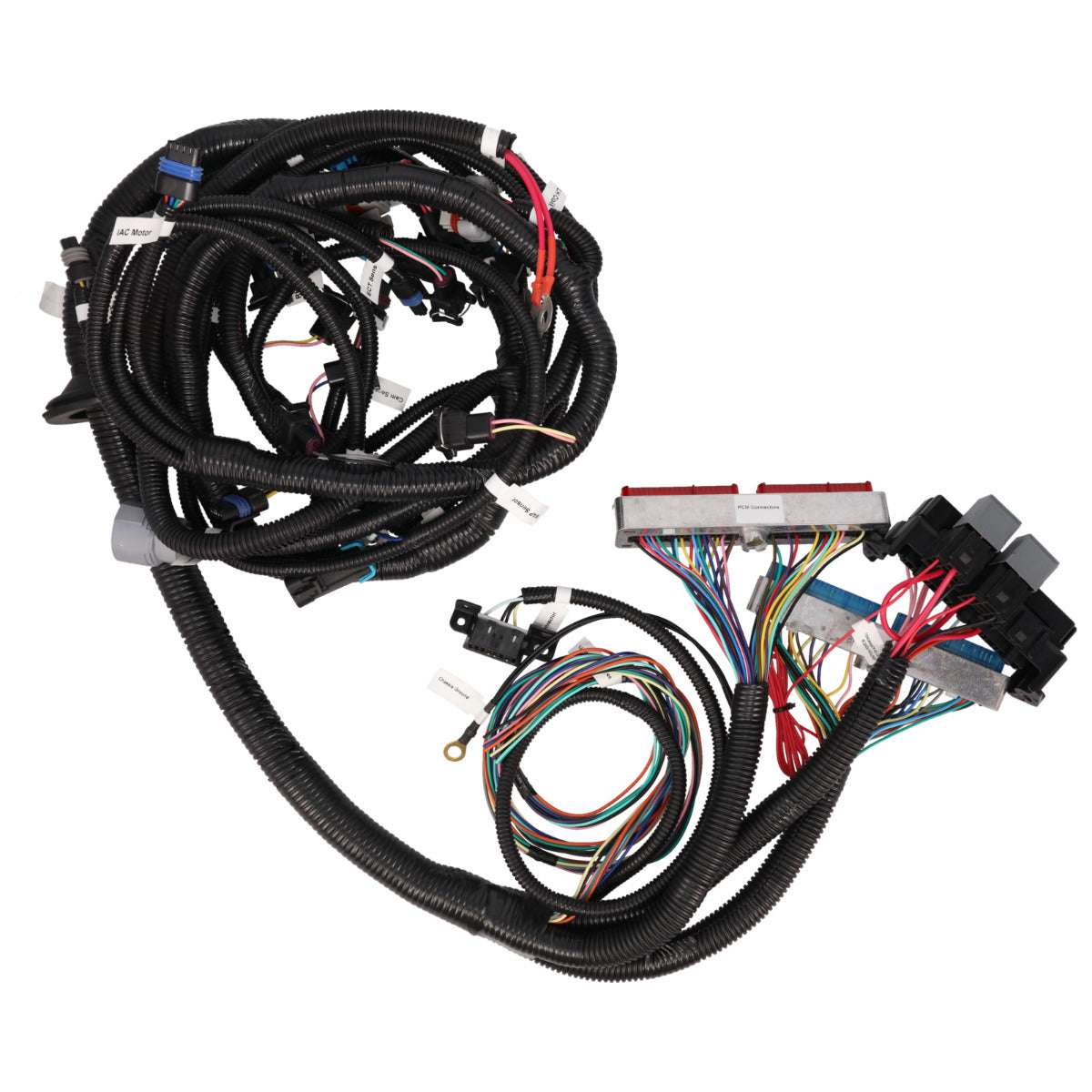

GM Standalone LS1 Drive by Wire Engine and 4L80E Transmission Wiring Harness
GM Standalone LS1 Drive by Wire Engine and 4L80E Transmission Wiring Harness
SKU: SKU: WH1201-1
Low stock
Product Details
Features
- Fits LS1, LS6 (5.7L) Corvettes and Vortec (4.8L, 5.3L, 6.0L) GM trucks
- Fits drive-by cable applications with LS1 intake manifolds and 4L80E transmissions
Description
An LS engine swap is a no-brainer when it comes to adding some affordable horsepower to a project car, but any swap comes with its share of headaches, including wiring. That's where TSP's engine and transmission wiring harness comes in. It is designed for engines from '97 - '04 LS1 and LS6 Corvettes and '99-'06 drive-by-cable GM trucks with 4L80E transmissions.
Specs
| Throttle | Drive-by-Cable |
| Injector Plug Style | EV1 |
| Harness Length | Standard |
| Fuse Block Included | Yes |
| Quantity | Sold as a Kit |
| Included Connectors | Fuse/Relay Box Fuel Pump Control Fan Controls Check Engine Light IAC and TPS MAF Sensor MAP Sensor Engine Coolant Temp Sensor Alternator Control (2) Upstream Oxygen Sensors Crankshaft Position Camshaft Position Fuel Injectors Coil Packs Automatic Transmission Control Knock Sensors |
Fitment
'97-'04 Corvettes, '99-'06 GM Trucks*
*Fits LS1/LS6 (5.7L) Corvettes and Vortec (4.8L, 5.3L, 6.0L)
GM trucks
*Fits drive-by cable applications with LS1 intake manifolds and 4L80E transmissions
For Use with TSP Products
TSP adapter 81033 required in order to use GM #12592525 MAP sensor.
Will plug into TSP 81050 injectors with their included adapters.
GM Standalone LS1 Drive by Wire Engine and 4L80E Transmission Wiring Harness
GM Standalone LS1 Drive by Wire Engine and 4L80E Transmission Wiring Harness
Specifications
| Throttle | Drive-by-Cable |
| Injector Plug Style | EV1 |
| Harness Length | Standard |
| Fuse Block Included | Yes |
| Quantity | Sold as a Kit |
| Included Connectors |
Fuse/Relay Box Fuel Pump Control Fan Controls Check Engine Light IAC and TPS MAF Sensor MAP Sensor Engine Coolant Temp Sensor Alternator Control (2) Upstream Oxygen Sensors Crankfshaft Position Camshaft Position Fuel Injectors Coil Packs Automatic Transmission Control Knock Sensors |
Overview
An LS engine swap is a no-brainer when it comes to adding some affordable horsepower to a project car, but any swap comes with its share of headaches, including wiring. That's where TSP's engine and transmission wiring harness comes in. It is designed for engines from '97 - '04 LS1 and LS6 Corvettes and '99-'06 drive-by-cable GM trucks with 4L80E transmissions.
Fitment
'97-'04 Corvettes, '99-'06 GM Trucks*
- *Fits LS1/LS6 (5.7L) Corvettes and Vortec (4.8L, 5.3L, 6.0L) GM trucks
- *Fits drive-by cable applications with LS1 intake manifolds and 4L80E transmissions
For Use with TSP Products
- TSP adapter 81033 required in order to use GM #12592525 MAP sensor
- Will plug into TSP 81050 injectors with their included adapters
