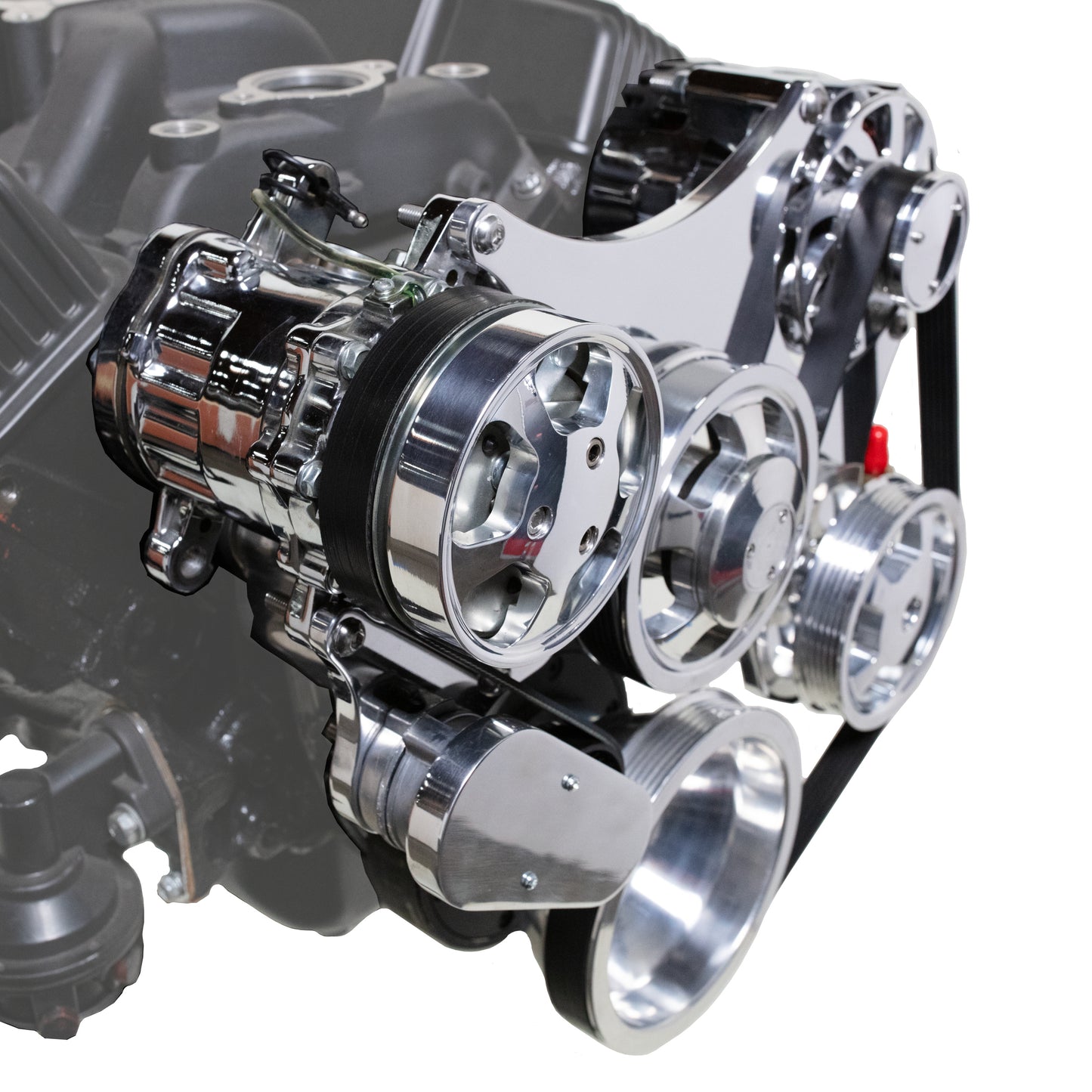

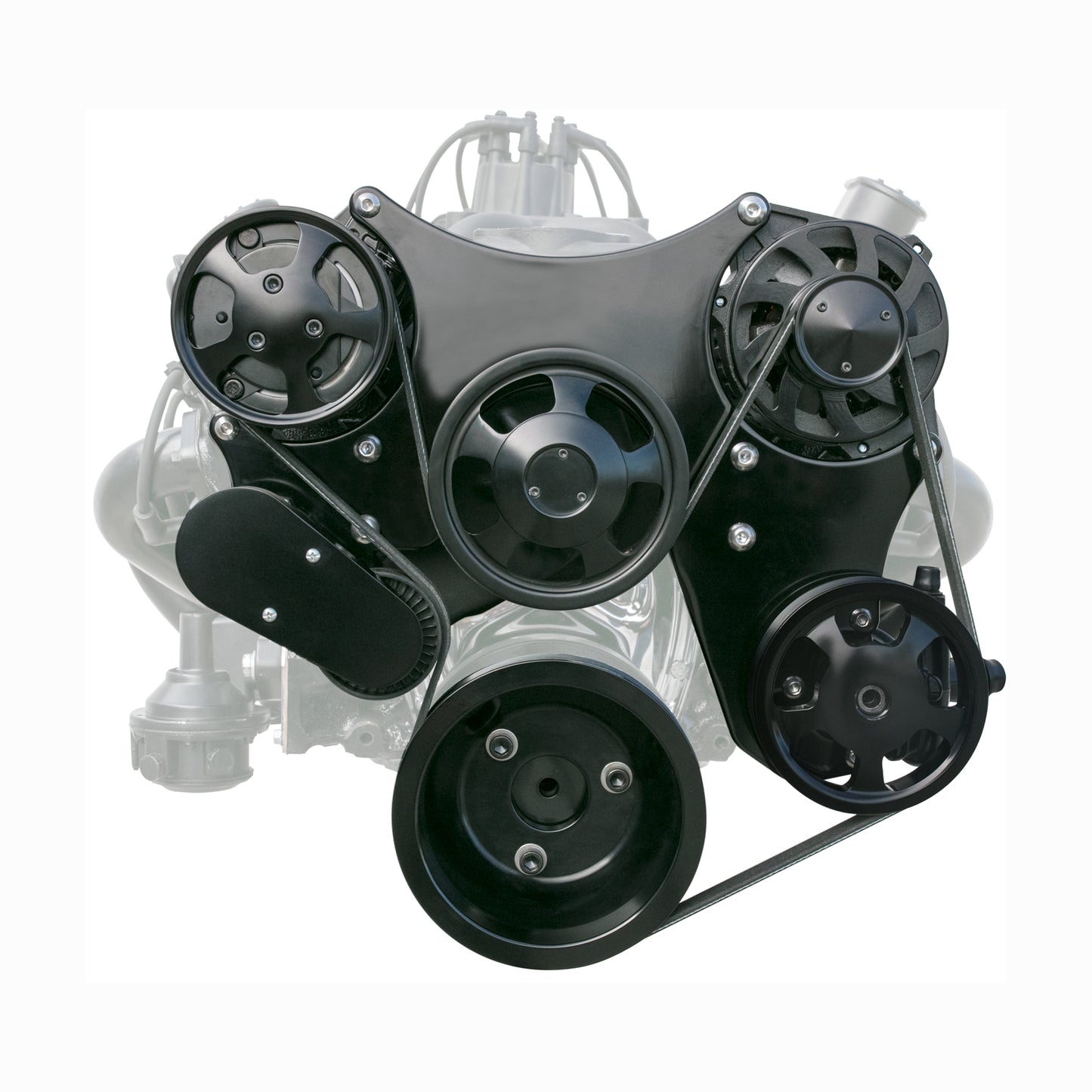

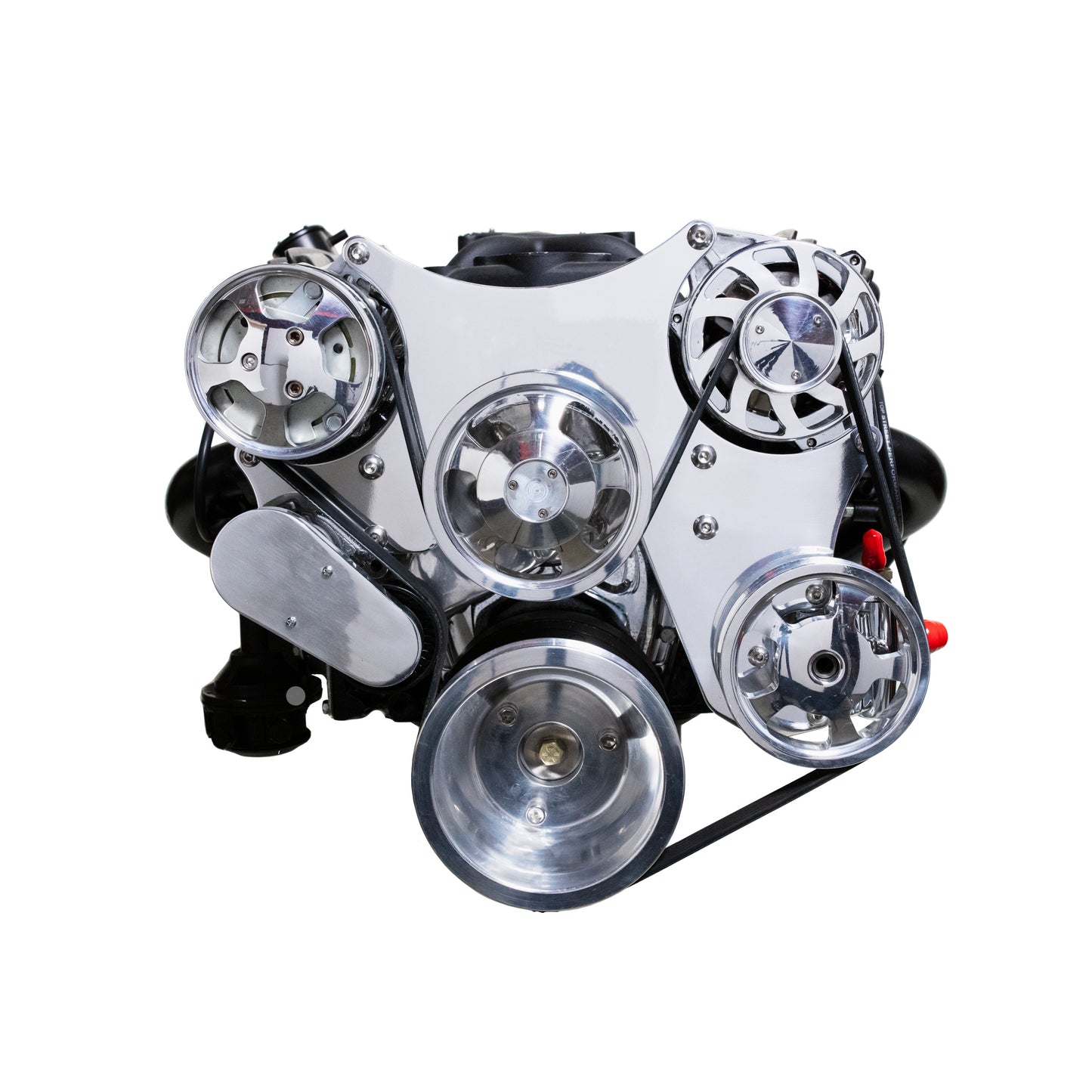

Chevy Small Block Serpentine Front Drive System
Chevy Small Block Serpentine Front Drive System
SKU: SKU: DS35014BK
Low stock
Product Downloads
Product Details
Features
- Fits Chevy small block engines
- Includes accessories, brackets and pulleys, belt, and hardware
- Available in black or polished
Description
Designed for efficiency and style, TSP's Chevy small block serpentine front drive system is sure to turn heads. If you're looking for a way to dress up engine swap, look no further. And the best part: this kit comes with everything you need, from brackets and pulleys to the belt and accessories.
Brackets and Pulleys
Easily the biggest draws to this kit are the brackets and pulleys. CNC-machined from 6061-T6 aluminum, they are available in a stylish black or gorgeous polished finish. They complement the accessories perfectly and will fit your small block perfectly.
Water Pump
TSP's high-flow mechanical water pump provides that extra cooling power your high-performance engine demands. Composed of lightweight A356 aluminum, the casting manages heat better than cast iron, and with an improved internal construction, it flows up to 40% above stock.
Alternator
Providing the electrical power in this kit is our 160-amp GM CS130 style alternator. It features an internal regulator, one-wire capability, and a convenient battery side post.
A/C Compressor
TSP's Sanden SD7 style A/C compressor provides high-performance cooling in a compact package. It pumps 6.1 cubic inches per revolution with a maximum 9,000 sustained RPM range.
Power Steering Pump
When it came time to address power steering with this kit, we looked to the immensely popular GM Type II. It's been designed for performance and reliability, meeting or exceeding OEM specifications.
Specs
| Bracket & Pulley Material | Billet Aluminum |
| Alternator Type | CS130 Style |
| Alternator Output | 160 Amps |
| A/C Compressor Type | Sanden SD7 Style |
| Water Pump Type | Reverse-rotation long neck style |
| Water Pump Output | High-flow |
| Power Steering Pump Type | GM Type 2 (Saginaw TC Series) |
| Belt Tensioner | Included |
| Belt Tensioner Style | Custom Design |
| Spacers & Hardware | Included |
| Serpentine Belt | 6-Rib, 65 1/2" Length |
| Gates Part # | K060650 |
| Belt Included | No |
| Included |
|
Fitment
CHEVROLET SMALL BLOCK V8 GEN. I
• 4.3 L / 262 in3
• 4.3 L / 265 in3
• 4.4 L / 267 in3
• 4.6 L / 283 in3
• 4.9 L / 302 in3
• 5.0 L / 305 in3
• 5.0 L / 307 in3
• 5.4 L / 327 in3
• 5.7 L / 350 in3
• 6.6 L / 400 in3
Notes:
Due to the relocation of certain accessories, may not fit in stock applications.
Power steering pump in this kit is designed for use with a remote reservoir.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
