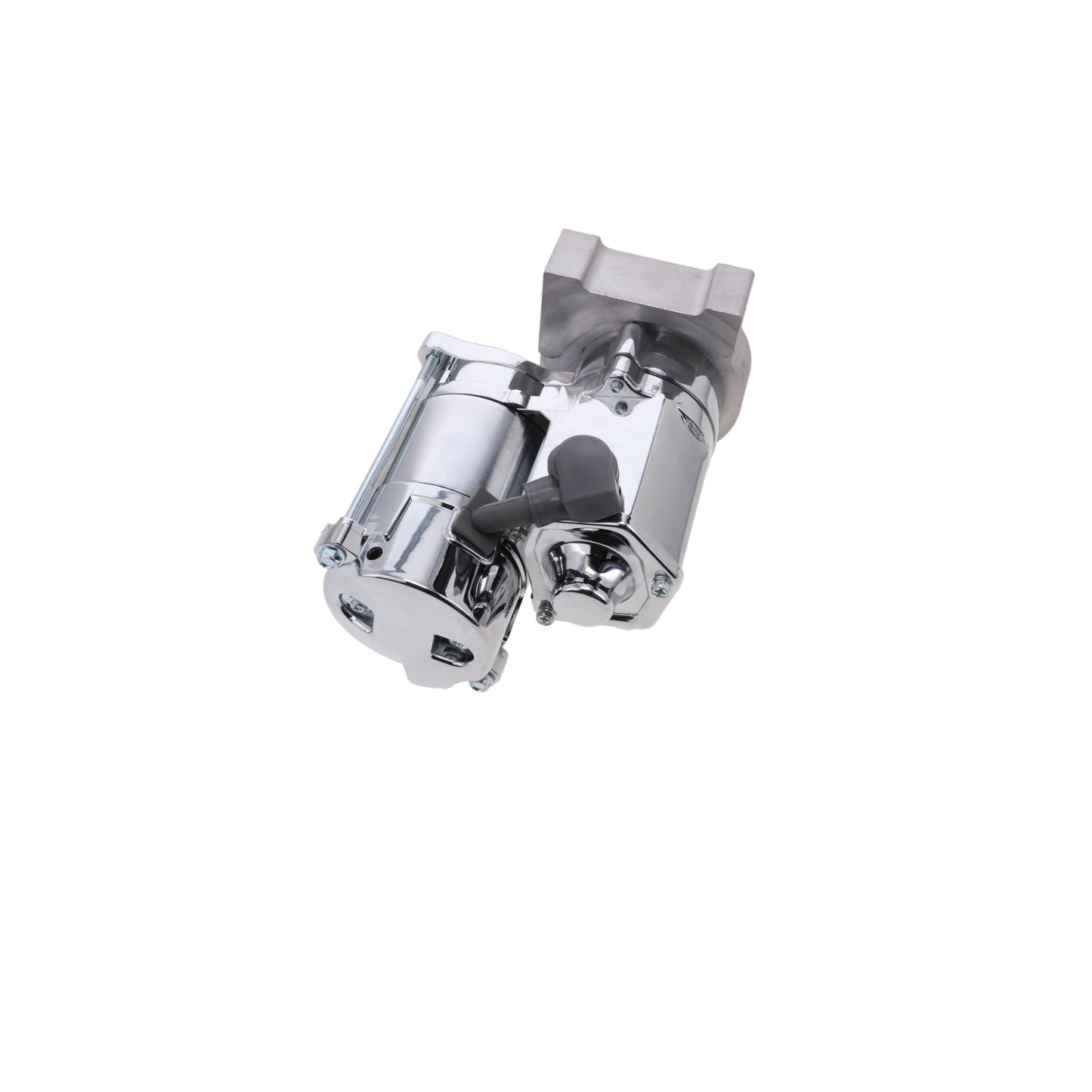

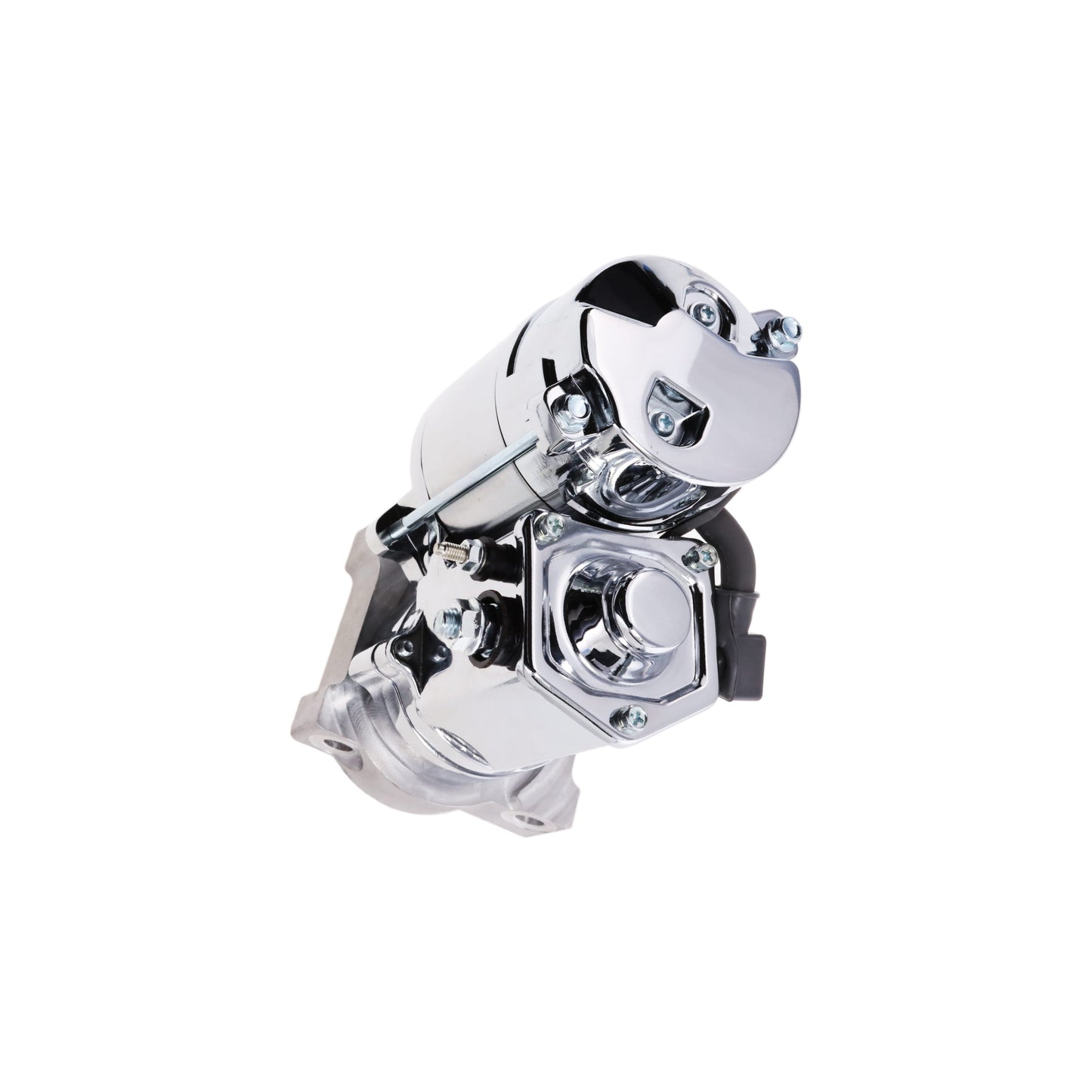

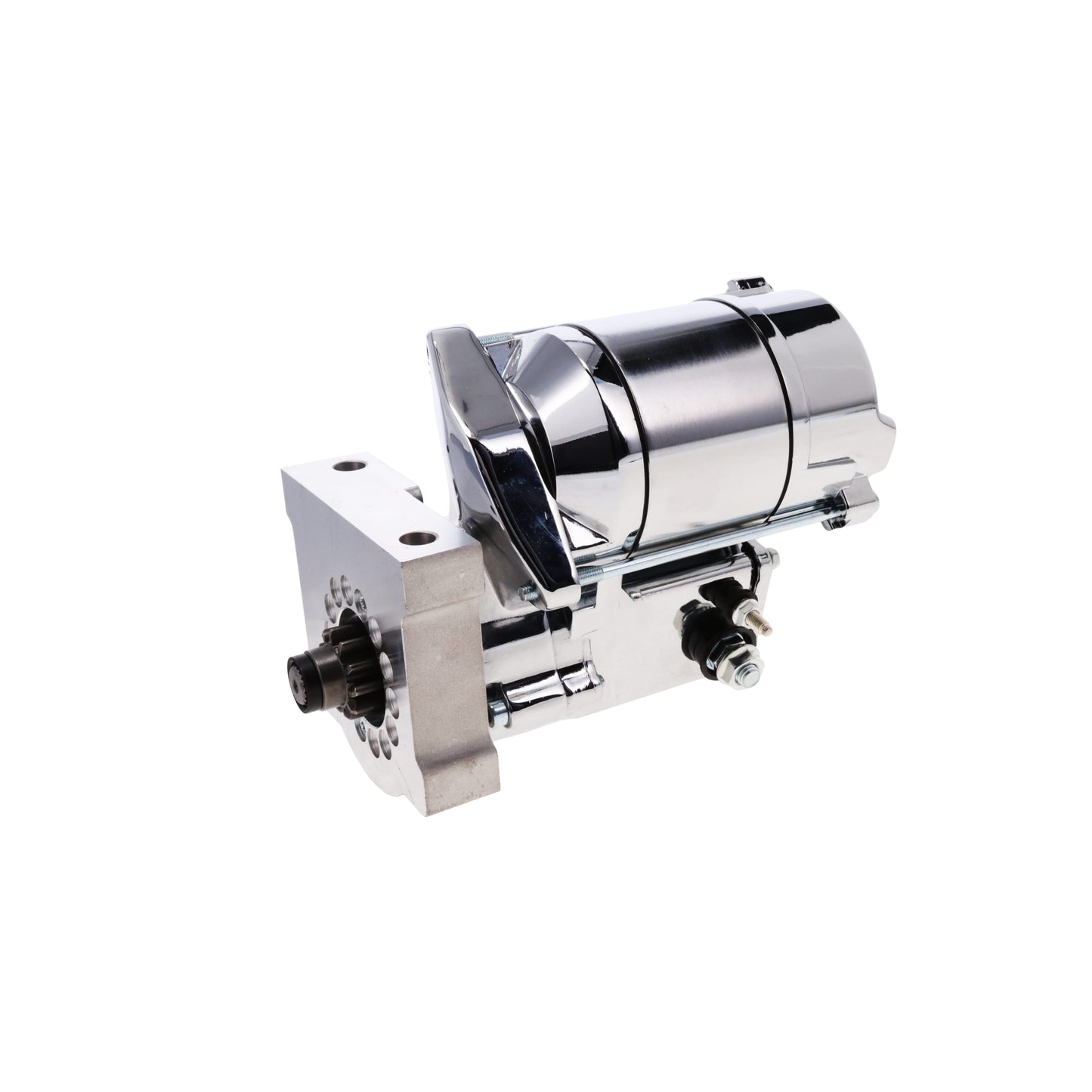

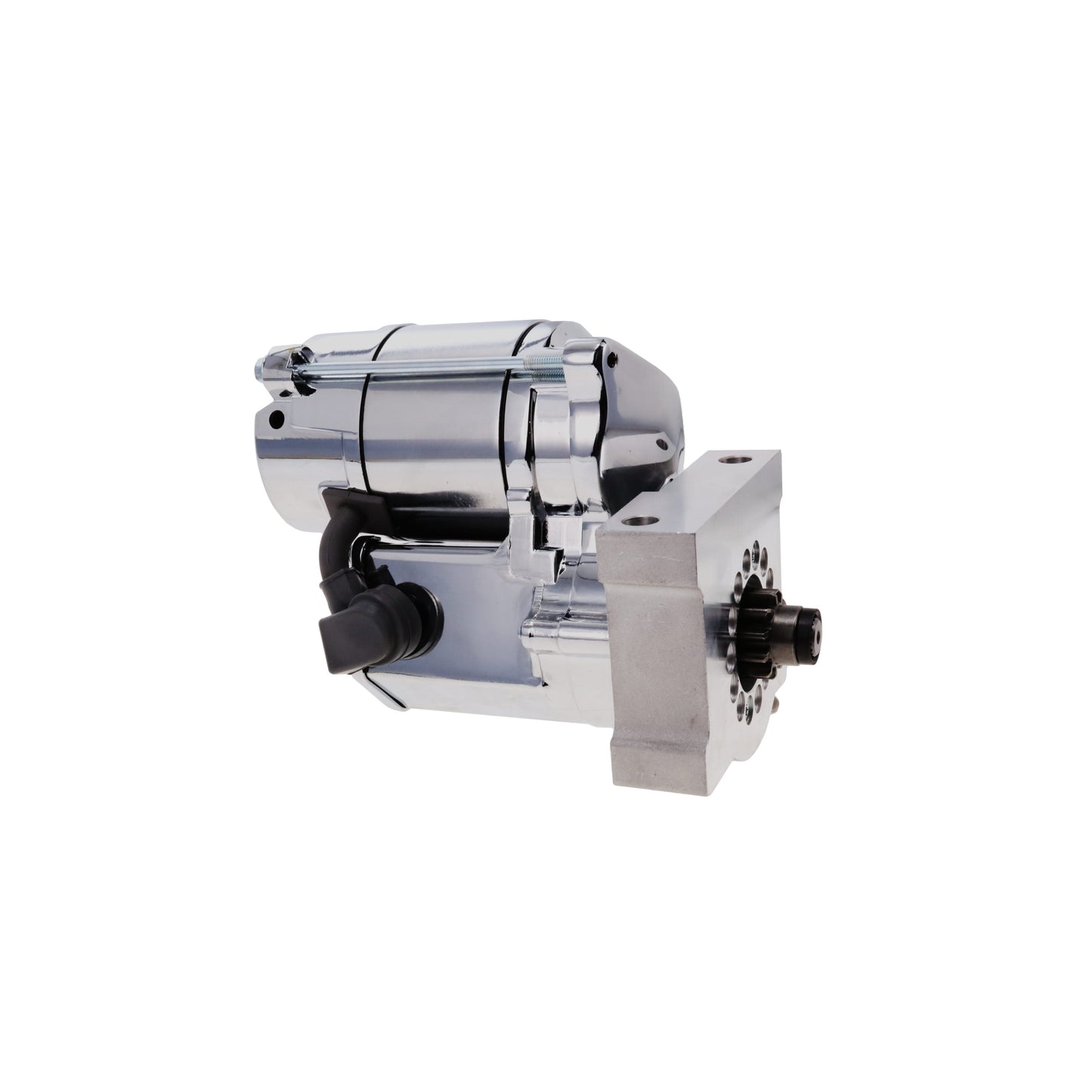

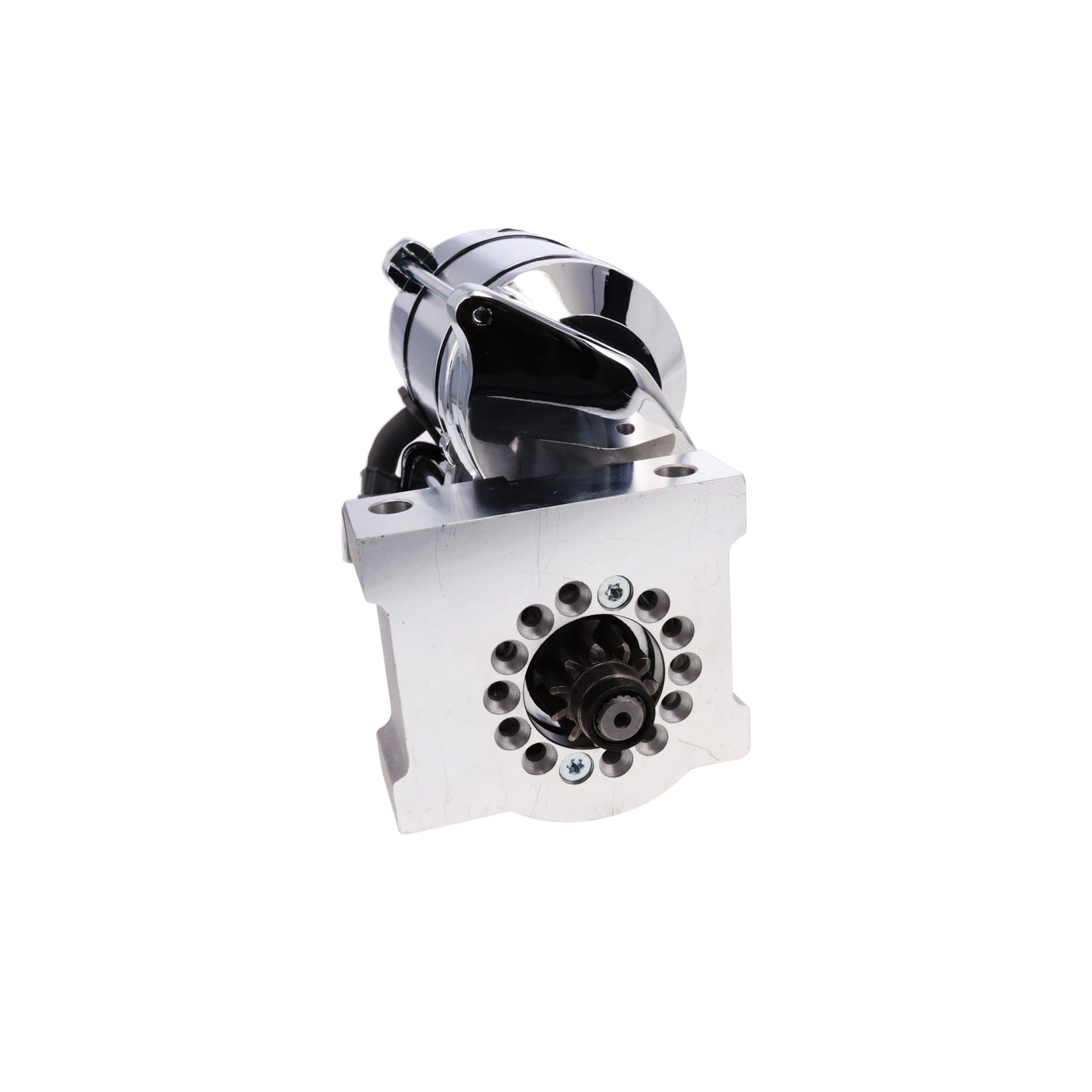

GM LS V8 1.9 HP Mini Starter - Chrome

• 1.9 horsepower starter motor helps deliver stronger cranking power for higher-compression engine combinations

• 4.0:1 gear reduction ratio helps improve starter engagement during hot and cold starts

• Mini starter layout creates additional clearance around headers and exhaust components

• Billet Aluminum mounting block and adjustable positioning help simplify starter alignment during installation

Clean up LS engine starting performance with a compact chrome high-torque starter that delivers strong cranking power while creating extra room around headers and exhaust components. The 1.9 horsepower motor and 4.0:1 gear reduction ratio help turn over higher-compression engines more efficiently.

Compact Starter Design
Mini starter layout creates additional clearance around headers, oil pans, and tight engine bay configurations.

Gear Reduction Performance
4.0:1 gear reduction and standard rotation help deliver stronger starter engagement during hot and cold starts.

Installation Notes
Adjustable mounting block included for easier starter positioning. Fits 168-tooth flywheels.

What applications is this starter compatible with?
This starter is designed for compatible applications including CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS-BASED).

Will this starter fit GM LS engines?
Yes, this starter is designed for compatible GM LS-based applications listed in the fitment details.

What flywheel tooth count does this starter fit?
This starter is designed for 168-tooth flywheel applications.

What type of starter is this?
This is a mini mini starter designed to provide strong cranking power in a more compact package than many stock starters.

How much starting power does this starter provide?
This starter is rated at 1.9 horsepower, which helps deliver strong cranking performance for demanding street and performance applications.

What compression ratio can this starter handle?
This starter is rated for engines up to approximately a 12.0:1 maximum compression ratio.

What is the gear reduction ratio on this starter?
This starter uses a 4.0:1 gear reduction ratio to help increase cranking torque and improve starter efficiency.

Does this starter have an adjustable mounting block?
Yes, this starter includes an adjustable mounting block, which helps with fitment flexibility and header or oil pan clearance in different engine combinations.

What direction does this starter rotate?
This starter uses standard rotation, matching the intended factory-style rotation direction for compatible applications.

What materials is this starter made from?
It uses a cast aluminum starter housing and a billet aluminum mounting block, helping balance strength, weight, and durability.

Will this starter help with hot starts or high-compression engines?
Yes, a high-torque gear-reduction starter can improve cranking performance in heat-soaked conditions and on more demanding engine combinations when matched to the correct application.

Does the chrome finish affect performance?
No, the chrome finish is cosmetic and does not change the starter's performance—it gives it a brighter show-quality appearance.

How do I maintain the chrome finish?
Routine cleaning with non-abrasive products will help keep the chrome finish looking its best over time.
