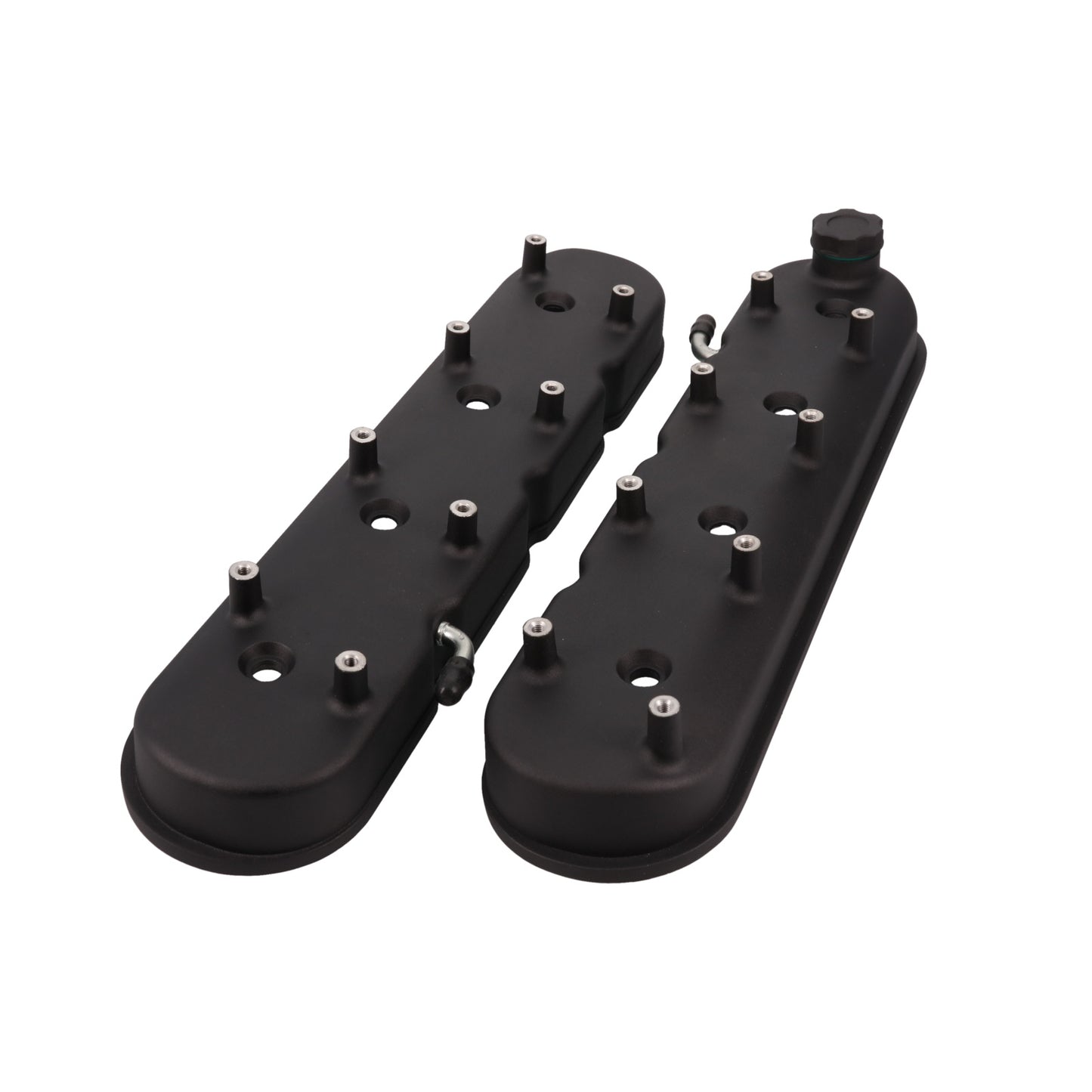

GM LS Cast Aluminum Valve Covers with Coil Mounts- Black

• Fits GM LS valve cover applications

• Cast Aluminum construction with black finish for strength, durability, and leak resistance

• Designed for proper crankcase ventilation

• Hardware may be required; verify gasket type; check rocker, coil, hood, and breather clearance before installation

GM LS Cast Aluminum Valve Covers with Coil Mounts Satin for Sealing, Clearance, and Engine Bay Detail

These GM LS valve covers are built around the details buyers search for most: fitment, valve cover height, material, finish, ventilation, and sealing. The 3 in. profile, center bolt mounting style, and application-specific top style help match the cover to the correct engine build and clearance requirements.

These cast aluminum valve covers are available in polished, satin, or black finishes to enhance both durability and engine bay appearance. Built-in coil mounting provisions and internal baffling provide ignition system compatibility and effective oil control. Be sure to verify gasket and hardware requirements for your specific engine combination before installation.

The integrated coil mounting studs allow Delco D510C (GM Gen V LS) ignition coils to bolt directly to the valve covers using the factory 72mm mounting pattern—no separate coil relocation or mounting brackets required. TSP 81015-8 ignition coils are a direct-fit option for these valve covers.

Use these valve covers for street performance builds, restorations, swaps, and engine dress-up upgrades where appearance, oil control, and valvetrain clearance matter. Verify gasket style, breather/PCV layout, rocker clearance, and hood clearance before installation.

What applications are these valve covers compatible with?
These valve covers are designed for COMPATIBLE WITH, CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS BASED), 4.8 L / 293 in3, 5.3 L / 325 in3, 5.7 L / 346 in3 commonly referred to as 350, 6.0 L / 364 in3, 6.2 L / 376 in3, 7.0 L / 427 in3, NOTE: Valve cover base mounts to LS1, LS2, LS3, LS6, and LS7 engines., Has provisions for Delco 510C (TSP 81015) and D580 style ignition coils..

Will these valve covers fit my engine?
These valve covers are intended for GM LS applications and should match your cylinder heads and valvetrain setup.

What do valve covers do?
Valve covers protect the valvetrain components and help contain engine oil while sealing the top of the cylinder head.

What material are these valve covers made from?
These valve covers are made from aluminum, providing durability and heat resistance.

What finish do these valve covers have?
These valve covers feature a available in polsihed, satin, black finish, which enhances engine bay appearance.

Are these valve covers baffled?
Yes, these valve covers include internal baffles to help control oil and reduce blow-by issues.

Do I need gaskets for installation?
Yes, proper gaskets are required to ensure a leak-free seal.

Do I need hardware for installation?
You may need bolts or fasteners depending on your setup.

Will these valve covers help prevent oil leaks?
Yes, properly installed valve covers with correct gaskets help prevent oil leaks.

Are these valve covers a good upgrade over stock?
Yes, aftermarket valve covers can improve durability, oil control, and engine bay appearance.

Can these valve covers clear aftermarket rocker arms?
Tall valve covers are often required to clear larger rocker arms, so clearance should be verified before installation.

Can these valve covers be used in performance builds?
Yes, valve covers are commonly upgraded in performance and custom engine builds.

Do these valve covers require separate coil mounting brackets?
No. These valve covers feature integrated coil mounting studs designed for ignition coils that use the 72mm mounting pattern. Delco D510C (Gen V LS) coils, including TSP 81015-8 coil packs, mount directly to the covers without additional coil brackets.
