GM LS 102mm Aluminum Intake Manifold - Clear Anodized
GM LS 102mm Aluminum Intake Manifold - Clear Anodized
SKU: SKU: 81001CA
Out of stock
Product Details
Features
- LS1 Fabricated Aluminum Intake Manifold
- TB Port: 102 mm
- Flange Thickness: 0.44 in
- Material Thickness: 0.12 in
Description

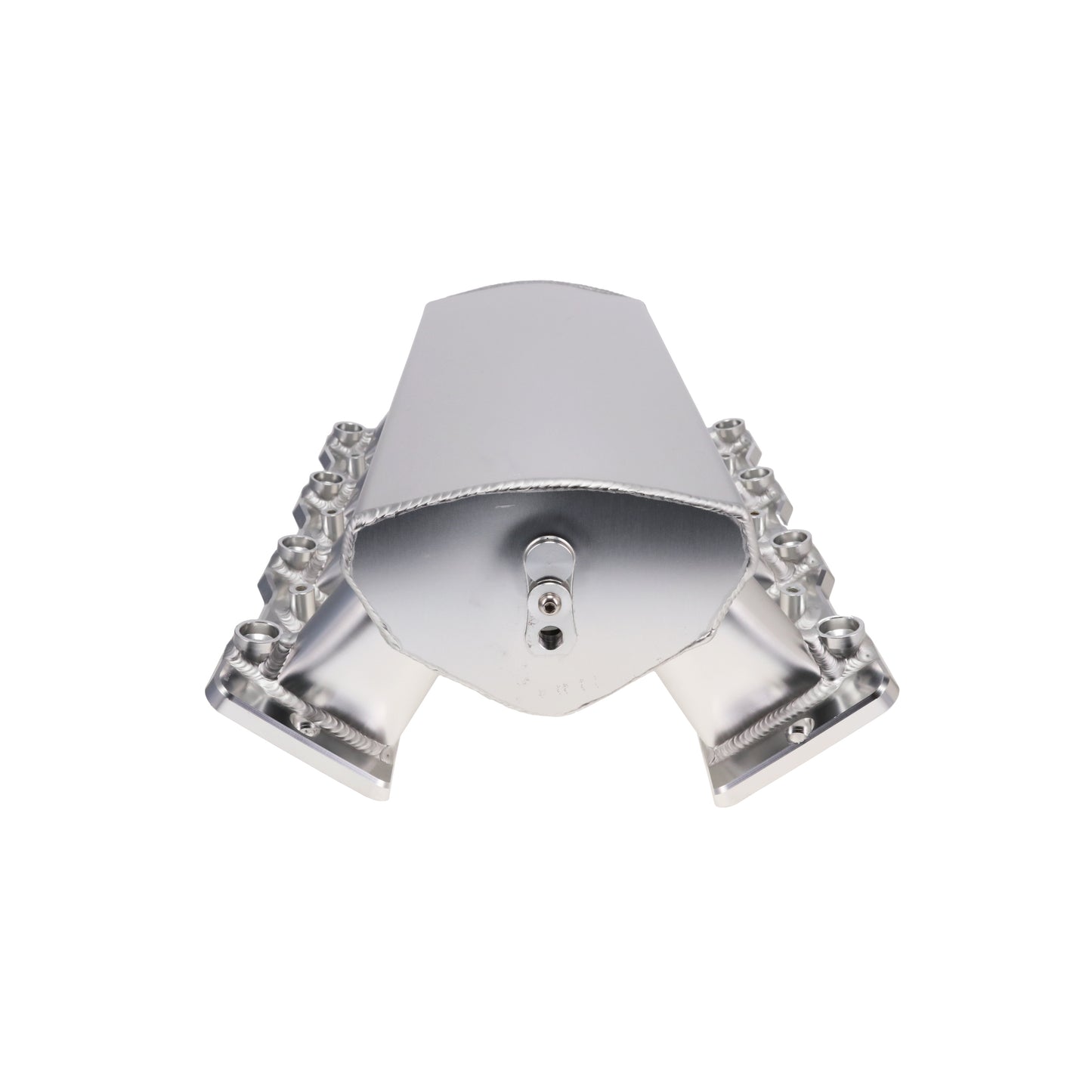

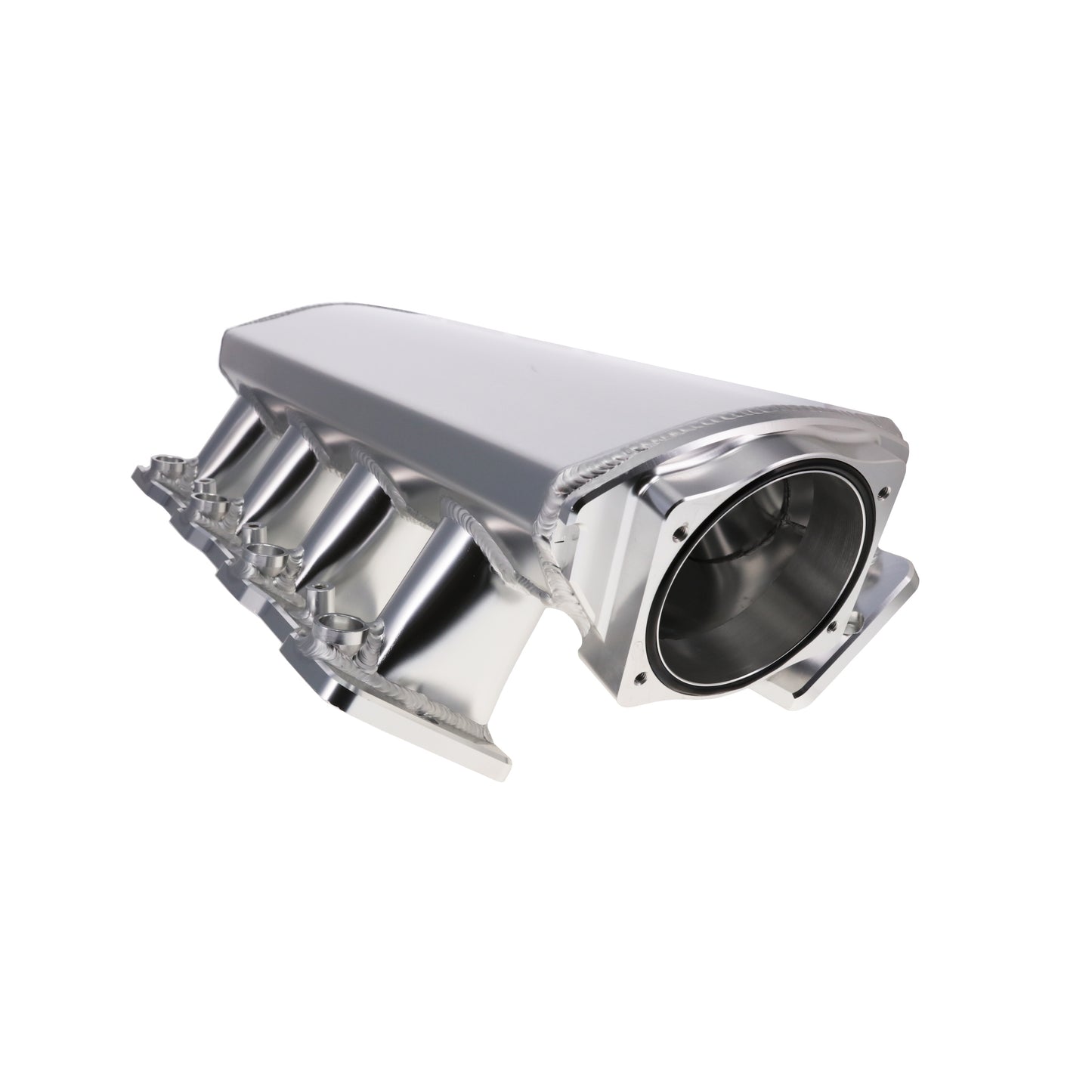

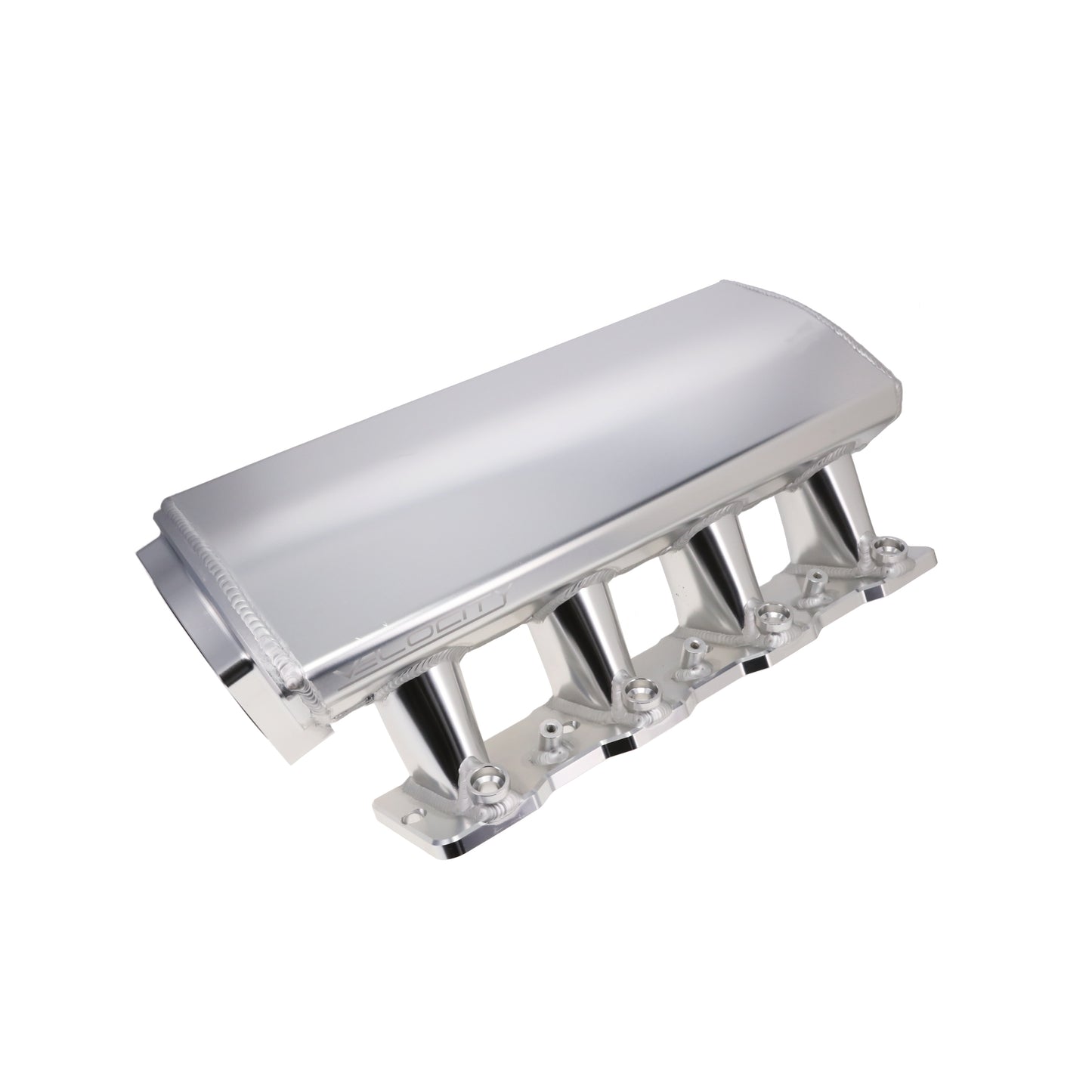

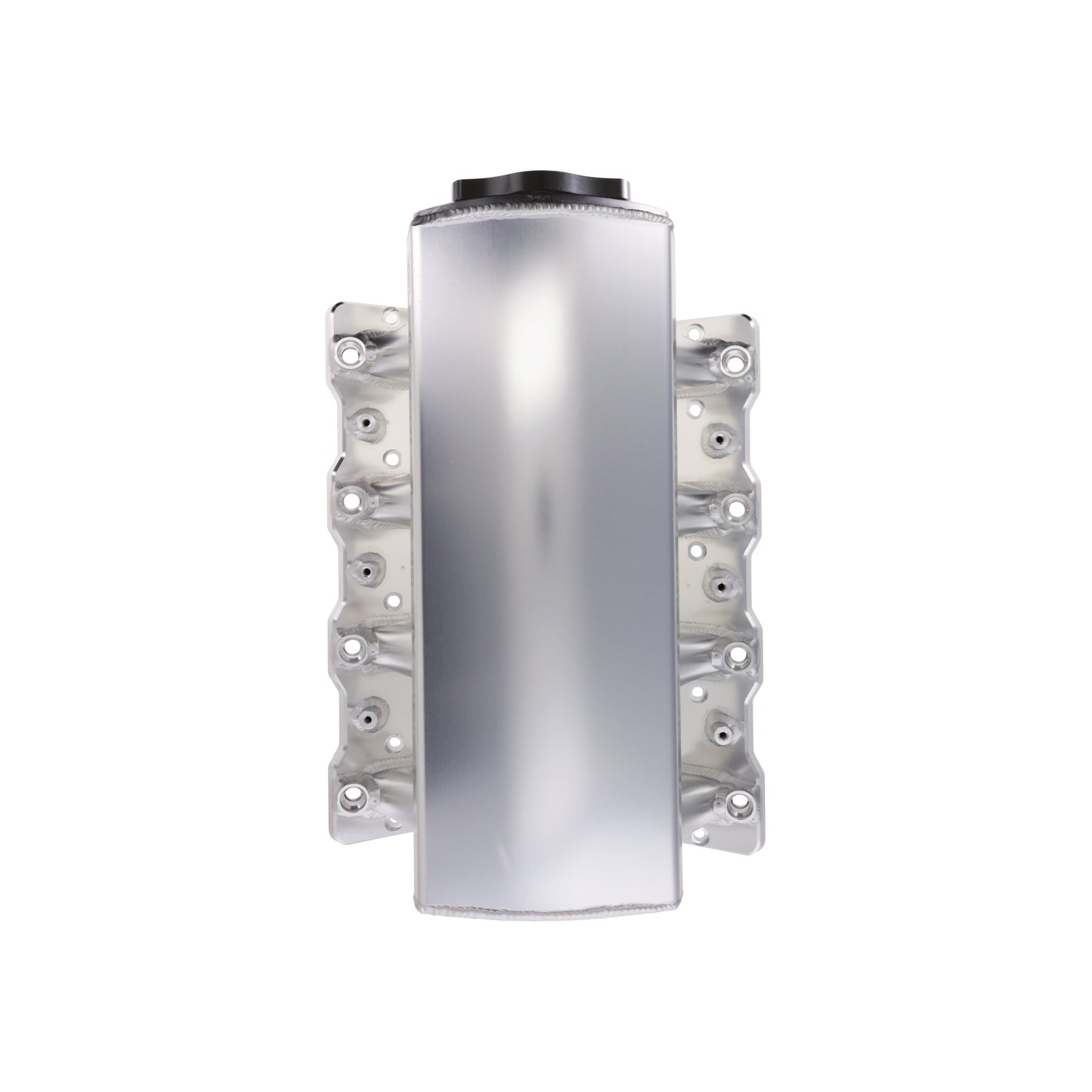

Top Street Performance high performance fabricated aluminum single plane intake manifolds are what is needed to squeeze the most horsepower out of a LS engine. They feature a large center plenum and short runners with velocity stacks to improve air flow over the stock intake. Individual port O-rings promotes a good seal on every intake runner and throttle body opening. Using a 102mm throttle body to maximize air flow for those high horsepower engines.
Specs
| Basic Operating RPM Range | 1,500-6,500 RPM |
| Center Maximum Height | 6.750 in. |
| Color | Clear Anodized |
| Deck Height | Standard |
| Finish | Clear Anodized |
| Front Maximum Height | 6.750 in. |
| Fuel Injection Style | Multi-port |
| Fuel Injector Stye Provision | EV1 |

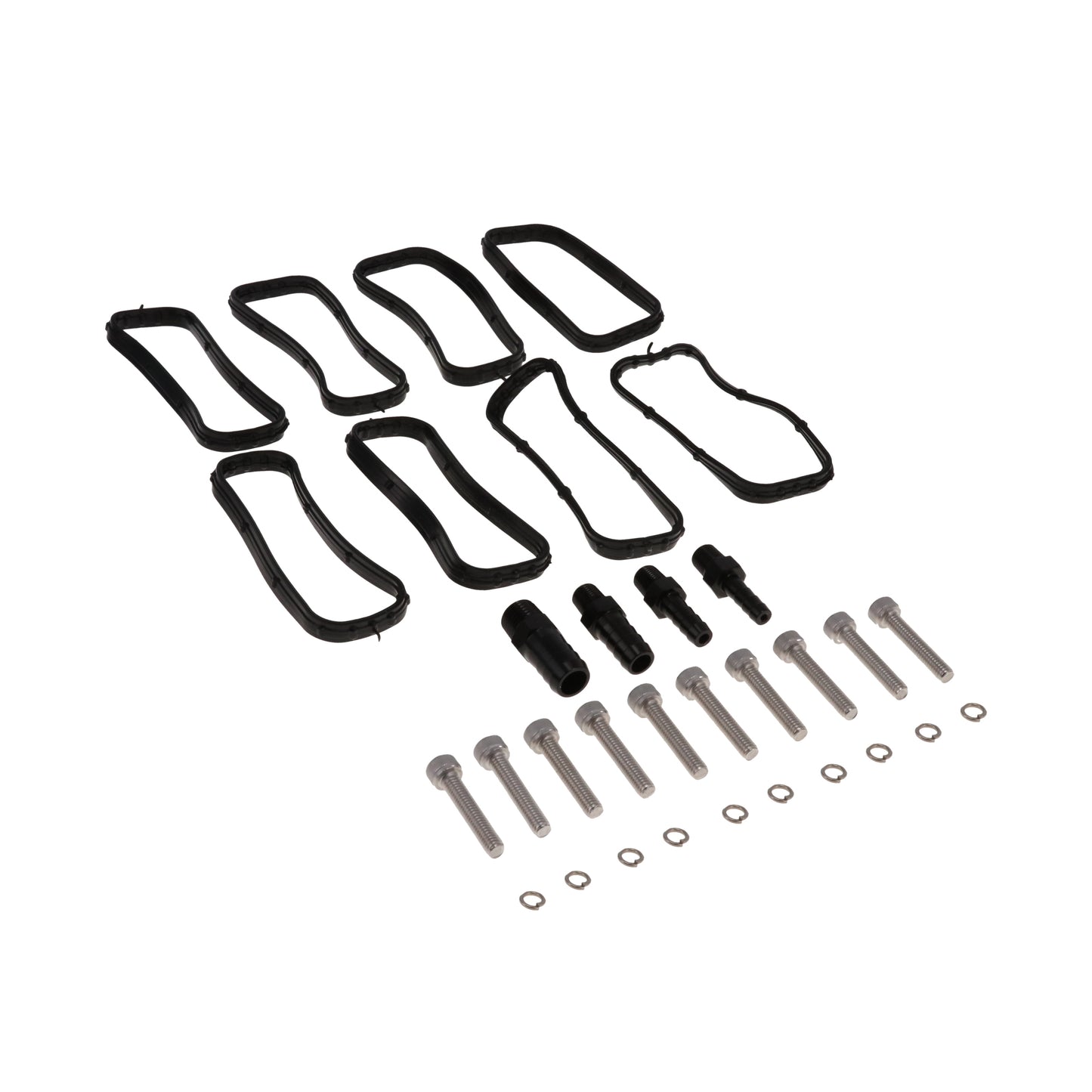

| Gasket Or Seal Included | Yes |
| Grade Type | Performance |
| Intake Port Shape | Cathedral |
| Material | Aluminum |
| Plenum Material | Aluminum |
| Plenum Thickness | 4 mm |
| Rear Maximum Height | 6.750 in. |
| Runner Length | 5.000 in. |
| Supplemental Boss Quantity | 4 |
| Throttle Body Bore Size | 102 mm |
Fitment
COMPATIBLE WITH
CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS-BASED)
• 4.8 L / 293 in3 (LR4)
• 5.3 L / 325 in3 (L33, L59, LM4, LM7)
• 5.7 L / 346 in3 (LS1, LS6)
• 6.0 L / 364 in3 (LQ4, LQ9, LS2)
NOTES:
Fits LS-based engines with "cathedral" intake port shape only.
Bung designed for LSA/LS9 style MAP sensor (GM #12592525).
Emissions Notice
This Top Street Performance (TSP) product is designed for racing and off-road competition use only. It is not legal for use on public roads or emissions-controlled vehicles and does not comply with federal, state, or local emissions regulations. The buyer assumes all responsibility for legal use and installation.
What is a Emissions-Controlled Vehicle?
"An emissions-controlled vehicle is any vehicle equipped with a factory-installed emissions control system designed to reduce air pollution. These systems include catalytic converters, oxygen sensors, EGR (Exhaust Gas Recirculation) valves, and diesel particulate filters (DPF). Most vehicles manufactured after 1975 are considered emissions-controlled and must comply with federal and state emissions laws when used on public roads."
