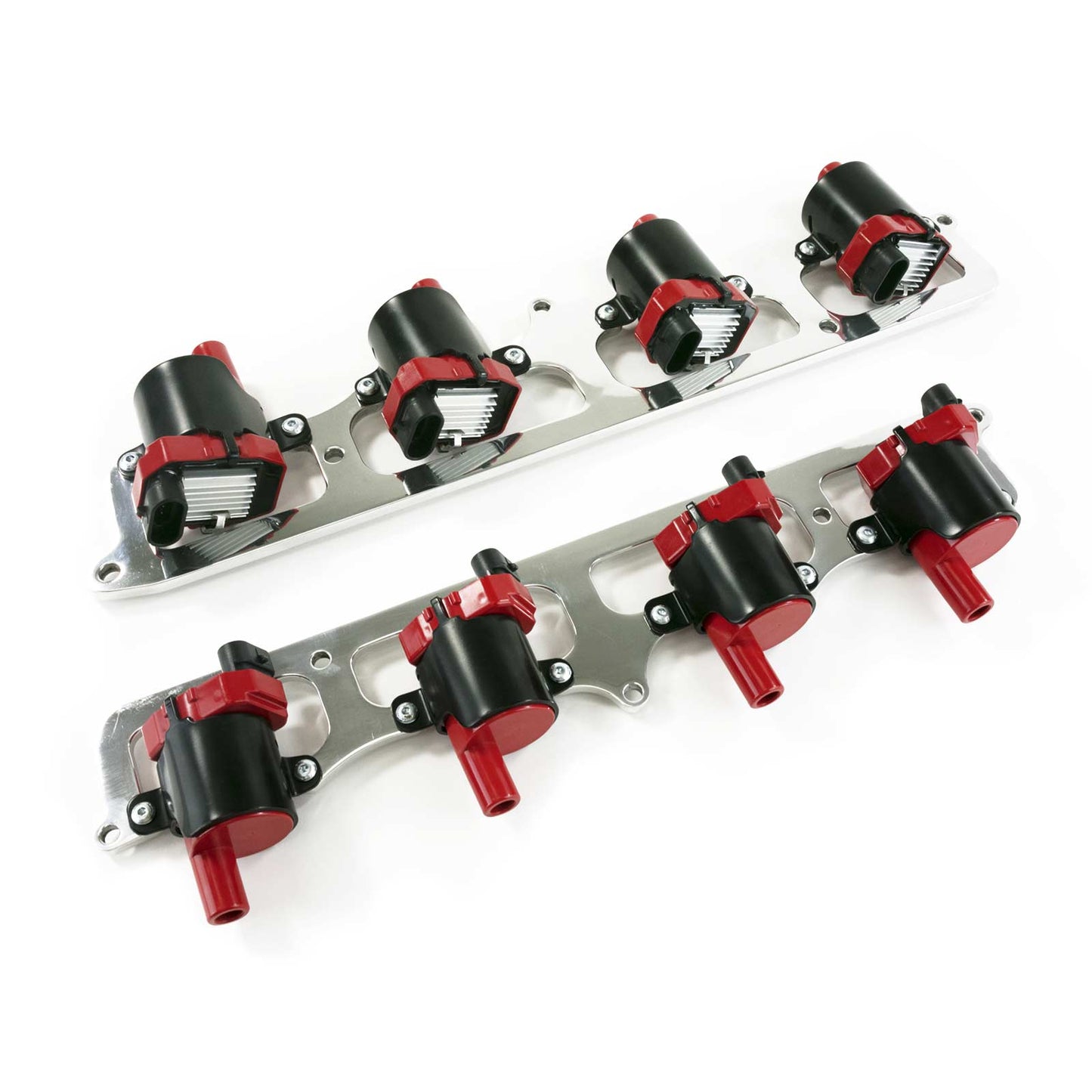

GM '99-'07 LS Truck Style High Performance Ignition Coils with Stock Style Brackets - Natural
GM '99-'07 LS Truck Style High Performance Ignition Coils with Stock Style Brackets - Natural
SKU: SKU: 81023KT
Out of stock
Product Details
Features
- Coils put out a crazy 40,000 volts
- Brackets available in black and natural finishes
Description
TSP's LSX ignition coils feature magnetic steel cores specially designed to deliver up to 15% more spark than OEM. They use a premium epoxy material for added resistance to shock and vibration at high RPM. Replace your boring stock brackets with a billet aluminum pair from TSP, available in black and natural finishes. This coil and bracket are in the style of the Delco D585.
Specs
| Bracket Material | Billet Aluminum |
| Coil Style | Coil Pack |
| Internal Construction | Epoxy |
| Primary Resistance | 0.500 Ohms |
| Secondary Resistance | 2,000 Ohms |
| Maximum Voltage | 40,000 Volts (V) |
| Spark Duration | 300 Microseconds (µs) |
| Peak Current | 220 Milliamperes (Ma) |
| Turns Ratio | 75:1 |
| Inductance | 2.7 Millihenrys (Mh) |
| Coil Wire Attachment | Female |
Fitment
CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS BASED)
• 4.8 L / 293 in3
• 5.3 L / 325 in3
• 6.0 L / 364 in3
NOTES: Fits most 199-2007 truck and van applications.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
GM '99-'07 LS Truck Style High Performance Ignition Coils with Stock Style Brackets - Natural
GM '99-'07 LS Truck Style High Performance Ignition Coils with Stock Style Brackets - Natural
TSP's LSX ignition coils feature magnetic steel cores specially designed to deliver up to 15% more spark than OEM. They use a premium epoxy material for added resistance to shock and vibration at high RPM. Replace your boring stock brackets with a billet aluminum pair from TSP, available in black and natural finishes. This coil and bracket are in the style of the Delco D585.
FITMENT:
CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS BASED)
• 4.8 L / 293 in3
• 5.3 L / 325 in3
• 6.0 L / 364 in3
NOTES: Fits most 199-2007 truck and van applications.
| Bracket Material | Billet Aluminum |
| Coil Style | Coil Pack |
| Internal Construction | Epoxy |
| Primary Resistance | 0.500 Ohms |
| Secondary Resistance | 2,000 Ohms |
| Maximum Voltage | 40,000 Volts (V) |
| Spark Duration | 300 Microseconds (µs) |
| Peak Current | 220 Milliamperes (Ma) |
| Turns Ratio | 75:1 |
| Inductance | 2.7 Millihenrys (Mh) |
| Coil Wire Attachment | Female |
