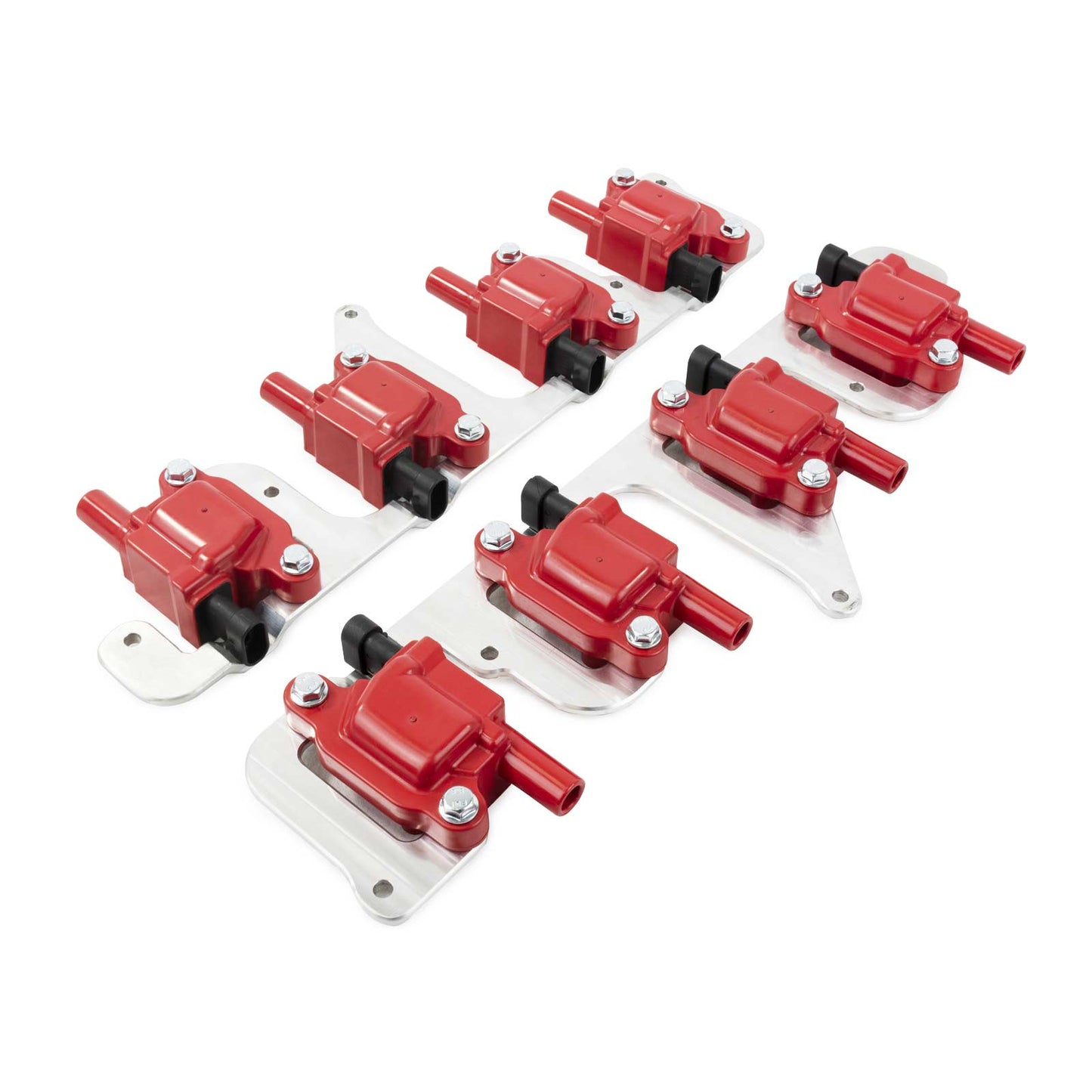

GM '05-'18 LS High Performance Ignition Coils with Stock Style Brackets - Natural
GM '05-'18 LS High Performance Ignition Coils with Stock Style Brackets - Natural
SKU: SKU: 81022KT
Out of stock
Product Details
Features
- Ignition coil performance helps reduce weak spark issues in distributor-based ignition systems
- Built to help maintain reliable ignition performance under repeated heat cycles
- Updated ignition appearance helps complete a cleaner under-hood presentation
- Designed to support street-driven distributor ignition system maintenance
Description
Improve ignition response and spark reliability with a performance ignition coil built for street-driven V8 combinations.
Spark Energy
High-output spark energy helps improve ignition consistency during startup, idle, and acceleration.
Ignition Coil Construction
Performance-style construction helps manage heat while maintaining dependable ignition performance.
Installation Notes
0.500 Ohms primary resistance helps match ignition system requirements. Verify mounting style and ignition compatibility before installation.
Specs
| Bracket Material | Billet Aluminum |
| Coil Style | Coil Pack |
| Internal Construction | Epoxy |
| Primary Resistance | 0.500 Ohms |
| Secondary Resistance | 2,000 Ohms |
| Maximum Voltage | 40,000 Volts (V) |
| Spark Duration | 300 Microseconds (µs) |
| Peak Current | 220 Milliamperes (Ma) |
| Turns Ratio | 75:1 |
| Inductance | 2.7 Millihenrys (Mh) |
| Coil Wire Attachment | Female |
Engine Fitment
COMPATIBLE WITH
CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS-BASED)
• 4.8 L / 293 in3 (LR4, LY2, L20)
• 5.3 L / 325 in3 (LM7, L59, LM4, L33, LC9, LH6, LH8, LH9, LMF, LMG, LY5, LS4)
• 5.7 L / 346 in3 (LS1, LS6)
• 6.0 L / 364 in3 (LQ4, LQ9, LS2, L76, LY6, L96, LFA, LZ1)
• 6.2 L / 376 in3 (LS3, L92, L94, L9H, L99, LSA, LS9)
• 7.0 L / 427 in3 (LS7)
COMMON VEHICLE APPLICATIONS
Chevrolet Corvette LS2 / LS3 / LS7 / LS9 applications
Chevrolet Camaro LS3 / L99 applications
Pontiac G8 / GTO and Cadillac CTS-V LS-based applications
LS swap builds using matching coil connector and bracket style
NOTES
Verify coil connector style, coil bracket style, and wiring harness compatibility before installation.
8 coils are required for V8 applications when replacing a full set.
For LS swap use, match the coil connector and bracket style to the harness and valve cover setup.
Q&A
What applications are these ignition wires compatible with?
These ignition wires are designed for COMPATIBLE WITH, CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS BASED), 4.8 L / 293 in3, 5.3 L / 325 in3, 6.0 L / 364 in3, 6.2 L / 376 in3, 7.0 L / 427 in3, NOTE: Fits most LS2, LS3, and LS7 car applications..
Will these spark plug wires fit my engine?
These wires are intended for Chevy/GM applications and should match your distributor, coil, and spark plug configuration.
What do ignition wires do?
Ignition wires carry high-voltage electricity from the ignition coil or distributor to the spark plugs.
What material are these wires made from?
These wires feature silicone insulation for durability and heat resistance.
Will these ignition wires improve performance?
Yes, high-quality ignition wires can improve spark delivery, engine efficiency, and reliability.
Are these a good upgrade over stock wires?
Yes, aftermarket ignition wires often provide better insulation, durability, and performance compared to stock wires.
Do ignition wires need to be replaced regularly?
Yes, ignition wires can wear over time and should be replaced as part of regular maintenance.
Can these ignition wires be used in performance builds?
Yes, ignition wires are commonly upgraded in performance and custom engine builds.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
GM '05-'18 LS High Performance Ignition Coils with Stock Style Brackets - Natural
Improve ignition response and spark reliability with a performance ignition coil built for street-driven V8 combinations.
Spark Energy
High-output spark energy helps improve ignition consistency during startup, idle, and acceleration.
Ignition Coil Construction
Performance-style construction helps manage heat while maintaining dependable ignition performance.
Installation Notes
0.500 Ohms primary resistance helps match ignition system requirements. Verify mounting style and ignition compatibility before installation.
COMPATIBLE WITH
CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS-BASED)
• 4.8 L / 293 in3 (LR4, LY2, L20)
• 5.3 L / 325 in3 (LM7, L59, LM4, L33, LC9, LH6, LH8, LH9, LMF, LMG, LY5, LS4)
• 5.7 L / 346 in3 (LS1, LS6)
• 6.0 L / 364 in3 (LQ4, LQ9, LS2, L76, LY6, L96, LFA, LZ1)
• 6.2 L / 376 in3 (LS3, L92, L94, L9H, L99, LSA, LS9)
• 7.0 L / 427 in3 (LS7)
COMMON VEHICLE APPLICATIONS
Chevrolet Corvette LS2 / LS3 / LS7 / LS9 applications
Chevrolet Camaro LS3 / L99 applications
Pontiac G8 / GTO and Cadillac CTS-V LS-based applications
LS swap builds using matching coil connector and bracket style
NOTES
Verify coil connector style, coil bracket style, and wiring harness compatibility before installation.
8 coils are required for V8 applications when replacing a full set.
For LS swap use, match the coil connector and bracket style to the harness and valve cover setup.
SPECIFICATIONS
Bracket Material: Billet Aluminum
Coil Style: Coil Pack
Internal Construction: Epoxy
Primary Resistance: 0.500 Ohms
Secondary Resistance: 2,000 Ohms
Maximum Voltage: 40,000 Volts (V)
Spark Duration: 300 Microseconds (µs)
Peak Current: 220 Milliamperes (Ma)
Turns Ratio: 75:1
Inductance: 2.7 Millihenrys (Mh)
Coil Wire Attachment: Female
