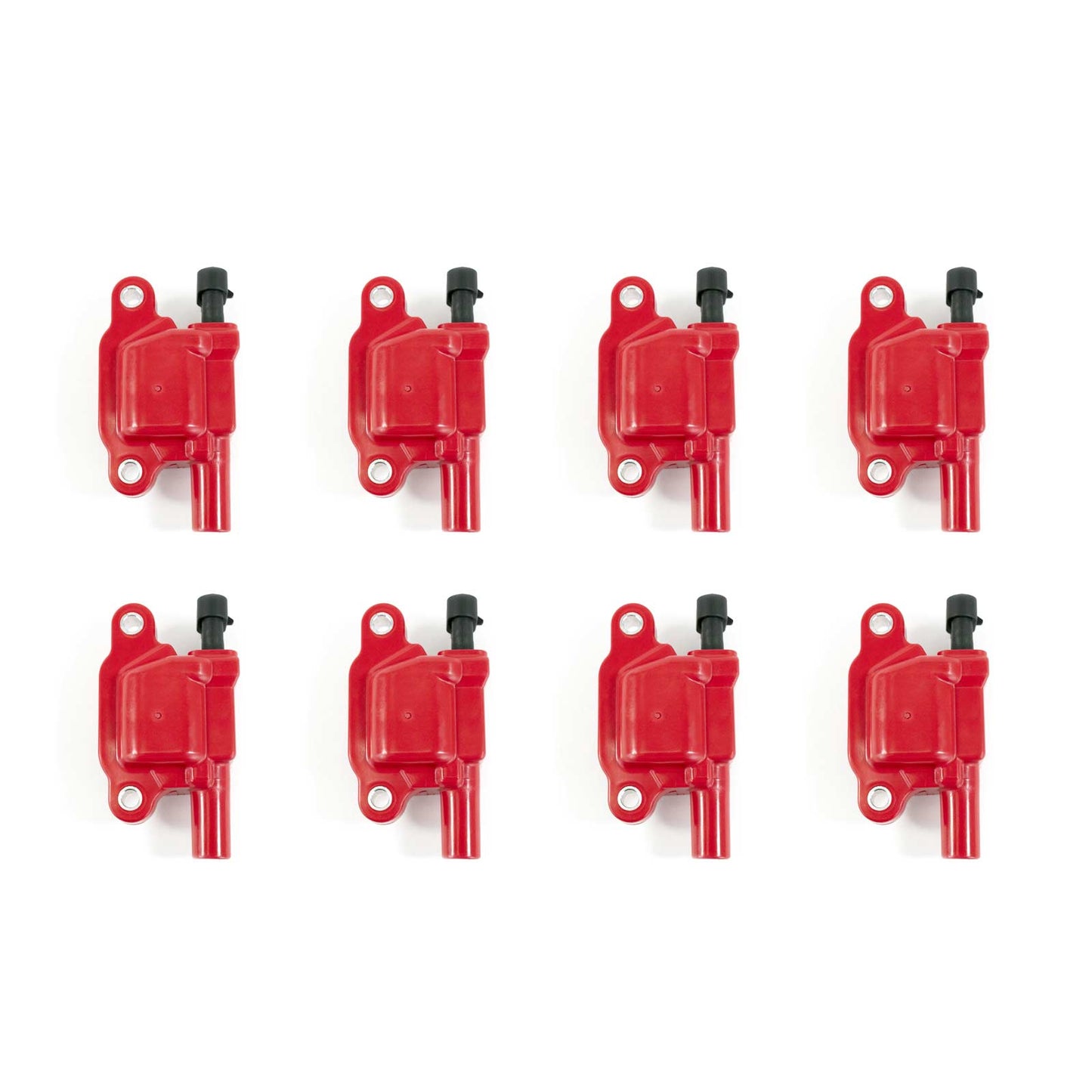

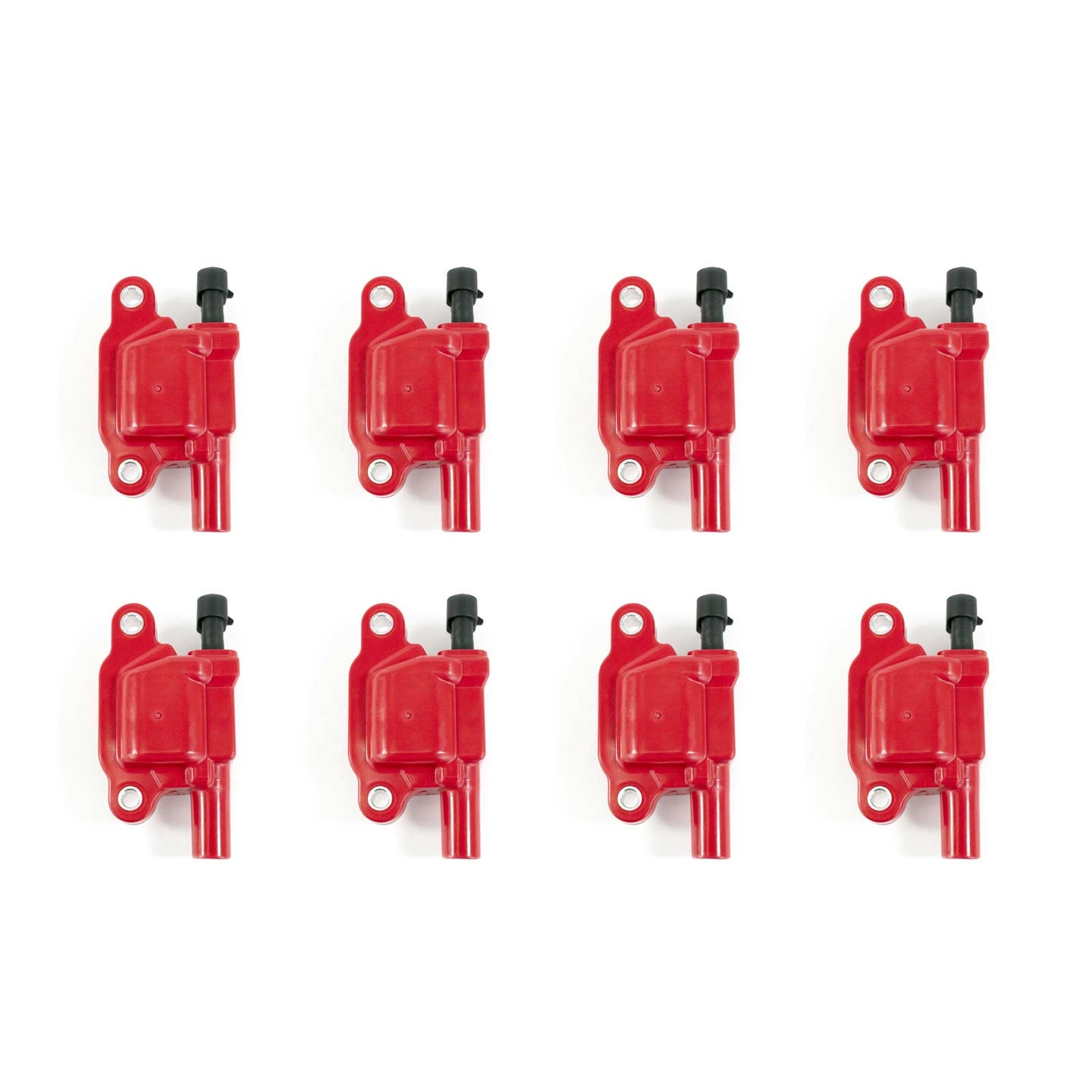

GM '05-'18 LS High Performance Ignition Coil - Set of 8 - Red
GM '05-'18 LS High Performance Ignition Coil - Set of 8 - Red
SKU: SKU: 81015-8
In stock
Product Details
Features
- Compatible with many GM LS2, LS3, LS7, and LS9 car applications
- Compatible with Delco D150C type coil
- Output: 40,000 V
- Female terminal
Description
TSP LSX ignition coils are engineered for high-energy spark output and reliable performance in demanding applications. Featuring magnetic steel cores, they are designed to deliver strong and consistent ignition performance. A high-resistance epoxy compound provides added protection against shock and vibration at elevated RPM. These coils are compatible with applications that use the Delco D510C ignition coil design.
Specs
| Coil Shape | Square |
| Coil Type | Coil Pack |
| Coil Wire Included | No |
| Color | Red |
| Connector Gender | Female |
| Grade Type | Performance |
| Ignition Type | Electronic |
| Inductance | 2.7 mH |
| Internal Construction | Epoxy |
| Mount Type | Bolt on |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Oil Filled | No |
| Peak Current | 220 mA |
| Primary Resistance | 0.5 Ohms |
| Quantity | Set of 8 |
| Requires External Resistor | No |
| Secondary Resistance | 2,000 Ohms |
| Spark Duration | 300 ms |
| Terminal Gender | Female |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| Turns Ratio | 75:1 |
| Voltage | 40,000 V |
Fitment
COMPATIBLE WITH
CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS BASED)):
• 4.8 L / 293 in3
• 5.3 L / 325 in3
• 6.0 L / 364 in3
• 6.2 L / 376 in3
• 7.0 L / 427 in3
NOTES:
Compatible with most LS2, LS3, LS7, and LS9 car applications.
8 coils required for all V8 applications.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
GM '05-'18 LS High Performance Ignition Coil - Set of 8 - Red
TSP LSX ignition coils are engineered for high-energy spark output and reliable performance in demanding applications. Featuring magnetic steel cores, they are designed to deliver strong and consistent ignition performance. A high-resistance epoxy compound provides added protection against shock and vibration at elevated RPM. These coils are compatible with applications that use the Delco D510C ignition coil design.
Compatible with:
CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS BASED)):
• 4.8 L / 293 in3
• 5.3 L / 325 in3
• 6.0 L / 364 in3
• 6.2 L / 376 in3
• 7.0 L / 427 in3
NOTES:
Compatible with most LS2, LS3, LS7, and LS9 car applications.
8 coils required for all V8 applications.
