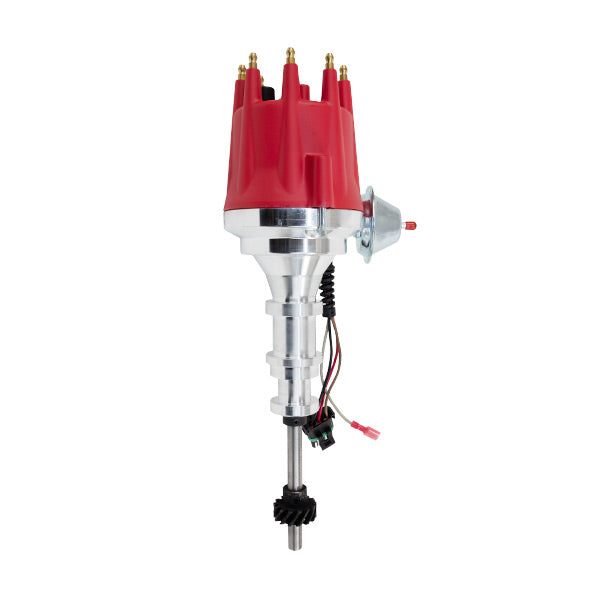

Ford Y-Block V8 Pro Series Ready to Run Distributor - Red
Ford Y-Block V8 Pro Series Ready to Run Distributor - Red
SKU: SKU: JM7742R
In stock
Product Downloads


Product Details
Features
- Fits Ford Y-Block V8 (272-312)
- Internal module means no external ignition box required
- Fully adjustable mechanical advance with additional springs and bushings included
Description
TSP Pro Series Ready to Run Distributor is perfect for a street performance upgrade. It features a CNC-machined billet aluminum body and hardened steel shaft, with a sealed ball bearing on top and a sintered steel bushing on the bottom. It also comes with a fully adjustable mechanical advance, vacuum advance, magnetic pickup trigger, and a high-output circuit board module with digital tach output. The dielectric cap comes with solid brass terminals and a color-matched wire retainer.
Fully Adjustable Mechanical Advance
An important feature on all Top Street Performance Pro Series distributors is the fully adjustable mechanical advance. This allows you to easily modify the distributor to achieve a variety of timing curves. Included with all Pro Series distributors are four bushings of varied size. The bushing determines the mechanical advance the distributor can achieve. Also included are six springs, with two at each level of tension. The springs control the rate at which the distributor reaches the advance.
High-Output Circuit Board Module
What separates a Ready to Run from a Pro Billet is the top-of-the-line internal ignition module. Built using the latest circuit board technology, this module eliminates the need for external ignition control, such as a CDI box. It also comes with a digital tachometer output. With a Pro Series Ready to Run distributor, just hook up your ignition coil, and you're good to go.
Specs
Trigger Type | Circuit Board Module with Magnetic Pick-Up |
Distributor Rotation | Counter-Clockwise |
Advance Type | Mechanical and Vacuum |
Cap Color | Available in Black, Blue, Red |
Terminal Gender | Male |
Mechanical Tach Drive | No |
Slip Collar | No |
Coil Included | No |
Coil Type | External |
Required Coil Output | 35,000+ V |
Gear Material | Steel |
Housing Material | Machined Aluminum |
Ignition Box Required | No |
Marine Use | No |
Cylinders | 8 |

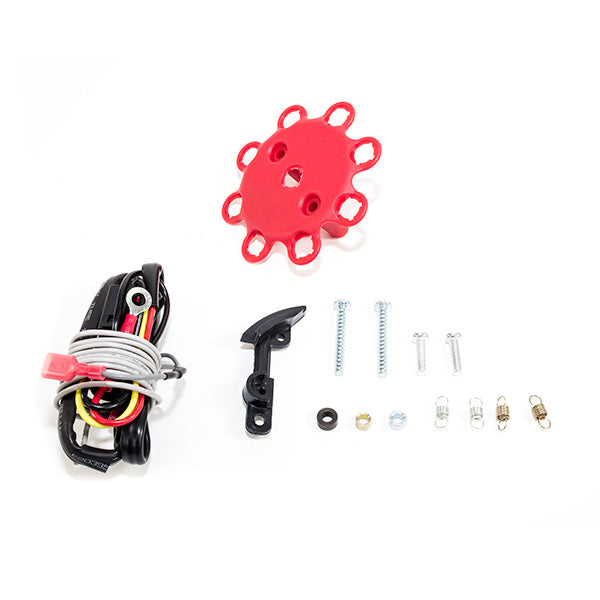

3 Bushings and 4 Springs for Mechanical Advance | Included |
Color-Matched Spark Plug Wire Retainer with Screws | Included |
Vacuum Advance Block-Off Plate (Black) | Included |
Power Extension Cable | Included |
Tachometer Output Extension Cable | Included |
Fitment
FORD Y-BLOCK V8
• 4.5 L / 272 in3
• 4.8 L / 292 in3
• 5.1 L / 312 in3
NOTE: Will not fit Thunderbirds as they used a mechanical tachometer drive.
Distributor gear is most compatible with cast iron hydraulic or solid flat tappet camshafts; consult cam manufacturer for recommended gear material.
Emissions Notice
This Top Street Performance (TSP) product is designed for racing and off-road competition use only. It is not legal for use on public roads or emissions-controlled vehicles and does not comply with federal, state, or local emissions regulations. The buyer assumes all responsibility for legal use and installation.
What is a Emissions-Controlled Vehicle?
"An emissions-controlled vehicle is any vehicle equipped with a factory-installed emissions control system designed to reduce air pollution. These systems include catalytic converters, oxygen sensors, EGR (Exhaust Gas Recirculation) valves, and diesel particulate filters (DPF). Most vehicles manufactured after 1975 are considered emissions-controlled and must comply with federal and state emissions laws when used on public roads."
