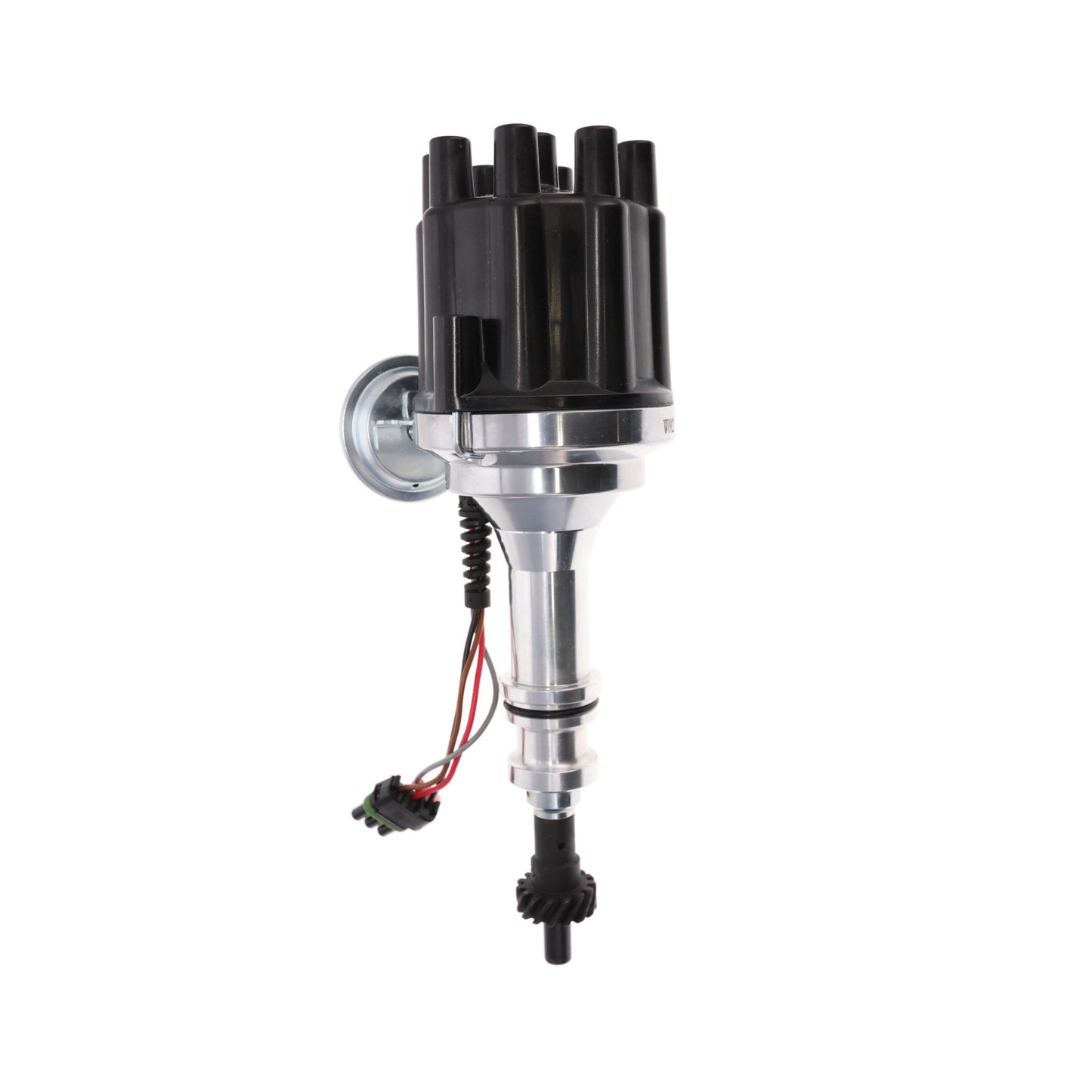

Ford BB/351C V8 Female Cap Pro Series Ready to Run Distributor - Black
Ford BB/351C V8 Female Cap Pro Series Ready to Run Distributor - Black
SKU: SKU: JM7706FBK
Out of stock
Product Details
Features
- Fits Ford Big Block (370-460), 351C, 351M, and 400
- Internal module means no external ignition box required
- Fully adjustable mechanical advance with additional springs and bushings included
Description

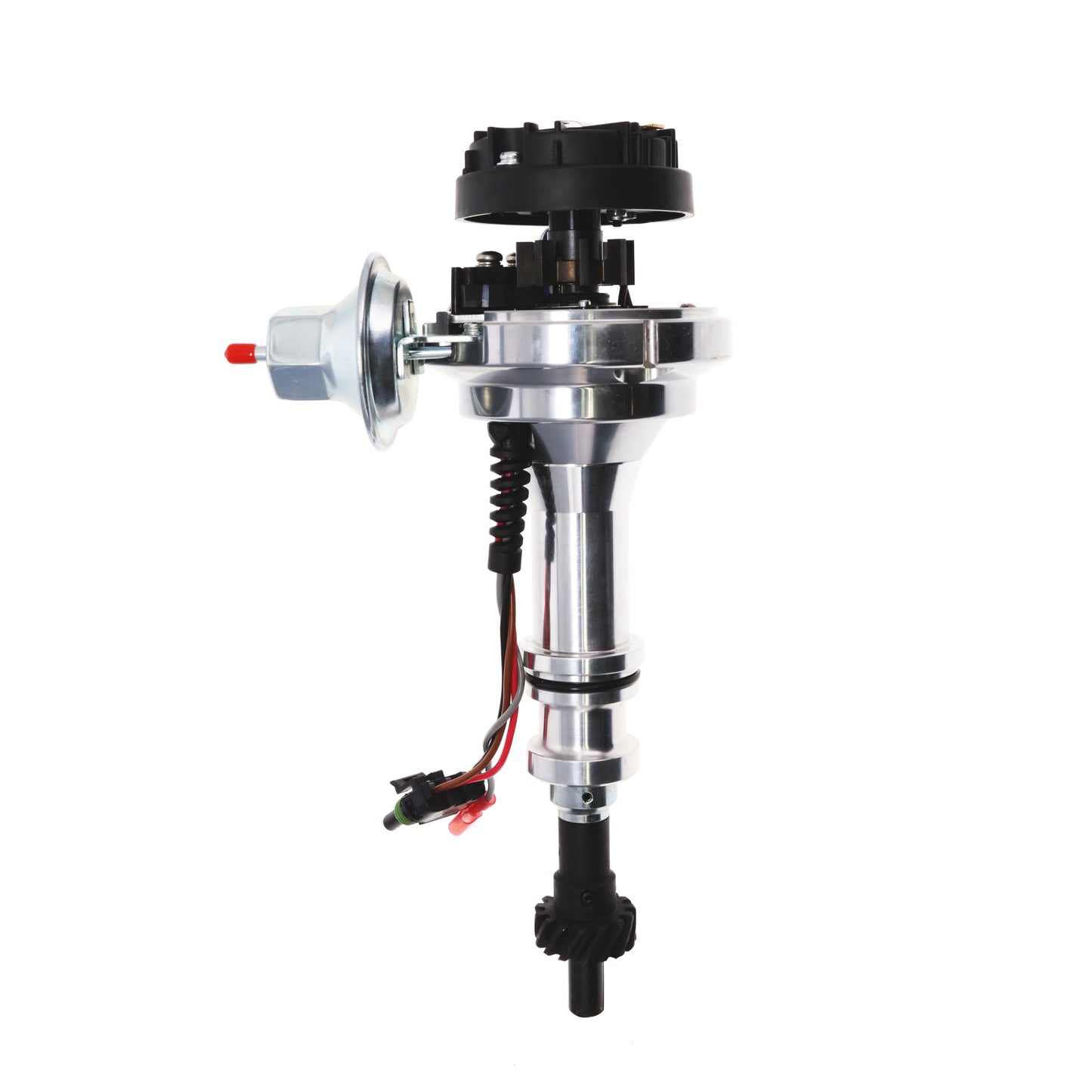

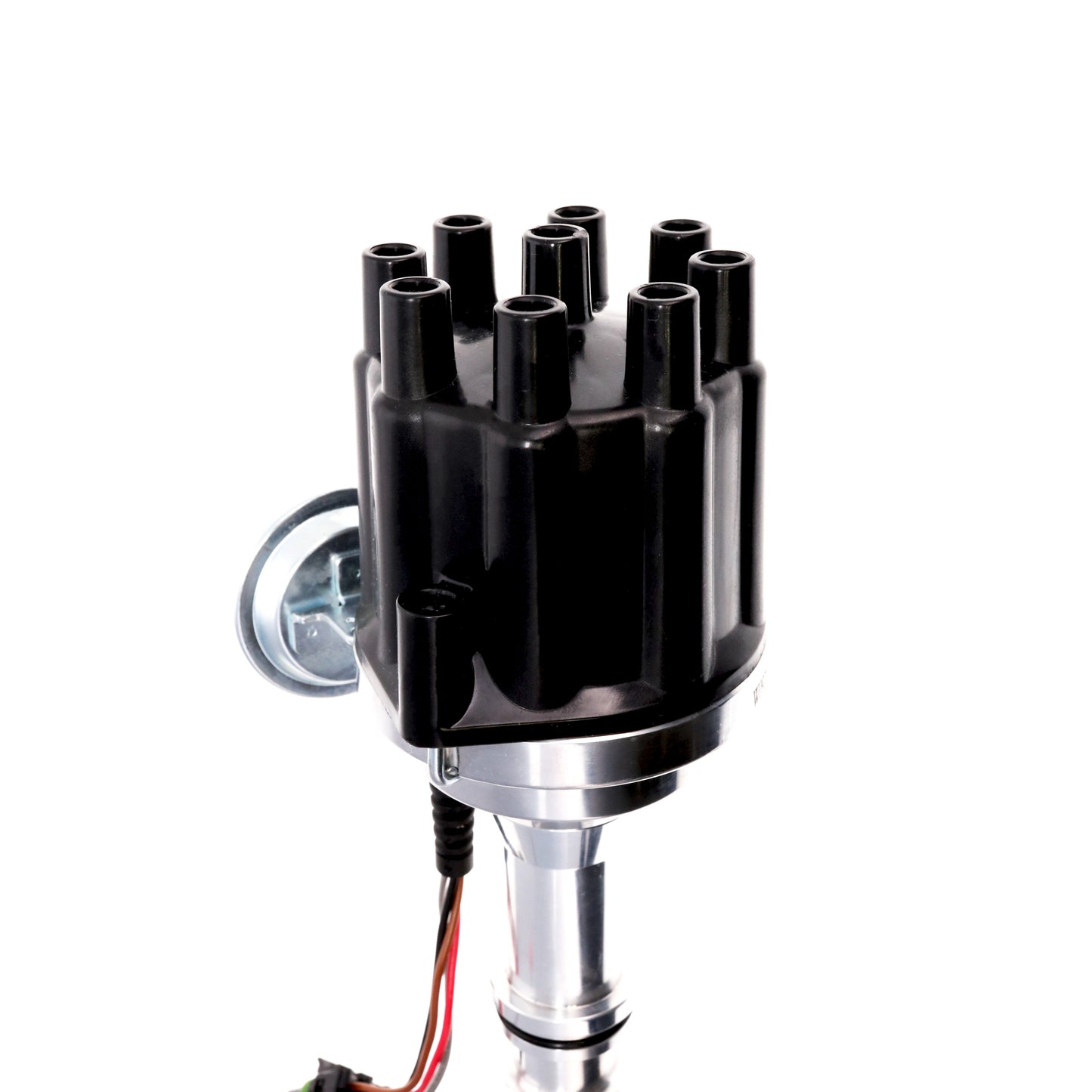

TSP’s Pro Series Ready to Run Distributor is perfect for a street performance ignition upgrade. It features a CNC-machined billet aluminum body and hardened steel shaft, with a sealed ball bearing on top and a sintered steel bushing on the bottom. It also comes with a fully adjustable mechanical advance, vacuum advance, magnetic pickup trigger, and a high-output circuit board module with digital tach output. The dielectric cap comes with solid brass female terminals and a color-matched wire retainer.
This distributor is designed for a 12 volt electrical system with an alternator. It is not compatible with a generator and cannot be used with a ballast resistor.
Specs
| TRIGGER STYLE | Circuit Board Module with Magnetic Pick-up |
| DISTRIBUTOR ROTATION | Counter-clockwise |
| ADVANCE TYPE | Mechanical and Vacuum |
| CAP STYLE | Female |
| MECHANICAL TACH DRIVE | No |
| SLIP COLLAR | No |
| COIL INCLUDED | No |
| COIL TYPE | External |
| REQUIRED COIL OUTPUT | 35,000+ Volts |
| REQUIRED ELECTRICAL SET-UP | 12 Volt with Alternator |
| GEAR MATERIAL | Steel |
| HOUSING MATERIAL | Machined Aluminum |
| IGNITION BOX REQUIRED | No |
| MARINE USE | No |
| CYLINDERS | 8 |
| INCLUDED | 3 Bushings and 4 Springs for Mechanical Advance Color-Matched Spark Plug Wire Retainer with Screws Vacuum Advance Block-off Plate (Black) Power Extension Cable Tachometer Output Extension Cable |
Fitment
COMPATIBLE WITH
FORD BIG BLOCK "385" V8
• 6.1 L / 370 in3
• 7.0 L / 429 in3
• 7.5 L / 460 in3
FORD CLEVELAND "335" V8
• 5.8 L / 351 in3 often referred to as "351C"
FORD MODIFIED "335" V8
• 5.8 L / 351 in3 often referred to as "351M"
• 6.6 L / 400 in3
NOTES:
Will not fit 351W
Distributor gear is most compatible with cast iron hydraulic or solid flat tappet camshafts; consult cam manufacturer for recommended gear material.
Emissions Notice
This Top Street Performance (TSP) product is designed for racing and off-road competition use only. It is not legal for use on public roads or emissions-controlled vehicles and does not comply with federal, state, or local emissions regulations. The buyer assumes all responsibility for legal use and installation.
What is a Emissions-Controlled Vehicle?
"An emissions-controlled vehicle is any vehicle equipped with a factory-installed emissions control system designed to reduce air pollution. These systems include catalytic converters, oxygen sensors, EGR (Exhaust Gas Recirculation) valves, and diesel particulate filters (DPF). Most vehicles manufactured after 1975 are considered emissions-controlled and must comply with federal and state emissions laws when used on public roads."
Ford BB/351C V8 Female Cap Pro Series Ready to Run Distributor - Black
TSP’s Pro Series Ready to Run Distributor is perfect for a street performance ignition upgrade. It features a CNC-machined billet aluminum body and hardened steel shaft, with a sealed ball bearing on top and a sintered steel bushing on the bottom. It also comes with a fully adjustable mechanical advance, vacuum advance, magnetic pickup trigger, and a high-output circuit board module with digital tach output. The dielectric cap comes with solid brass female terminals and a color-matched wire retainer.
This distributor is designed for a 12 volt electrical system with an alternator. It is not compatible with a generator and cannot be used with a ballast resistor.
Compatible with:
FORD BIG BLOCK "385" V8
• 6.1 L / 370 in3
• 7.0 L / 429 in3
• 7.5 L / 460 in3
FORD CLEVELAND "335" V8
• 5.8 L / 351 in3 often referred to as "351C"
FORD MODIFIED "335" V8
• 5.8 L / 351 in3 often referred to as "351M"
• 6.6 L / 400 in3
NOTES:
Will not fit 351W
Distributor gear is most compatible with cast iron hydraulic or solid flat tappet camshafts; consult cam manufacturer for recommended gear material.
| TRIGGER STYLE | Circuit Board Module with Magnetic Pick-up |
| DISTRIBUTOR ROTATION | Counter-clockwise |
| ADVANCE TYPE | Mechanical and Vacuum |
| CAP STYLE | Female |
| MECHANICAL TACH DRIVE | No |
| SLIP COLLAR | No |
| COIL INCLUDED | No |
| COIL TYPE | External |
| REQUIRED COIL OUTPUT | 35,000+ Volts |
| REQUIRED ELECTRICAL SET-UP | 12 Volt with Alternator |
| GEAR MATERIAL | Steel |
| HOUSING MATERIAL | Machined Aluminum |
| IGNITION BOX REQUIRED | No |
| MARINE USE | No |
| CYLINDERS | 8 |
| INCLUDED | 3 Bushings and 4 Springs for Mechanical Advance Color-Matched Spark Plug Wire Retainer with Screws Vacuum Advance Block-off Plate (Black) Power Extension Cable Tachometer Output Extension Cable |
