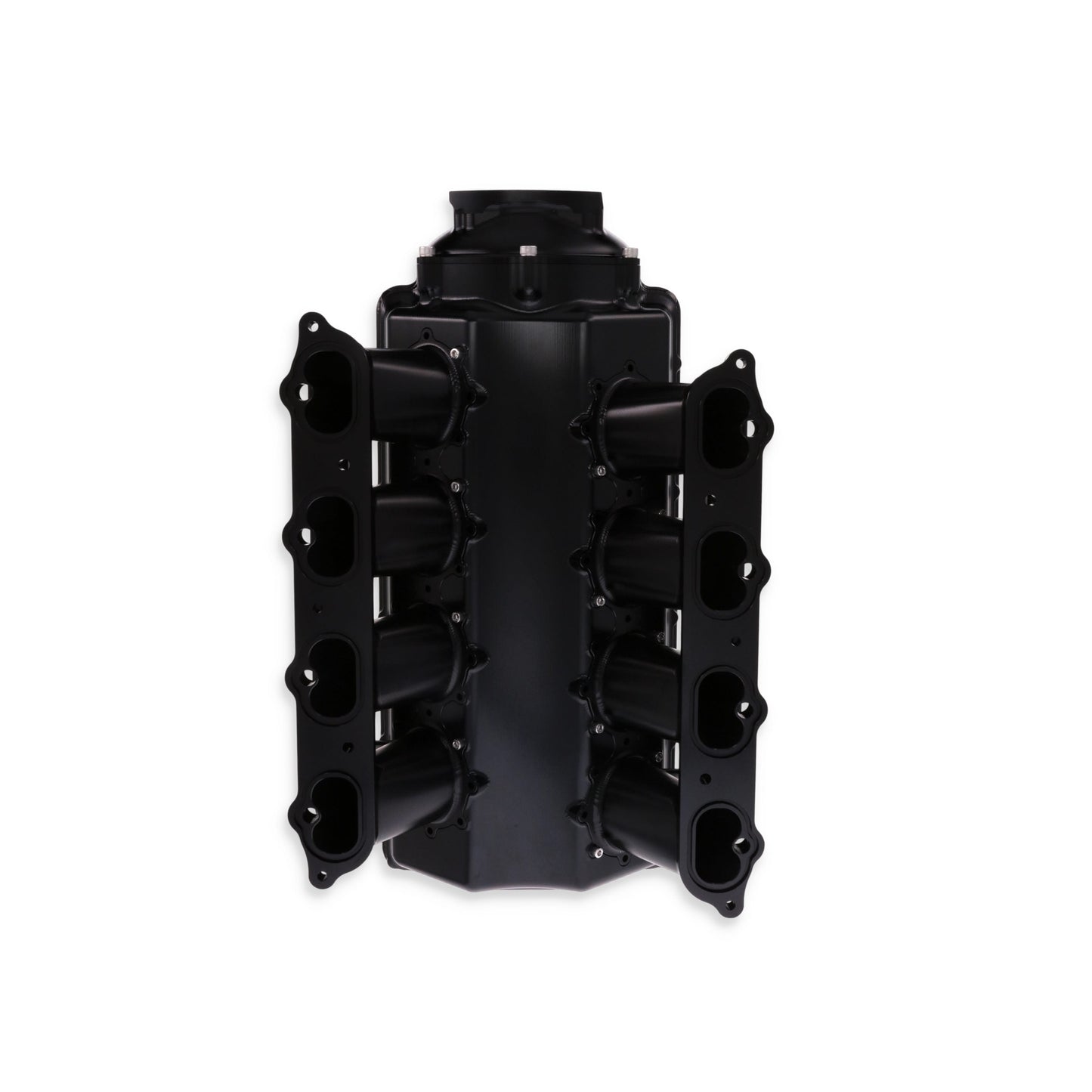

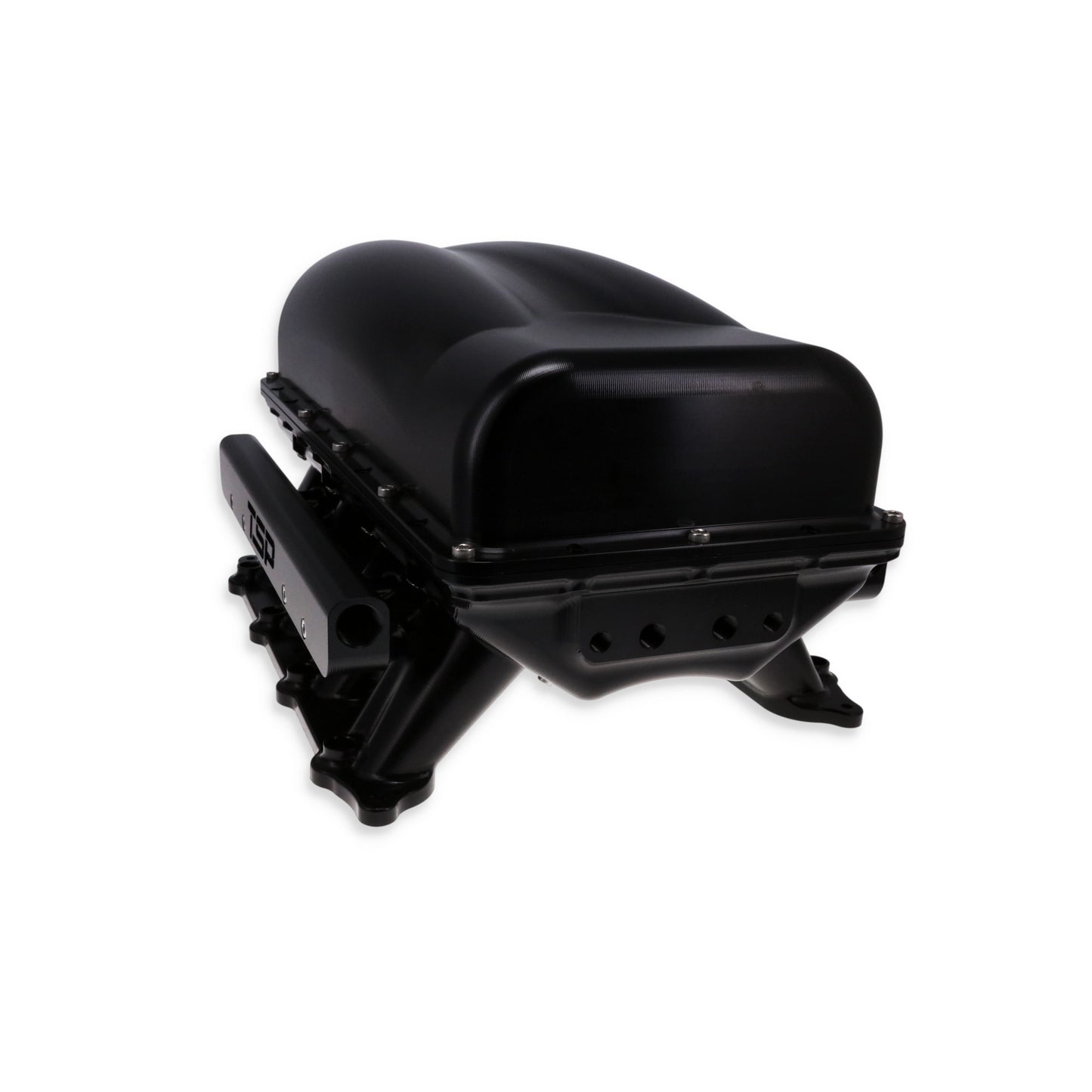

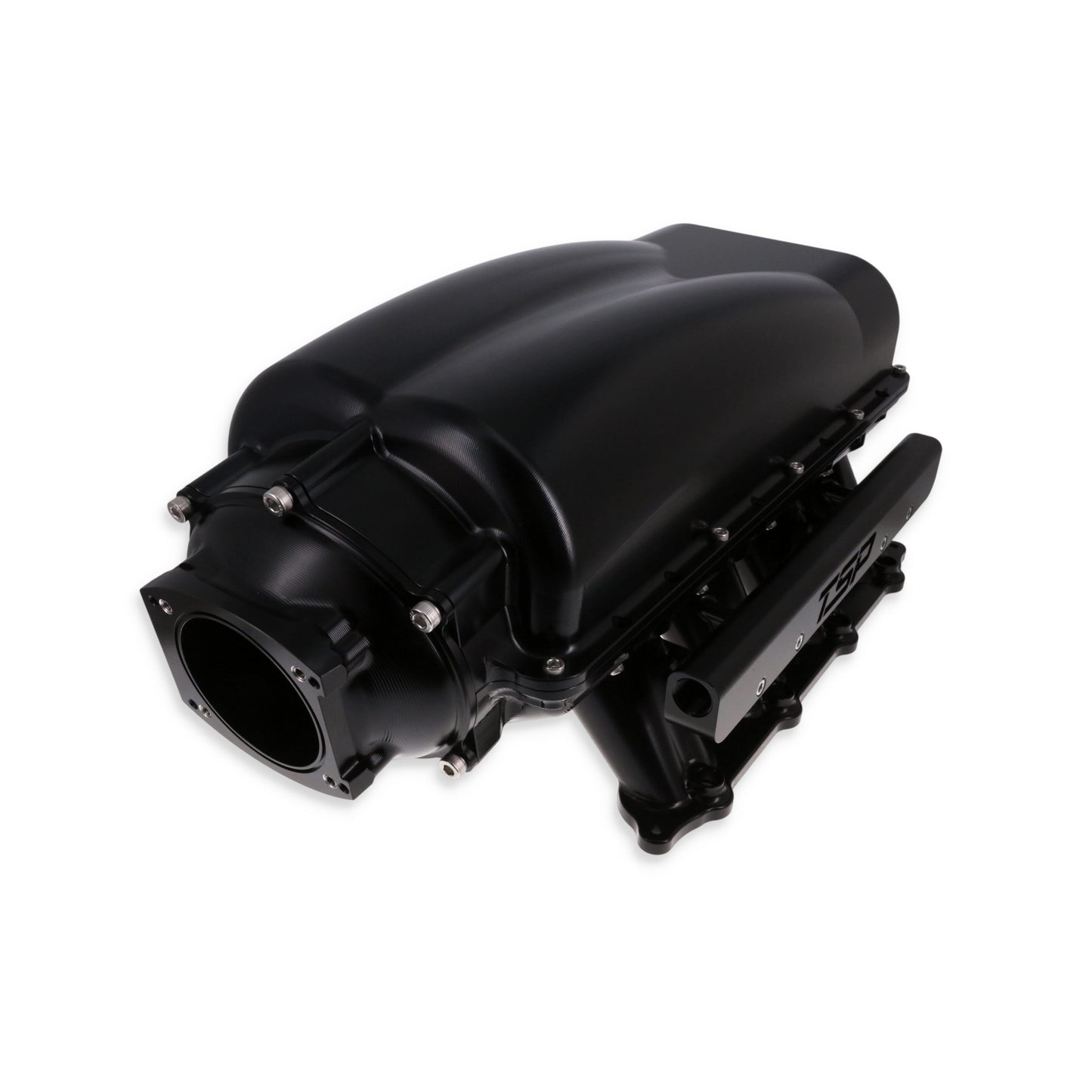

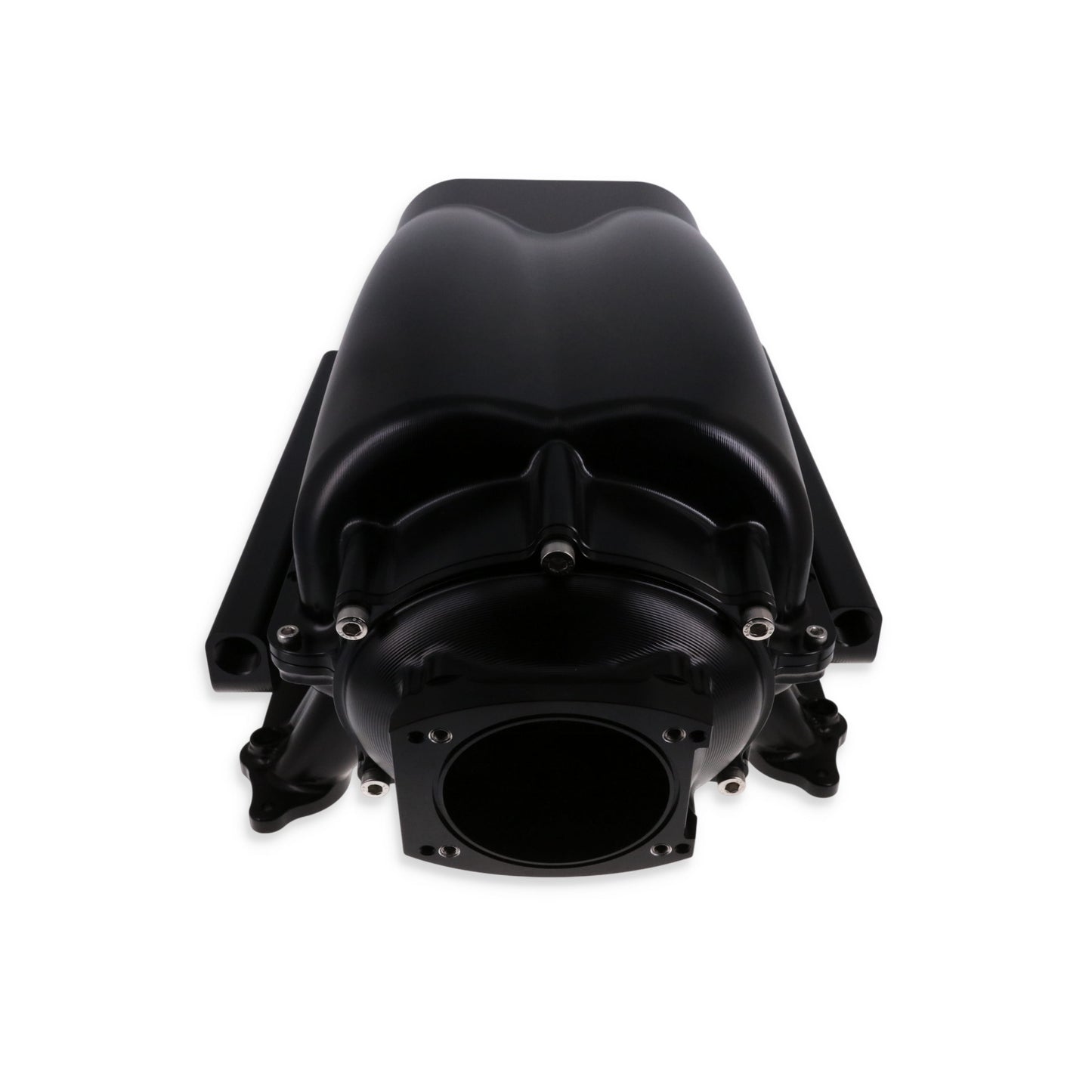

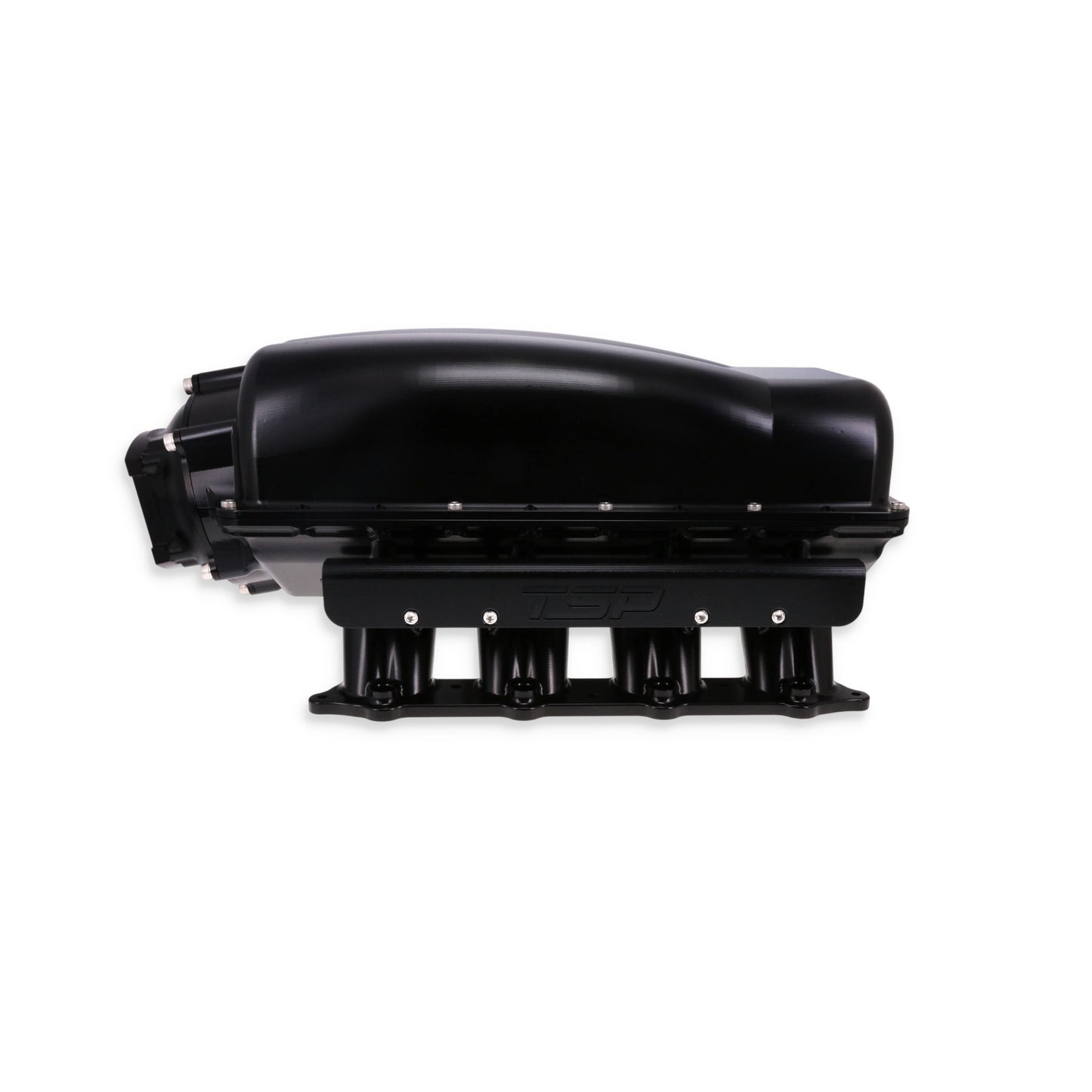

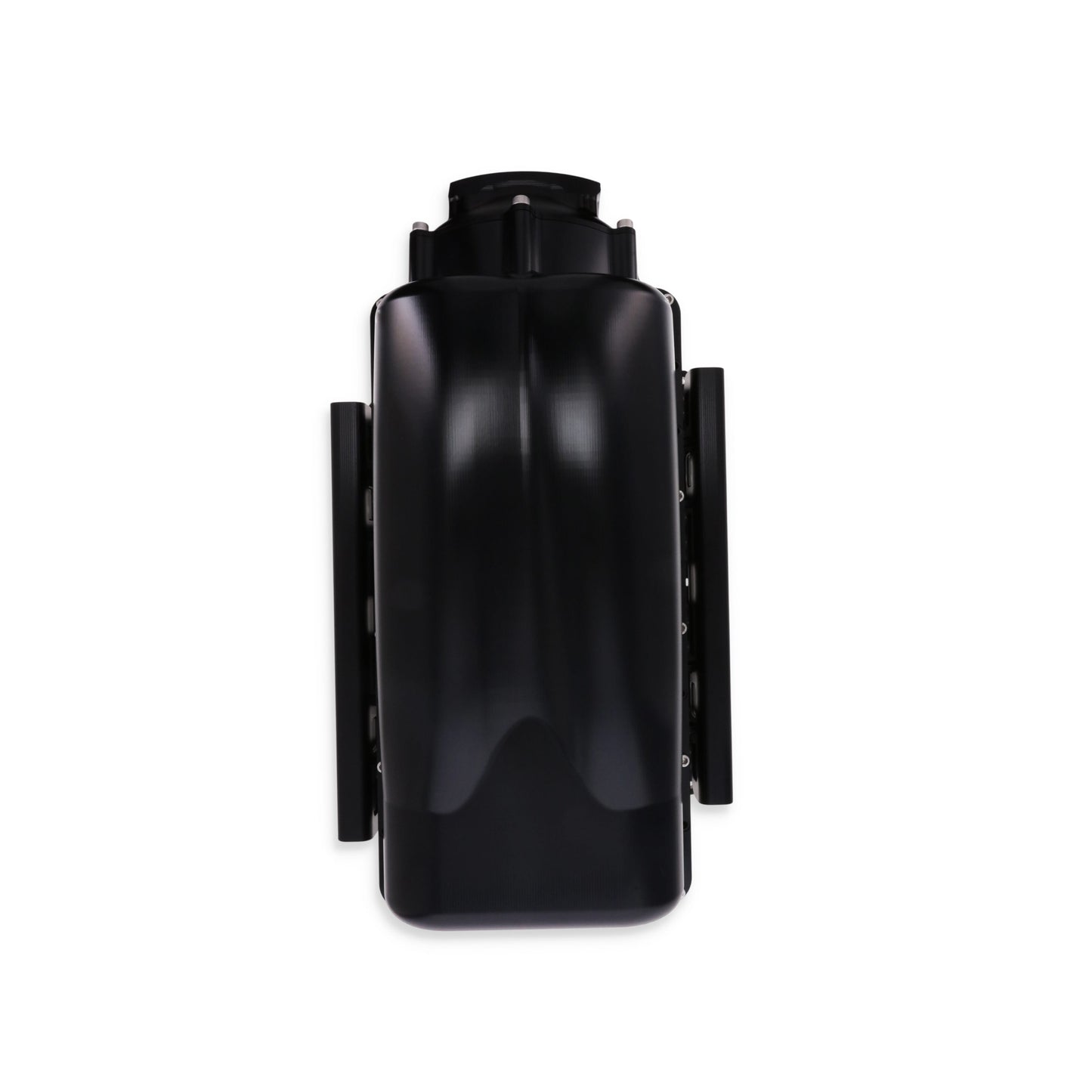

Ford 5.0L Coyote V Series Billet Aluminum Intake Manifold - Black
Ford 5.0L Coyote V Series Billet Aluminum Intake Manifold - Black
SKU: SKU: 84064BK
Out of stock
Product Details
Features
- Fits Ford 5.0L Coyote V8 engines
- Unique billet aluminum design
- Modular design for improved maintenance and installation
- Runner design improves airflow and performance
Description
TSP's V Series intake and fuel rail set-up is 2025's hot new item. Fresh off its award-winning turn at the 2024 SEMA Show, this billet aluminum kit features a beautiful aesthetic to turn heads, brilliant design to boost your engine's performance, and a modular design for easy installation and maintenance. Dress up your Coyote power plant with this one-of-a-kind set-up.
Specs
| Basic Operating RPM Range | 200-9,000 RPM |
| Center Maximum Height | 10.200 in. |
| Color | Silver |
| Deck Height | Standard |
| Front Maximum Height | 8.850 in. |
| Fuel Injection Style | Multi-port Fuel Injection |
| Fuel Injector Stye Provision | EV1 |
| Fuel Rail Color | Silver |
| Fuel Rail Finish | Natural |
| Fuel Rail Material | Aluminum |
| Fuel Rails Included | Yes |
| Fuel System Type | Electronic Fuel Injection |
| Gasket Or Seal Included | Yes |
| Grade Type | Performance |
| Intake Port Shape | Oval with Dimple |
| Manifold Finish | Natural |
| Material | Aluminum |

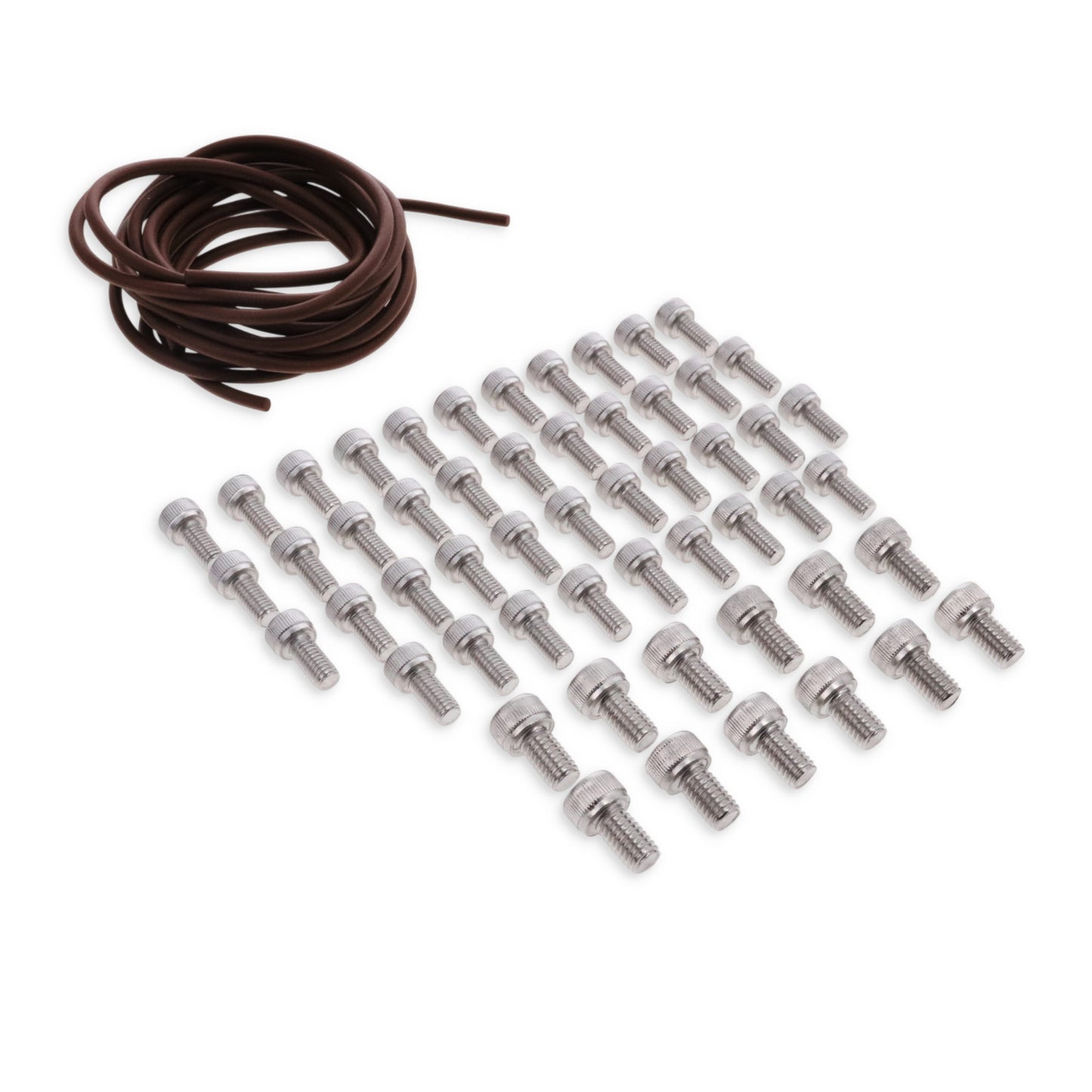

| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 10 |
| Plenum Thickness | 8 mm |
| Rear Maximum Height | 9.024 in. |
| Removable Runners | Yes |
| Removable Throttle Body Flange | Yes |
| Removable Top | Yes |
| Runner Length | 4.311 in. |
| Single Or Dual Plane Type | Single Plane |
| Supplemental Boss Quantity | 4 |
| Throttle Body Bore Size | 92 mm |
Fitment
COMPATIBLE WITH
FORD MODULAR V8
• 5.0 L / 302 in3
Emissions Notice
This Top Street Performance (TSP) product is designed for racing and off-road competition use only. It is not legal for use on public roads or emissions-controlled vehicles and does not comply with federal, state, or local emissions regulations. The buyer assumes all responsibility for legal use and installation.
What is a Emissions-Controlled Vehicle?
"An emissions-controlled vehicle is any vehicle equipped with a factory-installed emissions control system designed to reduce air pollution. These systems include catalytic converters, oxygen sensors, EGR (Exhaust Gas Recirculation) valves, and diesel particulate filters (DPF). Most vehicles manufactured after 1975 are considered emissions-controlled and must comply with federal and state emissions laws when used on public roads."
Ford 5.0L Coyote V Series Billet Aluminum Intake Manifold - Black
TSP's V Series intake and fuel rail set-up is 2025's hot new item. Fresh off its award-winning turn at the 2024 SEMA Show, this billet aluminum kit features a beautiful aesthetic to turn heads, brilliant design to boost your engine's performance, and a modular design for easy installation and maintenance. Dress up your Coyote power plant with this one-of-a-kind set-up.
Compatible with:
FORD MODULAR V8
• 5.0 L / 302 in3
| Basic Operating RPM Range | 200-9,000 RPM |
| Center Maximum Height | 10.200 in. |
| Color | Silver |
| Deck Height | Standard |
| Front Maximum Height | 8.850 in. |
| Fuel Injection Style | Multi-port Fuel Injection |
| Fuel Injector Stye Provision | EV1 |
| Fuel Rail Color | Silver |
| Fuel Rail Finish | Natural |
| Fuel Rail Material | Aluminum |
| Fuel Rails Included | Yes |
| Fuel System Type | Electronic Fuel Injection |
| Gasket Or Seal Included | Yes |
| Grade Type | Performance |
| Intake Port Shape | Oval with Dimple |
| Manifold Finish | Natural |
| Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 10 |
| Plenum Thickness | 8 mm |
| Rear Maximum Height | 9.024 in. |
| Removable Runners | Yes |
| Removable Throttle Body Flange | Yes |
| Removable Top | Yes |
| Runner Length | 4.311 in. |
| Single Or Dual Plane Type | Single Plane |
| Supplemental Boss Quantity | 4 |
| Throttle Body Bore Size | 92 mm |
