Ford 390 V-Belt System - AC, Alternator & Power Steering - Saginaw Pump - Polished
Ford 390 V-Belt System - AC, Alternator & Power Steering - Saginaw Pump - Polished
SKU: SKU: 390-AC-SYSTEM-S-HF-KEY
Low stock
Product Details
Features
- Complete V-belt system
Description
Ford FE Engine Alternator / PS Pulley and Bracket System (390 / 427 / 428)

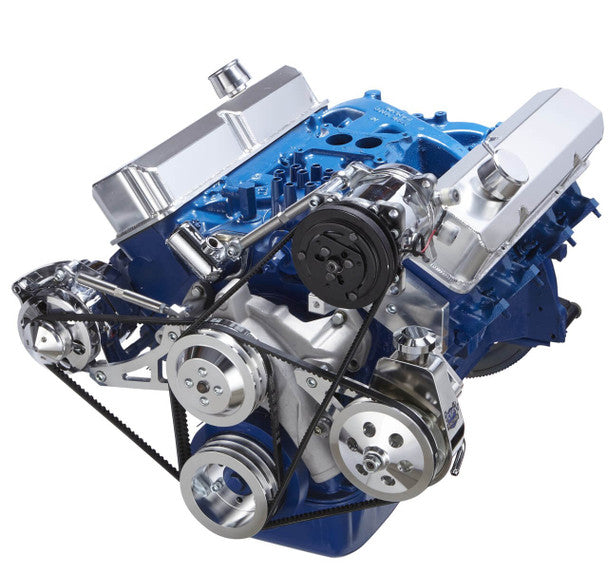

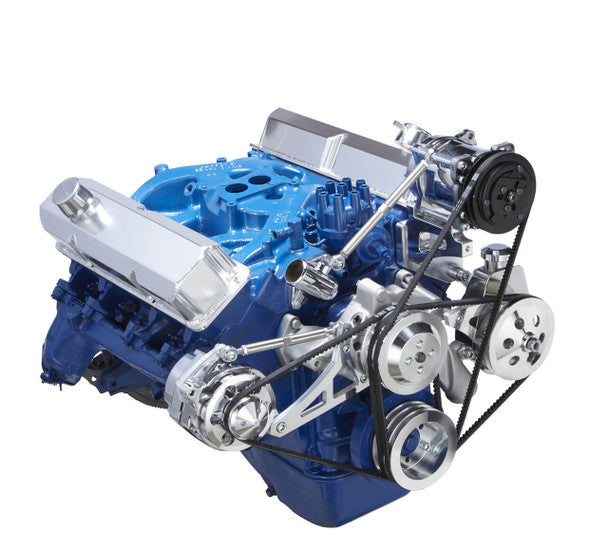

Complete V-belt system for the Ford 390 FE engines with alternator, power steering and air conditioning.
Kit Includes:
• BBFE33KIT-HF (3 Groove Water Pump Pulley, 3 Groove • Crank Pulley & 1 Groove Alternator Pulley)
• 390-ALTBRKT (FE Engine Alternator Bracket)
• 390-PSBRKT-S (FE Engine Power Steering Bracket)
• 390-ACBRKT (FE Engine Air Conditioning Compressor Bracket)
• BBFE1PS - (3/4" Press Fit Power Steering Pulley for Saginaw Pumps)
• ALTFAN - Universal alternator fan
Saginaw Power Steering Pump, Alternator and Compressor NOT Included
Requires Saginaw Power Steering Pump with 3/4" Press fit shaft and mounting stud in lower right corner on the back of the pump. Designed for Sanden 508 compressor.
Specs
| Product Type | V-Belt System |
| Alternator Position | Mid - Passenger |
| Power Steering | Yes - Saginaw |
| Air Conditioning | High - Driver |
| Compressor Type | Sanden 508 |
| Finish | Polished |
| Belt Type | V-Belt |
| Water Pump Type | Mechanical |
| Water Pump Rotation | Standard |
| Make | Ford |
| Engine | 390 FE |
Engine Fitment
Compatible with:
Ford 390 FE engines with alternator, power steering and air conditioning.
• 6.4 L / 390 in³
• 7.0 L / 427 in³
• 7.0 L / 428 in³
Requires Saginaw Power Steering Pump with 3/4" Press fit shaft and mounting stud in lower right corner on the back of the pump. Designed for Sanden 508 compressor.
Q&A
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
