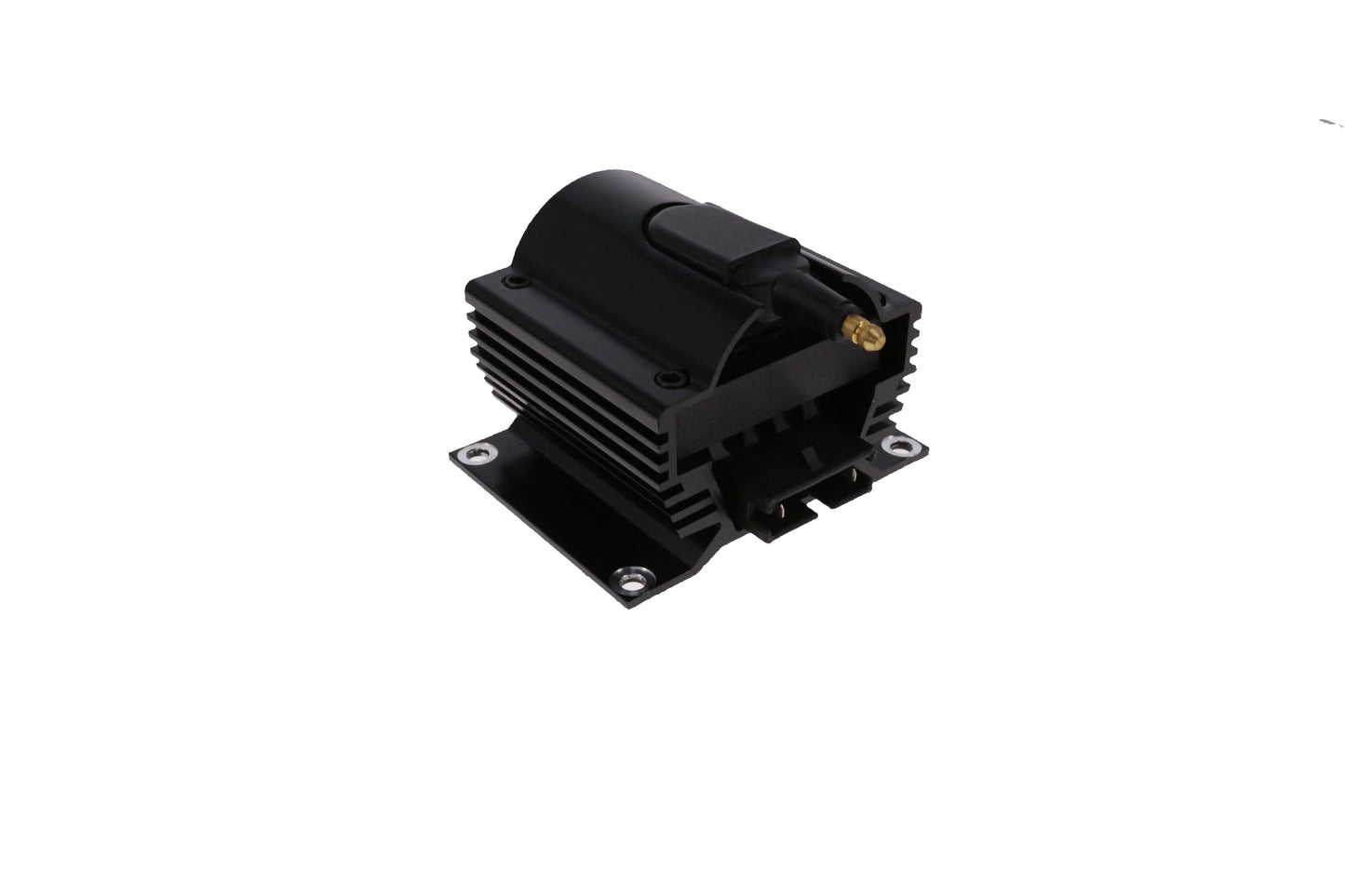

E-Core Remote Ignition Coil - Black
E-Core Remote Ignition Coil - Black
SKU: SKU: JM6930BK
In stock
Product Details
Features
- Universal coil for high-performance distributor set-up
- Output: 50,000 V
- Male terminal
- Includes mounting hardware
Description
TSP's E-Core Ignition Coil has a new design that better dissipates heat. Its square shape allows for easy mounting on a firewall or fender, and it comes with a plug wire connector for a clean installation. The E-Core magnet puts out 50,000 volts, or about 70% more spark energy over most stock applications, giving you a much hotter and larger spark to burn fuel more efficiently and provide smooth acceleration throughout the entire RPM band.
Best-in-Class Design
Secured in a billet aluminum housing, our ignition coil features a top-quality epoxy internal construction, a brass wire attachment, and premium e-core magnet to ensure superior output and lasting performance.
Specs
| Coil Style | E-core |
| Internal Construction | Epoxy |
| Primary Resistance | 0.35 ohms (Ω) |
| Secondary Resistance | 8,000 ohms (Ω) |
| Maximum Voltage | 50,000 volts (V) |
| Spark Duration | 200 microseconds (µS) |
| Peak Current | 260 milliamperes (mA) |
| Turns Ratio | 100:1 |
| Inductance | 7.0 millihenrys (mH) |
| Coil Shape | Square |
| Housing Material | Billet Aluminum |
| Coil Wire Attachment | Male |

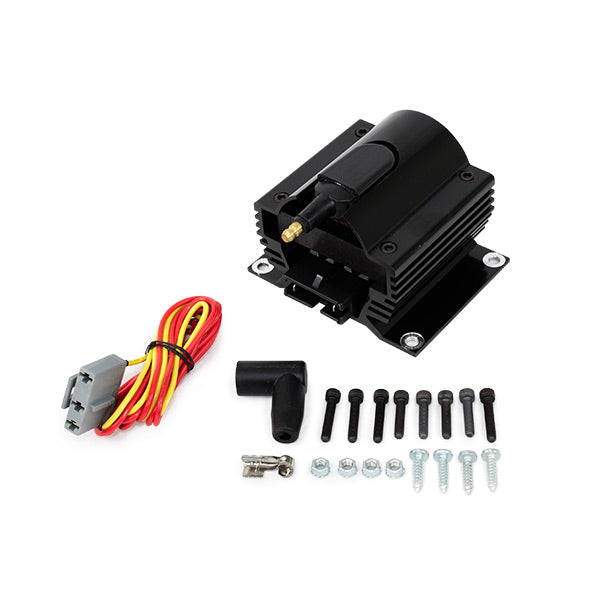

| Included | Wiring Harness Plug Wire Connector Mounting Hardware |
Fitment
UNIVERSAL
Intended for high-performance distributor ignition set-ups
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
