Bundle & Save! - Ford 5.0LV8 EFI Carb Conversion Pro Series Ready to Run Ignition Kit
Bundle & Save! - Ford 5.0LV8 EFI Carb Conversion Pro Series Ready to Run Ignition Kit
SKU: SKU: JM7702-5-KT


Product Details
Features
- Fits Ford small block 5.0L EFI
Description
TSP’s Pro Series Ready to Run Distributor kit is perfect for a street performance ignition upgrade. It features a CNC-machined billet aluminum distributor with an ignition control built-in. Spark for this kit is provided by the 45,000 V oil-filled ignition coil.
Mechanical Advance & Circuit Board Module
An important feature on all Top Street Performance Pro Series distributors is the fully adjustable mechanical advance. This allows you to easily modify the distributor to achieve a variety of timing curves. Built using the latest circuit board technology, the included module eliminates the need for external ignition control, such as a CDI box. It also comes with a digital tachometer output. With a Pro Series Ready to Run distributor, just hook up your ignition coil, and you're good to go.

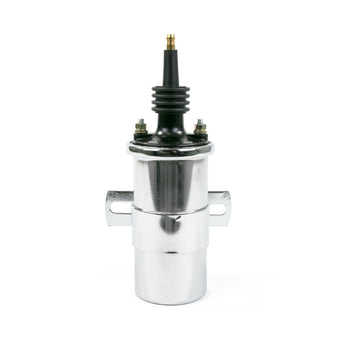

High-Powered Ignition Coil
TSP brings you the classic canister - sometimes called "beer can" - style ignition coil. Designed and constructed with our trademark attention to detail, you can be sure it'll perform exactly as described. With a whopping 45,000-volt output, you'll have more than enough spark for any performance distributor set-up.
Specs
Trigger Style | Circuit Board Module With Magnetic Pick-Up |
Advance Type | Mechanical And Vacuum |
Cap Style | Male |
Mechanical Tach Drive | No |
Slip Collar | No |
Coil Included | No |
Coil Type | External |
Gear Material | Steel |
Housing Material | Machined Aluminum |
Ignition Box Required | No |
Marine Use | No |
Coil Style | Canister |
Internal Construction | Oil-Filled |
Primary Resistance | 0.700 Ohms |
Secondary Resistance | 4,700 Ohms |
Maximum Voltage | 45,000 Volts (V) |
Spark Duration | 350 Microseconds (µs) |
Peak Current | 140 Milliamperes (Ma) |
Turns Ratio | 100:1 |
Inductance | 8.0 Millihenrys (Mh) |
Coil Shape | Round |
Housing Material | Billet Aluminum |
Included | 3 Bushings And 4 Springs For Mechanical Advance, Color-Matched Spark Plug Wire Retainer With Screws, Vacuum Advance Block-Off Plate (Black), Power Extension Cable, Tachometer Output Extension Cable, Coil Mounting Bracket |
Fitment
FORD SMALL BLOCK WINDSOR V8
• 4.9 L / 302 in3 generally referred to as 5.0 L
NOTES:
Will not fit 351W.
Due to its longer gear, this distributor will not fit engines that came carbureted from the factory.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
