Chrysler Small Block Power Steering, AC & Alternator System - Polished
Chrysler Small Block Power Steering, AC & Alternator System - Polished
SKU: SKU: 360-AC-SYSTEM
Out of stock
Product Details
Features

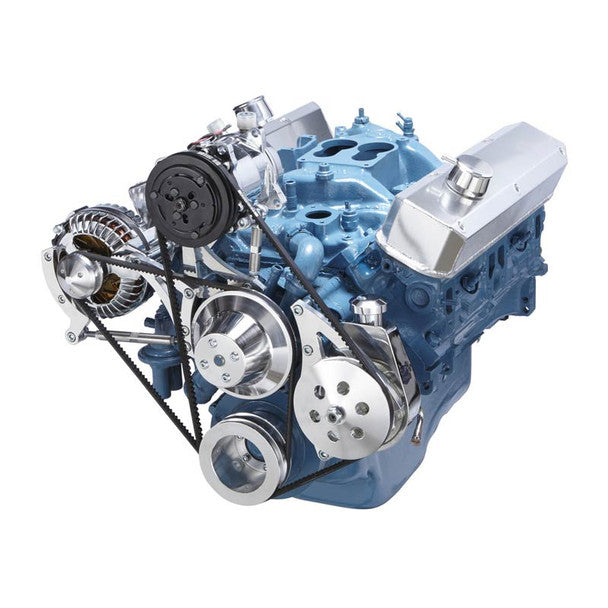

- Complete V-belt system for the small block Chrysler engines with alternator, power steering and A/C.
Description
Chrysler Small Block 360 Alternator, PS Pulley and A/C Bracket System
Complete V-belt system for the small block Chrysler engines with alternator, power steering and A/C.
KIT INCLUDES:
• SCRL2KIT (2 Groove Crank Pulley, 1 Groove Water Pump • Pulley and 1 Groove Alternator Pulley)
• 360-ALTBRKT
• 360-PSBRKT
• 360-ACBRKT
• SCR3PS keyway power steering pulley
APPLICATION NOTES:
• Use with Chrysler square or round back alternator, or with either the GM 10SI Alternator or CS130 Alternator.
• Compatible with Hydroboost.

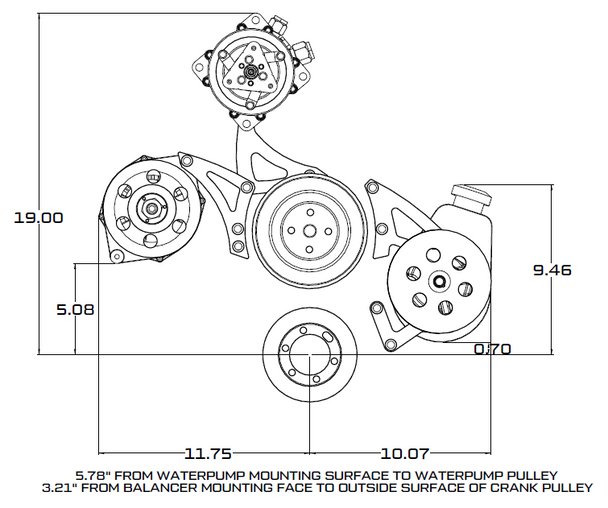

Water pump to Balancer measurement: 4.5"
• Requires a Chrysler water pump from 1970 and beyond or a CVF water pump.
• Use with Sanden 508 Style AC compressor.
• Use with Saginaw P-Series power steering pump with 5/8" Keyway and mounting stud in lower right corner on the back of the pump (see image below). Power Steering pump not included with system.
Specs
| Product Type | V-Belt System |
| Alternator Position | Mid - Passenger |
| Power Steering | Yes - Saginaw |
| Air Conditioning | High - Passenger |
| Compressor Type | Sanden 508 |
| Finish | Polished |
| Belt Type | V-Belt |
| Water Pump Type | Mechanical |
| Make | Chrysler |
| Engine | 360 Small Block |
Fitment
Compatible with:
Small Block Chrysler engines with alternator, power steering and A/C.
• (318, 340 & 360)
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
