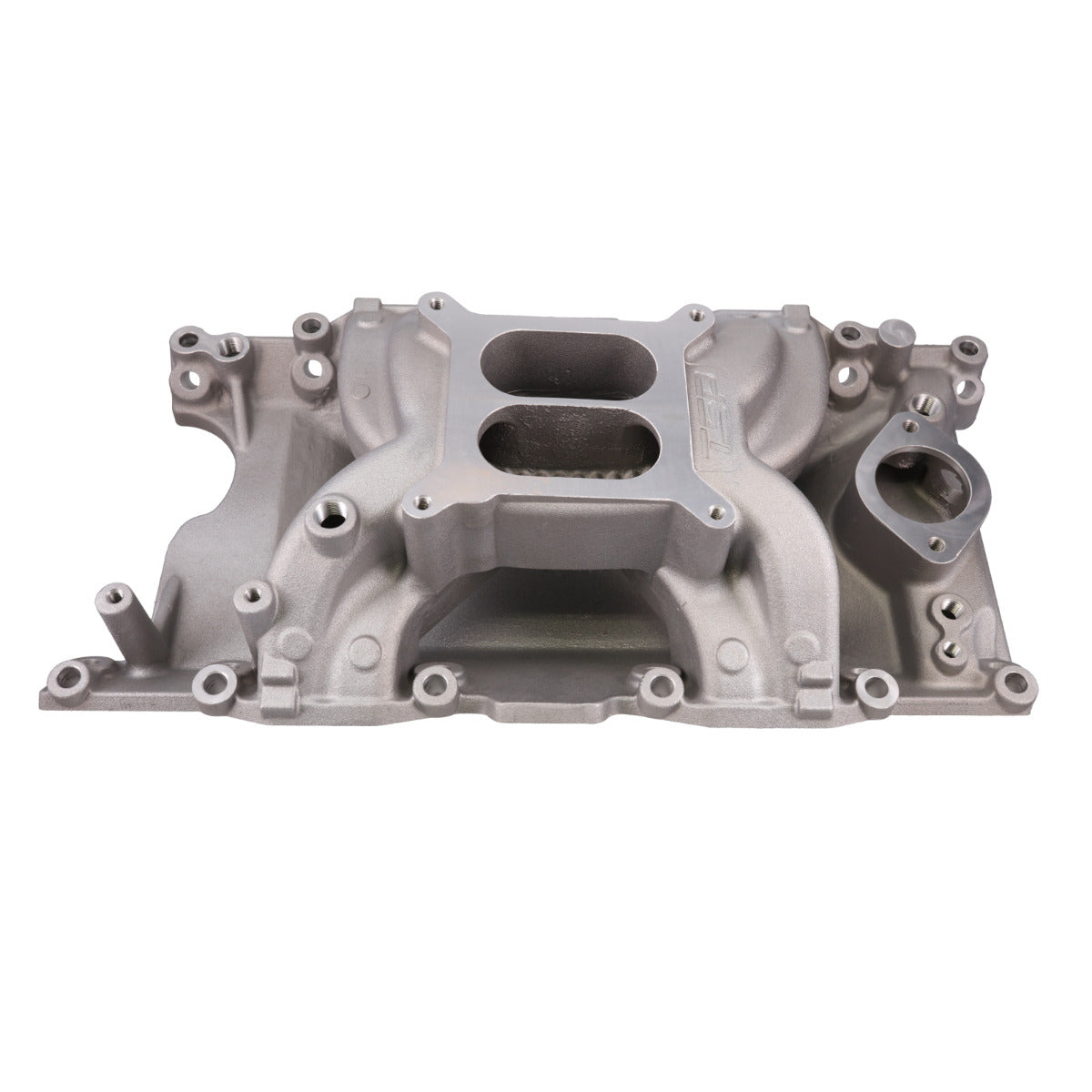

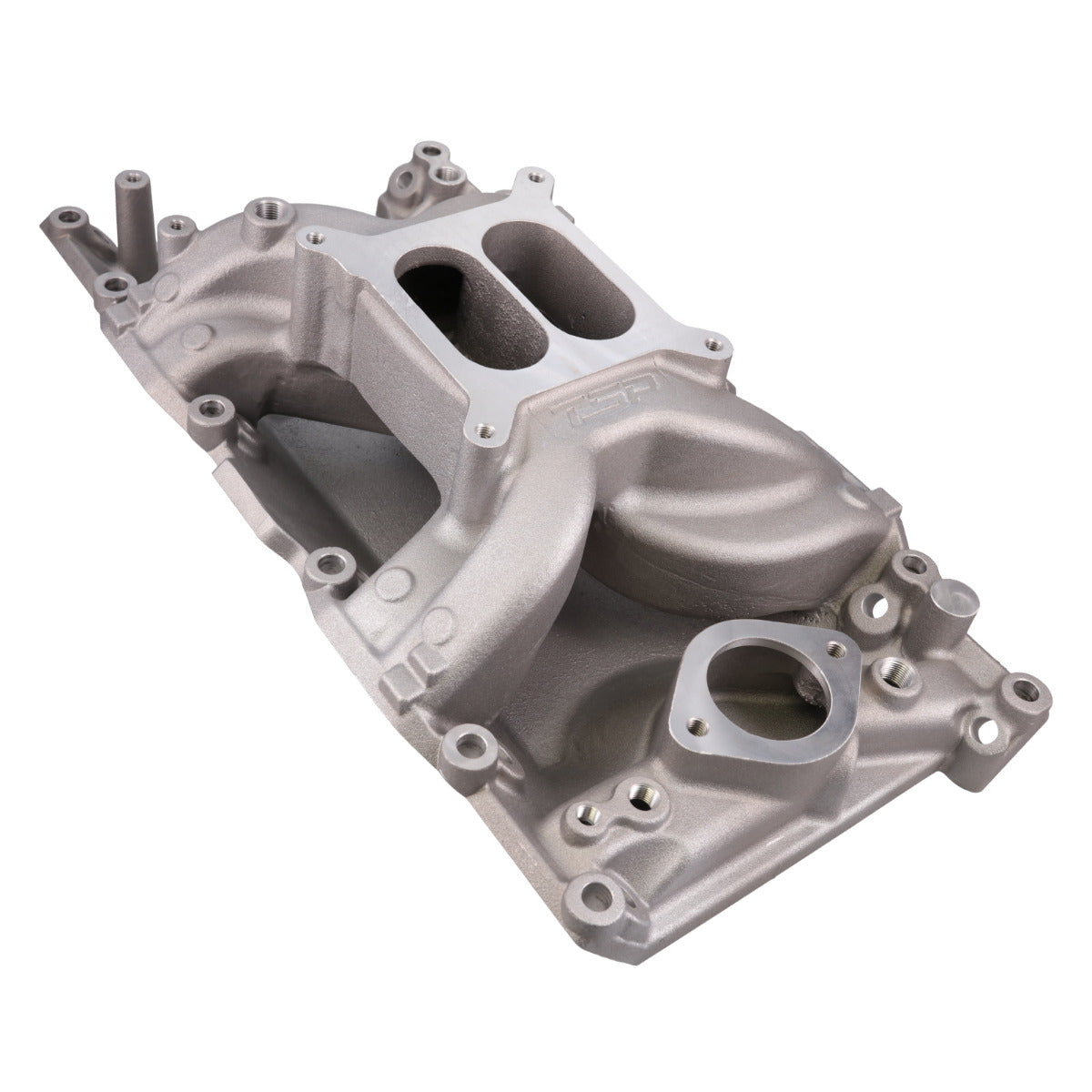

Chrysler Small Block Carbureted Dual Plane Air Gap Aluminum Intake Manifold - Satin
Chrysler Small Block Carbureted Dual Plane Air Gap Aluminum Intake Manifold - Satin
SKU: SKU: 85026
In stock
Product Details
Features
- Designed to accommodate "LA" and "Magnum" series engines
- Requires the use of 1975 or earlier water neck
Description
TSP's dual-plane air gap intake manifold for the small block Mopar is ideal for high-performance applications. Its improved design is complimented by an open area under the plenum. This feature ensures less heat transfer from the engine, meaning the air/fuel charge will be cooler and produce more power and torque. Producing power and torque comparable to single-plane manifolds, it retains the drivability and throttle response like other dual-planes and performs best between 1,500 and 6,500 rpm. It is cast from lightweight aluminum and features a relatively low profile for great hood clearance. Additional provisions include nitrous bosses, a rear water crossover with additional ports, and a square bore carburetor flange.
Specs
| Basic Operating RPM Range | 1,500-6,500 RPM |
| Carburetor Flange Style | 4150 Square Bore |
| Carburetor Quantity | 1 |
| Center Maximum Height | 5.350 in. |
| CNC Ported | No |
| Color | Satin |
| Deck Height | Standard |
| EGR | No |
| Front Maximum Height | 4.900 in. |
| Fuel System Type | Carbureted |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Intake Port Shape | Rectangle |
| Material | Aluminum |
| Rear Maximum Height | 5.800 in. |
| Single Or Dual Plane Type | Dual Plane |
Fitment
COMPATIBLE WITH
CHRYSLER SMALL BLOCK V8
• 5.2 L / 318 in3
• 5.6 L / 340 in3
• 5.9 L / 360 in3
NOTE: Designed to accommodate "LA" and "Magnum" series engines.
Requires the use of 1975 or earlier water neck.
Emissions Notice
This Top Street Performance (TSP) product is designed for racing and off-road competition use only. It is not legal for use on public roads or emissions-controlled vehicles and does not comply with federal, state, or local emissions regulations. The buyer assumes all responsibility for legal use and installation.
What is a Emissions-Controlled Vehicle?
"An emissions-controlled vehicle is any vehicle equipped with a factory-installed emissions control system designed to reduce air pollution. These systems include catalytic converters, oxygen sensors, EGR (Exhaust Gas Recirculation) valves, and diesel particulate filters (DPF). Most vehicles manufactured after 1975 are considered emissions-controlled and must comply with federal and state emissions laws when used on public roads."
