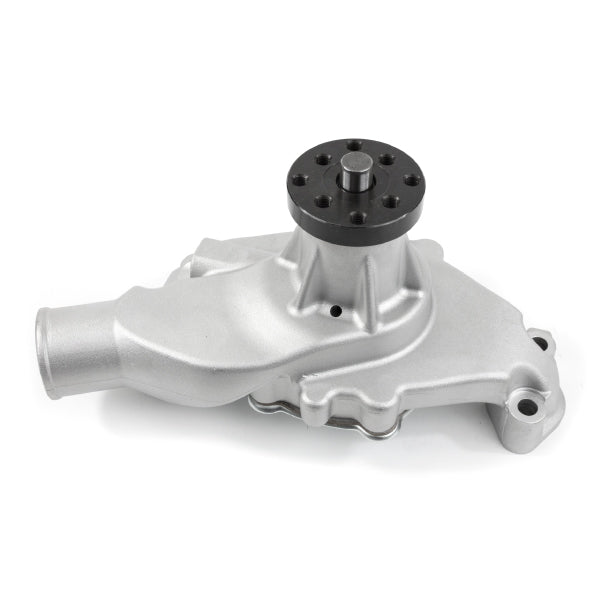

Chevy Small Block Short-Style Circle Track High-Flow Mechanical Water Pump - Satin
Chevy Small Block Short-Style Circle Track High-Flow Mechanical Water Pump - Satin
SKU: SKU: HC8008
Out of stock
Product Details
Features
- High-flow pump with upgraded internals and 3/4" pilot shaft
- Circle track style found in 1970s Corvettes
- For small block Chevy engines 305/350
- 1-Year Warranty
Description
TSP's high-flow mechanical water pumps provide that extra cooling power your high-performance engine demands. They are lightweight and flow at a rate up to 40% over stock pumps.
Lightweight Aluminum Housing
All mechanical water pumps from TSP are cast from lightweight A356 aluminum and heat-treated to T6 hardness. This not only provides strength, but aluminum works to manage heat far better than cast iron. They are available in a satin, polished, or chrome finish.
High Quality Components
From top to bottom, TSP's mechanical pumps are designed for greater performance and reliability. They feature an 8-blade, cast aluminum anti-cavitation impeller. Its 3/4" shaft is driven by heavy-duty bearings and seals, and the crank hub is 1/2" thick for added strength.
Specs
| Color | Silver |
| Fan Clutch Included | No |
| Finish | Satin |
| Gasket Included | Yes |
| Grade Type | Performance |
| Housing Material | Aluminum |
| Hub Height | 5.795 in. |
| Hub Hole Quantity | 8 |
| Hub Thickness | 0.500 in. |
| Impeller Material | Aluminum |
| Impeller Rotation | Clockwise |
| Impeller Vane Quantity | 8 |
| Includes Back Housing | Yes |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 4 |
| Outlet Quantity | 1 |
| Pilot Diameter | 0.750 in. |
| Pulley Included | No |
| Pump Flow | High-volume |
| Thermostat And Housing Included | No |
| Water Pump Drive Type | Mechanical |
Fitment
COMPATIBLE WITH
CHEVROLET SMALL BLOCK V8 GEN. I
4.3 L / 265 in3
4.4 L / 267 in3
4.6 L / 283 in3
4.9 L / 302 in3
5.0 L / 305 in3
5.0 L / 307 in3
5.4 L / 327 in3
5.7 L / 350 in3
6.6 L / 400 in3
NOTE: This pump is a circle track style often found in Corvettes during the 1970s.
It is recommended that a measurement of the height is done to be certain of correct pump style.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
