• Mounts Saginaw P Series Power Steering pump low on driver side

• Puts a Sanden 508 style AC Compressor up on the driver side above the power steering pump.

• Places the alternator on the passenger side in a high-mount configuration

• Uses standard Chevy long water pump.

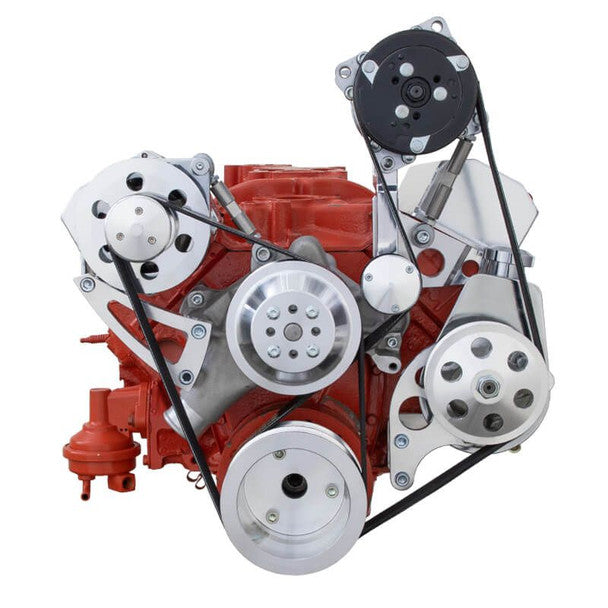

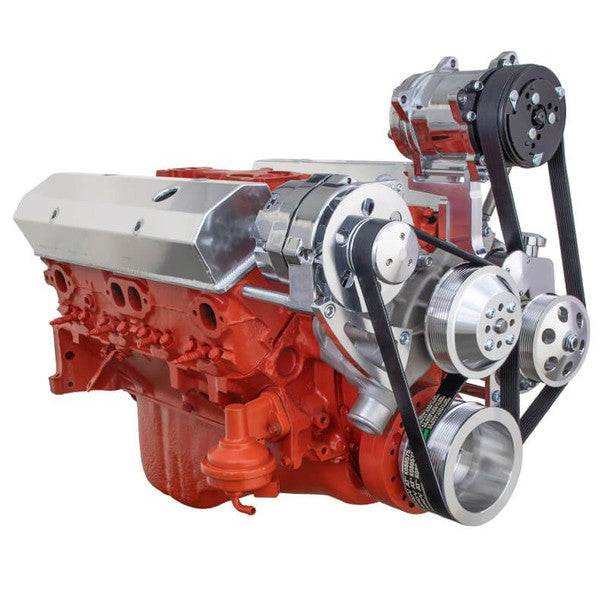

Chevy Small Block Serpentine Conversion

for AC & Power Steering Applications

283-302-305-350-400 CID | Long Water Pump (LWP) | Polished Finish

The BEAST™ 8 Track Serpentine System for Small Block Chevy engines with Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slippage when compared to traditional 6 Rib designs. Mounts Saginaw P Series Power Steering pump low on driver side and puts a Sanden 508 style AC Compressor up on the driver side above the power steering pump. (AC Compressor clear tall valve covers) Places the alternator on the passenger side in a high-mount configuration. Uses standard Chevy long water pump.

KIT INCLUDES:

1 Belt Water Pump Pulley

2 Belt Crank Pulley

1 Belt Alternator Pulley

1 Belt Idler Pulley

Passenger Side Alternator Bracket

Driver Side Power Steering Bracket

Driver Side AC Compressor Bracket

1 Belt Power Steering Pulley (Keyway Style)

ALTFAN - Universal alternator fan

Applications Notes:

Requires use of Small Block Chevy Long Water Pump

Compatible with mechanical or electric fans (recommended)

Requires use of Sanden Style 508 AC Compressor w/ 8 Rib Clutch

Requires use of Saginaw Style Power Steering Pump w/ Keyway shaft

AC COMPRESSOR, POWER STEERING PUMP, ALTERNATOR AND WATER PUMP NOT INCLUDED
