Chevy Small Block Serpentine Conversion - AC Alternator & Power Steering Long Water Pump - Polished
Chevy Small Block Serpentine Conversion - AC Alternator & Power Steering Long Water Pump - Polished
SKU: SKU: 350-SERPENTINE-AC-C-N
Low stock
Product Details
Features
- 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slippage compared to traditional 6 Rib designs.
- Uses standard Chevy long water pump.
Description
Chevy Small Block Serpentine Conversion
for AC & Power Steering Applications
Long Water Pump (LWP)

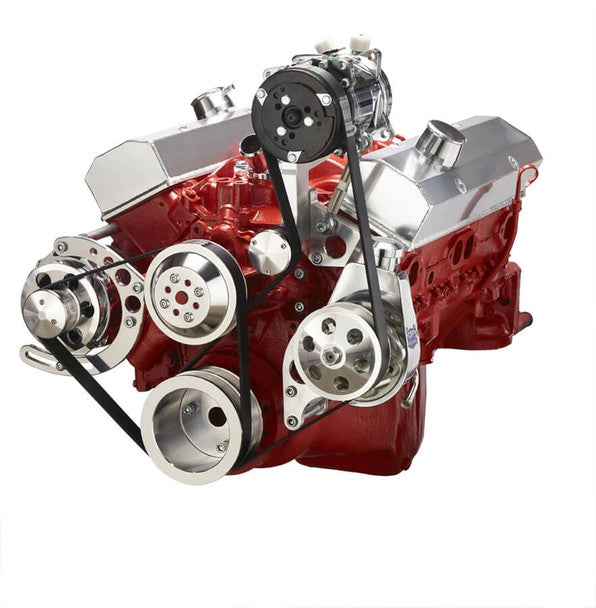

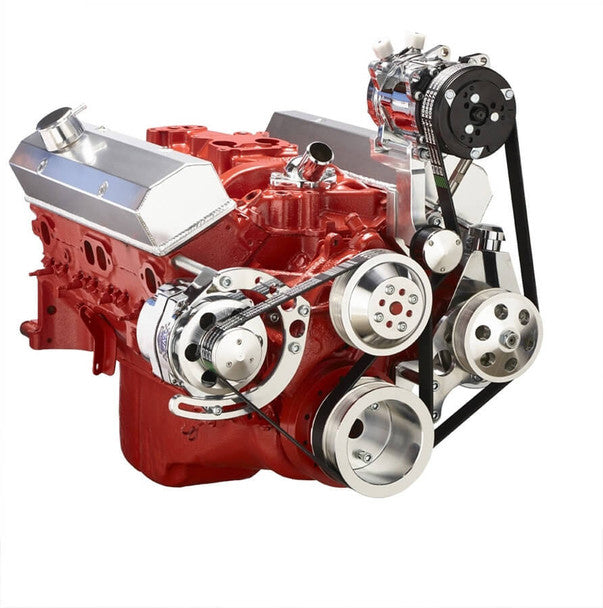

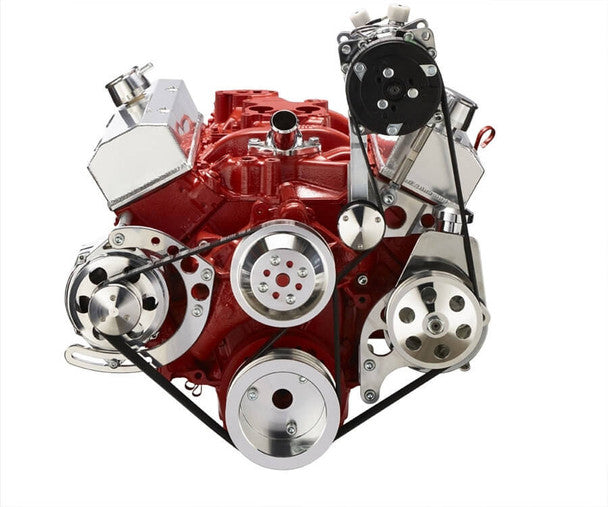

The BEAST 8 Track Serpentine System for Small Block Chevy engines with Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slippage when compared to traditional 6 Rib designs. Mounts Saginaw P Series Power Steering pump low on driver side and puts a Sanden 508 style AC Compressor up on the driver side above the power steering pump. (AC Compressor clear tall valve covers) Places the alternator on the passenger side in a mid-mount configuration. Uses standard Chevy long water pump.
Kit Includes:
• 1 Belt Water Pump Pulley
• 2 Belt Crank Pulley
• 1 Belt Alternator Pulley
• 1 Belt Idler Pulley
• Passenger Side Alternator Bracket
• Driver Side Power Steering Bracket
• Driver Side AC Compressor Bracket
• 1 Belt Power Steering Pulley (Keyway Style)
• ALTFAN - Universal alternator fan
AC Compressor, Power Steering Pump, Alternator and Water Pump NOT included
Specs
| Product Type | Beast - Serpentine Conversion |
| Alternator Position | Mid - Passenger |
| Power Steering | Yes - Saginaw |
| Air Conditioning | High - Driver |
| Compressor Type | Sanden 508 |
| Finish | Polished |
| Belt Type | Serpentine 8 Rib |
| Water Pump Type | Mechanical |
| Water Pump | Long |
| Water Pump Rotation | Standard |
| Make | Chevy |
| Engine | 350 Small Block |
Fitment
Compatible with:
Small Block Chevy engines with Air Conditioning, Power Steering and Alternator.
• 4.6 L / 283 in³
• 4.9 L 302 in³
• 5.0 L / 305 in³
• 5.7 L / 350 in³
• 6.6 L / 400 in³
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
Chevy Small Block Serpentine Conversion - AC Alternator & Power Steering Long Water Pump - Polished
Chevy Small Block Serpentine Conversion
for AC & Power Steering Applications
Long Water Pump (LWP)
The BEASTTM 8 Track Serpentine System for Small Block Chevy engines with Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slippage when compared to traditional 6 Rib designs. Mounts Saginaw P Series Power Steering pump low on driver side and puts a Sanden 508 style AC Compressor up on the driver side above the power steering pump. (AC Compressor clear tall valve covers) Places the alternator on the passenger side in a mid-mount configuration. Uses standard Chevy long water pump.
Kit Includes:
- 1 Belt Water Pump Pulley
- 2 Belt Crank Pulley
- 1 Belt Alternator Pulley
- 1 Belt Idler Pulley
- Passenger Side Alternator Bracket
- Driver Side Power Steering Bracket
- Driver Side AC Compressor Bracket
- 1 Belt Power Steering Pulley (Keyway Style)
- ALTFAN - Universal alternator fan
AC Compressor, Power Steering Pump, Alternator and Water Pump NOT included
Compatible with:
Small Block Chevy engines with Air Conditioning, Power Steering and Alternator.
• 4.6 L / 283 in³
• 4.9 L 302 in³
• 5.0 L / 305 in³
• 5.7 L / 350 in³
• 6.6 L / 400 in³
| Product Type | Beast - Serpentine Conversion |
| Alternator Position | Mid - Passenger |
| Power Steering | Yes - Saginaw |
| Air Conditioning | High - Driver |
| Compressor Type | Sanden 508 |
| Finish | Polished |
| Belt Type | Serpentine 8 Rib |
| Water Pump Type | Mechanical |
| Water Pump | Long |
| Water Pump Rotation | Standard |
| Make | Chevy |
| Engine | 350 Small Block |
