Chevy Small Block Serpentine Conversion - AC, Alternator & Power Steering, Electric Water Pump - Polished
Chevy Small Block Serpentine Conversion - AC, Alternator & Power Steering, Electric Water Pump - Polished
SKU: SKU: 350-SERPENTINE-AC-C-EWP-N
Out of stock
Product Details
Features
- 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slippage compared to traditional 6 Rib designs.
- Uses Chevy electric water pump.
Description
Chevy Small Block Serpentine Conversion
for AC & Power Steering Applications
(283-302-305-350-400 CID) - Electric Water Pump (EWP)

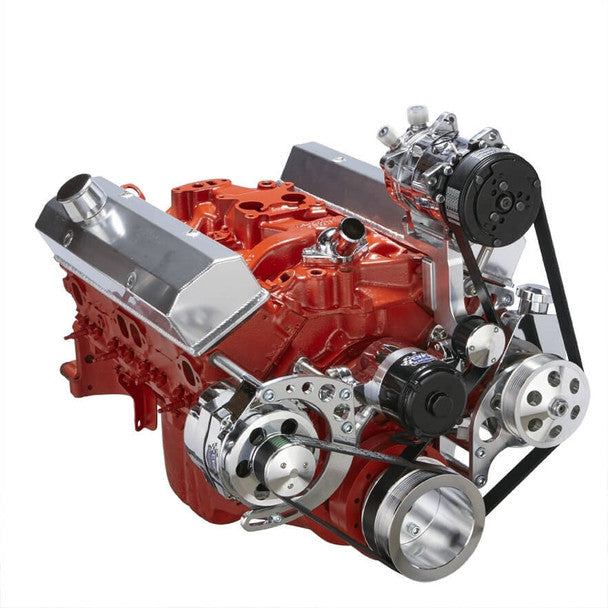

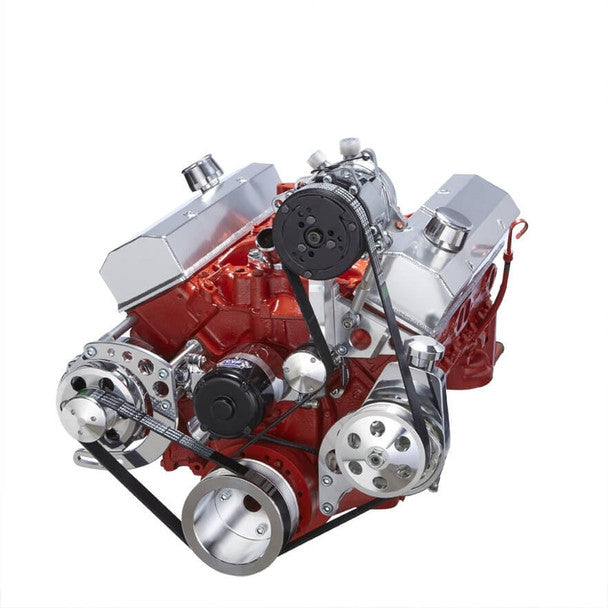

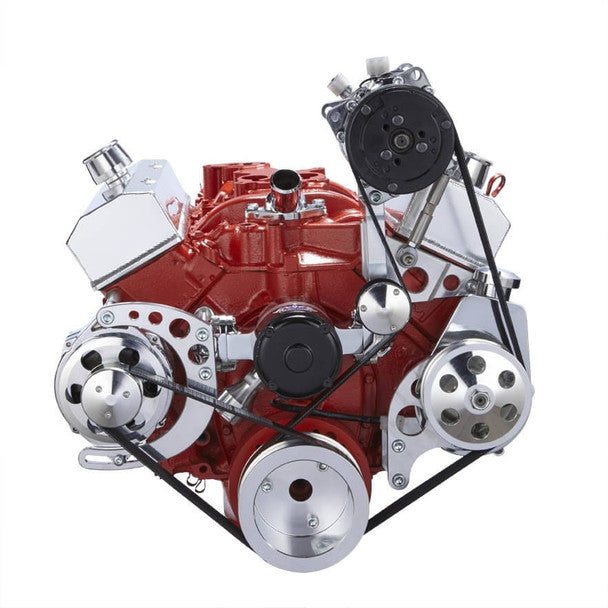

The Beast 8 Track Serpentine System for Small Block Chevy engines with electric water pump and Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slippage when compared to traditional 6 Rib designs. Mounts Saginaw P Series Power Steering pump low on driver side and puts a Sanden 508 style AC Compressor up on the driver side above the power steering pump. (AC Compressor will clear tall valve covers and fabricated valve covers) Uses Chevy electric water pump.
Kit Includes:
• 2 Belt Crank Pulley
• 1 Belt Alternator Pulley
• 1 Belt Idler Pulley
• Passenger Side Alternator Bracket
• Driver Side Power Steering Bracket
• Driver Side AC Compressor Bracket
• 1 Belt Power Steering Pulley (Keyway Style)
• ALTFAN - Universal alternator fan
Electric Water Pump, AC Compressor, Power Steering Pump and Alternator are NOT included.
Specs
| Product Type | Beast - Serpentine Conversion |
| Alternator Position | Mid - Passenger |
| Power Steering | Yes - Saginaw |
| Air Conditioning | High - Driver |
| Compressor Type | Sanden 508 |
| Finish | Polished |
| Belt Type | Serpentine 8 Rib |
| Water Pump Type | Electric |
| Make | Chevy |
| Engine | 350 Small Block |
Fitment
Compatible with:
Small Block Chevy engines with electric water pump and Air Conditioning, Power Steering, and Alternator.
• 283-302-305-350-400
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
Chevy Small Block Serpentine Conversion - AC, Alternator & Power Steering, Electric Water Pump - Polished
Chevy Small Block Serpentine Conversion for AC & Power Steering Applications
The Beast™ 8 Track Serpentine System for Small Block Chevy engines with electric water pump and Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slippage when compared to traditional 6 Rib designs. Mounts Saginaw P Series Power Steering pump low on driver side and puts a Sanden 508 style AC Compressor up on the driver side above the power steering pump. (AC Compressor will clear tall valve covers and fabricated valve covers) Uses Chevy electric water pump.
Kit Includes:
- 2 Belt Crank Pulley
- 1 Belt Alternator Pulley
- 1 Belt Idler Pulley
- Passenger Side Alternator Bracket
- Driver Side Power Steering Bracket
- Driver Side AC Compressor Bracket
- 1 Belt Power Steering Pulley (Keyway Style)
- ALTFAN - Universal alternator fan
Electric Water Pump, AC Compressor, Power Steering Pump and Alternator are NOT included.
Compatible with:
Small Block Chevy engines with electric water pump and Air Conditioning, Power Steering and Alternator.
• 283-302-305-350-400
| Product Type | Beast - Serpentine Conversion |
| Alternator Position | Mid - Passenger |
| Power Steering | Yes - Saginaw |
| Air Conditioning | High - Driver |
| Compressor Type | Sanden 508 |
| Finish | Polished |
| Belt Type | Serpentine 8 Rib |
| Water Pump Type | Electric |
| Make | Chevy |
| Engine | 350 Small Block |
