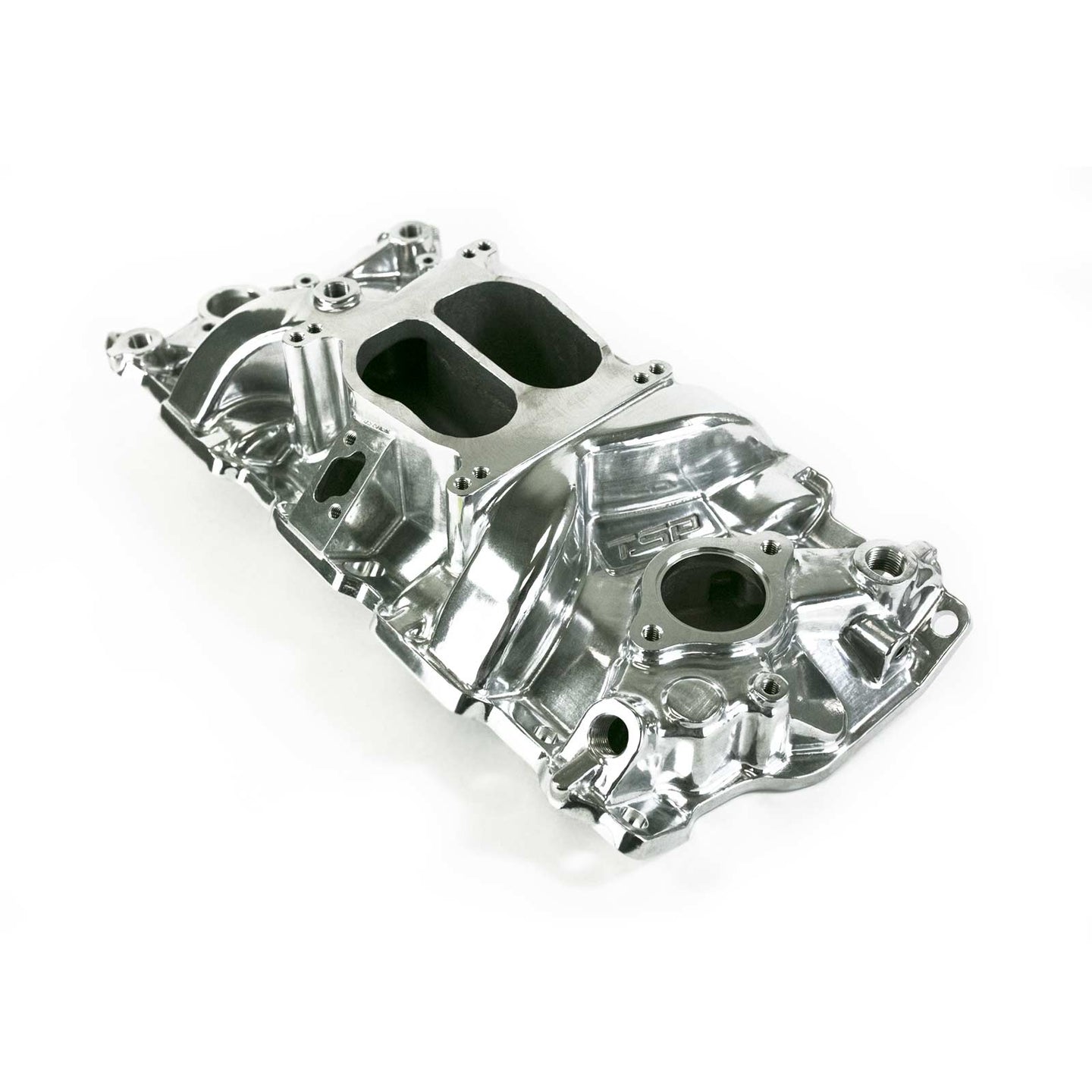

Chevy Small Block Carbureted Polished Aluminum Dual Plane Intake Manifold
Chevy Small Block Carbureted Polished Aluminum Dual Plane Intake Manifold
SKU: SKU: 82000
In stock
Product Details
Features
- Fits 1955-1986 Chevy small block engines
Features dual-plane design
Description
TSP's dual-plane high-performance intake manifold for the small block Chevy is ideal for street performance applications. With a design that improves throttle response, as well as power and torque over a wide rpm range - idle to 5,500. It is cast from lightweight aluminum and features a low profile for ideal hood clearance. Additional provisions include dual distributor hold-downs, 4 corner water ports, and a choke block-off kit. Set up for spread bore carbs, this manifold comes with an adapter plate and gasket for use with square bore types.
Specs
| Engine Block Style | OEM Standard Deck |
| Carburetor Quantity | 1 |
| Intake Style | Dual Plane |
| Basic Operating Range | Idle To 5,500 Rpm |
| Manifold Height | 4.05 In. |
| Manifold Material | Aluminum |
| Manifold Finish | Polished |
| EGR Port | Yes |
| Head Bolt Adapters | Included |
| Choke Block-Off Kit | Included |
| Square Bore Adapter Kit | Included |
Fitment
CHEVROLET SMALL BLOCK V8 GEN. I
• 4.3 L / 262 in3
• 4.3 L / 265 in3
• 4.4 L / 267 in3
• 4.6 L / 283 in3
• 4.9 L / 302 in3
• 5.0 L / 305 in3
• 5.0 L / 307 in3
• 5.4 L / 327 in3
• 5.7 L / 350 in3
• 6.6 L / 400 in3
NOTES:
Fits 1955-1986 Chevy small blocks and 1987-1995 with included adapters.
Manifold is stock replacement and street legal with non-EGR 302, 327, and 350 engines with OEM carb in 1966-1972 (and 1973 non-CA) passenger cars and 1966-1983 trucks.
Will not fit engines with reverse flow heads such as those found in 1992-1997 LT1 applications.
Chevy Small Block Carbureted Polished Aluminum Dual Plane Intake Manifold
Chevy Small Block Carbureted Polished Aluminum Dual Plane Intake Manifold
Specifications
| Engine Block Style | OEM Standard Deck |
| Carburetor Quantity | 1 |
| Intake Style | Dual Plane |
| Basic Operating Range | Idle to 5,500 RPM |
| Manifold Height | 4.05" |
| Manifold Materal | Aluminum |
| Manifold Finish | Polished |
| EGR | No |
| Included |
Head Bolt Adapters Choke Block-off Kit Square Bore Adapter Kit |
Overview
TSP's dual-plane high-performance intake manifold for the small block Chevy is ideal for street performance applications. With a design that improves throttle response, as well as power and torque over a wide rpm range - idle to 5,500. It is cast from lightweight aluminum and features a low profile for ideal hood clearance. Additional provisions include dual distributor hold-downs, 4 corner water ports, and a choke block-off kit. Set up for spread bore carbs, this manifold comes with an adapter plate and gasket for use with square bore types.
Fitment
CHEVROLET SMALL BLOCK V8 GEN. I
- 4.3 L / 262 in3
- 4.3 L / 265 in3
- 4.4 L / 267 in3
- 4.6 L / 283 in3
- 4.9 L / 302 in3
- 5.0 L / 305 in3
- 5.0 L / 307 in3
- 5.4 L / 327 in3
- 5.7 L / 350 in3
- 6.6 L / 400 in3
NOTES
- Fits 1955-1986 Chevy small blocks and 1987-1995 with included adapters
- Manifold is stock replacement and street legal with non-EGR 302, 327, and 350 engines with OEM carb in 1966-1972 (and 1973 non-CA) passenger cars and 1966-1983 trucks
- Will not fit engines with reverse flow heads such as those found in 1992-1997 LT1 applications
