Chevy SB/BB V8 Pro Series Pro Billet Distributor - Blue
Chevy SB/BB V8 Pro Series Pro Billet Distributor - Blue
SKU: SKU: JM7601BL
Out of stock
Product Downloads
Product Details
Features
- Fits small block 262-400 and big block Mark IV 396-454
- Fully adjustable mechanical advance with additional springs and bushings included
Description

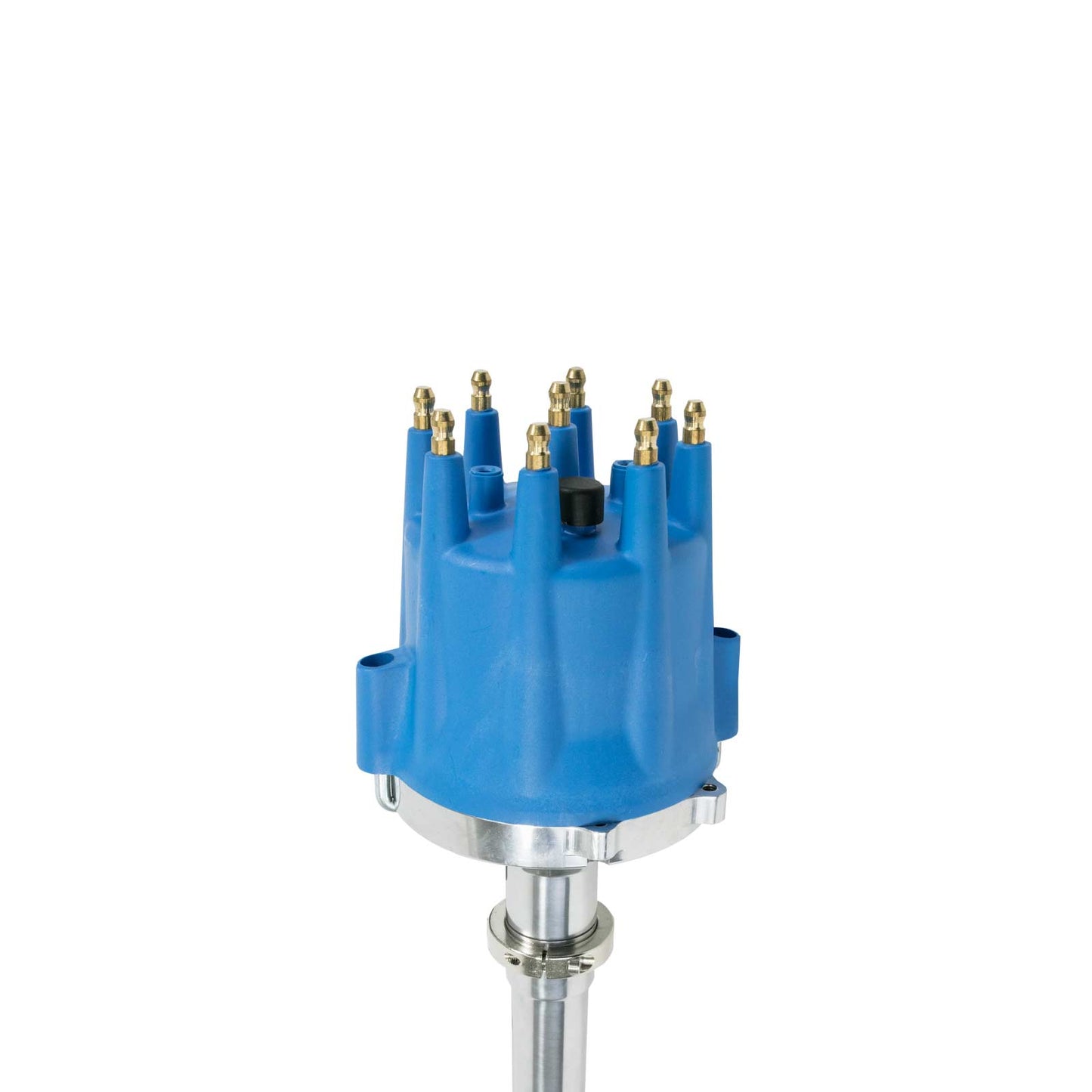

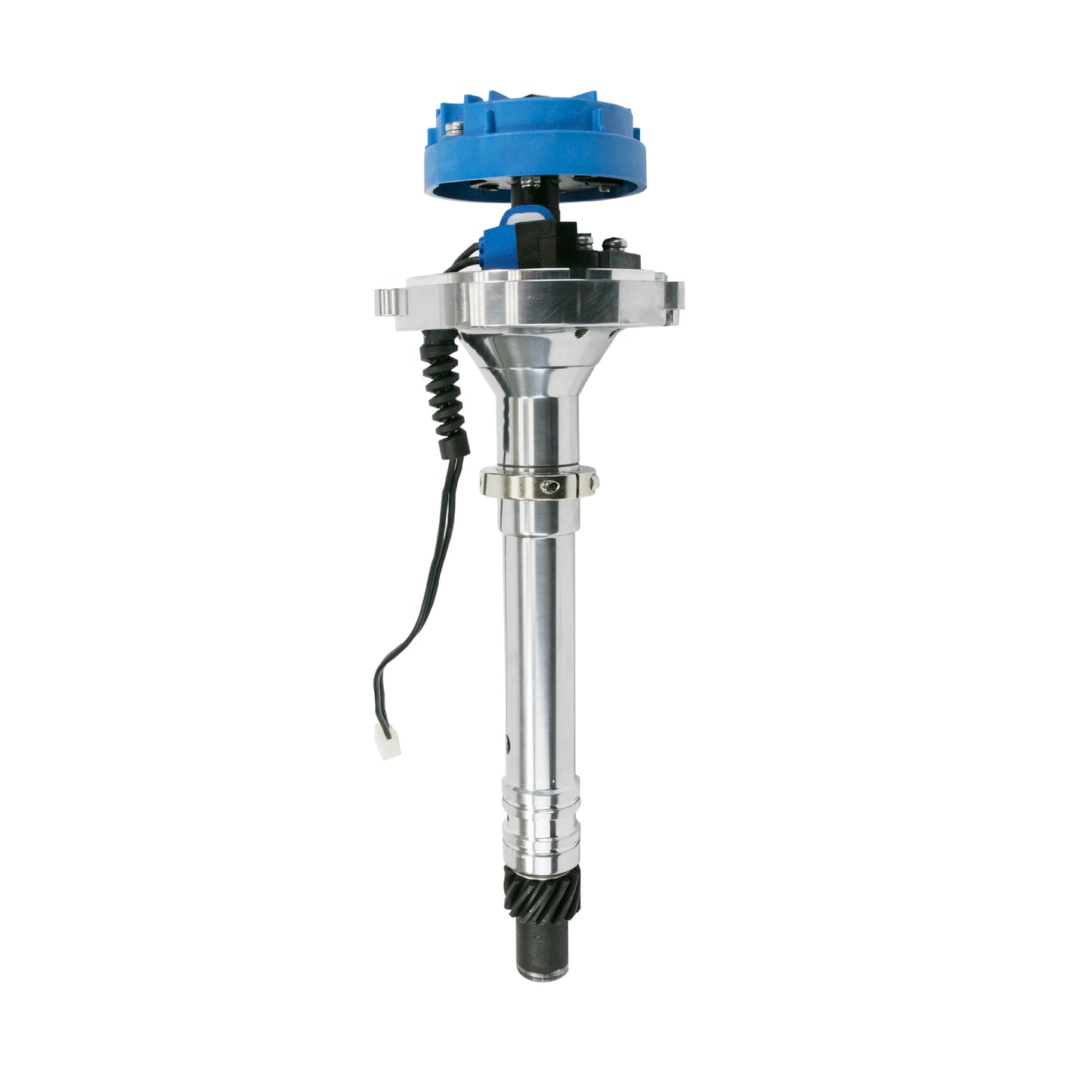

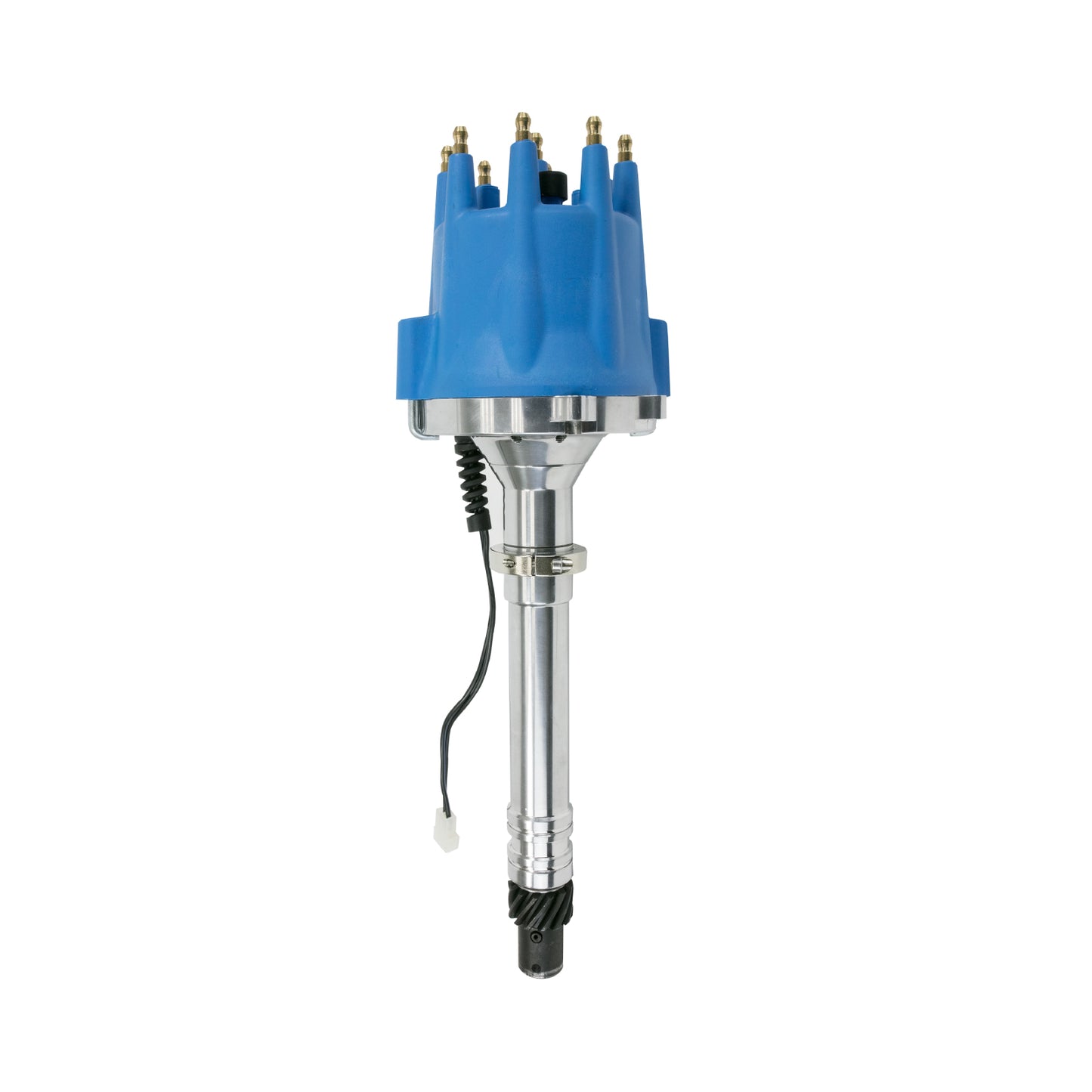

TSP Pro Series Pro Billet Distributor is for the racer who needs added spark and precision for their high performance power plant. It features a high quality, fully adjustable mechanical advance and an accurate magnetic pickup trigger. The CNC-machined aluminum body and hardened steel shaft, guided by a sealed ball bearing on top and a sintered steel bushing on the bottom, ensure stability up to 10,000 RPM. The dielectric cap features bolt-down and twist-lock capabilities. It has solid brass terminals and comes with a color-matched wire retainer.
Specs
| Advance Adjustable | Yes |
| Advance Type | Centrifugal (Mechanical) |
| Cap Color | Available in Black, Blue, Red |
| Terminal Gender | Pro Series |
| Centrifugal Advance Adjustment Hardware Included | Yes |
| Coil Type | External |
| Coil Output | 35,000+ V |
| Coil Wire Included | No |
| Distributor Cap Included | Yes |
| Gear Material | Hardened Steel |
| Grade Type | Performance |
| Housing Material | Aluminum |
| Ignition Box Required | Yes |
| Ignition Coil Included | No |
| Ignition Rotor Included | Yes |
| Marine Approved | No |
| Mechanical Tachometer Drive | No |
| Rotor Rotation | Clockwise |
| Shaft Material | Steel |
| Slip Collar | Yes |
| Terminal Gender | Male |
| Terminal Material | Brass |
| Terminal Quantity | 8 |
| Trigger Type | Magnetic Pick-Up |

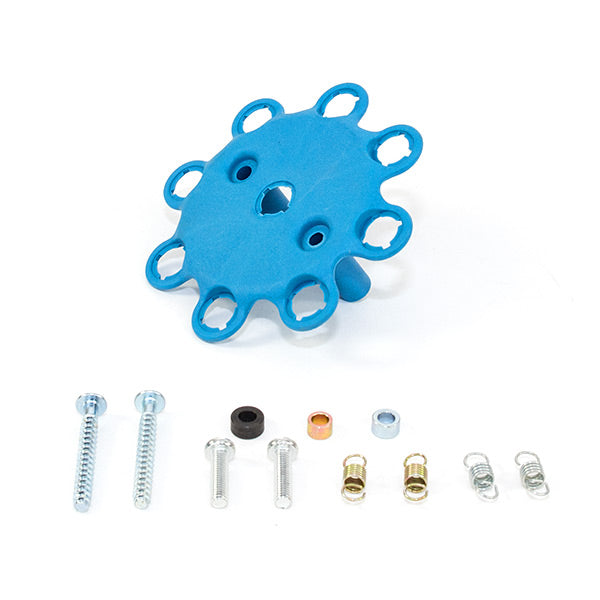

| 3 Bushings and 4 Springs for Mechanical Advance | Included |
| Color-Matched Spark Plug Wire Retainer with Screws | Included |
Fitment
CHEVROLET BOG BLOCK V8 GEN. II
• 6.5 L / 396 in3
• 6.6 L / 402 in3
• 7.4 L / 454 in3
CHEVROLET BOG BLOCK V8 GEN. I
• 4.3 L / 262 in3
• 4.3 L / 265 in3
• 4.4 L / 267 in3
• 4.6 L / 283 in3
• 4.9 L / 302 in3
• 5.0 L / 305 in3
• 5.0 L / 307 in3
• 5.4 L / 327 in3
• 5.7 L / 350 in3
• 6.6 L / 400 in3
Note: Will not fit tall deck blocks.
Will not fit if using a governor.
Emissions Notice
This Top Street Performance (TSP) product is designed for racing and off-road competition use only. It is not legal for use on public roads or emissions-controlled vehicles and does not comply with federal, state, or local emissions regulations. The buyer assumes all responsibility for legal use and installation.
What is a Emissions-Controlled Vehicle?
"An emissions-controlled vehicle is any vehicle equipped with a factory-installed emissions control system designed to reduce air pollution. These systems include catalytic converters, oxygen sensors, EGR (Exhaust Gas Recirculation) valves, and diesel particulate filters (DPF). Most vehicles manufactured after 1975 are considered emissions-controlled and must comply with federal and state emissions laws when used on public roads."
Chevy SB/BB V8 Pro Series Pro Billet Distributor - Blue
Chevy SB/BB V8 Pro Series Pro Billet Distributor - Blue
TSP Pro Series Pro Billet Distributor is for the racer who needs added spark and precision for their high performance power plant. It features a high quality, fully adjustable mechanical advance and an accurate magnetic pickup trigger. The CNC-machined aluminum body and hardened steel shaft, guided by a sealed ball bearing on top and a sintered steel bushing on the bottom, ensure stability up to 10,000 RPM. The dielectric cap features bolt-down and twist-lock capabilities. It has solid brass terminals and comes with a color-matched wire retainer.
FITMENT:
CHEVROLET BOG BLOCK V8 GEN. II
• 6.5 L / 396 in3
• 6.6 L / 402 in3
• 7.4 L / 454 in3
CHEVROLET BOG BLOCK V8 GEN. I
• 4.3 L / 262 in3
• 4.3 L / 265 in3
• 4.4 L / 267 in3
• 4.6 L / 283 in3
• 4.9 L / 302 in3
• 5.0 L / 305 in3
• 5.0 L / 307 in3
• 5.4 L / 327 in3
• 5.7 L / 350 in3
• 6.6 L / 400 in3
Note: Will not fit tall deck blocks.
Will not fit if using a governor.
| Advance Adjustable | Yes |
| Advance Type | Centrifugal (Mechanical) |
| Cap Color | Available in Black, Blue, Red |
| Terminal Gender | Pro Series |
| Centrifugal Advance Adjustment Hardware Included | Yes |
| Coil Type | External |
| Coil Output | 35,000+ V |
| Coil Wire Included | No |
| Distributor Cap Included | Yes |
| Gear Material | Hardened Steel |
| Grade Type | Performance |
| Housing Material | Aluminum |
| Ignition Box Required | Yes |
| Ignition Coil Included | No |
| Ignition Rotor Included | Yes |
| Marine Approved | No |
| Mechanical Tachometer Drive | No |
| Rotor Rotation | Clockwise |
| Shaft Material | Steel |
| Slip Collar | Yes |
| Terminal Gender | Male |
| Terminal Material | Brass |
| Terminal Quantity | 8 |
| Trigger Type | Magnetic Pick-Up |
| 3 Bushings and 4 Springs for Mechanical Advance | Included |
| Color-Matched Spark Plug Wire Retainer with Screws | Included |
