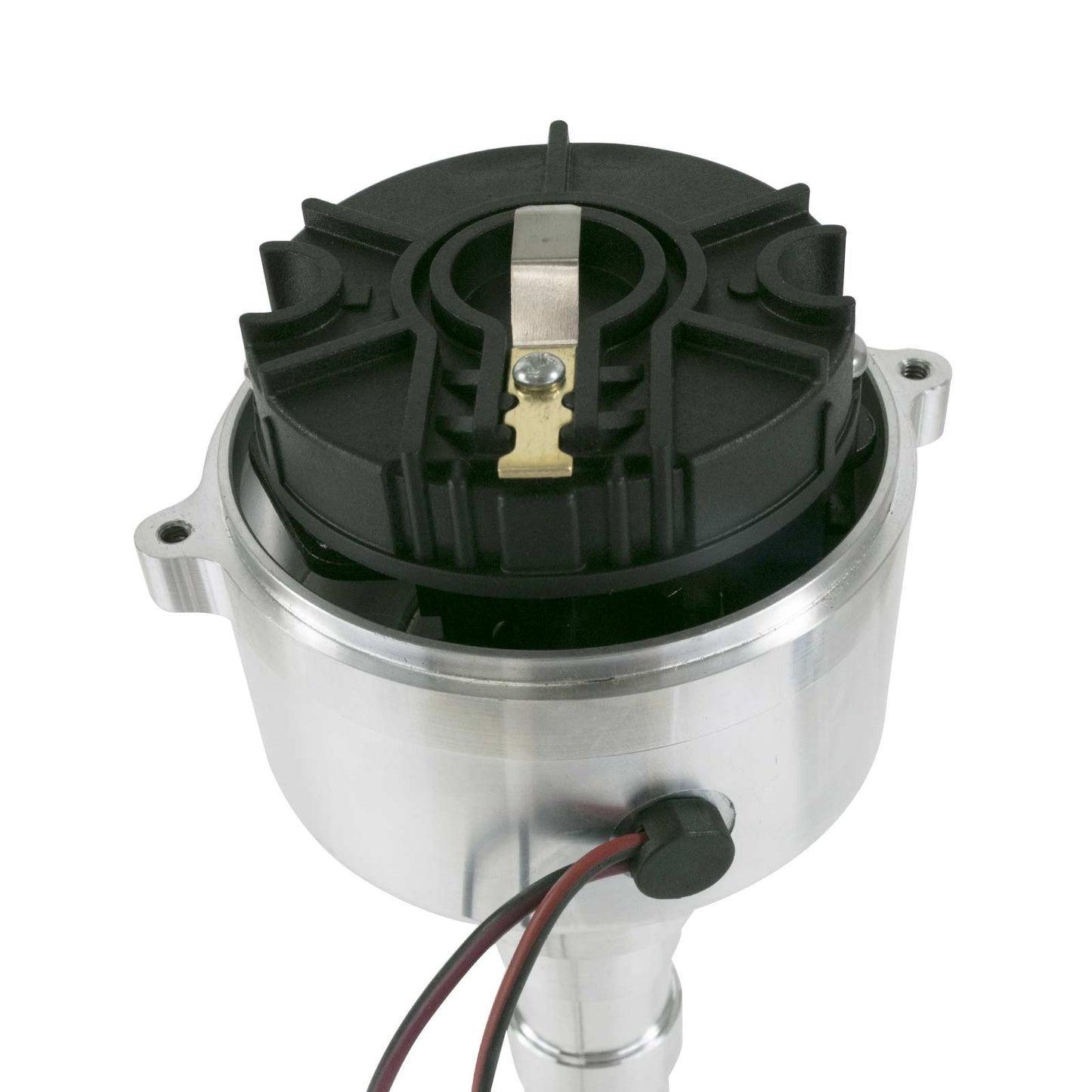

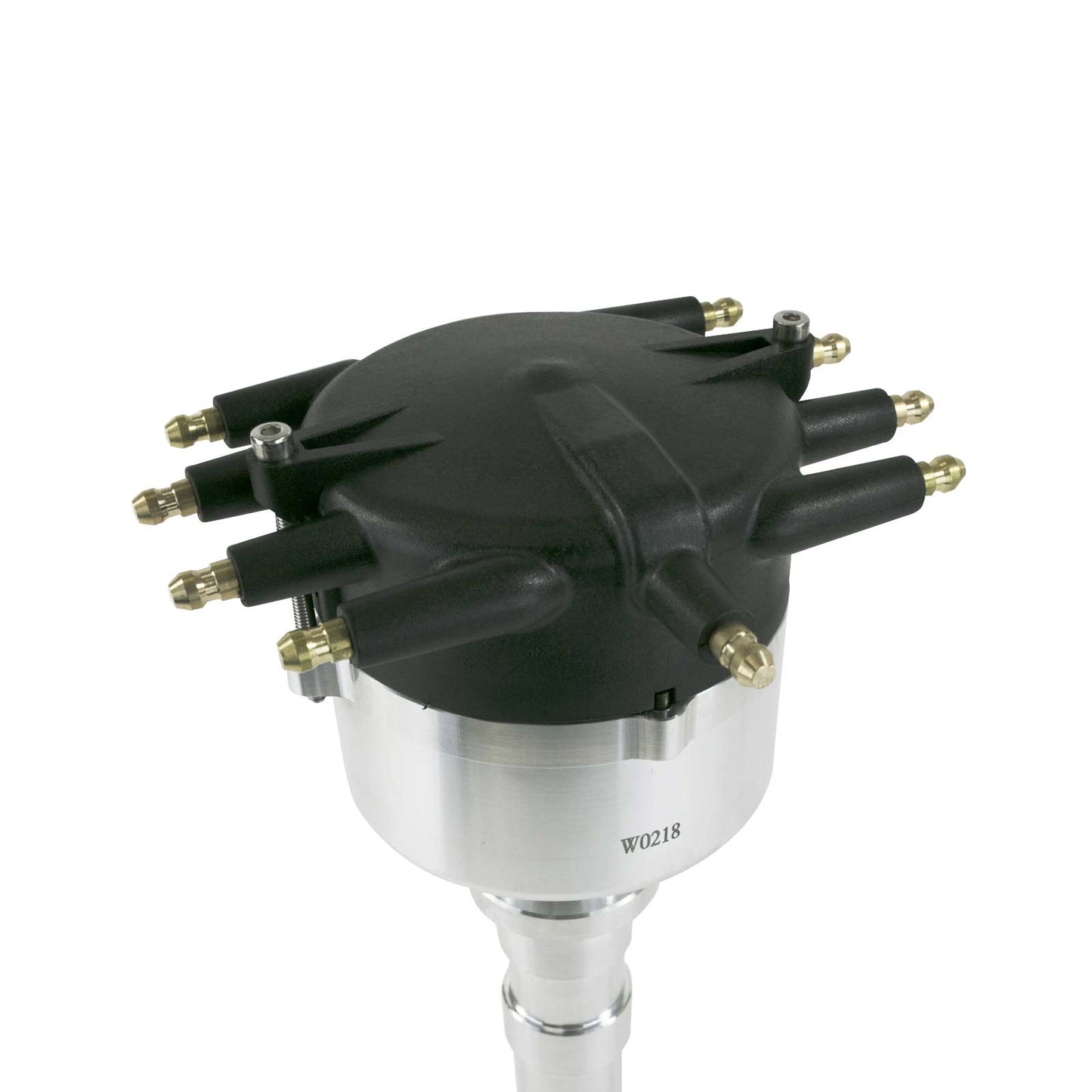

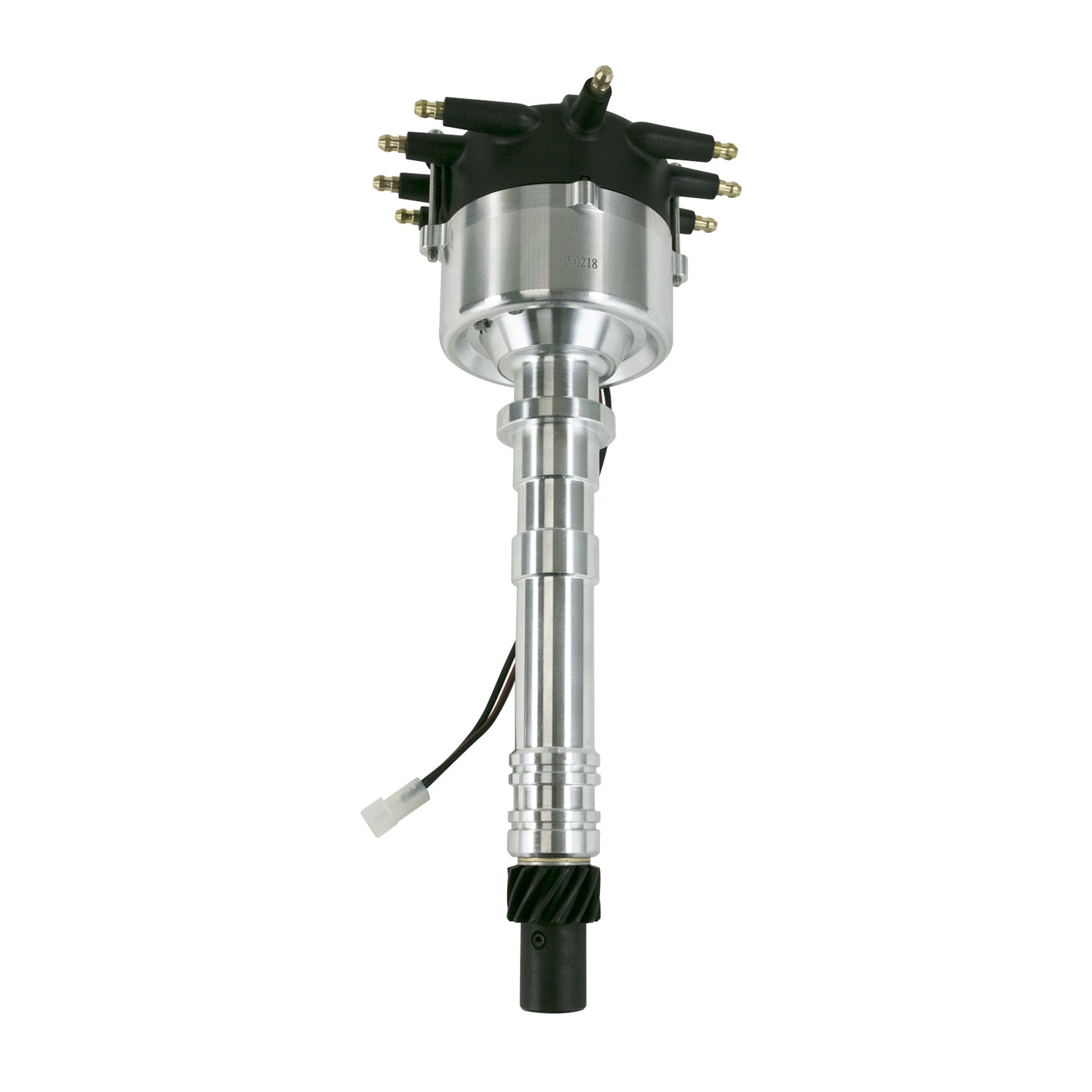

Chevy SB/BB V8 Low-Profile Pro Series Pro Billet Distributor with Crab Cap - Black
Chevy SB/BB V8 Low-Profile Pro Series Pro Billet Distributor with Crab Cap - Black
SKU: SKU: JM9601BK
In stock
Product Details
Features
- Fits small block 262-400 and big block Mark IV 396-454
- Fully adjustable mechanical advance with additional springs and bushings included
- New design measures less than 5" from flange to top, making plenty of room for a blower.
Description
TSP’s Pro Series Pro Billet Distributor is for the racer who needs added spark and precision for their high performance power plant. It features a high quality, fully adjustable mechanical advance and an accurate magnetic pick-up trigger. The CNC-machined aluminum body and hardened steel shaft, guided by a sealed ball bearing on top and a sintered steel bushing on the bottom, ensure stability up to 10,000 RPM. This new low-profile distributor features a re-designed housing and crab-style cap. Measuring less than 5" from the mounting surface to the top, installing a blower will be a breeze.
Requires the use of an ignition control system and external ignition coil.
Fully Adjustable Mechanical Advance
An important feature on all Top Street Performance Pro Series distributors is the fully adjustable mechanical advance. This allows you to easily modify the distributor to achieve a variety of timing curves. Included with all Pro Series distributors are four bushings of varied size. The bushing determines the mechanical advance the distributor can achieve. Also included are six springs, with two at each level of tension. The springs control the rate at which the distributor reaches the advance.
Specs
| Trigger Type | Magnetic |
| Advance Type | Mechanical |
| Cap Color | Available in Black or Red |
| Terminal Gender | Male |
| Mechanical Tach Drive | No |
| Slip Collar | Yes |
| Coil Included | No |
| Coil Type | External |
| Coil Output | 35,000+ |
| Gear Material | Steel |
| Housing Material | Machined Aluminum |
| Ignition Box Required | Yes |
| Marine Use | No |
| Cylinders | 8 |
| 3 Bushings and 4 Springs for Mechanical Advance | Included |
Fitment
CHEVROLET BIG BLOCK V8 GEN. II (MARK IV)
• 6.5 L / 396 in3
• 6.6 L / 402 in3
• 7.4 L / 454 in3
CHEVROLET SMALL BLOCK V8 GEN. I
• 4.3 L / 262 in3
• 4.3 L / 265 in3
• 4.4 L / 267 in3
• 4.6 L / 283 in3
• 4.9 L / 302 in3
• 5.0 L / 305 in3
• 5.0 L / 307 in3
• 5.4 L / 327 in3
• 5.7 L / 350 in3
• 6.6 L / 400 in3
NOTES:
Will not fit tall deck blocks.
Will not fit if using a governor.
Emissions Notice
This Top Street Performance (TSP) product is designed for racing and off-road competition use only. It is not legal for use on public roads or emissions-controlled vehicles and does not comply with federal, state, or local emissions regulations. The buyer assumes all responsibility for legal use and installation.
What is a Emissions-Controlled Vehicle?
"An emissions-controlled vehicle is any vehicle equipped with a factory-installed emissions control system designed to reduce air pollution. These systems include catalytic converters, oxygen sensors, EGR (Exhaust Gas Recirculation) valves, and diesel particulate filters (DPF). Most vehicles manufactured after 1975 are considered emissions-controlled and must comply with federal and state emissions laws when used on public roads."
Chevy SB/BB V8 Low-Profile Pro Series Pro Billet Distributor with Crab Cap - Black
Chevy SB/BB V8 Low-Profile Pro Series Pro Billet Distributor with Crab Cap - Black
TSP’s Pro Series Pro Billet Distributor is for the racer who needs added spark and precision for their high performance power plant. It features a high quality, fully adjustable mechanical advance and an accurate magnetic pick-up trigger. The CNC-machined aluminum body and hardened steel shaft, guided by a sealed ball bearing on top and a sintered steel bushing on the bottom, ensure stability up to 10,000 RPM. This new low-profile distributor features a re-designed housing and crab-style cap. Measuring less than 5" from the mounting surface to the top, installing a blower will be a breeze.
Requires the use of an ignition control system and external ignition coil.
Fully Adjustable Mechanical Advance
An important feature on all Top Street Performance Pro Series distributors is the fully adjustable mechanical advance. This allows you to easily modify the distributor to achieve a variety of timing curves. Included with all Pro Series distributors are four bushings of varied size. The bushing determines the mechanical advance the distributor can achieve. Also included are six springs, with two at each level of tension. The springs control the rate at which the distributor reaches the advance.
FITMENT:
CHEVROLET BIG BLOCK V8 GEN. II (MARK IV)
• 6.5 L / 396 in3
• 6.6 L / 402 in3
• 7.4 L / 454 in3
CHEVROLET SMALL BLOCK V8 GEN. I
• 4.3 L / 262 in3
• 4.3 L / 265 in3
• 4.4 L / 267 in3
• 4.6 L / 283 in3
• 4.9 L / 302 in3
• 5.0 L / 305 in3
• 5.0 L / 307 in3
• 5.4 L / 327 in3
• 5.7 L / 350 in3
• 6.6 L / 400 in3
NOTES:
Will not fit tall deck blocks.
Will not fit if using a governor.
| Trigger Type | Magnetic |
| Advance Type | Mechanical |
| Cap Color | Available in Black or Red |
| Terminal Gender | Male |
| Mechanical Tach Drive | No |
| Slip Collar | Yes |
| Coil Included | No |
| Coil Type | External |
| Coil Output | 35,000+ |
| Gear Material | Steel |
| Housing Material | Machined Aluminum |
| Ignition Box Required | Yes |
| Marine Use | No |
| Cylinders | 8 |
| 3 Bushings and 4 Springs for Mechanical Advance | Included |
