CVF Racing

Chevy LS Engine Serpentine Conversion - Alternator Only - Polished

Chevy LS Engine Serpentine Conversion - Alternator Only - Polished

SKU: LSX-SERPENTINE-ALT-COR-N

$595.00
$595.00
Shipping calculated at checkout.

Low stock

Top Street Performance (TSP) is committed to providing high-quality performance parts while complying with emissions regulations. This product is designed for use on vehicles that comply with federal emissions regulations. It is the customer’s responsibility to verify that this part is legal for use in their state or local jurisdiction. Check with your local emissions authority before purchasing.

Product Details

Features

  • Mounts Alternator and Power Steering pump in mid-mount configuration.
  • AC is mounted on lower passenger side (USA).

Description

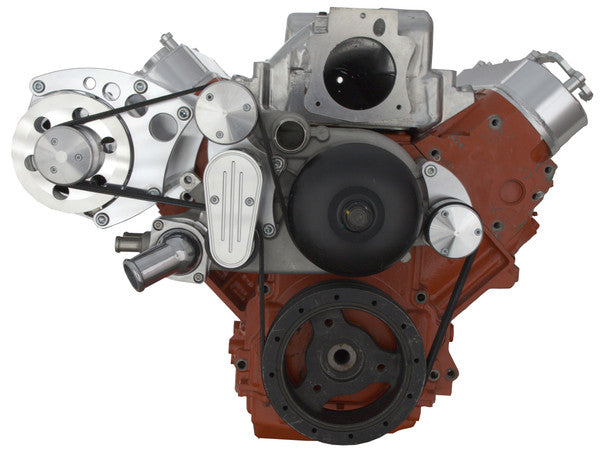

Chevy LS Serpentine Conversion
ALT Only Applications | LS1, LS2, LS3 & LS6 | Polished Finish
The BEAST™ 6 Track Serpentine System for Chevy LS Engines with Alternator. Save money by reusing your OEM water pump and balancer. Mounts Alternator and Power Steering pump in mid-mount configuration. AC is mounted on lower passenger side (USA).

Kit Includes:
Passenger Side Alternator Bracket
Spring Loaded Tensioner
6 Rib Billet Alternator Pulley
Billet Alternator Fan
Billet Idlers w/ Cap

Optional Upgrades:
GM CS-130 140A 1 Wire Alternator
Premium 6 Rib Belt (s)

Notes:
Corvette/CTS-V/SS/G8 Balancer Pulley selection requires LS1 Corvette Water Pump (GM# 19256263)

'98-02 Camaro/Firebird/GTO Balancer Pulley selection requires LS1 Camaro or LS1/LS2 GTO Water Pump (GM# 19256263)

Truck/SUV/'10-15 Camaro Balancer Pulley selection requires Gen3 Truck Water Pump (GM# 19195104)

Specs

Product Type Beast - Serpentine Conversion
Alternator Position Mid - Passenger
Power Steering None
Air Conditioning None
Finish Polished
Belt Type Serpentine 6 Rib
Water Pump Type Mechanical
Water Pump LS1
Water Pump Rotation Reverse
Make Chevy
Engine LS

Engine Fitment

Compatible with:
Chevy LS with Alternator Only
• 5.7L / 346 in³ (LS1 & LS6)
• 6.0L / 364 in³ (LS2)
• 6.2L / 376 in³ (LS3)

Q&A

Emissions Notice

This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
