Chevy LS Engine Serpentine Conversion - AC, Power Steering & Alternator - Polished

Chevy LS Engine Serpentine Conversion - AC, Power Steering & Alternator - Polished

SKU: LSX-SERPENTINE-AC-COR-N

$795.00
$795.00
Shipping calculated at checkout.

Low stock

Top Street Performance (TSP) is committed to providing high-quality performance parts while complying with emissions regulations. This product is designed for use on vehicles that comply with federal emissions regulations. It is the customer’s responsibility to verify that this part is legal for use in their state or local jurisdiction. Check with your local emissions authority before purchasing.

Product Details

Features

  • Mounts Alternator and Power Steering pump in mid-mount configuration.
  • AC is mounted on lower passenger side (USA).

Description

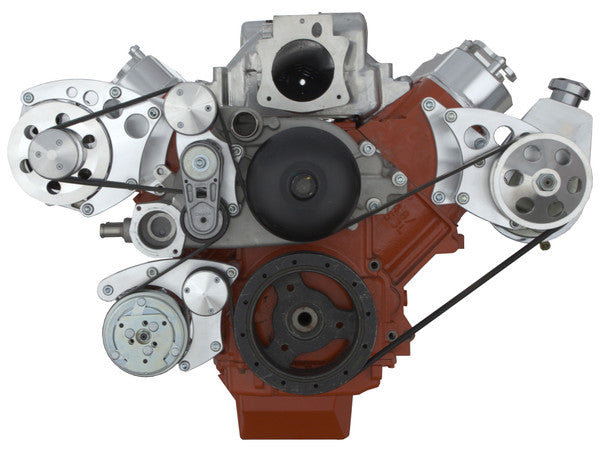

Chevy LS Serpentine Conversion
AC - PS - ALT Applications | LS1, LS2, LS3 & LS6
The BEAST™ 6 Track Serpentine System for Chevy LS Engines with AC, Power Steering, and Alternator. Save money by reusing your OEM water pump and balancer. Mounts Alternator and Power Steering pump in mid-mount configuration. AC is mounted on lower passenger side (USA).

Kit Includes:
Passenger Side Alternator Bracket
Lower Passenger Side AC Bracket
Spring Loaded Tensioner
Driver's Side Power Steering Bracket
6 Rib Power Steering Pulley with 5/8" Keyway Shaft
6 Rib Billet Alternator Pulley
Billet Alternator Fan
Billet Idlers w/ Cap

Notes:
Corvette/CTS-V/SS/G8 Balancer Pulley selection requires LS1 Corvette Water Pump (GM# 19256263)

'98-02 Camaro/Firebird/GTO Balancer Pulley selection requires LS1 Camaro or LS1/LS2 GTO Water Pump (GM# 19256263)

Truck/SUV/'10-15 Camaro Balancer Pulley selection requires Gen3 Truck Water Pump (GM# 19195104)

Specs

Product Type Beast - Serpentine Conversion
Alternator Position Mid - Passenger
Power Steering Yes
Air Conditioning Low - Passenger
Compressor Type Sanden Peanut 7B10
Finish Polished
Belt Type Serpentine 6 Rib
Water Pump Type Mechanical
Water Pump LS1
Water Pump Rotation Reverse
Make Chevy
Engine LS

Engine Fitment

Compatible with:
Chevy LS with AC - PS - ALT Applications | LS1, LS2, LS3 & LS6
• 5.7L / 346 in³ (LS1 & LS6)
• 6.0L / 364 in³ (LS2)
• 6.2L / 376 in³ (LS3)

Q&A

Emissions Notice

This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
