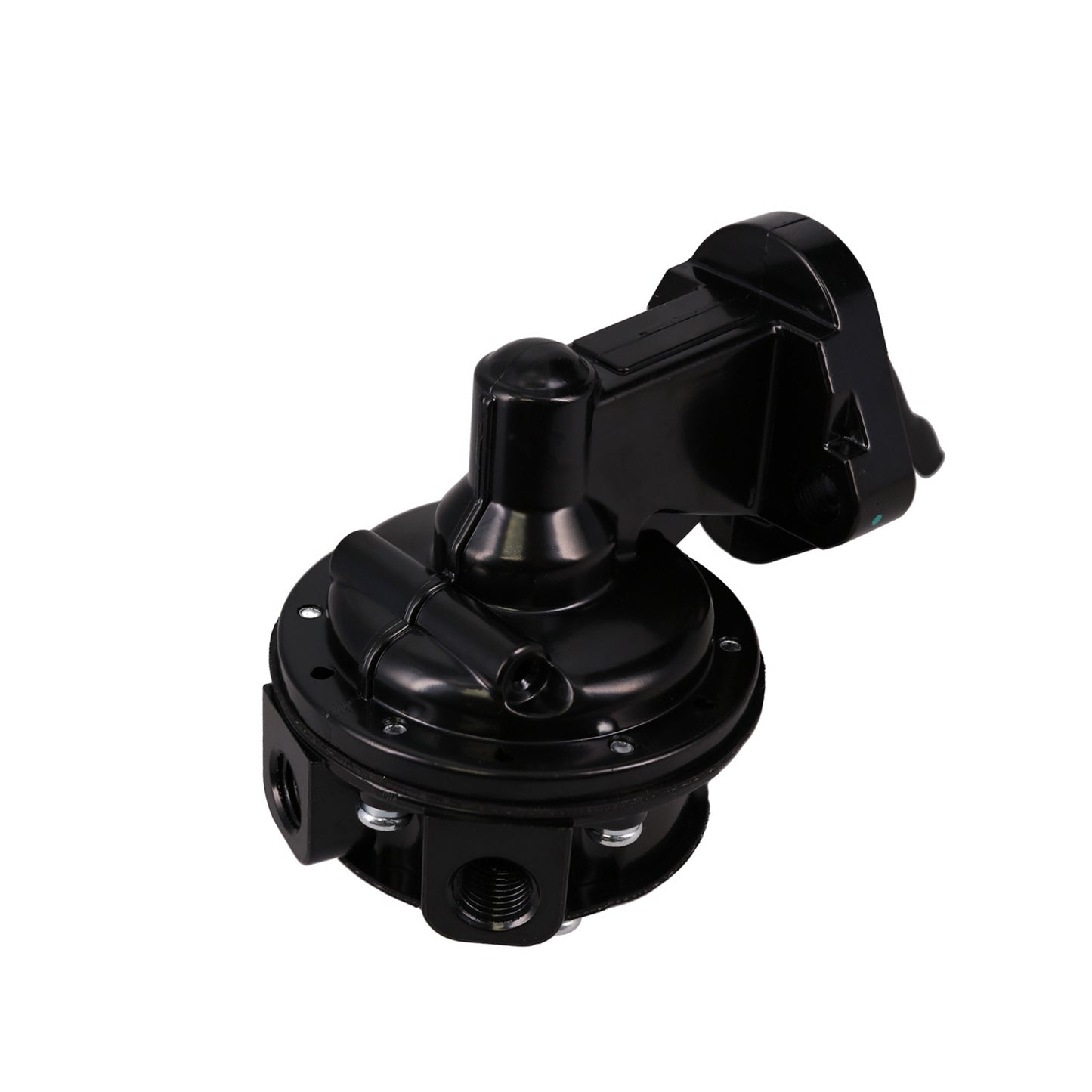

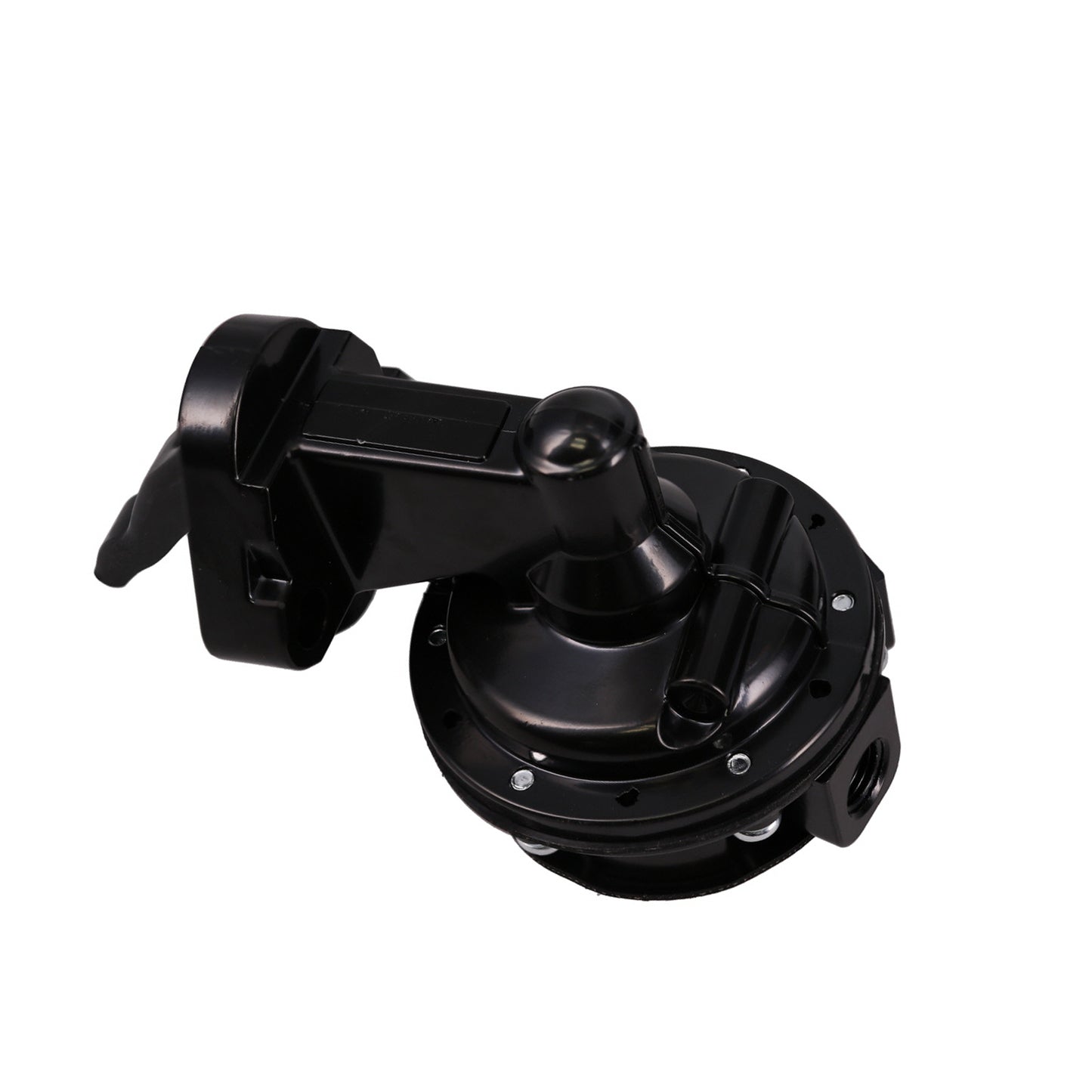

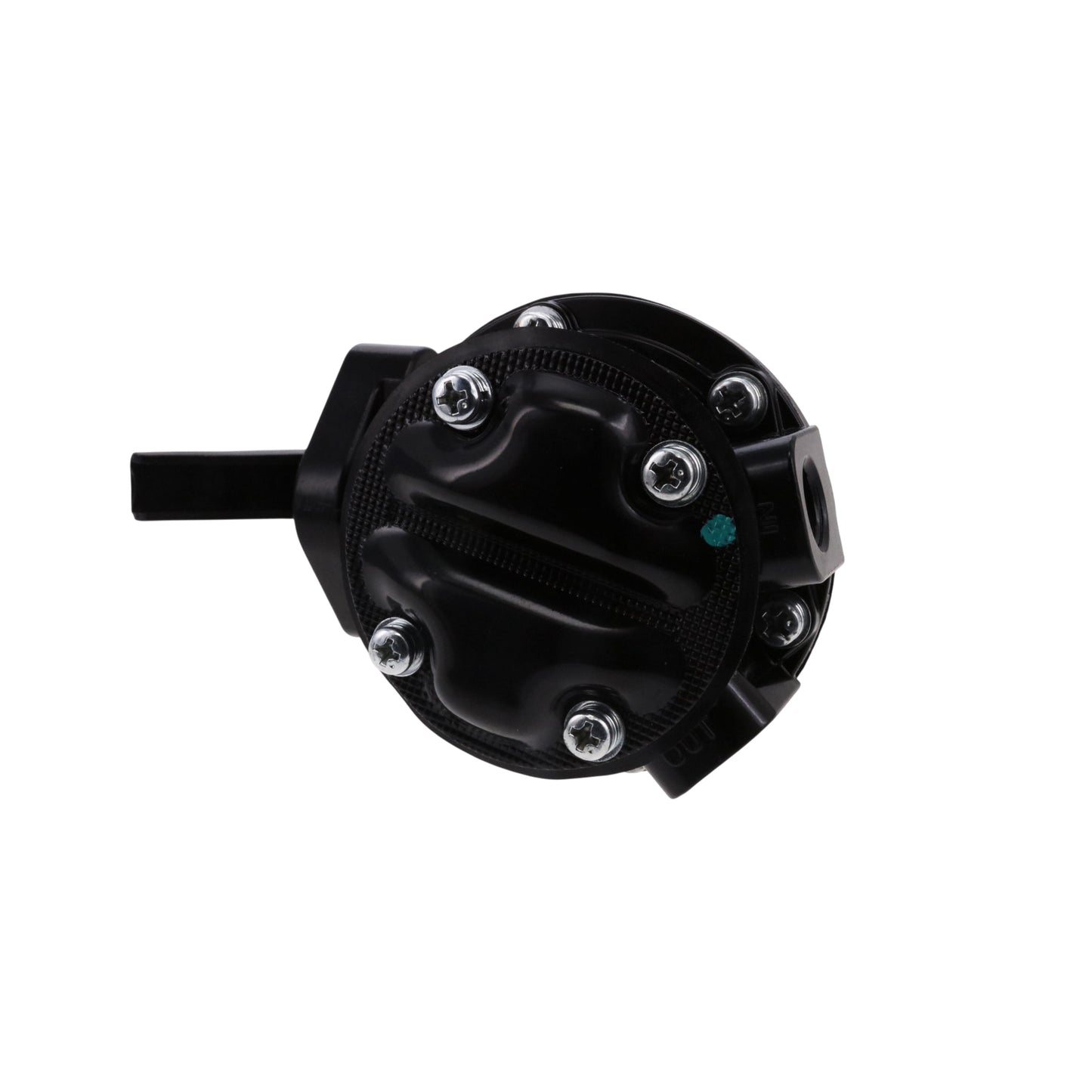

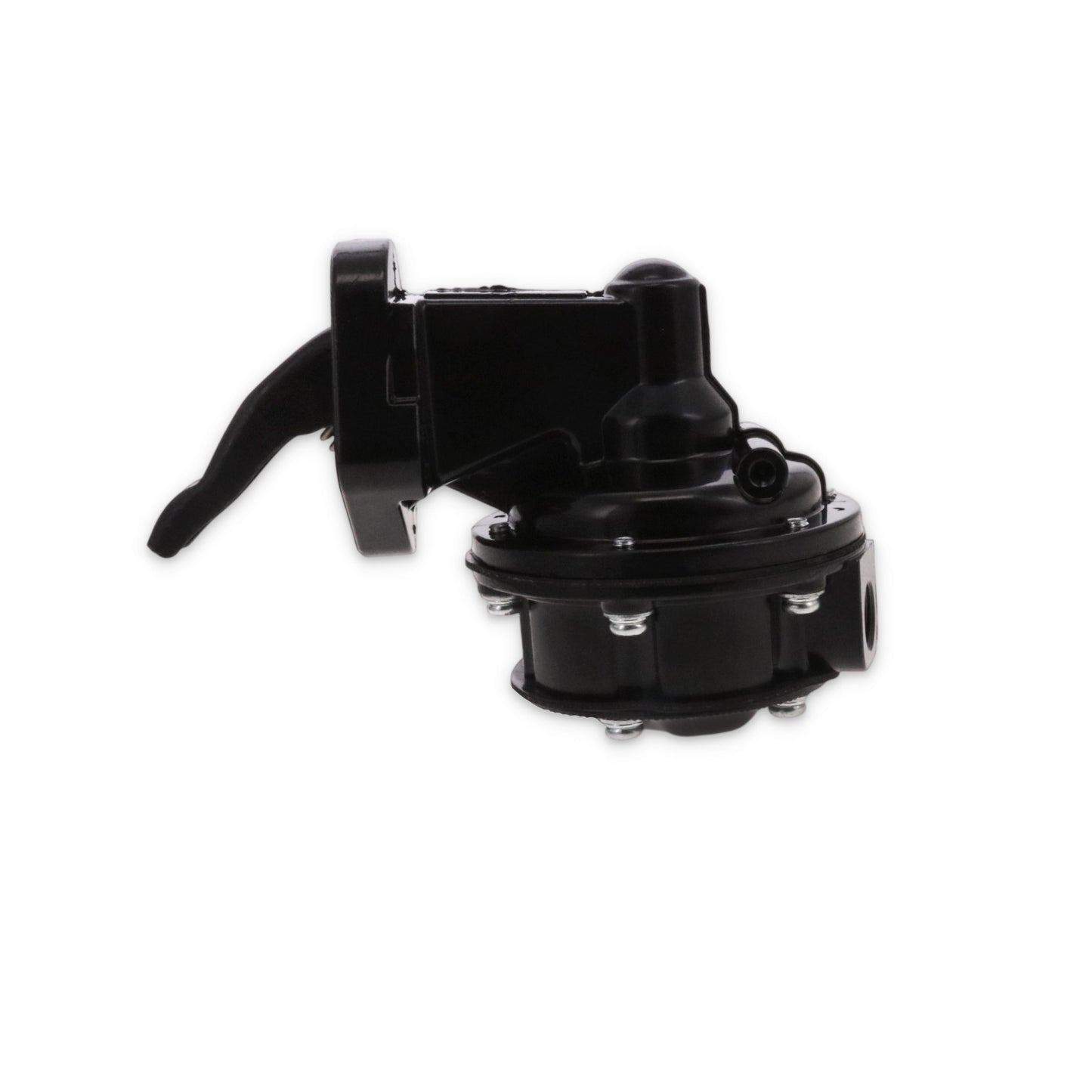

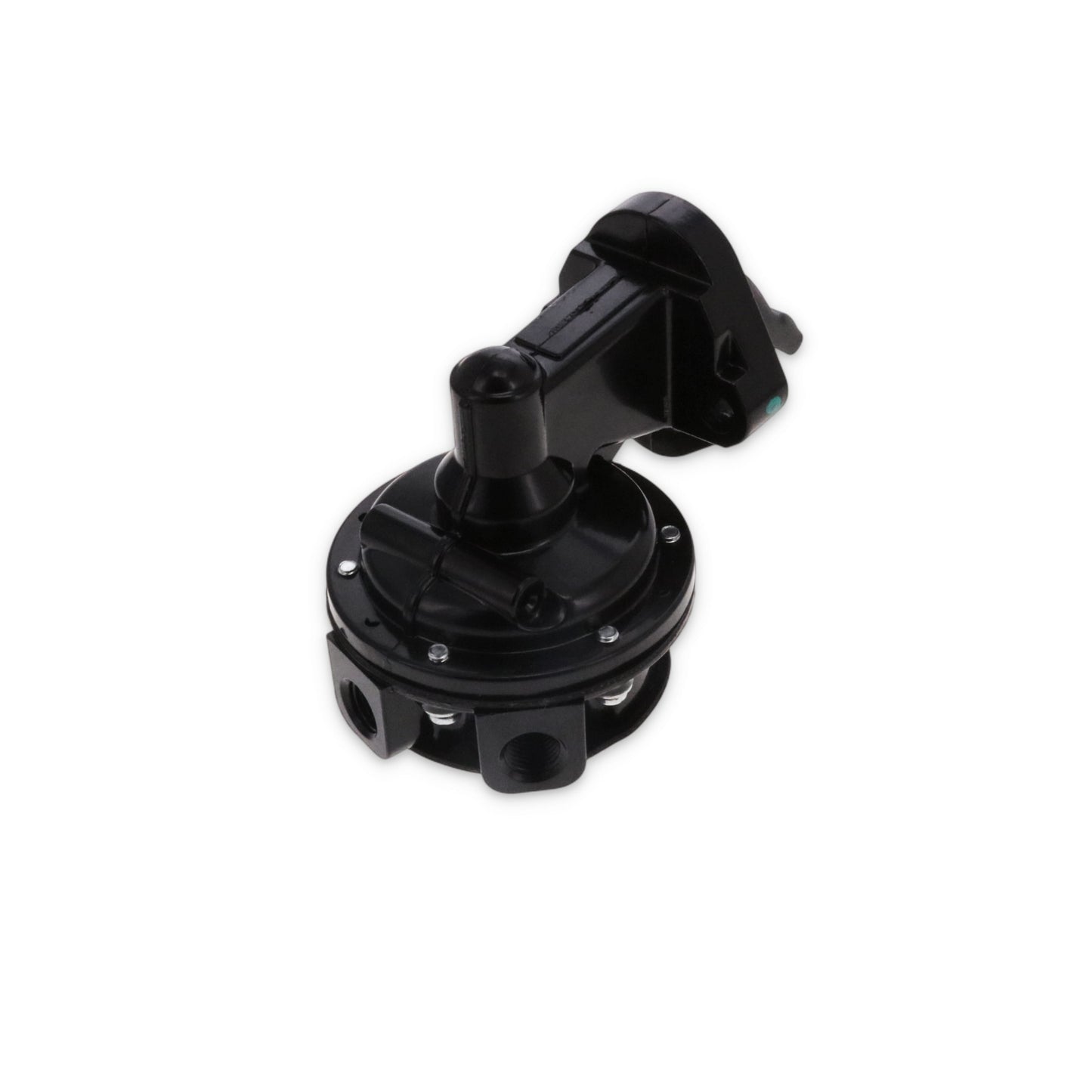

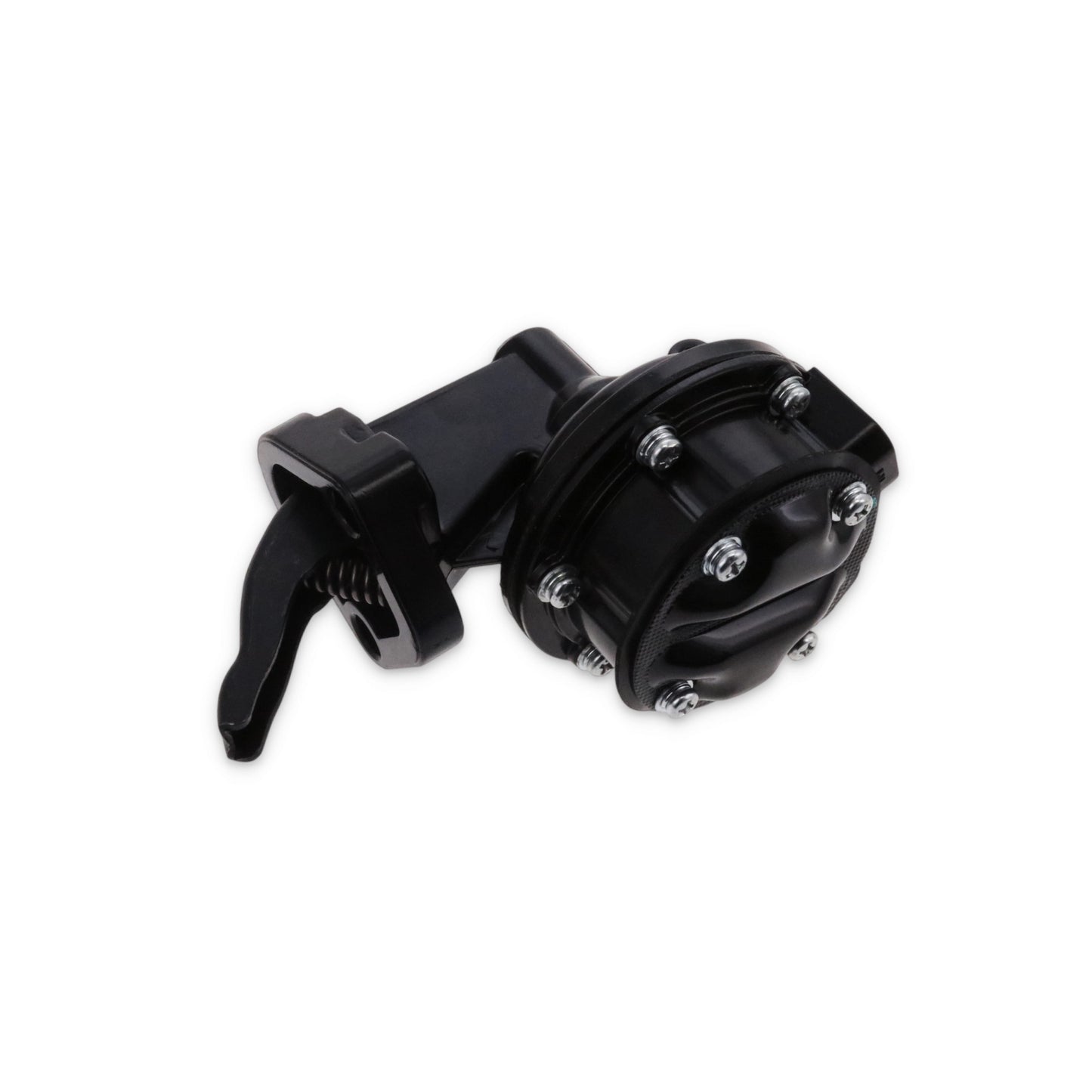

Chevy Big Block V8 Mechanical Fuel Pump - Black
Chevy Big Block V8 Mechanical Fuel Pump - Black
SKU: SKU: JM1004BK
Low stock
Product Details
Features
- Direct-fit style mechanical pump for compatible engine fuel-pump mounting
- Fuel delivery rated at 80 GPH
- Operates at 6 PSI when matched to the correct fuel system
- Black finish for a clean engine-bay appearance
Description
Chevy Big Block V8 Mechanical Fuel Pump - Black is built for carbureted fuel systems that need dependable fuel delivery with a clean engine-bay appearance. Key details include 80 GPH average flow rating, 6 PSI operating pressure, 1 connection sizing, Black finish. Use this pump when replacing or upgrading a mechanical fuel pump on a compatible engine platform. Always match fuel pressure, flow demand, line size, and mounting pattern to the vehicle before installation.
Specs
| Average Flow Rating | 80 GPH |
| Finish | Black |
| Fuel Type | Gasoline |

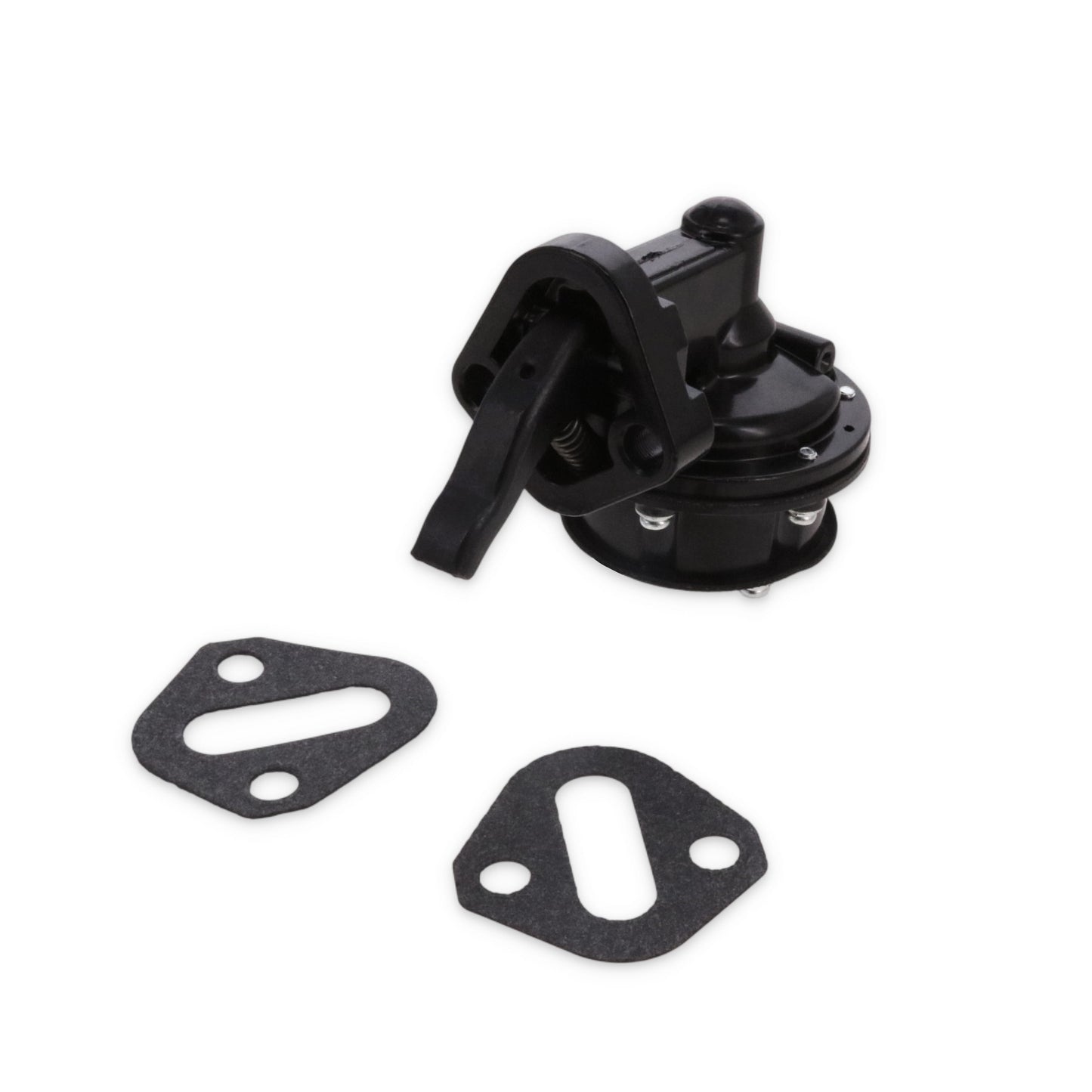

| Gasket Or Seal Included | Yes |
| Grade Type | Performance |
| Housing Material | Aluminum |
| Inlet Quantity | 1 |
| Inlet Thread Diameter | 0.250 in. NPT |
| Inlet Type | Threaded |
| Maximum Pressure | 6 PSI |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Outlet Quantity | 1 |
| Outlet Thread Diameter | 0.250 in. NPT |
| Outlet Type | Threaded |
| Pump Design | Mechanical |
| Required Fuel Pump Pushrod Length | 5.75" (BBC) |
Engine Fitment
COMPATIBLE WITH
CHEVROLET BIG BLOCK V8 GEN. II (MARK IV)
• 6.5 L / 396 in3
• 6.6 L / 402 in3
• 7.0 L / 427 in3
• 7.4 L / 454 in3
COMMON VEHICLE APPLICATIONS
Chevrolet Camaro / Chevelle / Corvette applications with Big Block Chevy engines
Chevrolet C/K truck and full-size Chevrolet big block V8 applications
Big Block Chevy restoration, replacement, and upgraded carbureted fuel systems
NOTES
Requires use of a 5.75" fuel pump pushrod for proper operation on Big Block Chevy engines.
Designed for carbureted applications using the matching mechanical fuel pump mounting pattern.
Verify mounting pattern, fuel pump arm style, inlet/outlet orientation, pressure requirement, and line clearance before installation.
Not intended for EFI fuel systems unless used with a properly designed fuel system conversion.
Q&A
What applications is this fuel pump compatible with?
This fuel pump is designed for COMPATIBLE WITH, CHEVROLET BIG BLOCK V8 GEN. II (MARK IV), 6.5 L / 396 in3, 6.6 L / 402 in3, 7.0 L / 427 in3, 7.4 L / 454 in3.
Will this fuel pump work with my engine?
This fuel pump is intended for Chevy/GM applications and should be matched to your fuel system type and pressure requirements.
What does a fuel pump do?
A fuel pump delivers fuel from the tank to the engine at the correct pressure and volume to support proper combustion.
How do I choose the correct fuel pump flow rate?
Fuel pump flow rate should be selected based on horsepower goals and fuel system demand.
What voltage does this fuel pump use?
This fuel pump operates on a 12V electrical system.
Is this an electric or mechanical fuel pump?
Fuel pump type should be confirmed in the specifications, but performance pumps are typically electric for higher-demand applications.
Is this fuel pump for carbureted or EFI systems?
This fuel pump is designed for gasoline fuel systems, and compatibility should be verified with your setup.
Do I need a fuel pressure regulator with this pump?
Depending on your setup, a fuel pressure regulator may be required to control fuel pressure properly.
Will this fuel pump support higher horsepower?
Yes, a higher-capacity fuel pump can support increased horsepower when properly matched to the engine setup.
Is this fuel pump suitable for performance builds?
Yes, this fuel pump is designed to support performance-oriented fuel systems and upgraded engine combinations.
Will this fuel pump improve fuel delivery over stock?
Yes, performance fuel pumps typically provide more consistent fuel delivery compared to stock units.
Do I need tuning after installing this fuel pump?
Fuel system upgrades may require tuning or adjustment to maintain proper air-fuel ratios.
Is this a good upgrade from a stock fuel pump?
Yes, this fuel pump is a strong upgrade for improving fuel delivery and supporting increased engine demand.
Can this fuel pump be used with upgraded injectors or carburetors?
Yes, this pump can support upgraded fuel systems when matched correctly to the engine and fuel requirements.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
Working fine, i put it on
Chevy Big Block V8 Mechanical Fuel Pump - Black
Description
Chevy Big Block V8 Mechanical Fuel Pump - Black is built for carbureted fuel systems that need dependable fuel delivery with a clean engine-bay appearance. Key details include 80 GPH average flow rating, 6 PSI operating pressure, 1 connection sizing, Black finish. Use this pump when replacing or upgrading a mechanical fuel pump on a compatible engine platform. Always match fuel pressure, flow demand, line size, and mounting pattern to the vehicle before installation.
COMPATIBLE WITH
CHEVROLET BIG BLOCK V8 GEN. II (MARK IV)
• 6.5 L / 396 in3
• 6.6 L / 402 in3
• 7.0 L / 427 in3
• 7.4 L / 454 in3
COMMON VEHICLE APPLICATIONS
Chevrolet Camaro / Chevelle / Corvette applications with Big Block Chevy engines
Chevrolet C/K truck and full-size Chevrolet big block V8 applications
Big Block Chevy restoration, replacement, and upgraded carbureted fuel systems
NOTES
Requires use of a 5.75" fuel pump pushrod for proper operation on Big Block Chevy engines.
Designed for carbureted applications using the matching mechanical fuel pump mounting pattern.
Verify mounting pattern, fuel pump arm style, inlet/outlet orientation, pressure requirement, and line clearance before installation.
Not intended for EFI fuel systems unless used with a properly designed fuel system conversion.
SPECIFICATIONS:
Average Flow Rating: 80 GPH
Finish: Black
Fuel Type: Gasoline
Gasket Or Seal Included: Yes
Grade Type: Performance
Housing Material: Aluminum
Inlet Quantity: 1
Inlet Thread Diameter: 0.250 in. NPT
Inlet Type: Threaded
Maximum Pressure: 6 PSI
Mounting Hardware Included: No
Mounting Hole Quantity: 2
Outlet Quantity: 1
Outlet Thread Diameter: 0.250 in. NPT
Outlet Type: Threaded
Pump Design: Mechanical
Required Fuel Pump Pushrod Length: 5.75" (BBC)
