Chevy Big Block Serpentine Conversion Kit - High Mount ALT- Power Steering, AC, Long Water Pump - Polished
Chevy Big Block Serpentine Conversion Kit - High Mount ALT- Power Steering, AC, Long Water Pump - Polished
SKU: SKU: 454-SERPENTINE-AC-L-N
Low stock
Product Details
Features
- Design increases grip, reduces stretching and prevents belt slippage
- Mounts Saginaw P Series Power Steering pump low on driver side
- Puts Sanden AC Compressor on the driver's side by the valve cover
- Uses standard Chevy long water pump.
Description

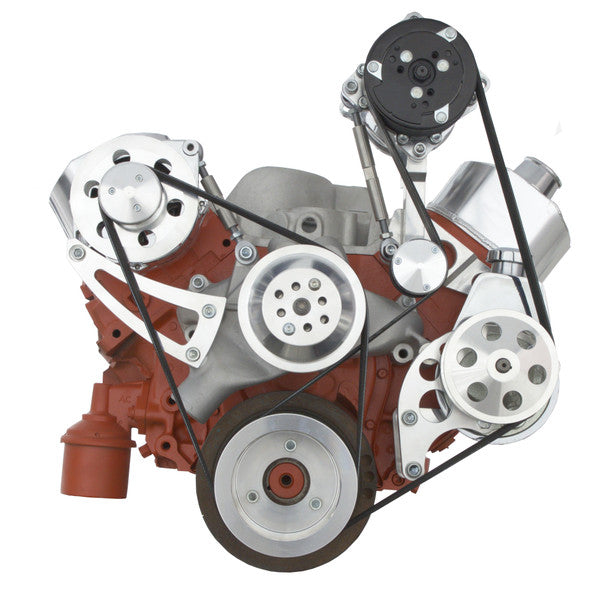

Chevy Big Block Pulley Serpentine System for AC and Power Steering
Long Water Pump (LWP)
(396 - 427 - 454 CID) | 8 Rib Serpentine | Polished Finish
The BEAST™ 8 Track Serpentine System for Big Block Chevy engines with Power Steering and Air Conditioning. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slippage when compared to traditional 6 Rib designs. Mounts Saginaw P Series Power Steering pump low on driver side and puts Sanden AC Compressor on the driver's side by the valve cover. Uses standard Chevy long water pump.
KIT INCLUDES:
1 Belt Water Pump Pulley
2 Belt Crank Pulley
1 Belt Alternator Pulley
1 Belt Power Steering Pulley (Keyway Style)
Passenger Side Alternator Bracket- High Mount
Driver Side Power Steering Bracket
Driver Side AC Compressor Bracket
Idler Pulley
ALTFAN - Universal alternator fan
NOTE: REQUIRES THERMOSTAT HOUSING THAT POINTS TOWARDS RADIATOR OR PASSENGER SIDE. BELTS, AC COMPRESSOR, POWER STEERING PUMP, ALTERNATOR AND WATER PUMP NOT INCLUDED. REQUIRES KEYWAY SHAFT ON SAGINAW P SERIES PUMP.
Specs
| Product Type | Beast - Serpentine Conversion |
| Alternator Position | High - Passenger |
| Power Steering | Yes - Saginaw |
| Air Conditioning | High - Driver |
| Compressor Type | Sanden 508 |
| Finish | Polished |
| Belt Type | Serpentine 8 Rib |
| Water Pump Type | Mechanical |
| Water Pump | Long |
| Water Pump Rotation | Standard |
| Make | Chevy |
| Engine | 454 Big Block |
Engine Fitment
Compatible with:
Chevy Big Block with AC and Power Steering - Long Water Pump
• 6.5L / 396 in³
• 7.0L / 427 in³
• 7.4L / 454 in³
Q&A
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
Chevy Big Block Serpentine Conversion Kit - High Mount ALT- Power Steering, AC, Long Water Pump - Polished
Chevy Big Block Pulley Serpentine System for AC and Power Steering
Long Water Pump (LWP)
(396 - 427 - 454 CID) | 8 Rib Serpentine | Polished Finish
The BEAST™ 8 Track Serpentine System for Big Block Chevy engines with Power Steering and Air Conditioning. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slippage when compared to traditional 6 Rib designs. Mounts Saginaw P Series Power Steering pump low on driver side and puts Sanden AC Compressor on the driver's side by the valve cover. Uses standard Chevy long water pump.
KIT INCLUDES:
- 1 Belt Water Pump Pulley
- 2 Belt Crank Pulley
- 1 Belt Alternator Pulley
- 1 Belt Power Steering Pulley (Keyway Style)
- Passenger Side Alternator Bracket- High Mount
- Driver Side Power Steering Bracket
- Driver Side AC Compressor Bracket
- Idler Pulley
- ALTFAN - Universal alternator fan
NOTE: REQUIRES THERMOSTAT HOUSING THAT POINTS TOWARDS RADIATOR OR PASSENGER SIDE. BELTS, AC COMPRESSOR, POWER STEERING PUMP, ALTERNATOR AND WATER PUMP NOT INCLUDED. REQUIRES KEYWAY SHAFT ON SAGINAW P SERIES PUMP.
Compatible with:
Chevy Big Block with AC and Power Steering - Long Water Pump
• 6.5L / 396 in³
• 7.0L / 427 in³
• 7.4L / 454 in³
| Product Type | Beast - Serpentine Conversion |
| Alternator Position | High - Passenger |
| Power Steering | Yes - Saginaw |
| Air Conditioning | High - Driver |
| Compressor Type | Sanden 508 |
| Finish | Polished |
| Belt Type | Serpentine 8 Rib |
| Water Pump Type | Mechanical |
| Water Pump | Long |
| Water Pump Rotation | Standard |
| Make | Chevy |
| Engine | 454 Big Block |
