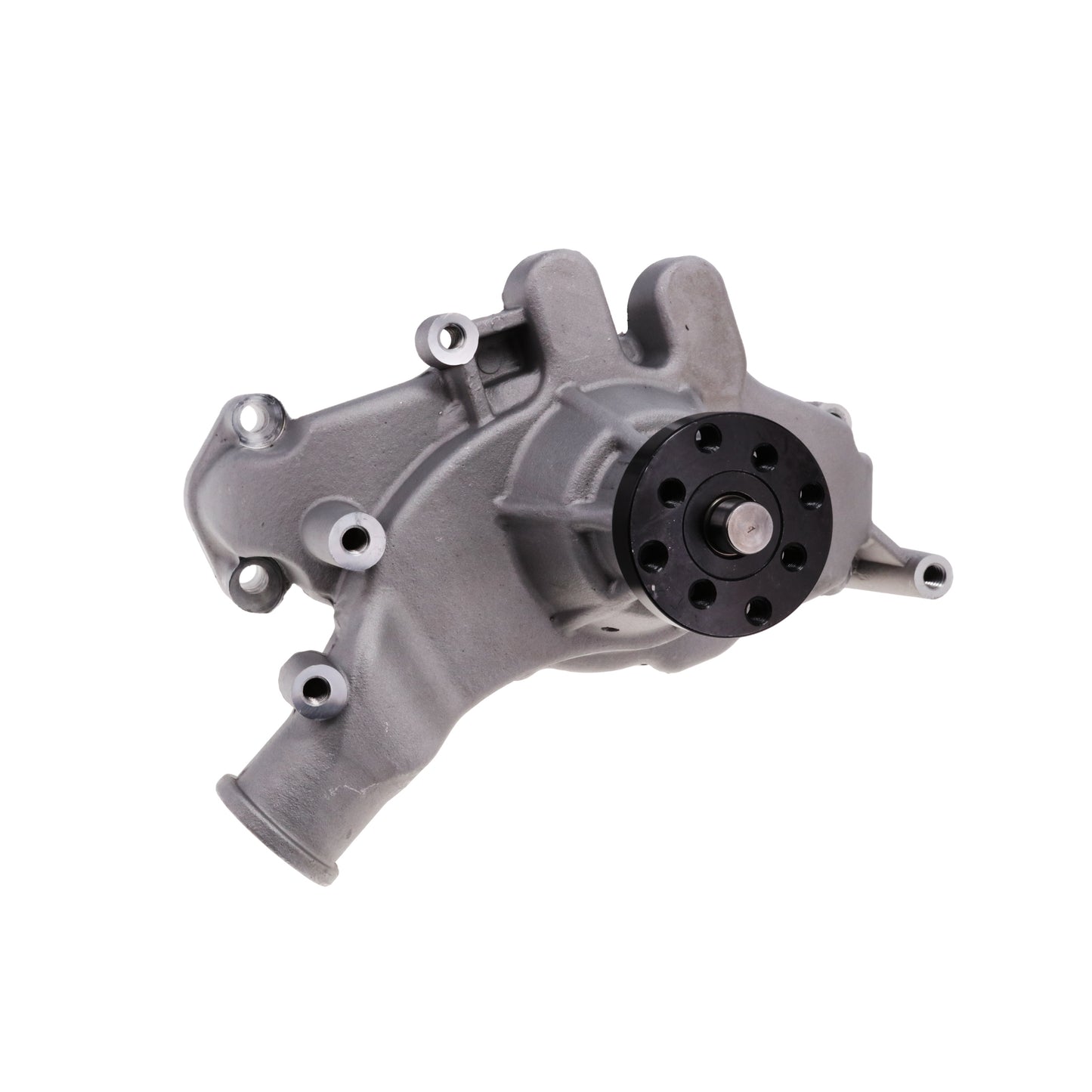

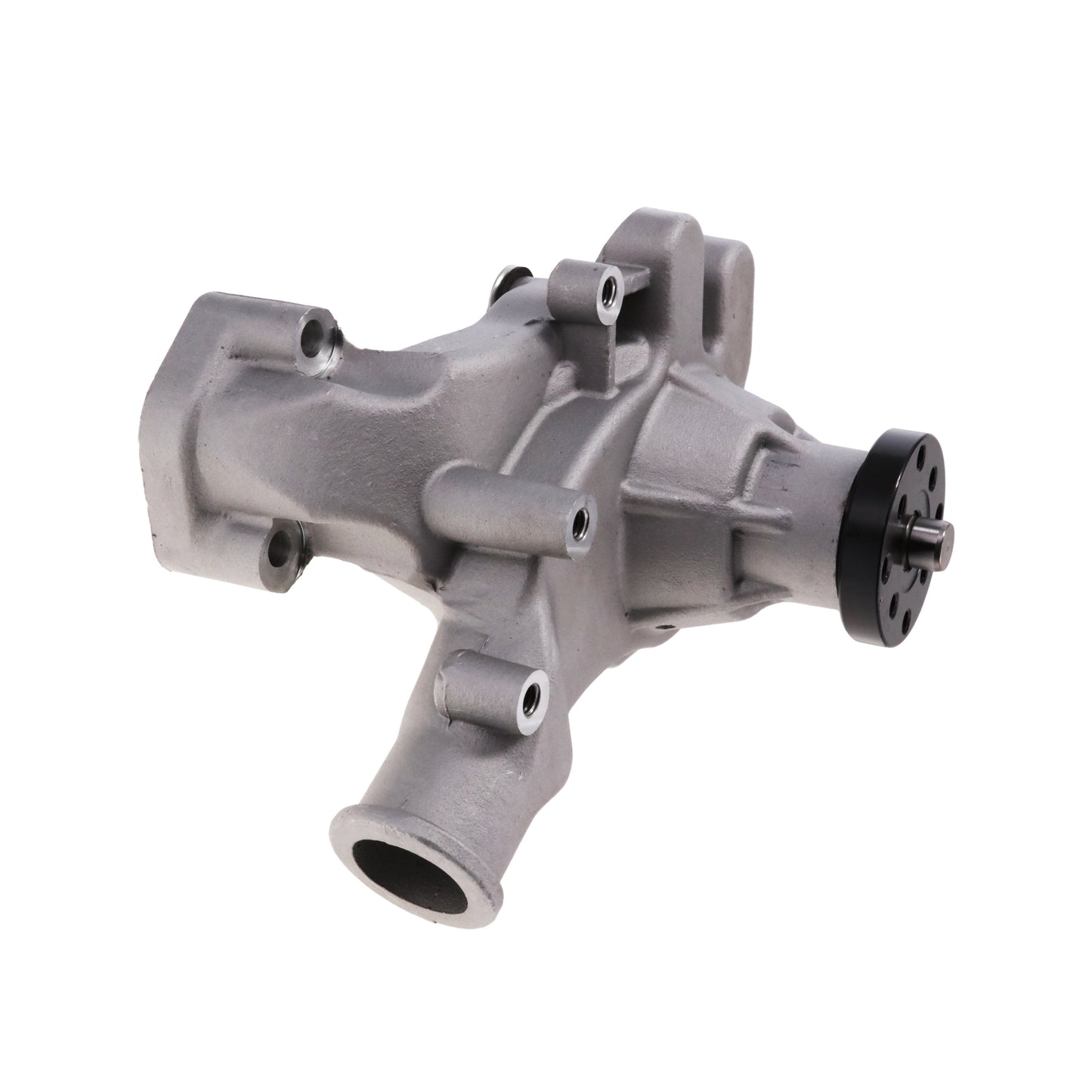

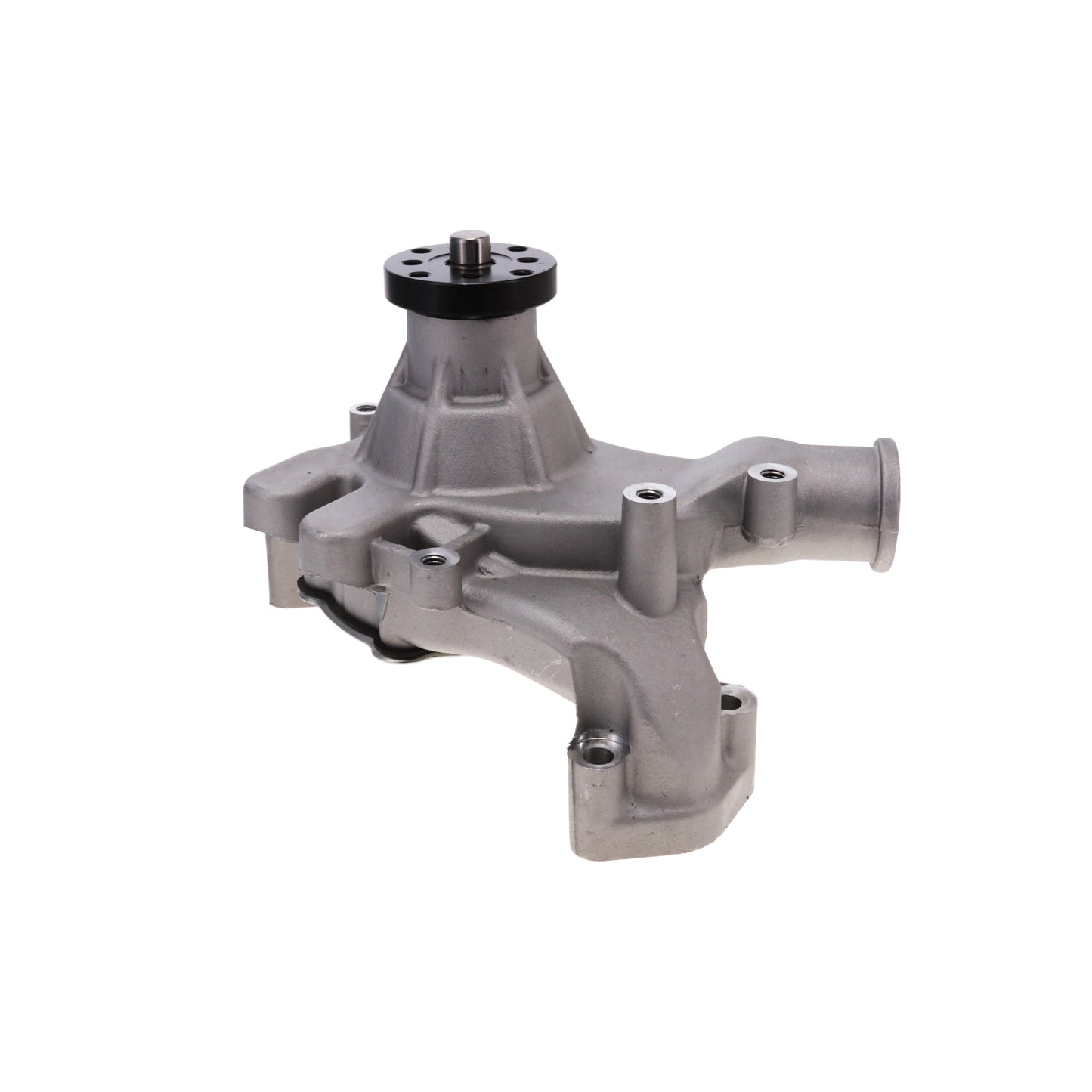

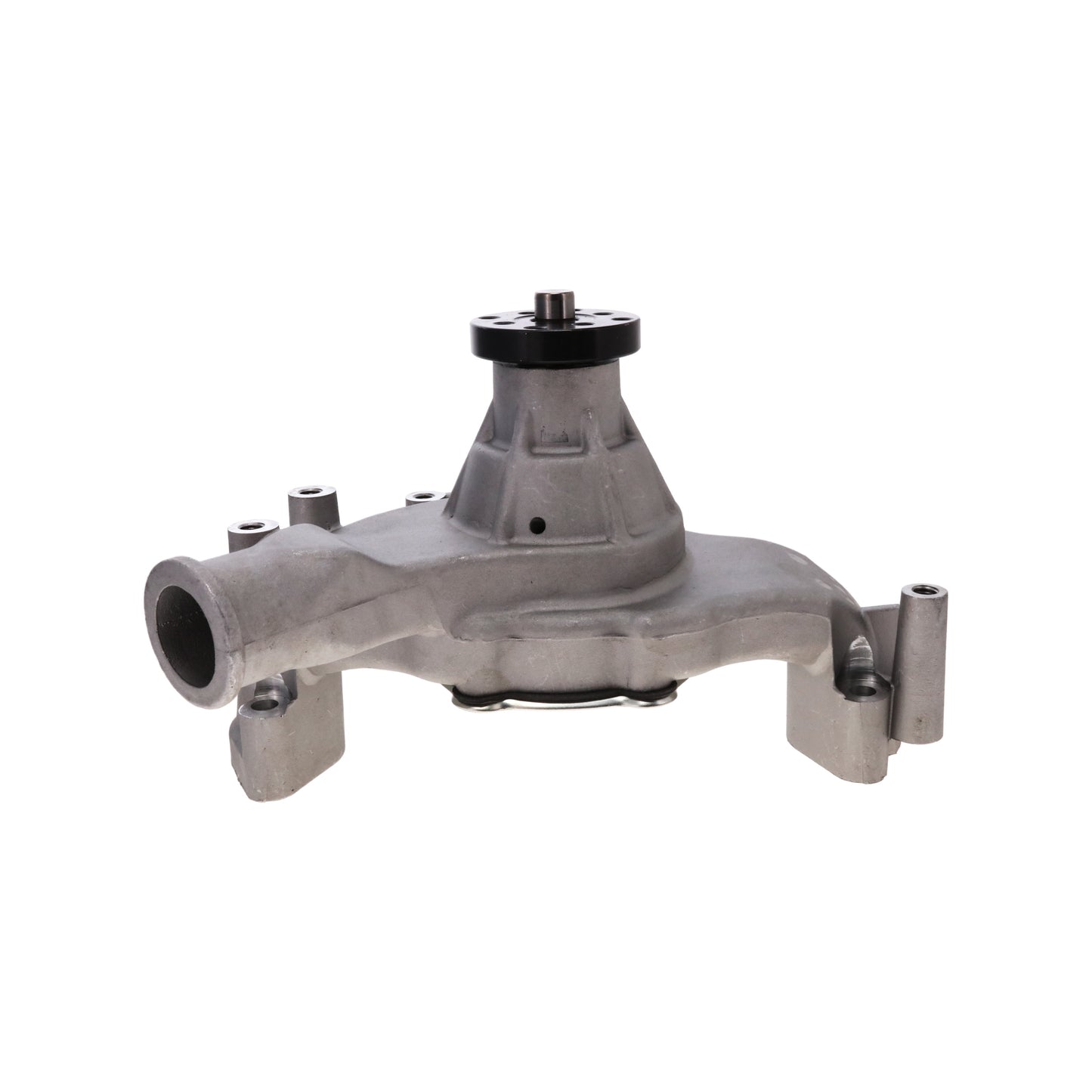

Chevy Big Block Long-Style High-Flow Mechanical Water Pump - Satin
Chevy Big Block Long-Style High-Flow Mechanical Water Pump - Satin
SKU: SKU: HC8022
In stock
Product Details
Features
- High-flow pump with upgraded internals and 5/8" pilot shaft
- Available in satin, polished, and chrome
- Fits big block Chevy "Mark IV" engines 396-454
- Long neck (7 1/4") style pump
- 1-Year Warranty
Description
From top to bottom, TSP's mechanical pumps are designed for greater performance and reliability. Cast from A356-T6 aluminum, they are strong and manage heat better than cast iron. They feature an 8-blade, cast aluminum anti-cavitation impeller. Its 5/8" shaft is driven by heavy-duty bearings and seals, and the crank hub is 1/2" thick for added strength.
Lightweight Aluminum Housing
All mechanical water pumps from TSP are cast from lightweight A356 aluminum and heat-treated to T6 hardness. This not only provides strength, but aluminum works to manage heat far better than cast iron. They are available in a satin, polished, or chrome finish.
High Quality Components
From top to bottom, TSP's mechanical pumps are designed for greater performance and reliability. They feature an 8-blade, cast aluminum anti-cavitation impeller. Its 5/8" shaft is driven by heavy-duty bearings and seals, and the crank hub is 1/2" thick for added strength.
Specs
| Color | Silver |
| Fan Clutch Included | No |
| Finish | Satin |
| Gasket Included | Yes |
| Grade Type | Performance |
| Housing Material | Aluminum |
| Hub Height | 7.250 in. |
| Hub Hole Quantity | 8 |
| Hub Thickness | 0.500 in. |
| Impeller Material | Aluminum |
| Impeller Rotation | Clockwise |
| Impeller Vane Quantity | 8 |
| Includes Back Housing | Yes |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 4 |
| Outlet Quantity | 1 |
| Pilot Diameter | 0.625 in. |
| Pulley Included | No |
| Pump Flow | High-volume |
| Thermostat And Housing Included | No |
| Water Pump Drive Type | Mechanical |
Fitment
COMPATIBLE WITH
CHEVROLET BIG BLOCK V8 GEN. II (MARK IV)
• 6.5 L / 396 in3
• 6.6 L / 402 in3
• 7.0 L / 427 in3
• 7.4 L / 454 in3
NOTE: It is important to measure to determine pump style
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
Stock cast pump weight was 16.5 lbs. this one is 7 lbs. Have not ran the motor yet
Chevy Big Block Long-Style High-Flow Mechanical Water Pump - Satin
From top to bottom, TSP's mechanical pumps are designed for greater performance and reliability. Cast from A356-T6 aluminum, they are strong and manage heat better than cast iron. They feature an 8-blade, cast aluminum anti-cavitation impeller. Its 5/8" shaft is driven by heavy-duty bearings and seals, and the crank hub is 1/2" thick for added strength.
Lightweight Aluminum Housing
All mechanical water pumps from TSP are cast from lightweight A356 aluminum and heat-treated to T6 hardness. This not only provides strength, but aluminum works to manage heat far better than cast iron. They are available in a satin, polished, or chrome finish.
High Quality Components
From top to bottom, TSP's mechanical pumps are designed for greater performance and reliability. They feature an 8-blade, cast aluminum anti-cavitation impeller. Its 5/8" shaft is driven by heavy-duty bearings and seals, and the crank hub is 1/2" thick for added strength.
Compatible with:
CHEVROLET BIG BLOCK V8 GEN. II (MARK IV)
• 6.5 L / 396 in3
• 6.6 L / 402 in3
• 7.0 L / 427 in3
• 7.4 L / 454 in3
NOTE: It is important to measure to determine pump style
| Color | Silver |
| Fan Clutch Included | No |
| Finish | Satin |
| Gasket Included | Yes |
| Grade Type | Performance |
| Housing Material | Aluminum |
| Hub Height | 7.250 in. |
| Hub Hole Quantity | 8 |
| Hub Thickness | 0.500 in. |
| Impeller Material | Aluminum |
| Impeller Rotation | Clockwise |
| Impeller Vane Quantity | 8 |
| Includes Back Housing | Yes |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 4 |
| Outlet Quantity | 1 |
| Pilot Diameter | 0.625 in. |
| Pulley Included | No |
| Pump Flow | High-volume |
| Thermostat And Housing Included | No |
| Water Pump Drive Type | Mechanical |
