Chevy Big Block Gen. VI Serpentine Conversion Kit - AC, Alternator & Power Steering, Long Water Pump - Polished
Chevy Big Block Gen. VI Serpentine Conversion Kit - AC, Alternator & Power Steering, Long Water Pump - Polished
SKU: SKU: 454-SERPENTINE-AC-C-G6-N
Low stock
Product Details
Features
- Increases grip, reduces stretching and prevents belt slippage
- Uses standard Chevy long water pump.
Description
Chevy Big Block Gen. VI Pulley Serpentine System for AC and Power Steering
Long Water Pump (LWP)
454 CID | 8 Rib Serpentine | Polished Finish | 7.4L | 1996 - 2000

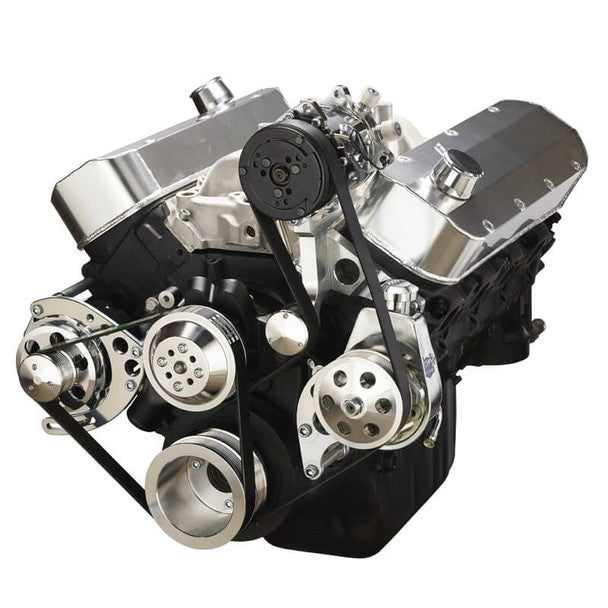

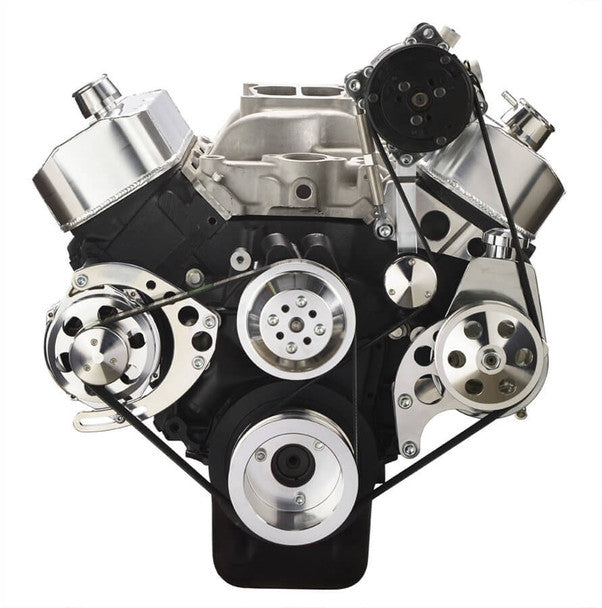

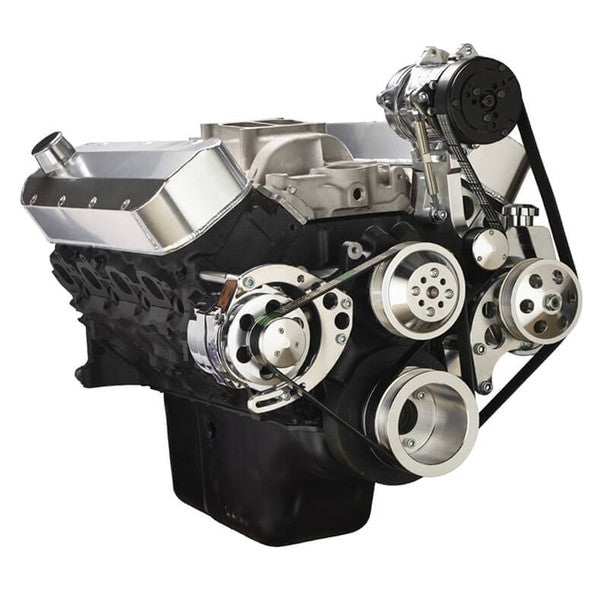

The BEAST™ 8 Track Serpentine System for Big Block Chevy engines with Power Steering and Air Conditioning. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slippage when compared to traditional 6 Rib designs. Mounts Saginaw P Series Power Steering pump low on driver side and puts Sanden AC Compressor on the driver's side by the valve cover. Uses standard Chevy long water pump.
Kit Includes:
1 Belt Water Pump Pulley
2 Belt Crank Pulley
1 Belt Alternator Pulley
1 Belt Power Steering Pulley (Keyway Style)
Passenger Side Alternator Bracket
Driver Side Power Steering Bracket
Driver Side AC Compressor Bracket
Idler Pulley
ALTFAN - Universal alternator fan
Note: Requires Thermostat Housing that points towards Radiator or Passenger Side. Belts, AC Compressor, Power Steering Pump, Alternator and Water Pump NOT included. Requires Keyway shaft on Saginaw P series pump.
Specs
| Product Type | Beast - Serpentine Conversion |
| Alternator Position | Mid - Passenger |
| Power Steering | Yes - Saginaw |
| Air Conditioning | High - Driver |
| Compressor Type | Sanden 508 |
| Finish | Polished |
| Belt Type | Serpentine 8 Rib |
| Water Pump Type | Mechanical |
| Water Pump | Long |
| Water Pump Rotation | Standard |
| Make | Chevy |
| Engine | 454 Big Block Gen 6 |
Engine Fitment
Compatible with:
1996 - 2000 Chevy Big Block Gen. VI
• 7.4L / 454 in³
Q&A
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
