Chevy 194-216 Early L6 Pro Series Ready to Run Distributor
Chevy 194-216 Early L6 Pro Series Ready to Run Distributor
SKU: SKU: JM7716R
In stock
Product Downloads







Product Details
Features
Description

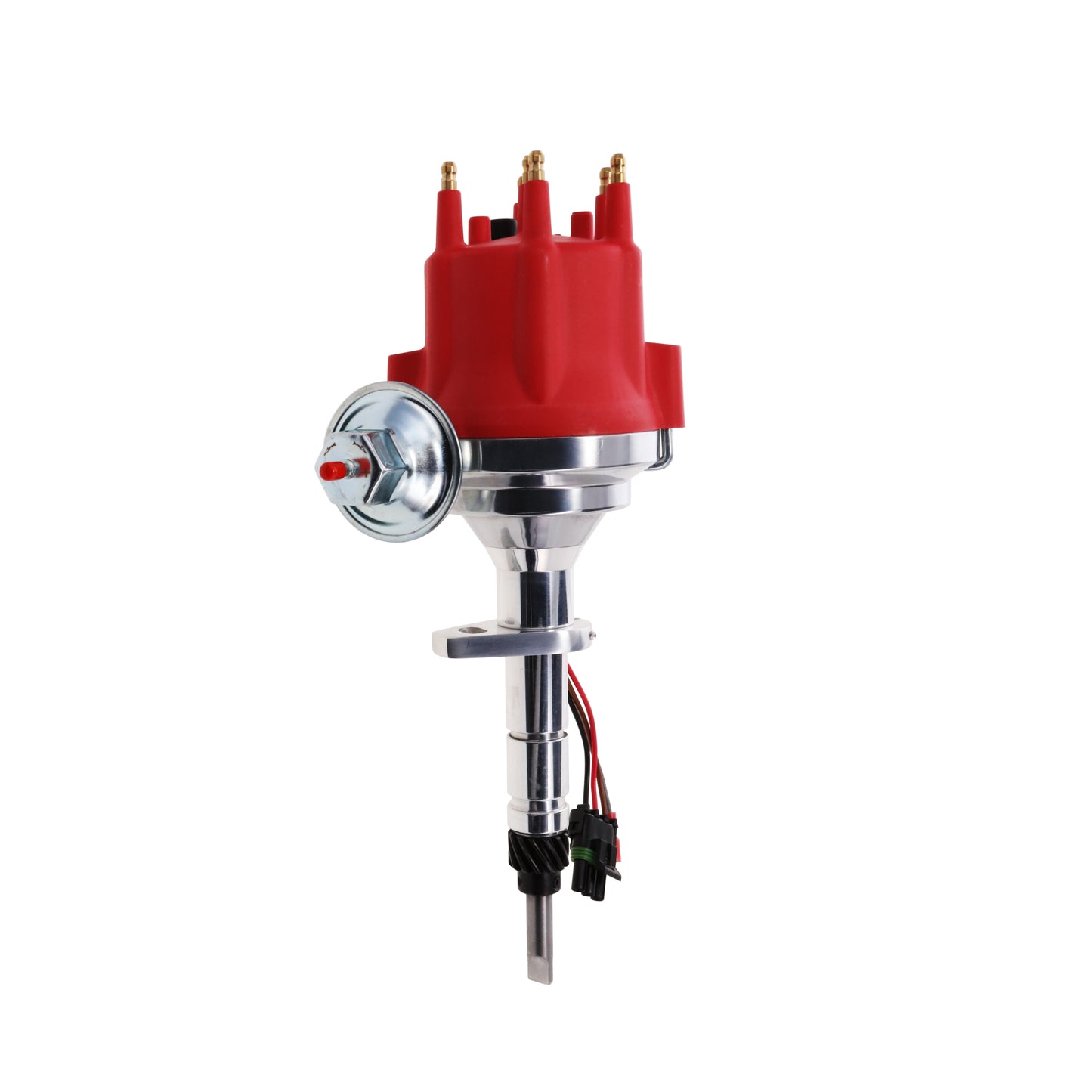

TSP Pro Series Ready to Run Distributor is perfect for a street performance upgrade. It features a CNC-machined billet aluminum body and hardened steel shaft, with a sealed ball bearing on top and a sintered steel bushing on the bottom. It also comes with a fully adjustable mechanical advance, vacuum advance, magnetic pickup trigger, and a high-output circuit board module with digital tach output. The dielectric cap comes with solid brass terminals and a color-matched wire retainer.
Specs
Trigger Type | Circuit Board Module With Magnetic Pick-Up |
Distributor Rotation | Clockwise |
Advance Type | Mechanical And Vacuum |
Cap Color | Black |
Terminal Gender | Male |
Mechanical Tach Drive | No |
Slip Collar | No |
Coil Included | No |
Coil Type | External |
Required Coil Output | 35,000+ V |
Gear Material | Steel |
Housing Material | Machined Aluminum |
Ignition Box Required | No |
Marine Use | No |
Cylinders | 6 |

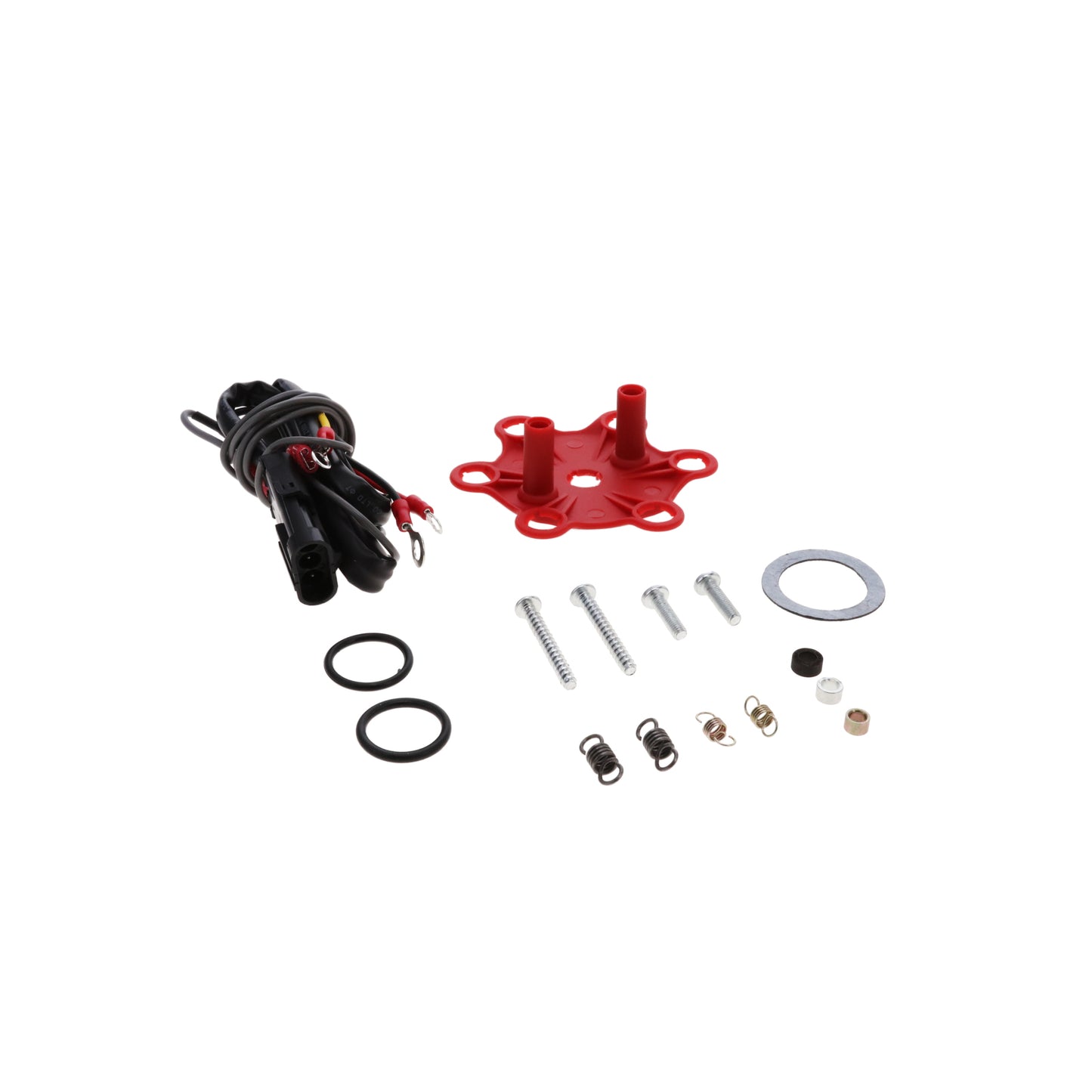

3 Bushings And 4 Springs For Mechanical Advance | Included |
Color-Matched Spark Plug Wire Retainer With Screws | Included |
Vacuum Advance Block-Off Plate (Black) | Included |
Power Extension Cable | Included |
Tachometer Output Extension Cable | Included |
Fitment
GM INLINE 6 (1962 and earlier)
• 3.2 L / 194 in3
• 3.5 L / 216 in3 sometimes referred to as "216.5" or "217"
• 3.9 L / 235 in3 sometimes referred to as "235.5" or "236"
• 4.3 L / 261 in3
TOYOTA INLINE 6 (1968-1987 Land Cruiser)
• 3.9 L / 3,878 cc "F"
• 4.2 L / 4,230 cc "2F"
NOTE: Will not fit GM engines after 1962.
Distributor gear is most compatible with cast iron hydraulic or solid flat tappet camshafts; consult cam manufacturer for recommended gear material
Emissions Notice
This Top Street Performance (TSP) product is designed for racing and off-road competition use only. It is not legal for use on public roads or emissions-controlled vehicles and does not comply with federal, state, or local emissions regulations. The buyer assumes all responsibility for legal use and installation.
What is a Emissions-Controlled Vehicle?
"An emissions-controlled vehicle is any vehicle equipped with a factory-installed emissions control system designed to reduce air pollution. These systems include catalytic converters, oxygen sensors, EGR (Exhaust Gas Recirculation) valves, and diesel particulate filters (DPF). Most vehicles manufactured after 1975 are considered emissions-controlled and must comply with federal and state emissions laws when used on public roads."
