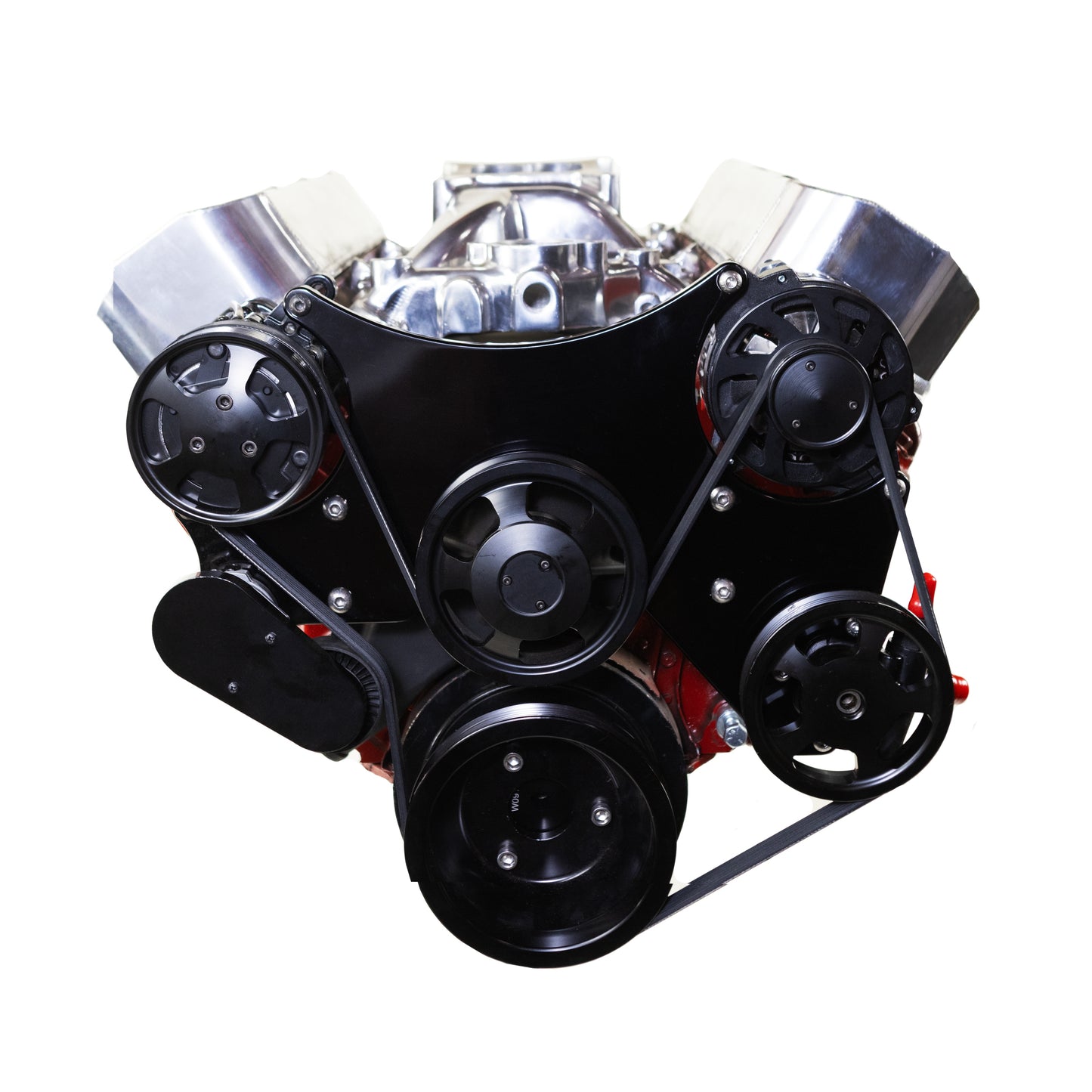

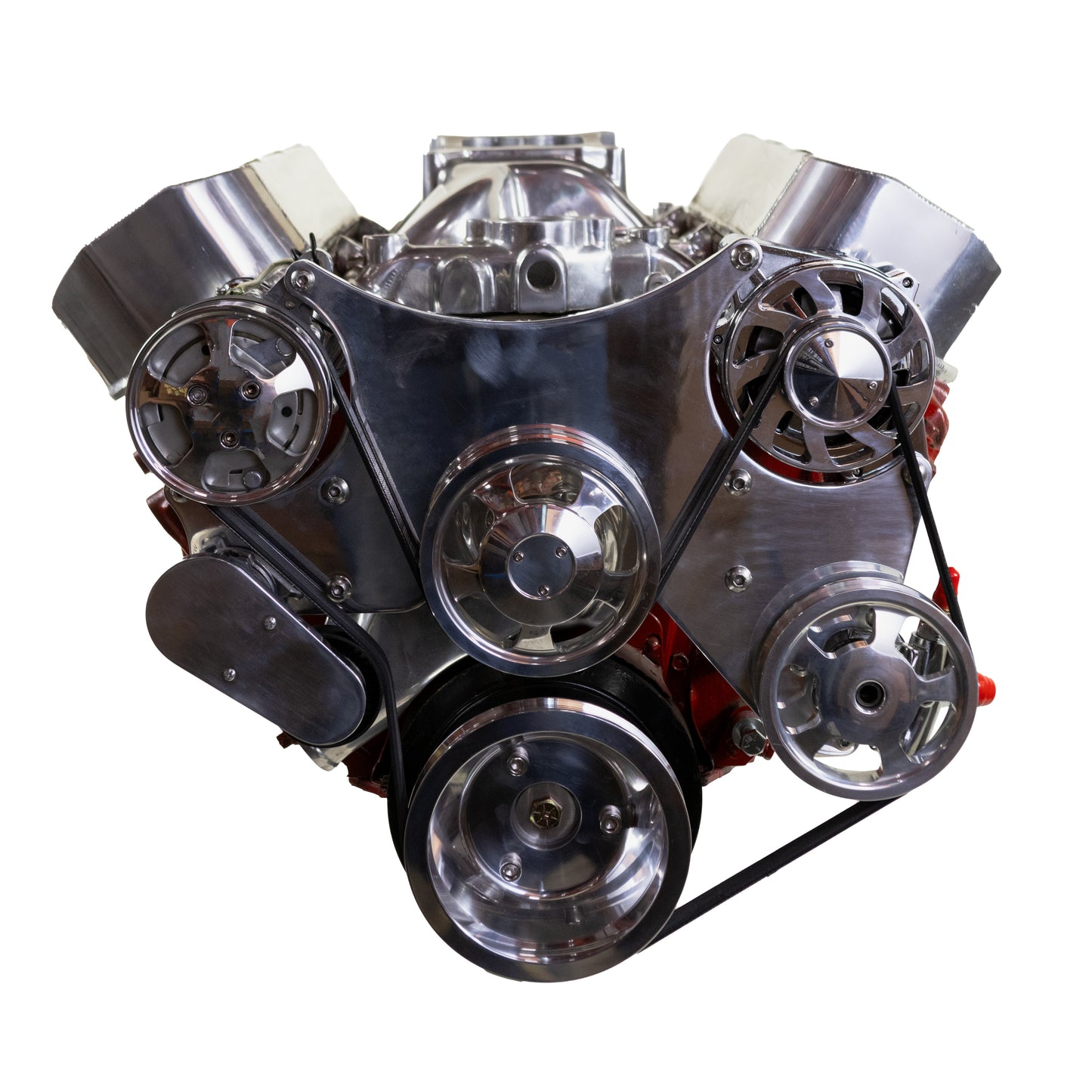

Chevy Big Block Serpentine Front Drive System
Chevy Big Block Serpentine Front Drive System
SKU: SKU: DS45423BK
Regular price
$1,520.99
Sale price
$1,520.99
Regular price
$1,901.24
Unit price
/
per
Out of stock
Note: *This product does not require an Executive Order in California. By nature of its design this product does not require an emissions certification.
Product Installation
Product Details
Features
- Fits Chevy big block engines
- Includes accessories, brackets and pulleys, belt, and hardware
- Available in black or polished
Description
Designed for efficiency and style, TSP's Chevy big block serpentine front drive system is sure to turn heads. If you're looking for a way to dress up engine swap, look no further. And the best part: this kit comes with everything you need, from brackets and pulleys to the belt and accessories.
Specs
| Bracket & Pulley Material | Billet Aluminum |
| Alternator Type | Cs130 Style |
| Alternator Output | 160 Amps |
| A/C Compressor Type | Sanden Sd7 Style |
| Water Pump Type | Reverse-Rotation Short Neck Style |
| Water Pump Output | High-Flow |
| Power Steering Pump Type | Gm Type 2 (Saginaw Tc Series) |
| Belt Tensioner | Included |
| Belt Tensioner Style | Custom Design |
| Spacers & Hardware | Included |
| Serpentine Belt | 6-Rib, 65 1/2" Length |
| Gates Part # | K060680 |
| Belt Included | No |
| Included | Brackets & Pulleyswater Pumpa/C Compressoralternatorpower Steering Pumpbelt & Tensionerinstallation Hardware |
Fitment
CHEVROLET BIG BLOCK V8 GEN. II (MARK IV)
• 6.5 L / 396 in3
• 6.6 L / 402 in3
• 7.4 L / 454 in3
Fitment Note: Due to the relocation of certain accessories, may not fit in stock applications (See dimensions)
Chevy Big Block Serpentine Front Drive System
Regular price
$1,520.99
Sale price
$1,520.99
Regular price
$1,901.24
Unit price
/
per
Chevy Big Block Serpentine Front Drive System
Regular price
$1,520.99
Sale price
$1,520.99
Regular price
$1,901.24
Unit price
/
per
Product description
Specifications
| Bracket & Pulley Material | Billet Aluminum |
| Alternator Type | CS130 Style |
| Alternator Output | 160 Amps |
| A/C Compressor Type | Sanden SD7 Style |
| Water Pump Type | Reverse-rotation short neck style |
| Water Pump Output | High-flow |
| Power Steering Pump Type | GM Type 2 (Saginaw TC Series) |
| Belt Tensioner | Included |
| Belt Tensioner Style | Custom Design |
| Spacers & Hardware | Included |
| Serpentine Belt | 6-Rib, 65 1/2" Length |
| Gates Part # | K060680 |
| Belt Included | No |
| Included | Brackets & Pulleys Water Pump A/C Compressor Alternator Power Steering Pump Belt & Tensioner Installation Hardware |
Overview
Designed for efficiency and style, TSP's Chevy big block serpentine front drive system is sure to turn heads. If you're looking for a way to dress up engine swap, look no further. And the best part: this kit comes with everything you need, from brackets and pulleys to the belt and accessories.
Brackets and Pulleys
Easily the biggest draws to this kit are the brackets and pulleys. CNC-machined from 6061-T6 aluminum, they are available in a stylish black or gorgeous polished finish. They compliment the accessories perfectly, and will fit your small block perfectly.
Water Pump
TSP's high-flow mechanical water pump provides that extra cooling power your high-performance engine demands. Composed of lightweight A356 aluminum, the casting manages heat better than cast iron, and with an improved internal construction, it flows up to 40% above stock.
Alternator
Providing the electrical power in this kit is our 160-amp GM CS130 style alternator. It features an internal regulator, one-wire capability, and a convenient battery side post.
A/C Compressor
TSP's Sanden SD7 style A/C compressor provides high-performance cooling in a compact package. It pumps 6.1 cubic inches per revolution with a maximum 9,000 sustained RPM range.
Power Steering Pump
When it came time to address power steering with this kit, we looked to the immensely popular GM Type II. It's been designed for performance and reliability, meeting or exceeding OEM specifications.
Fitment
CHEVROLET BIG BLOCK V8 GEN. II (MARK IV)
- 6.5 L / 396 in3
- 6.6 L / 402 in3
- 7.4 L / 454 in3
Fitment Notes
- Due to the relocation of certain accessories, may not fit in stock applications (See dimensions)
Resources
Part Numbers
| Black | DS45423BK |
| Polished | DS45423P |
Material
N/A
Year
N/A
Features
N/A
Dimensions
N/A
