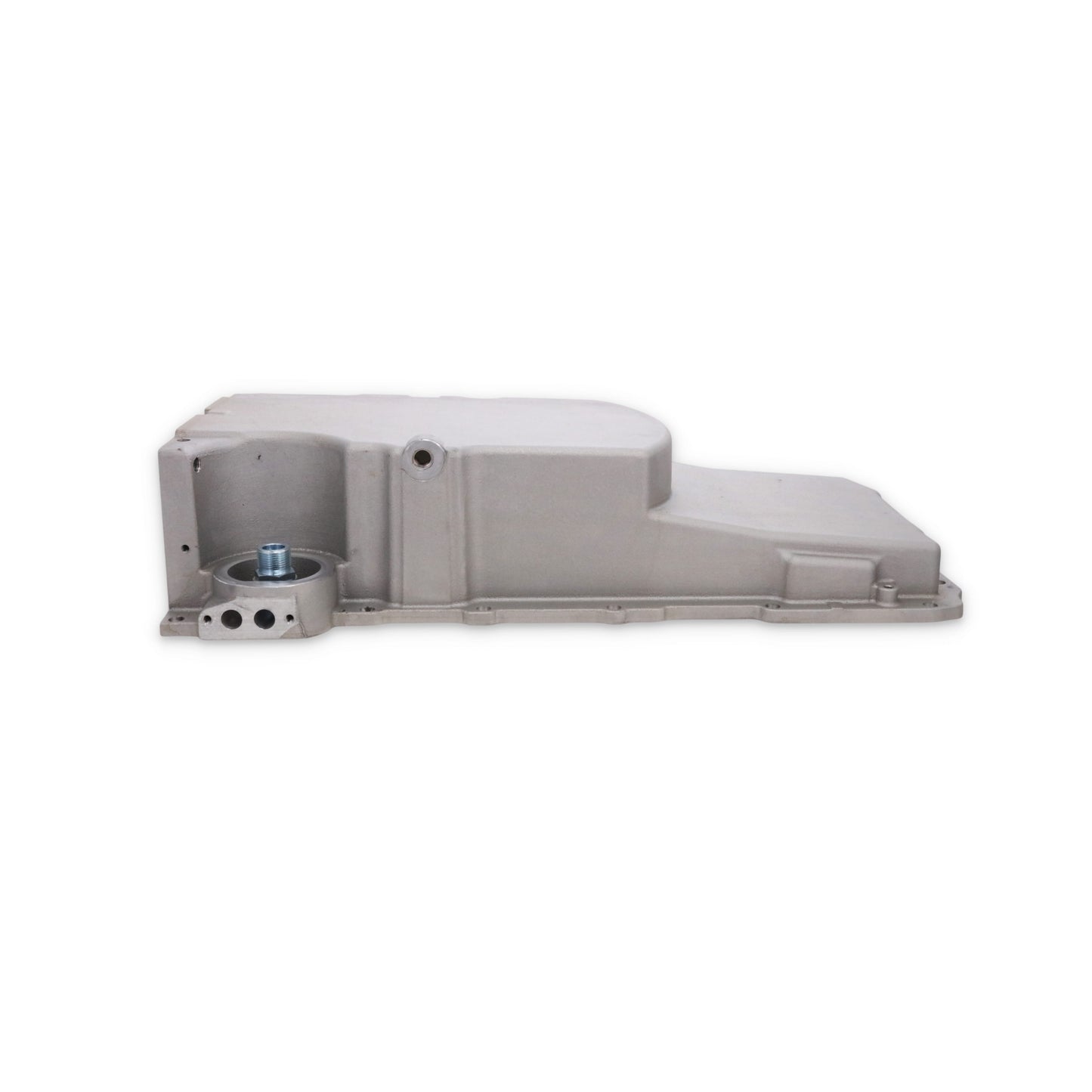

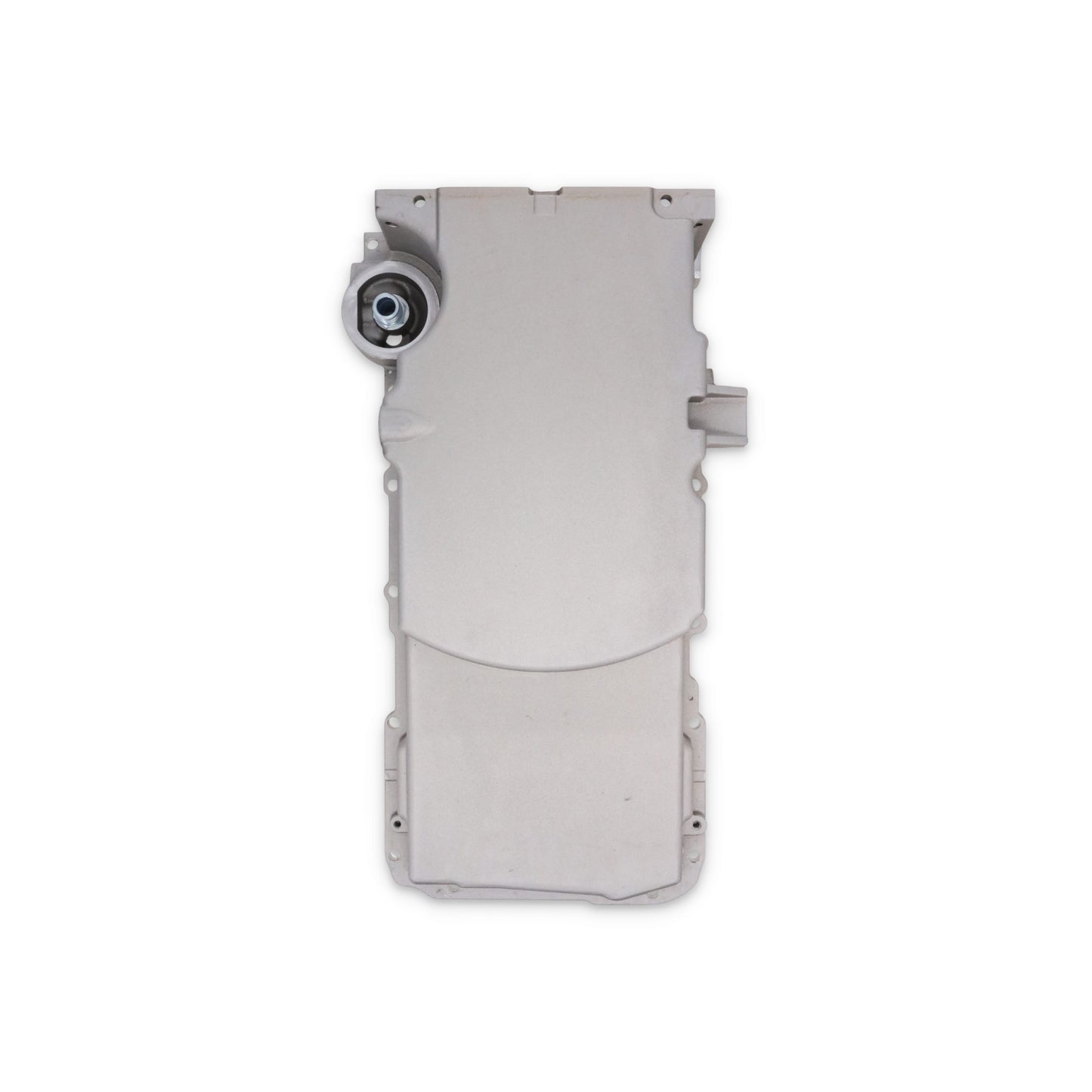

2005-2013 Corvette Engine Oil Pan - Satin

2005-2013 Corvette Engine Oil Pan - Satin

SKU: 81077

$301.72
$301.72 $342.86
Shipping calculated at checkout.

In stock

Top Street Performance (TSP) is committed to providing high-quality performance parts while complying with emissions regulations. This product is designed for use on vehicles that comply with federal emissions regulations. It is the customer’s responsibility to verify that this part is legal for use in their state or local jurisdiction. Check with your local emissions authority before purchasing.

Product Details

Features

  • Designed for compatible 2005-2013 Chevrolet Corvette C6 wet-sump oil pan applications.
  • Satin finish provides a clean performance appearance for LS-based Corvette engine bays
  • Supports proper oil pan fitment when matched with the correct pickup, gasket, dipstick, and hardware.
  • Compatible with Chevrolet Corvette C6 wet-sump LS2 and LS3 applications.

Description

This satin engine oil pan is designed for 2005-2013 Chevrolet Corvette C6 wet-sump applications providing oil control, under-engine clearance, and reliable sealing in a performance-focused LS-based engine setup. This oil pan supports the lubrication system layout used in compatible C6 applications while maintaining a clean satin appearance for restored, upgraded, or custom engine builds.

Oil Control & C6 Fitment
This oil pan is intended for Corvette C6 wet-sump engine combinations where oil capacity, pickup location, and chassis clearance must match the vehicle’s original layout. Proper oil pan selection is important for maintaining oil pickup positioning, crossmember clearance, and dependable oil return during normal street and performance driving.

Satin Finish & Durable Construction

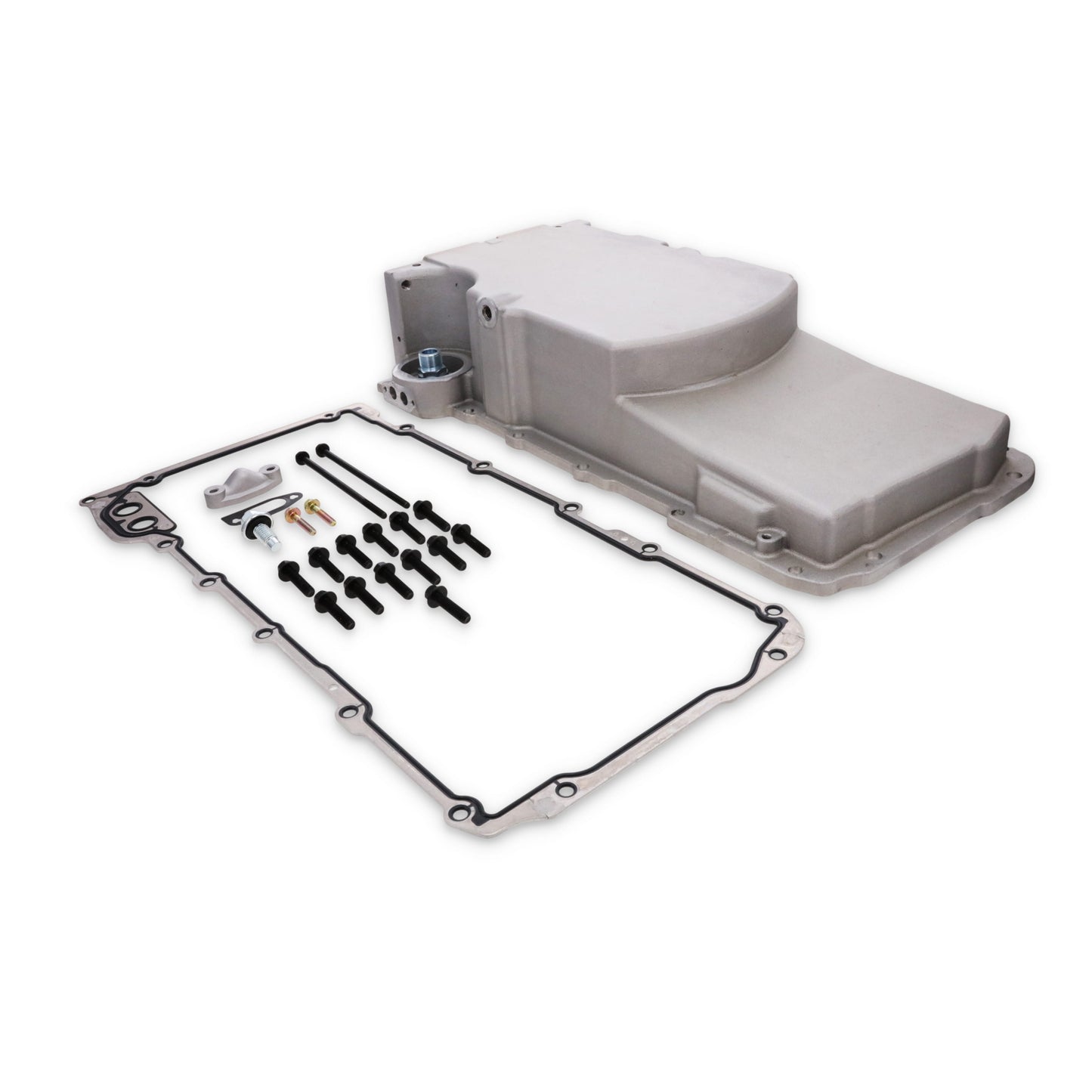

The satin finish provides a clean performance appearance while helping the oil pan blend well with upgraded engine bays and LS-based Corvette builds. Designed as a replacement or upgrade component, this pan includes a gasket as well as mounting hardware.

Installation & System Matching
Verify wet-sump compatibility before installation. Corvette C6 models included multiple LS-based engine configurations, and some performance trims used dry-sump lubrication systems, which require different oiling components. Confirm oil pickup, gasket style, dipstick location, clearance, and related hardware before final installation.

Specs

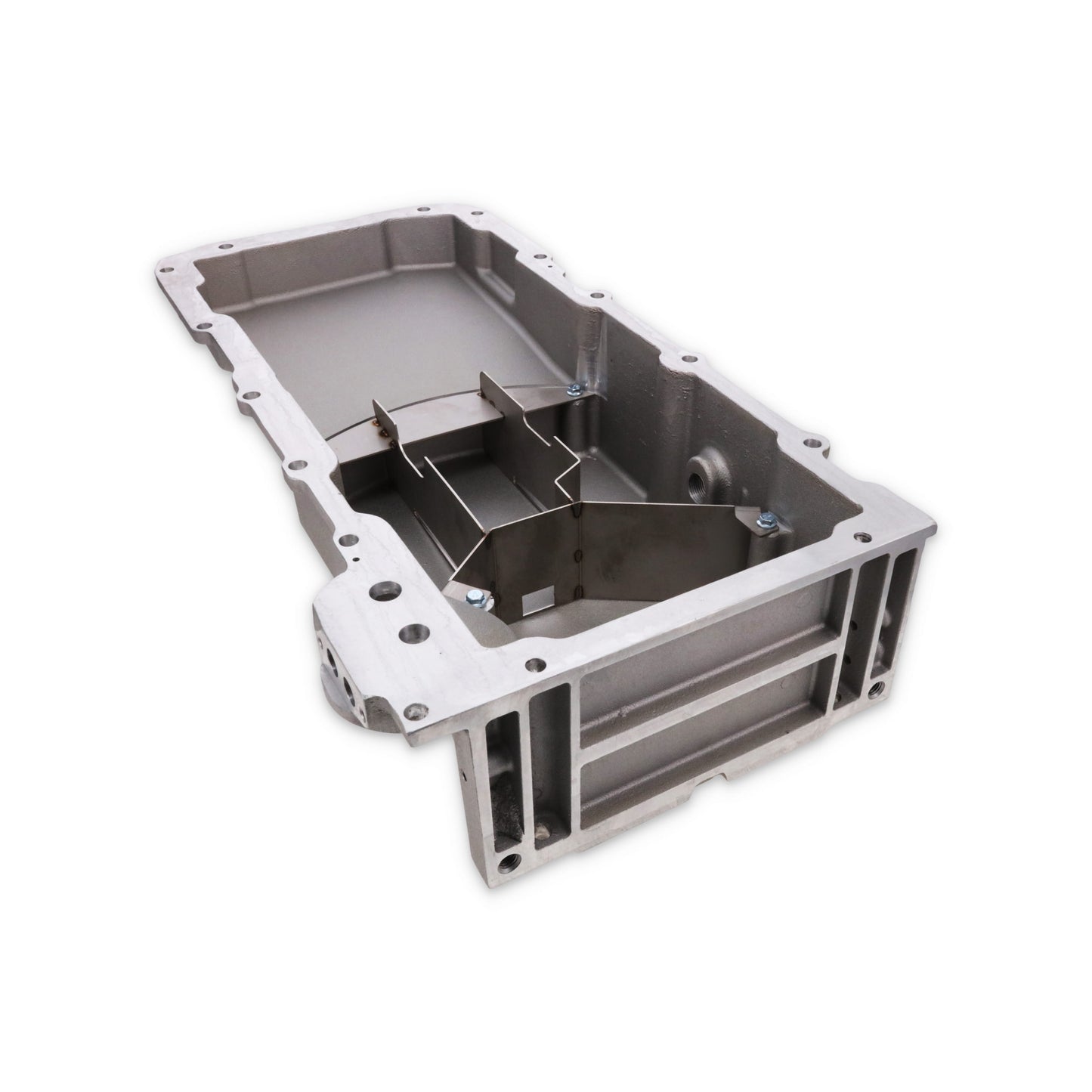

Baffle Included Yes
Baffled Yes
Capacity 6.0 qt.
Color Silver
Crank Shaft Wiper Included No
Dipstick Port No
Drain Plug Included Yes
Drain Thread Size M12 x 1.75
Engine Oil Cooler Return Fitting No
Finish Satin
Gasket Or Seal Included Yes
Kick Out Type Pan No
Material Aluminum
Maximum Depth 5.000 in.
Mounting Hardware Included Yes
Mounting Hole Quantity 15
Oil Filter Location Stock
Oil Filter Stud Included Yes
Oil Passage Cover Included Yes
Pickup Included No
Sump Location Rear
Sump Type Wet
Windage Tray Included No

Engine Fitment

COMPATIBLE WITH
Chevrolet Corvette C6 Wet-Sump Applications
• 2005-2007 Corvette 6.0L / 364 in³ LS2
• 2008-2013 Corvette 6.2L / 376 in³ LS3 wet-sump applications

NOTES:
• Designed for compatible 2005-2013 Chevrolet Corvette C6 wet-sump applications.
• Not intended for dry-sump Corvette applications unless verified with the complete oiling system.
• Verify compatibility with oil pickup tube, gasket, dipstick, windage tray, and installation hardware before installation.
• Corvette C6 Z06, ZR1, and certain Grand Sport manual applications used dry-sump oiling configurations and should be verified before purchase.

COMMON VEHICLE APPLICATIONS
• 2005-2007 Chevrolet Corvette Base LS2
• 2008-2013 Chevrolet Corvette Base LS3
• 2008-2013 Chevrolet Corvette convertible/coupe LS3 wet-sump applications
• Select C6 Corvette wet-sump LS swap applications

Q&A

What applications is this oil pan compatible with?
This oil pan is designed for COMPATIBLE WITH, CHEVROLET SMALL BLOCK V8 GEN. I, 5.0 L / 305 in3, 5.7 L / 350 in3, NOTES:, Fits 1996-2002 Chevy small block Vortec engines., As Vortec blocks do not have a water bypass, manifold is equipped with a provision to connect it to stock a water pump using a 5/8" heater hose..


Will this oil pan fit my engine?
This oil pan is intended for compatible engine applications and should match your engine block, oil pickup, and chassis clearance.


What does an oil pan do?
An oil pan stores engine oil and allows it to be circulated through the engine for lubrication and cooling.


Do I need a baffled oil pan?
Baffled oil pans help maintain oil pickup during hard driving and are recommended for performance applications.


What material is this oil pan made from?
This oil pan is made from aluminum, providing durability and resistance to heat and impact.


What finish does this oil pan have?
This oil pan features a satin finish, which affects appearance and corrosion resistance.


Do I need a specific oil pickup for this pan?
Yes, oil pans often require a matching pickup tube for proper oil flow and clearance.


Do I need a gasket for installation?
Yes, a proper gasket is required to prevent oil leaks during installation.


Do I need hardware for installation?
You may need bolts or fasteners depending on your engine setup.


Will this oil pan help improve engine performance?
Yes, a properly designed oil pan can improve oil control and engine reliability, especially in performance applications.


Is this a good upgrade over a stock oil pan?
Yes, aftermarket oil pans can offer increased capacity, improved oil control, and better durability.


Do I need to check clearance before installing this oil pan?
Yes, oil pan clearance with the chassis, crossmember, and exhaust should always be verified before installation.


Can this oil pan be used in performance builds?
Yes, oil pans are commonly upgraded in performance and custom engine builds.

Emissions Notice

This product does not require an Executive Order in California. By nature of its design this product does not require an emissions certification.
