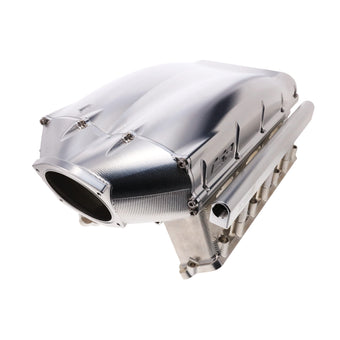

GM LS Rectangle Port V Series Billet Aluminum Hi-Rise Intake - Natural
GM LS Rectangle Port V Series Billet Aluminum Hi-Rise Intake - Natural
SKU: SKU: 81413
Low stock
Product Details
Features
- Fits GM LS Gen IV Rectangle Port engines
- Unique billet aluminum design
- Modular design for improved maintenance and installation
- Runner design improves airflow and performance
Description
TSP's V Series intake and fuel rail set-up is 2025's hot new item. Fresh off its award-winning turn at the 2024 SEMA Show, this billet aluminum kit features a beautiful aesthetic to turn heads, brilliant design to boost your engine's performance, and a modular design for easy installation and maintenance. Dress up your LS power plant with this one-of-a-kind set-up.
Specs
| Basic Operating RPM Range | 1,500-9,000 RPM |
| Center Maximum Height | 10.550 in. |
| Color | Silver |
| Deck Height | Standard |
| EGR Port | Yes |
| Front Maximum Height | 10.086 in. |
| Fuel Injection Style | Multi-port Fuel Injection |
| Fuel Injector Stye Provision | EV1 |
| Fuel Rail Color | Silver |
| Fuel Rail Finish | Natural |
| Fuel Rail Fitting Thread Diameter | -10 AN |
| Fuel Rail Material | Aluminum |
| Fuel Rails Included | Yes |
| Fuel System Type | Electronic Fuel Injection |
| Gasket Or Seal Included | Yes |
| Grade Type | Performance |
| Intake Port Shape | Rectangle |
| Manifold Absolute Pressure Sensor Port Included | Yes |
| Manifold Absolute Pressure Sensor Port Style | Gen IV 3-bar |
| Manifold Finish | Natural |
| Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 10 |
| Plenum Thickness | 8 mm |
| Rear Maximum Height | 8.933 in. |
| Removable Runners | Yes |
| Removable Throttle Body Flange | Yes |
| Removable Top | Yes |
| Runner Length | 4.800 in. |
| Single Or Dual Plane Type | Single Plane |
| Supplemental Boss Quantity | 2 |
| Throttle Body Bore Size | 102.200 mm |
Fitment
COMPATIBLE WITH:
CHEVROLET SMALL BLOCK V8 GEN. III (LS BASED)
• 6.2 L / 376 in3
Emissions Notice
This product is legal for off road use and non pollution controlled vehicles (1965 & older); however, it has not been tested or approved by the California Air Resources Board (CARB) for highway vehicles in the state of California. By purchasing this product, buyer agrees it will not be used on pollution controlled vehicles in California, or in a state with similar emissions regulations.
