Customize Your Chrysler Big Block 413-440 V8 Pro Series Ready to Run Ignition Kit
Customize Your Chrysler Big Block 413-440 V8 Pro Series Ready to Run Ignition Kit
SKU: SKU: JM8814-KT
Product Details
Features
- Fits Chrysler big block "RB" (413-440) and Hemi 426
Description
TSP’s Pro Series Ready to Run Distributor kit is perfect for a street performance ignition upgrade. It features a CNC-machined billet aluminum distributor with a ignition control built-in. Spark for this kit is provided by the 45,000 V oil-filled ignition coil.
Mechanical Advance & Circuit Board Module
An important feature on all Top Street Performance Pro Series distributors is the fully adjustable mechanical advance. This allows you to easily modify the distributor to achieve a variety of timing curves. Built using the latest circuit board technology, the included module eliminates the need for external ignition control, such as a CDI box. It also comes with a digital tachometer output. With a Pro Series Ready to Run distributor, just hook up your ignition coil, and you're good to go.

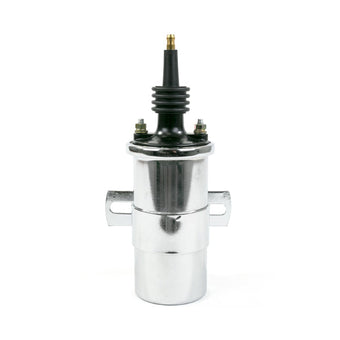

High-Powered Ignition Coil
TSP brings you the classic canister - sometimes called "beer can" - style ignition coil. Designed and constructed with our trademark attention to detail, you can be sure it'll perform exactly as described. With a whopping 45,000-volt output, you'll have more than enough spark for any performance distributor set-up.
Specs
| Trigger Style | Circuit Board Module With Magnetic Pick-Up |
| Advance Type | Mechanical And Vacuum |
| Cap Style | Male |
| Mechanical Tach Drive | No |
| Slip Collar | No |
| Coil Included | No |
| Coil Type | External |
| Gear Material | Steel |
| Housing Material | Machined Aluminum |
| Ignition Box Required | No |
| Marine Use | No |
| Coil Style | Canister |
| Internal Construction | Oil-Filled |
| Primary Resistance | 0.700 Ohms |
| Secondary Resistance | 4,700 Ohms |
| Maximum Voltage | 45,000 Volts (V) |
| Spark Duration | 350 Microseconds (µs) |
| Peak Current | 140 Milliamperes (Ma) |
| Turns Ratio | 100:1 |
| Inductance | 8.0 Millihenrys (Mh) |
| Coil Shape | Round |
| Housing Material | Billet Aluminum |
| Included | 3 Bushings And 4 Springs For Mechanical Advance, Color-Matched Spark Plug Wire Retainer With Screws, Vacuum Advance Block-Off Plate (Black), Power Extension Cable, Tachometer Output Extension Cable, Coil Mounting Bracket |
Fitment
CHRYSLER BIG BLOCK "RB" V8
• 6.8 L / 413 in3
• 7.0 L / 426 in3 commonly referred to as "426 Wedge"
• 7.2 L / 440 in3
CHRYSLER HEMI V8 GEN. II
• 426 in3
